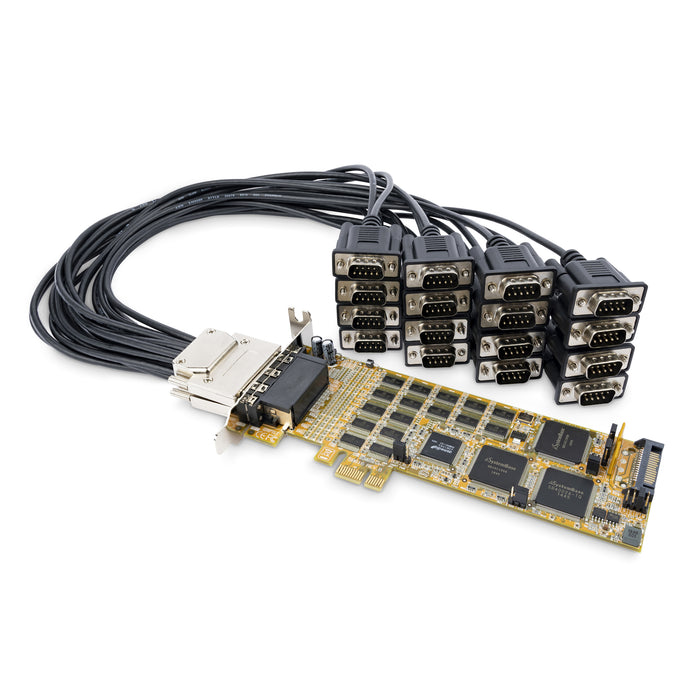

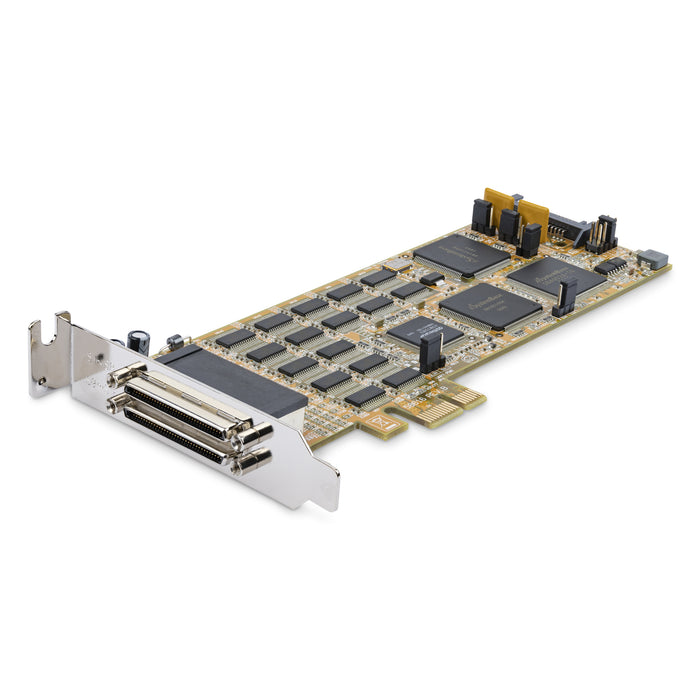

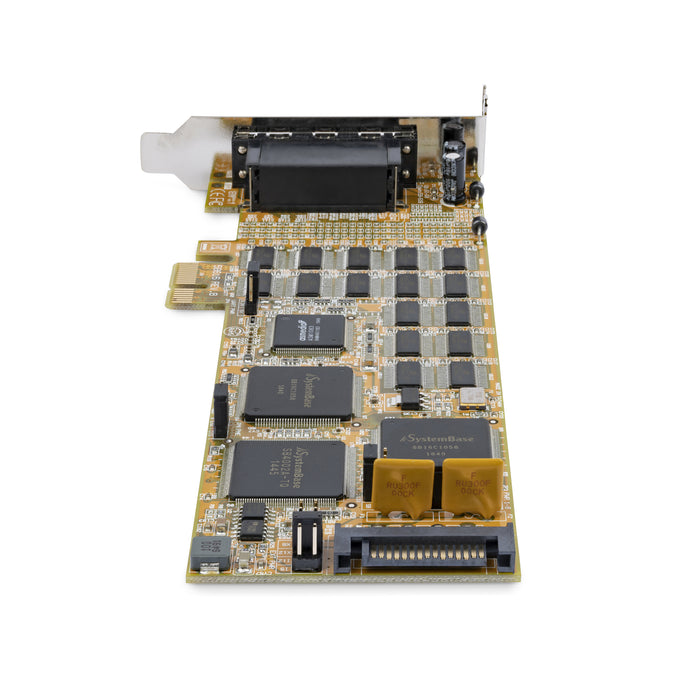

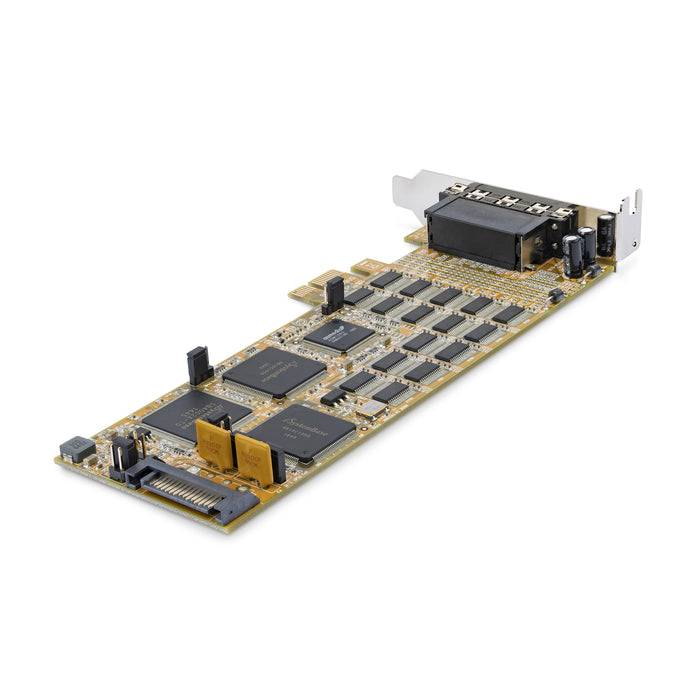

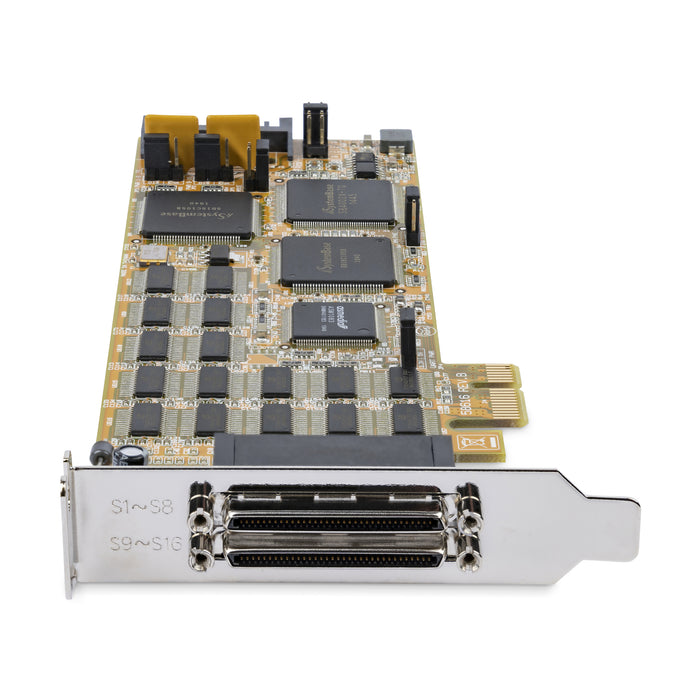

StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express - TAA, PCIe, Serial, Low-profile, PCIe 1.1, RS-232, Yellow

StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express - TAA. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Low-profile. Product colour: Yellow. Chipset: ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058, Baud rate: 921.6 Kbit/s, Data bits: 5, 6, 7, 8. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 68 mm, Depth: 168 mm, Height: 22 mm

• Internal
• Host interface: PCIe
• Output interface: Serial
• Yellow

Features

Ports & interfaces
Host interface	PCIe
Output interface	Serial
Expansion card form factor	Low-profile
Expansion card standard	PCIe 1.1
Serial ports quantity	16
Serial interface type	RS-232
Internal SATA ports quantity	1
Design
Internal	Yes
Product colour	Yellow
Features

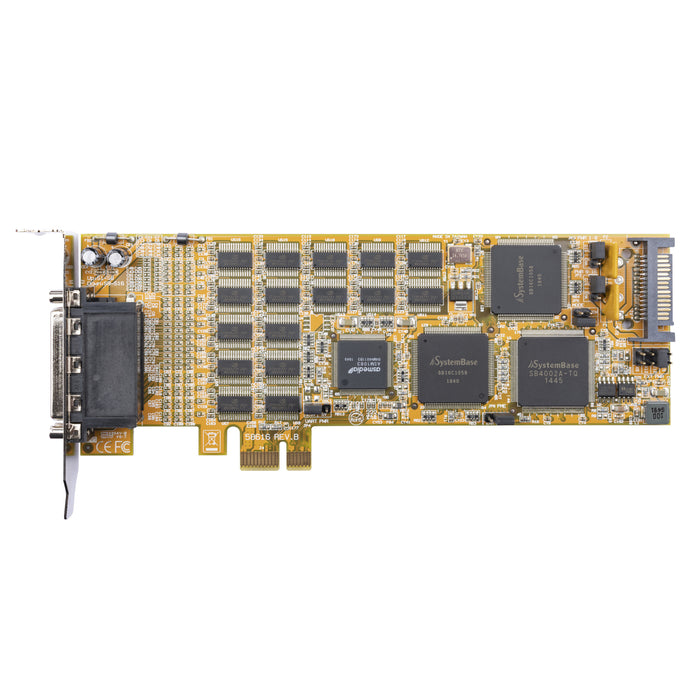

Chipset	ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 75 °C
Operating relative humidity (H-H)	10 - 90%
System requirements
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Technical details
Compliance certificates	CE, RoHS
Weight & dimensions
Width	68 mm
Depth	168 mm
Height	22 mm
Weight	70 g
Packaging data

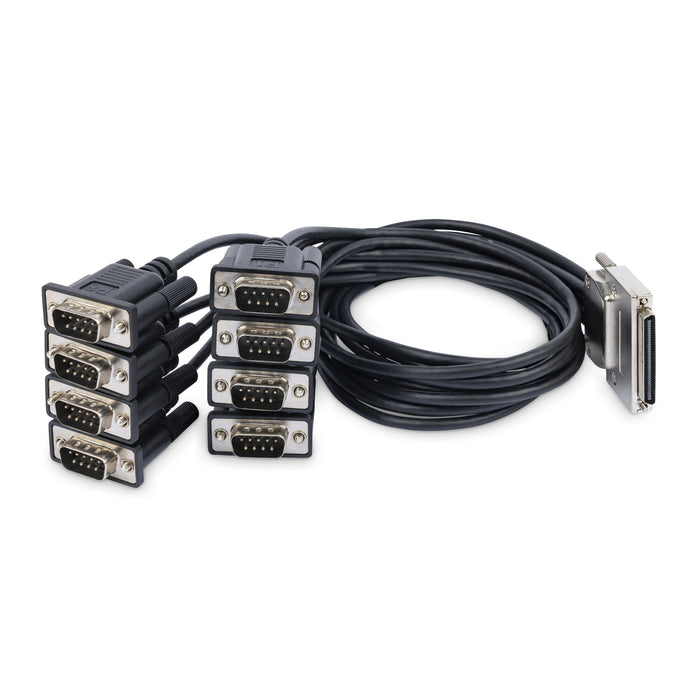

Cables included	RS-232
Mounting brackets included	Yes
Drivers included	Yes
Quick installation guide	Yes
Package width	194 mm
Package depth	294 mm
Package height	70 mm
Package weight	1.2 kg
Logistics data
Harmonized System (HS) code	84733020
Products per master (outer) case	14 pc(s)
Master (outer) case width	396 mm
Master (outer) case length	520 mm
Master (outer) case height	324 mm
Other features
Electrostatic Discharge (ESD) protection	15 kV
