StarTech.com Thunderbolt 5 Universal Docking Station, Multi-Display Hub, 8K 60Hz or 4K 144Hz, 120Gbps Bandwidth Boost, 140W PD, 30W Phone Charging, USB 10Gbps, 2.5G LAN, Wired, Thunderbolt 5, 140 W, 3.5 mm, 10,100,1000,2500 Mbit/s, IEEE 802.3bz

StarTech.com Thunderbolt 5 Universal Docking Station, Multi-Display Hub, 8K 60Hz or 4K 144Hz, 120Gbps Bandwidth Boost, 140W PD, 30W Phone Charging, USB 10Gbps, 2.5G LAN. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Networking standards: IEEE 802.3bz. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC, Data transfer rate: 40 Gbit/s. Output voltage: 20 V, Output current: 9 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 15.0 Sequoia

• Wired
• Host interface: Thunderbolt 5
• USB Power Delivery (USB PD)
• Ethernet LAN 10,100,1000,2500 Mbit/s Wake-on-LAN ready
• Full duplex
• MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
• Cable lock slot

Features

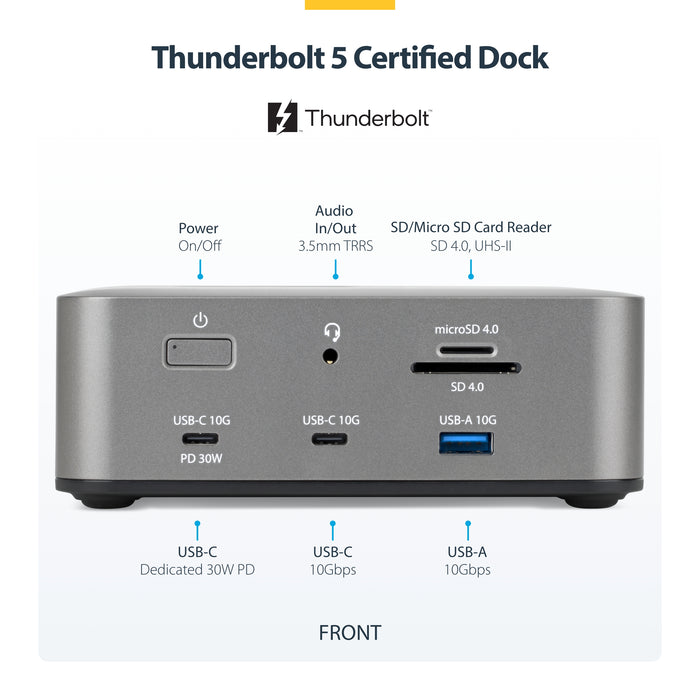

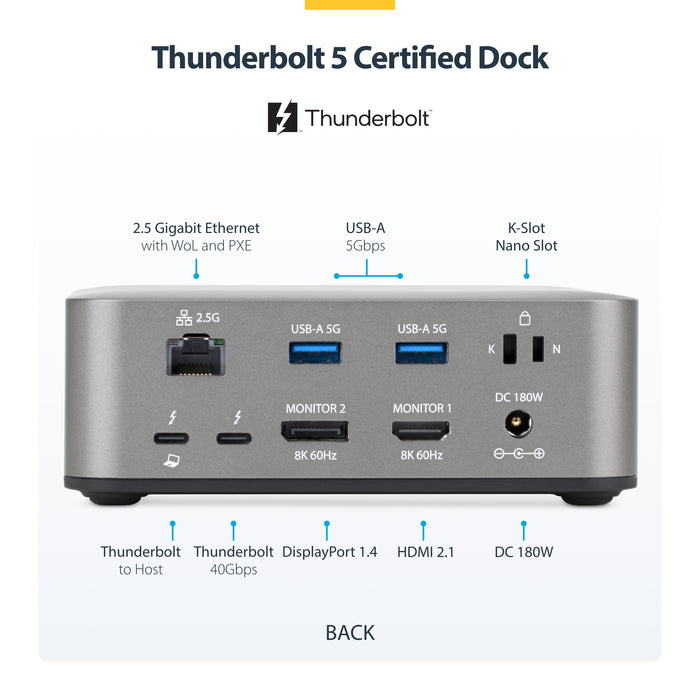

Ports & interfaces
Connectivity technology	Wired
Host interface	Thunderbolt 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	140 W
HDMI ports quantity	1
DisplayPorts quantity	1
Thunderbolt 5 ports quantity	1
Combo headphone/mic port	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Wake-on-LAN ready	Yes
Networking standards	IEEE 802.3bz
Full duplex	Yes
Performance
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Data transfer rate	40 Gbit/s

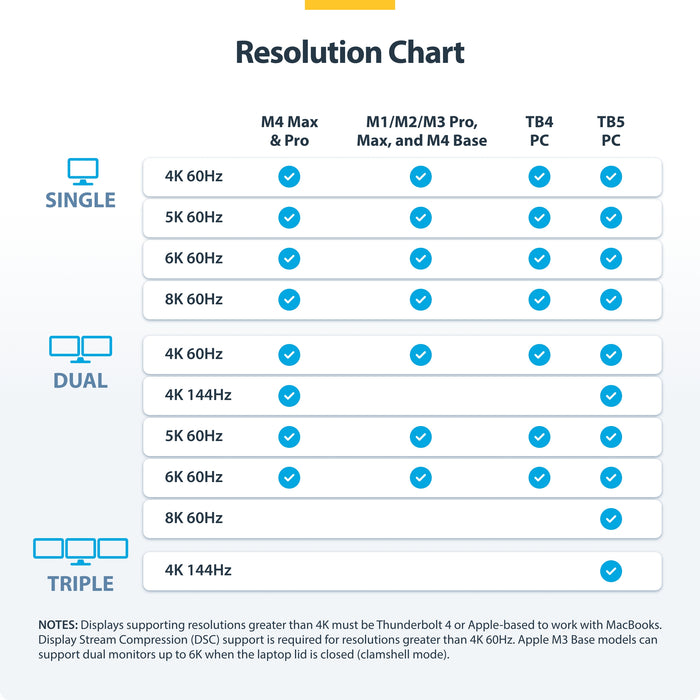

HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels

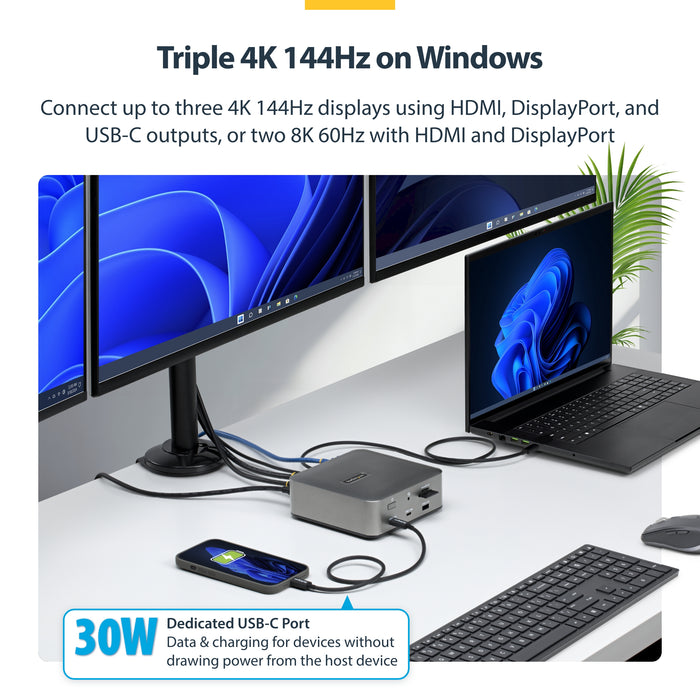

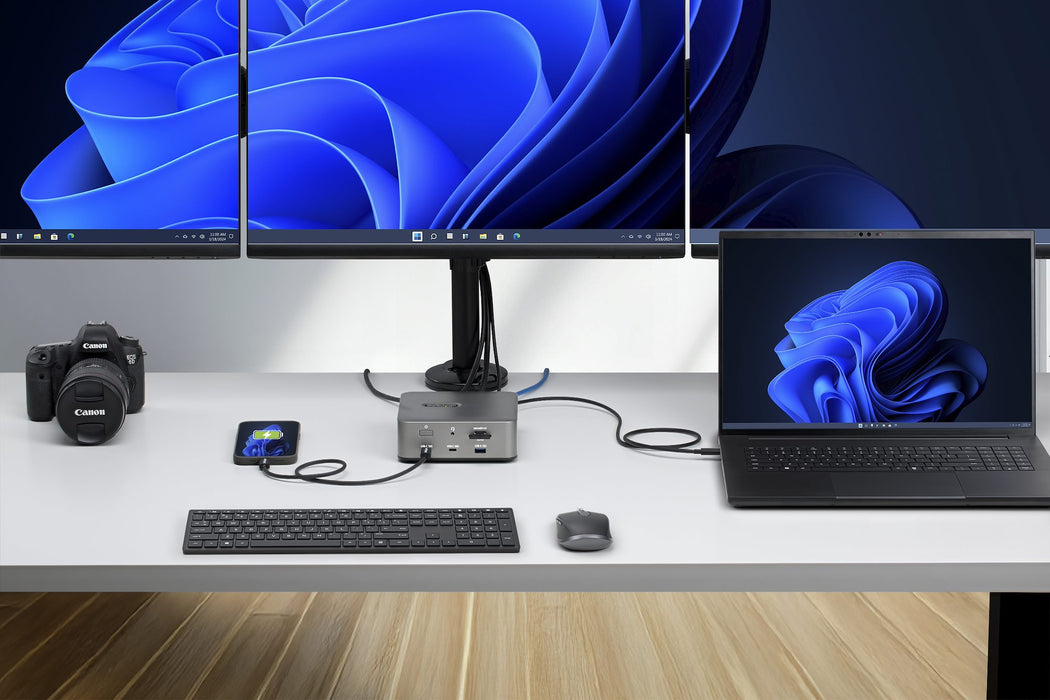

Number of displays supported	3
Maximum refresh rate	144 Hz
Cable lock slot	Yes
Cable lock slot type	Kensington, Nano
Product colour	Grey
On/off switch	Yes
LED indicators	Yes
UASP support	Yes
Housing material	Plastic
Power
Output voltage	20 V
Output current	9 A
Software

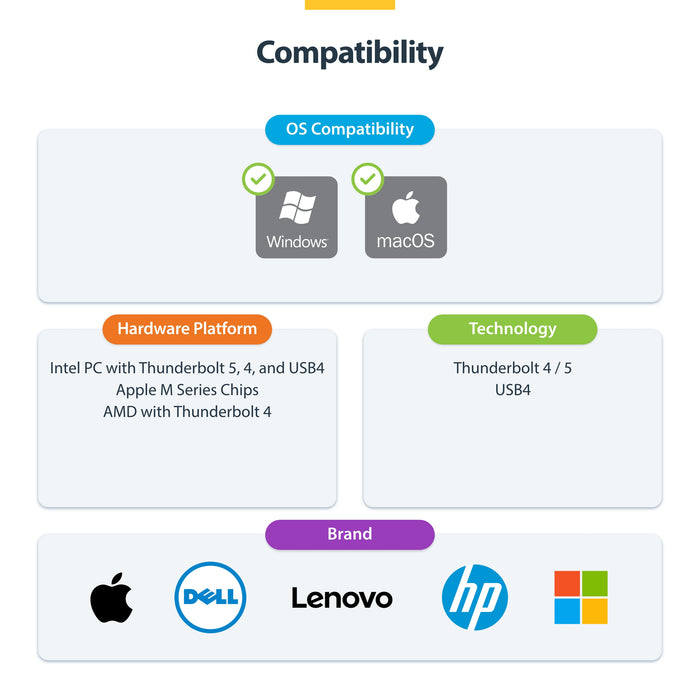

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 15.0 Sequoia
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	50 mm
Weight	592 g
Packaging data
Package width	302 mm
Package depth	169 mm
Package height	59 mm
Package weight	1.8 kg

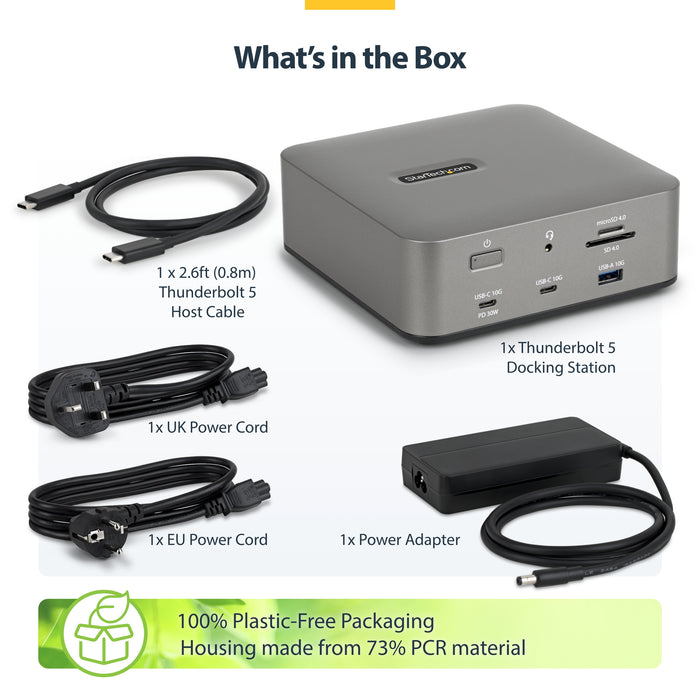

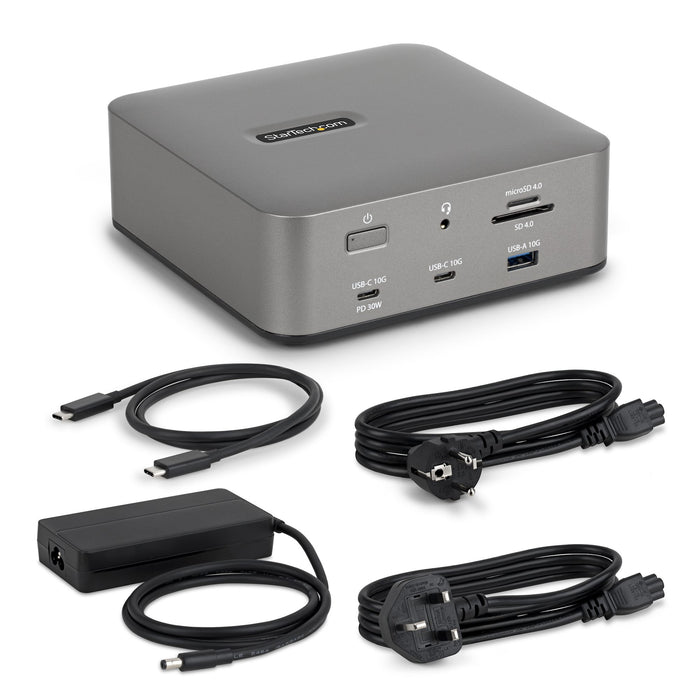

Packaging content
Cables included	Thunderbolt
AC adapter included	Yes
User guide	Yes
Technical details
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Logistics data
Products per master (outer) case	5 pc(s)
Master (outer) case width	360 mm
Master (outer) case length	330 mm
Master (outer) case height	170 mm
Other features
Chipset	Intel - JHL9480 (Barlow Ridge), Synaptics - VMM7100, VIA Labs - VL822, VIA Labs - VL817, Realtek - RTL8156B, Genesys Logic - GL3231S, Parade - FL5801, Realtek - ALC4030U
