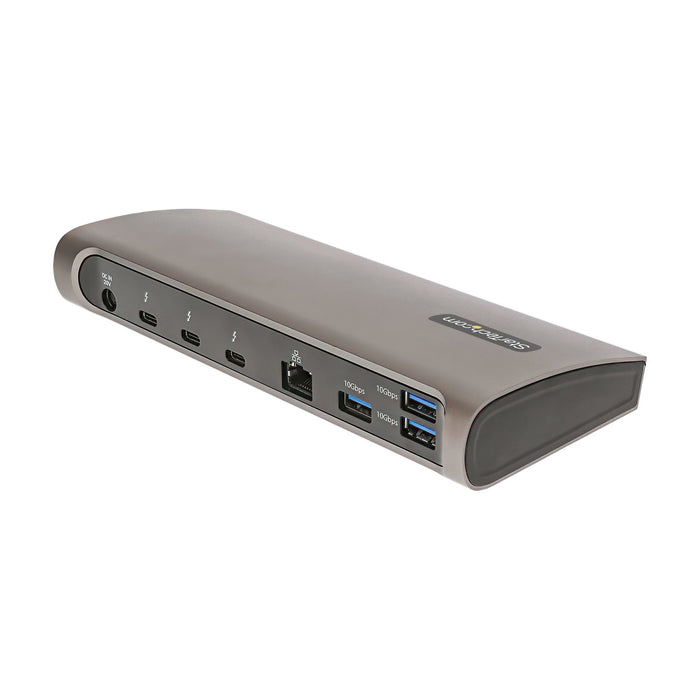

StarTech USB-C Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal Dual 4K 60Hz / Single 8K Thunderbolt Dock, 96W Laptop Charging

StarTech.com USB-C Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal Dual 4K 60Hz / Single 8K Thunderbolt Dock, 96W Laptop Charging. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 96 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Compatible memory cards: MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC, HD type: 8K Ultra HD. Compatible power plug types: EU. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura

• Wired
• Host interface: Thunderbolt 4
• USB Power Delivery (USB PD)
• Ethernet LAN 10,100,1000 Mbit/s Wake-on-LAN ready
• Auto MDI/MDI-X Full duplex
• MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
• Cable lock slot

Features

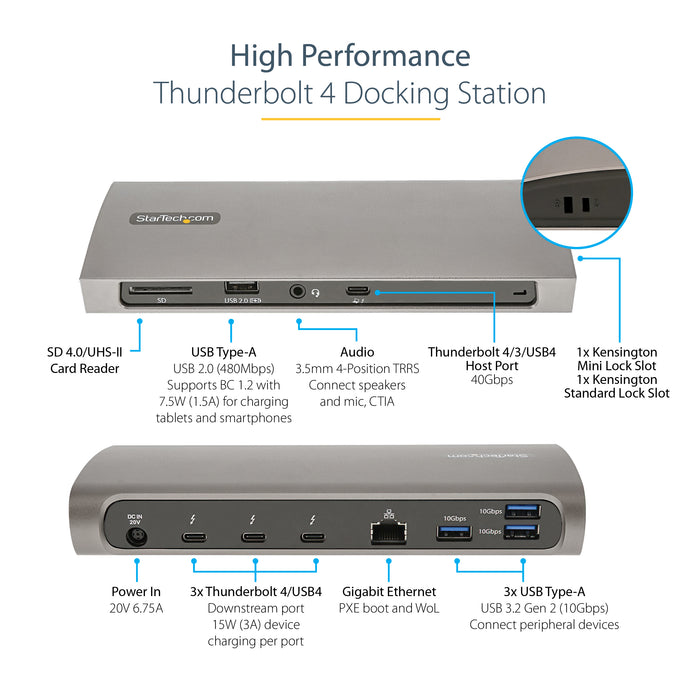

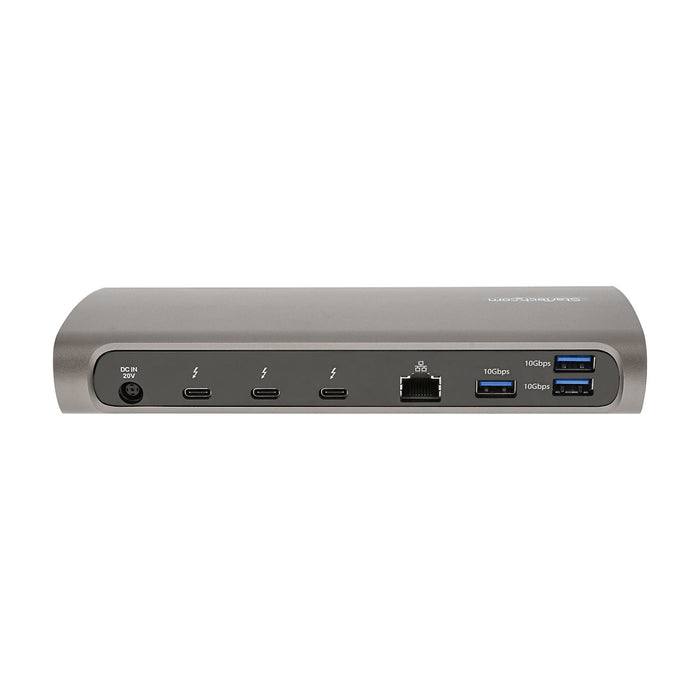

Ports & interfaces
Connectivity technology	Wired
Host interface	Thunderbolt 4
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	96 W
Thunderbolt 4 ports quantity	3
Combo headphone/mic port	Yes
Headphone outputs	1
DC-in jack	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Auto MDI/MDI-X	Yes
Full duplex	Yes
Performance
Card reader integrated	Yes
Compatible memory cards	MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
HD type	8K Ultra HD

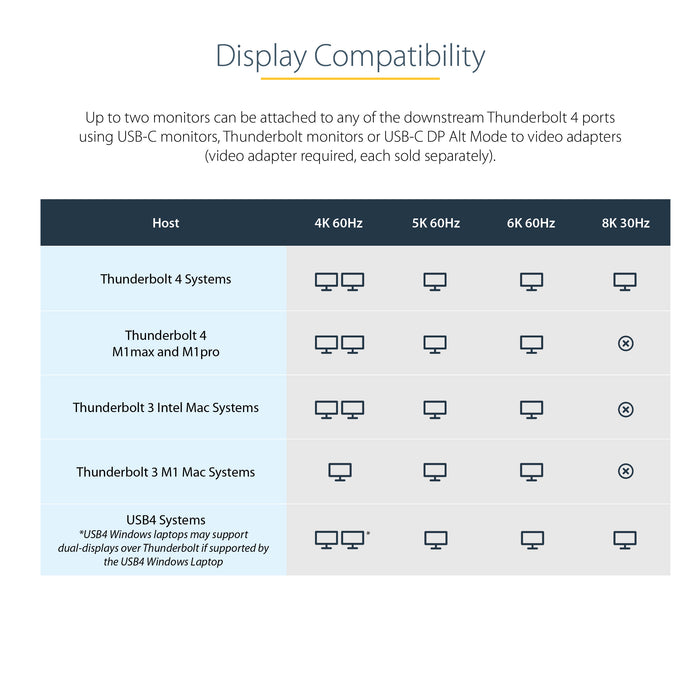

Number of displays supported	2
Maximum refresh rate	60 Hz

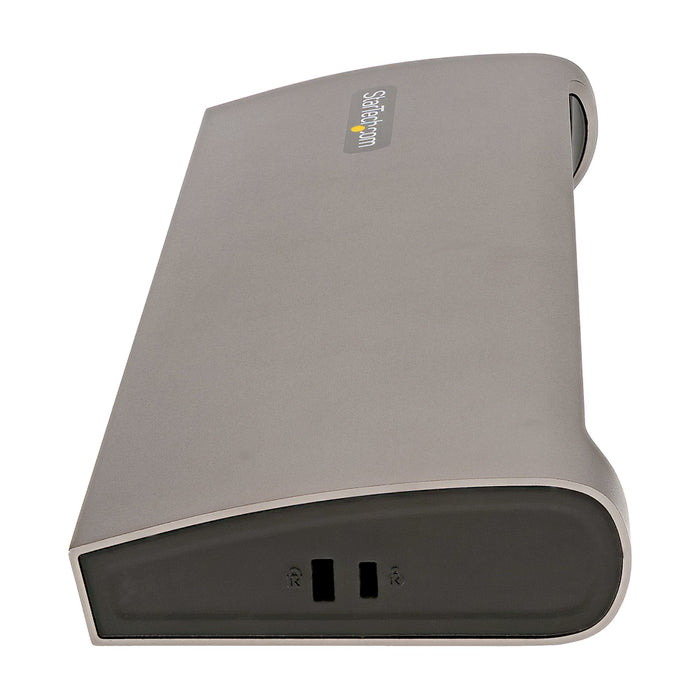

Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black, Grey
LED indicators	Yes
Housing material	Aluminium, Plastic
Power
Compatible power plug types	EU
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

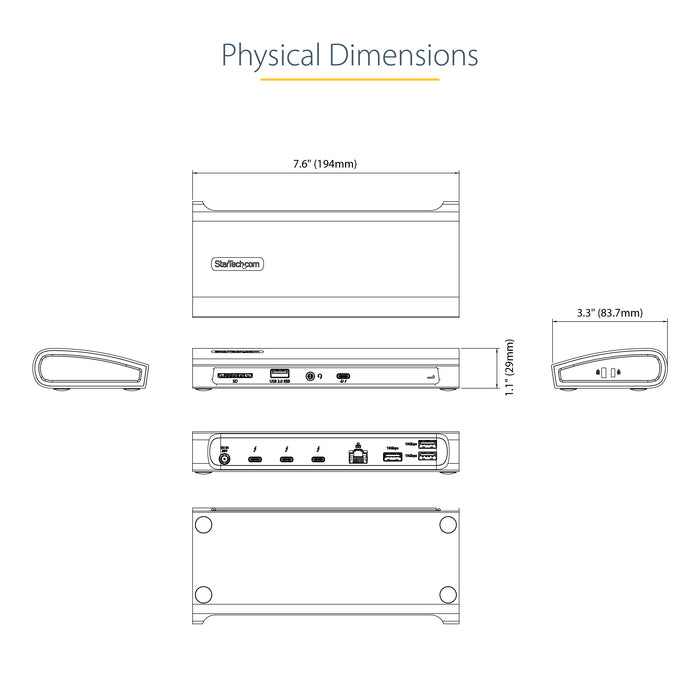

Weight & dimensions
Width	194 mm
Depth	84 mm
Height	29 mm
Weight	1 kg
Packaging data
Package width	230 mm
Package depth	145 mm
Package height	90 mm
Package weight	1.1 kg

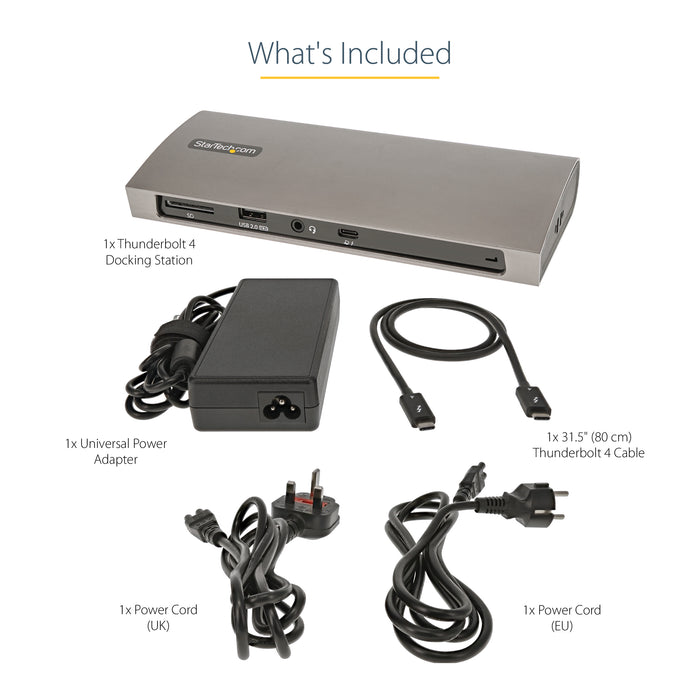

Packaging content

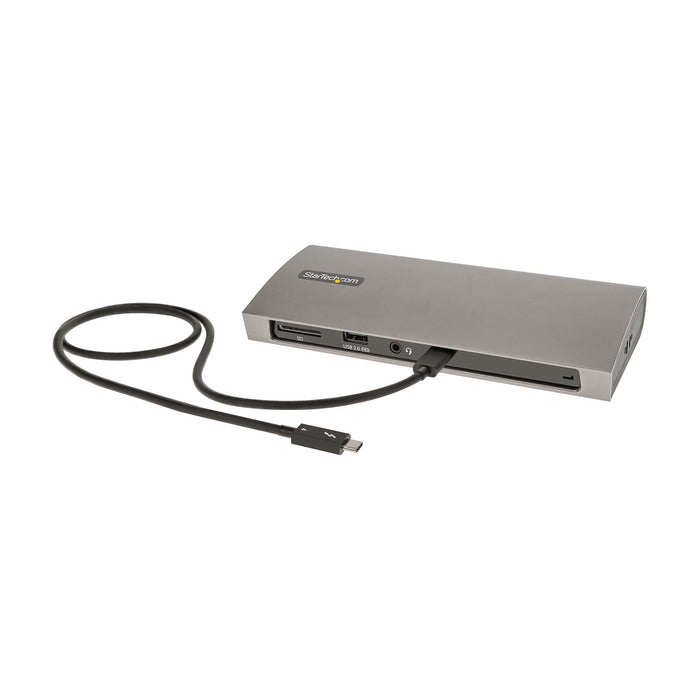

Cables included	Thunderbolt
AC adapter included	Yes
Quick start guide	Yes
Technical details
Compliance certificates	CE, RoHS
Logistics data
Products per master (outer) case	8 pc(s)
Master (outer) case width	380 mm
Master (outer) case length	305 mm
Master (outer) case height	265 mm
Harmonized System (HS) code	84733020
Other features
Cable length	0.8 m
Chipset	Intel - JHL8440, Cypress - CYUSB4357, Parade - FL5801, Parade - FL5801, Cypress - CYPD5235, Realtek - RTL8153B, Realtek - ALC4042, Genesys Logic - GL3226
