StarTech.com Universal USB4 & Thunderbolt 4 Docking Station, Quad Display on Windows, Dual Display on MacBook, HDMI DP Dock with 100W Laptop Charging, Wired, Thunderbolt 4, 98 W, 3.5 mm, 10,100,1000,2500 Mbit/s, 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T

StarTech.com Universal USB4 & Thunderbolt 4 Docking Station, Quad Display on Windows, Dual Display on MacBook, HDMI DP Dock with 100W Laptop Charging. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 98 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Copper ethernet cabling technology: 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC, Data transfer rate: 40 Gbit/s. Power source type: DC, AC input voltage: 110 - 240 V, Input current: 2.5 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

• Wired
• Host interface: Thunderbolt 4
• USB Power Delivery (USB PD)
• Ethernet LAN 10,100,1000,2500 Mbit/s 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T
• Full duplex
• MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
• Cable lock slot

Features

Ports & interfaces
Connectivity technology	Wired
Host interface	Thunderbolt 4
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	98 W
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4
Combo headphone/mic port	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Copper ethernet cabling technology	2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T
Full duplex	Yes
Performance
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Data transfer rate	40 Gbit/s

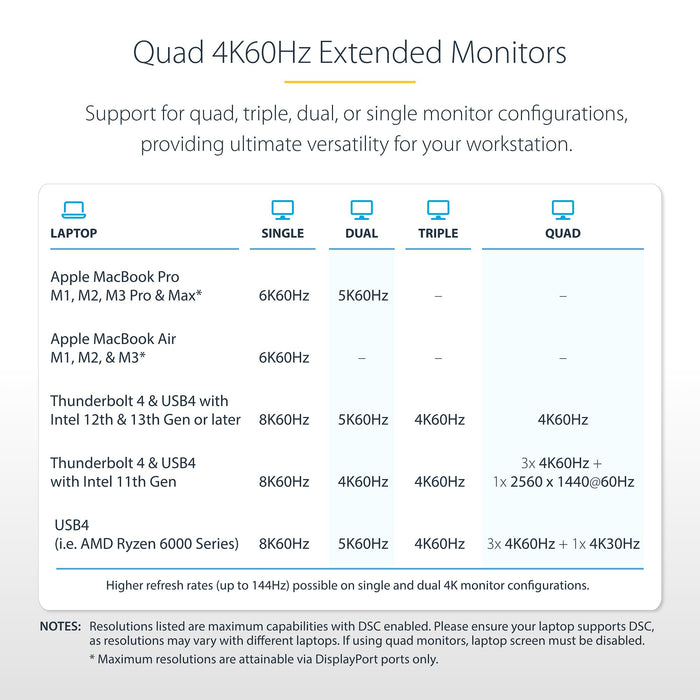

HD type	8K Ultra HD
Maximum digital resolution	7680 x 4320 pixels
Maximum refresh rate	60 Hz

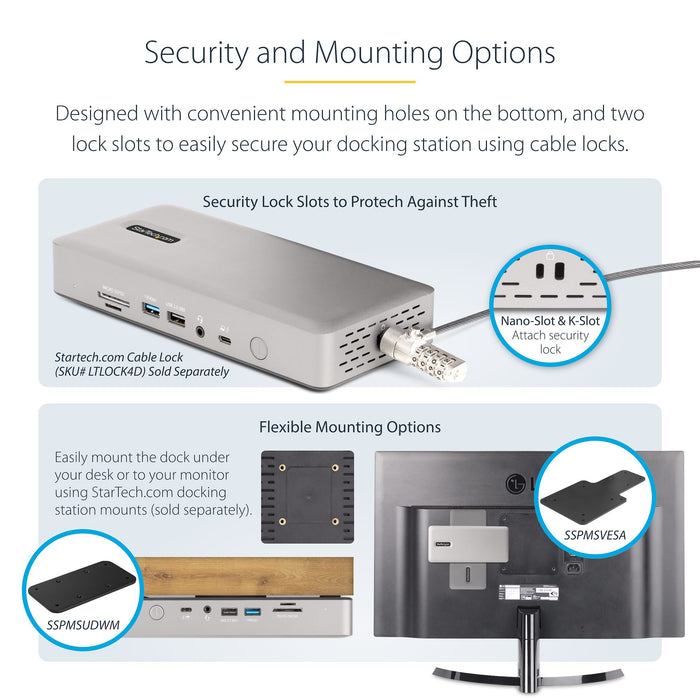

Cable lock slot	Yes
Cable lock slot type	Kensington, Nano
Product colour	Grey
On/off switch	Yes
LED indicators	LAN, Power
UASP support	Yes
Housing material	Aluminium
Power
Power source type	DC
AC input voltage	110 - 240 V
Input current	2.5 A
Output voltage	20 V
Output current	9 A
Power consumption (max)	180 W
Compatible power plug types	EU, UK

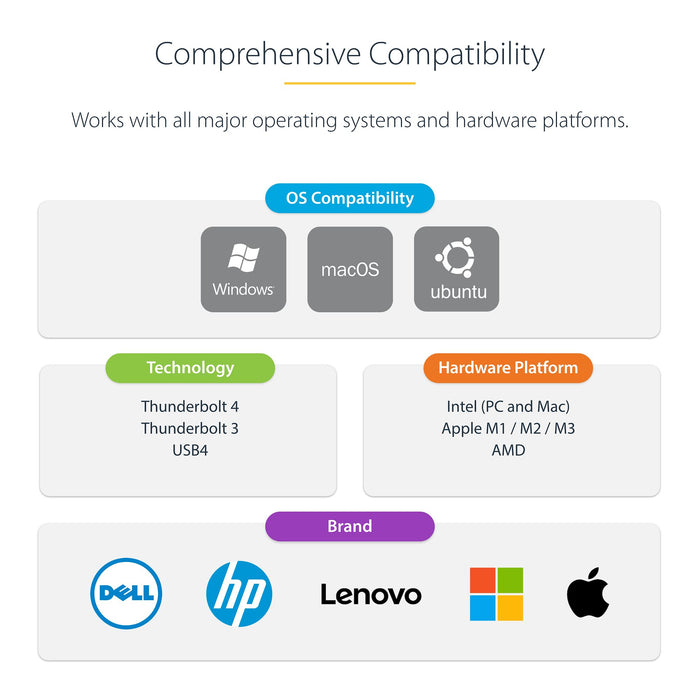

Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Sustainability
Sustainability compliance	Yes

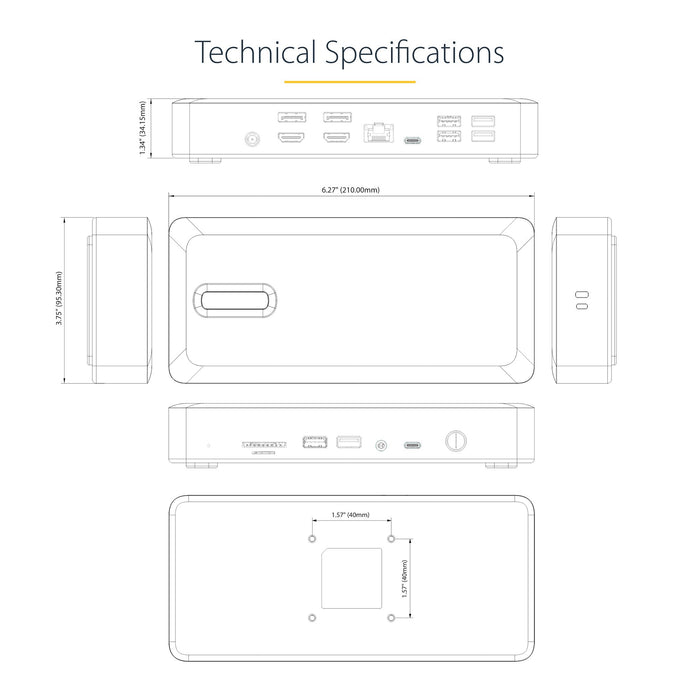

Weight & dimensions
Width	210 mm
Depth	96 mm
Height	34 mm
Weight	200 g
Packaging data
Package width	235 mm
Package depth	230 mm
Package height	90 mm
Package weight	1.4 kg

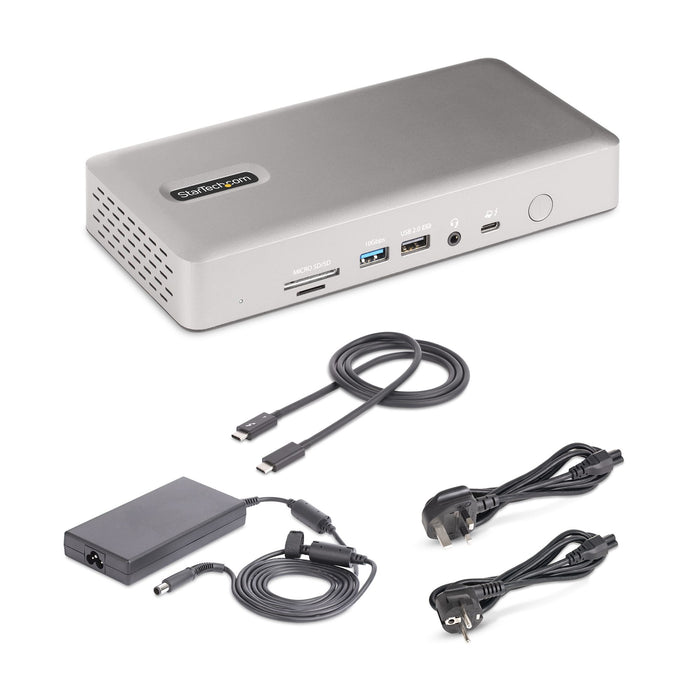

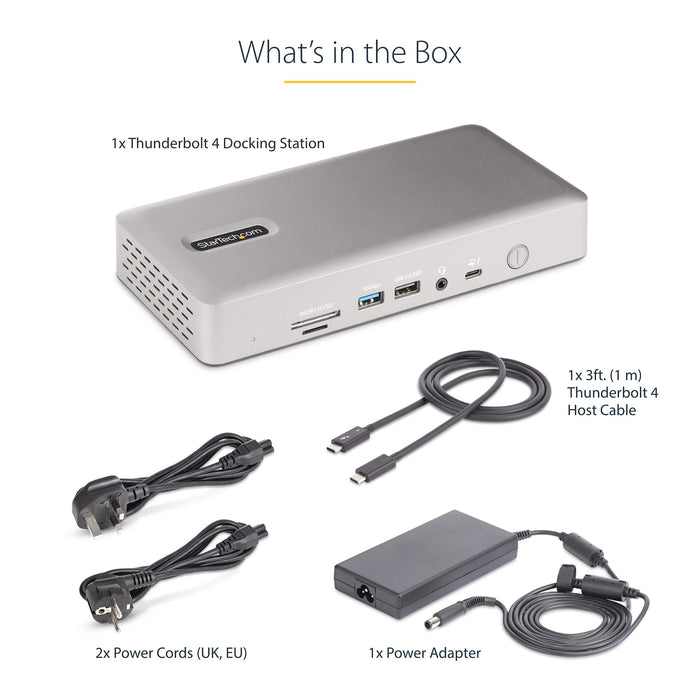

Packaging content
Cables included	Thunderbolt
AC adapter included	Yes
Quick start guide	Yes
Technical details
Compliance certificates	CE, RoHS
Logistics data
Products per master (outer) case	8 pc(s)
Master (outer) case width	380 mm
Master (outer) case length	310 mm
Master (outer) case height	270 mm
Other features
Chipset	Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546
