StarTech DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m , TAA (Multi-mode)

StarTech.com DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m (Multi-mode) with Pre-installed SFP+ Modules, 3x USB HID - TAA. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 300 m. Transmitter local video port type: DisplayPort. Receiver local video port type: DisplayPort. AC input voltage: 100 - 240 V, Input current: 0.3 A, AC adapter output voltage: 5 V. Transmitter width: 7.4 cm, Transmitter depth: 10 cm, Transmitter height: 2.8 cm

• Transmitter & receiver
• Wired Maximum transfer distance: 300 m
• Maximum digital resolution: 4096 x 2160 pixels
• Mean time between failures (MTBF): 156000 h
• Receiver local video port type: DisplayPort
• Power consumption (transmitter) (max): 10 W Power consumption (receiver) (max): 10 W
• Black

Features

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	300 m
Maximum digital resolution	4096 x 2160 pixels
Maximum refresh rate	60 Hz
Supported resolutions	4096 x 2160 @ 60hz 3840 x 2160 @ 60hz 3440 x 1440 @ 60hz 3200 x 1800 @ 60hz 3072 x 1728 @ 60hz 2560 x 1440 @ 60hz 2048 x 1536 @ 60hz 1920 x 1200 @ 60hz 3840 x 1080 @ 60hz 1920 x 1080 @ 60hz 1760 x 990 @ 60hz 1680 x 1050 @ 60hz 1600 x 1200 @ 60hz 1600 x 900 @ 60hz 1440 x 900 @ 60hz 1366 x 768 @ 60hz 1280 x 1024 @ 60hz 1280 x 720 @ 60hz 1128 x 634 @ 60hz 1024 x 768 @ 60hz 800 x 600 @ 60hz
On Screen Display (OSD)	No
Product colour	Black
LED indicators	Yes
Transmitter
Transmitter local video port	Yes
Transmitter local video port type	DisplayPort
Number of displays supported	1
Transmitter Micro-USB ports quantity	1
Receiver
Receiver local video port type	DisplayPort
Receiver Micro-USB ports quantity	2
Ports & interfaces
Installed SFP+ modules quantity	2
USB 1.1 ports quantity	3
Power
AC input voltage	100 - 240 V
Input current	0.3 A
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (transmitter) (max)	10 W
Power consumption (receiver) (max)	10 W
Weight & dimensions
Transmitter width	7.4 cm
Transmitter depth	10 cm
Transmitter height	2.8 cm
Transmitter weight	235 g
Receiver width	7.4 cm
Receiver depth	10 cm
Receiver height	2.8 cm
Receiver weight	235 g
Packaging data
Package width	308 mm
Package depth	179 mm
Package height	72 mm

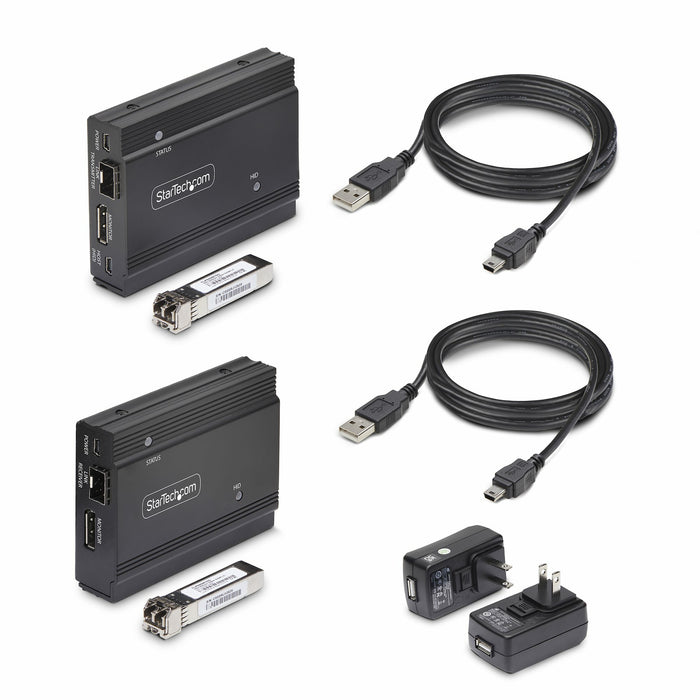

Packaging content
Cables included	Mini-USB
Quick installation guide	Yes
Included power plug types	ANZ, EU, NA, UK
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Sustainability
Sustainability compliance	Yes
Other features
Extended display identification data (EDID)	Yes
Mean time between failures (MTBF)	156000 h
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Logistics data
Master (outer) case width	420 mm
Master (outer) case length	328 mm
Master (outer) case height	265 mm
Products per master (outer) case	6 pc(s)
