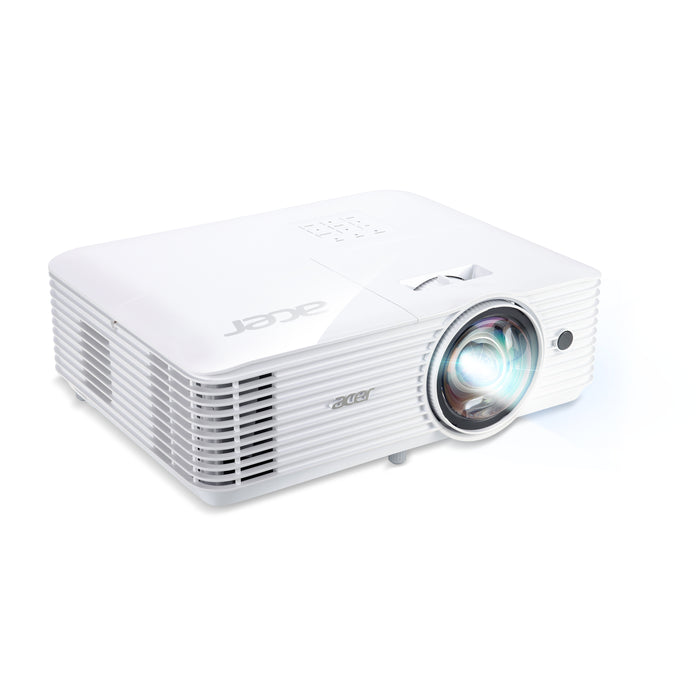

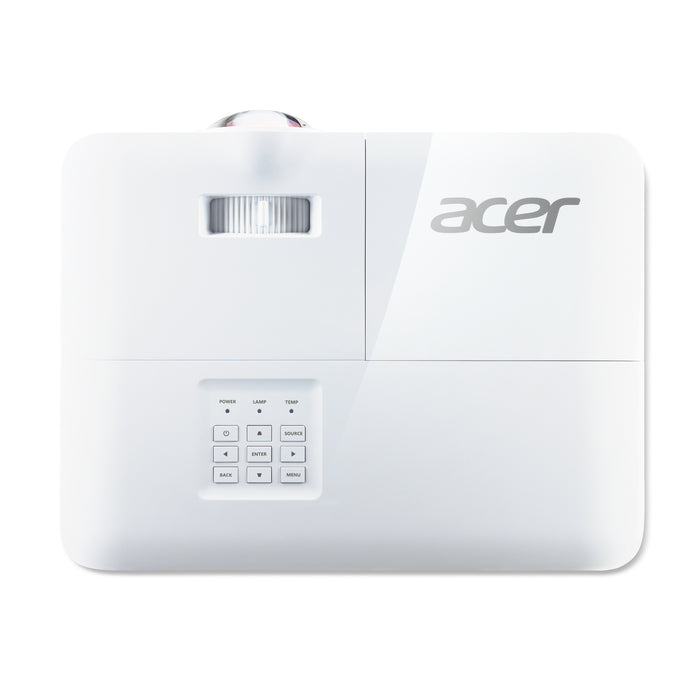

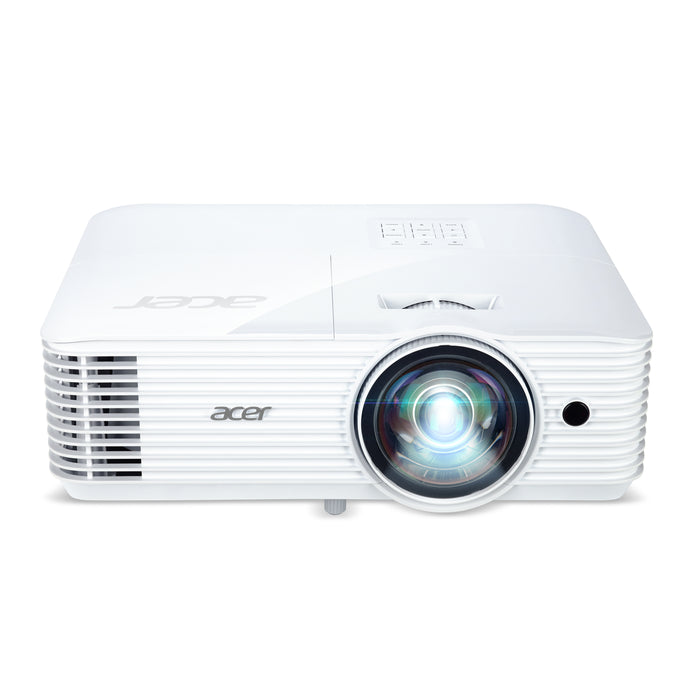

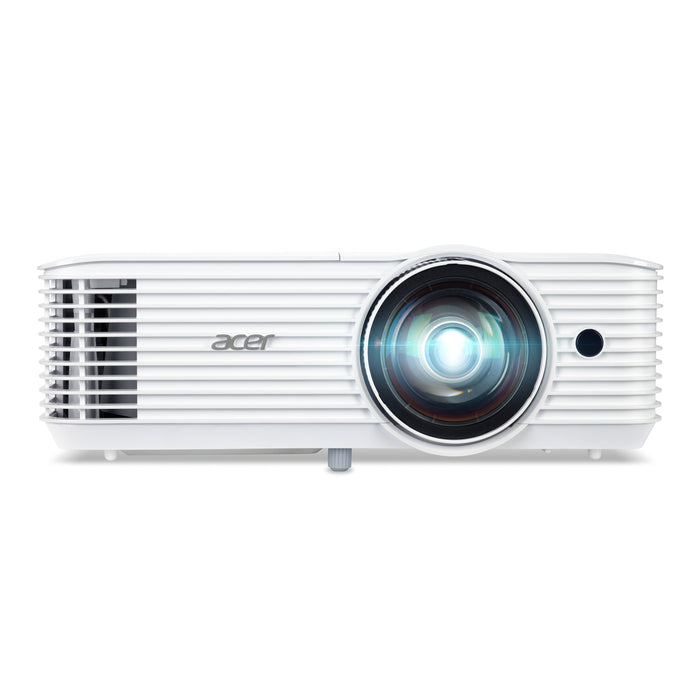

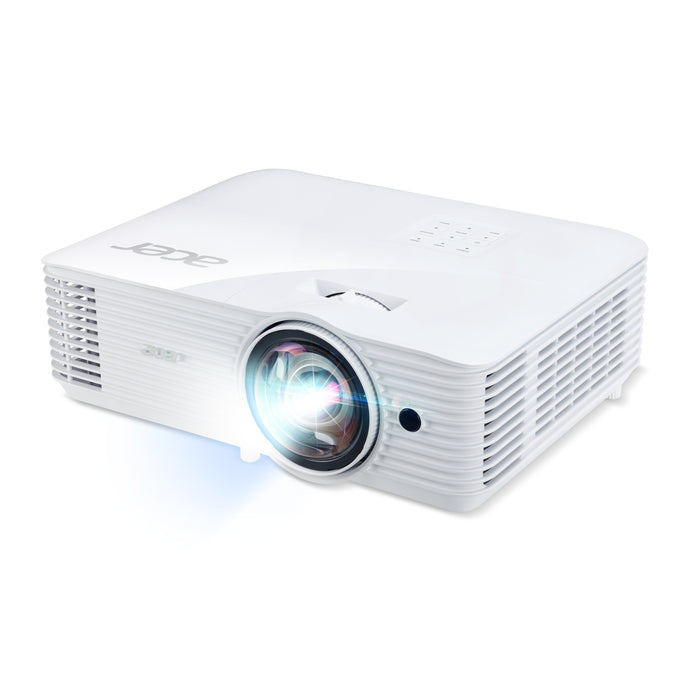

Acer Education S1286HN, 3500 ANSI lumens, DLP, XGA (1024x768), 20000:1, 4:3, 4:3, 16:9

Acer Education S1286HN. Projector brightness: 3500 ANSI lumens, Projection technology: DLP, Projector native resolution: XGA (1024x768). Service life of light source: 5000 h, Service life of light source (economic mode): 6000 h, Lamp type: OSRAM. Throw ratio: 0.62 (1955.80 mm@970 mm). Analog signal format system: NTSC, PAL, SECAM, Supported graphics resolutions: 1024 x 768 (XGA), 1920 x 1200 (WUXGA). Serial interface type: RJ-45

• Ceiling-mounted projector White
• DLP 3500 ANSI lumens
• 5000 h
• XGA (1024x768) 4:3 20000:1
• Number of colours: 1.073 billion colours
• Zoom capability
• Ethernet LAN
• Built-in speaker(s) 16 W
• AC 270 W

Features

Projector
Supported aspect ratios	4:3, 16:9
Projection distance	0.4 - 3.8 m
Projector brightness	3500 ANSI lumens
Projection technology	DLP
Projector native resolution	XGA (1024x768)
Contrast ratio (typical)	20000:1
Native aspect ratio	4:3
Number of colours	1.073 billion colours
Keystone correction, horizontal	-10 - 10°
Keystone correction, vertical	-15 - 15°
Horizontal synchronization (min)	15 kHz
Horizontal synchronization (max)	100 kHz
Vertical synchronization (min)	0.024 kHz
Vertical synchronization (max)	0.12 kHz
Light source
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
Lamp type	OSRAM
Lamp power	220 W
Lamps quantity	1 lamp(s)
Lens system
Zoom capability	Yes
Throw ratio	0.62 (1955.80 mm@970 mm)
Video
Analog signal format system	NTSC, PAL, SECAM
Full HD	No
Supported graphics resolutions	1024 x 768 (XGA), 1920 x 1200 (WUXGA)

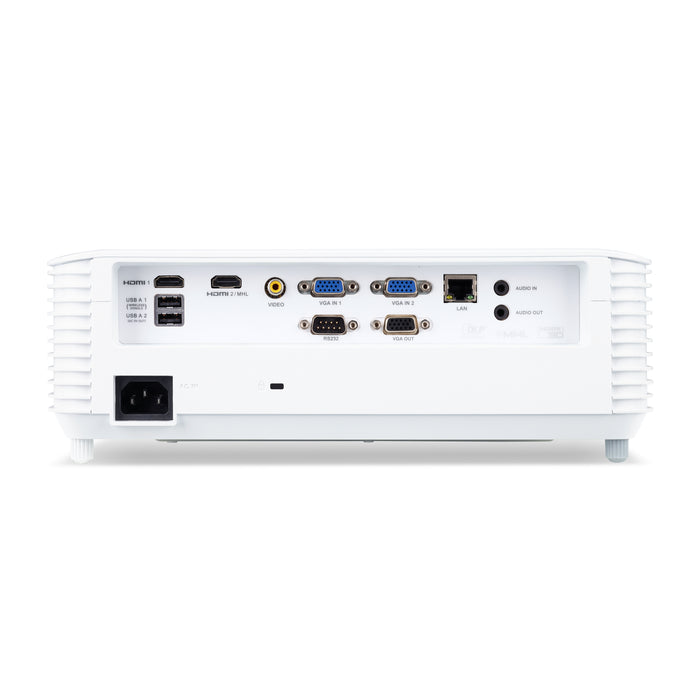

Ports & interfaces
Audio (L/R) in	1
Audio (L/R) out	1
Serial interface type	RJ-45
VGA (D-Sub) ports quantity	2
HDMI ports quantity	2
Composite video in	1
DVI port	No
Mobile High-Definition Link (MHL)	No
Network
Smart TV	No
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No
Storage
Card reader integrated	No
Features
Projection modes	Ceiling, Front, Rear
Compatible operating systems	Mac Windows
Multimedia
Built-in speaker(s)	Yes
RMS rated power	16 W
Number of built-in speakers	1
Design
Product type	Ceiling-mounted projector
Product colour	White
Placement	Ceiling
Cable lock slot	Yes
Cable lock slot type	Kensington
Display
Built-in display	No
Power
Power source	AC
Power consumption (typical)	270 W
AC input voltage	120 - 230 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Weight	3.1 kg
Packaging content
Remote control included	Yes
Batteries included	Yes
Cables included	AC, VGA
Logistics data
Harmonized System (HS) code	85286200
