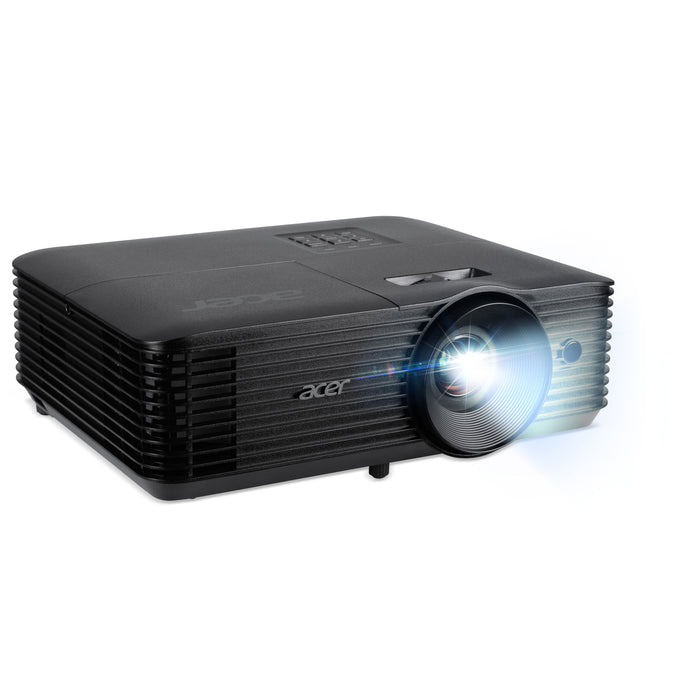

Acer X1328 DLP Projector, WXGA (1280×800), 5000 ANSI Lumens, 5000 ANSI lumens, DLP, WXGA (1280x800), 20000:1, 16:10, 685.8 - 7620 mm (27 - 300")

Acer X1328 DLP Projector, WXGA (1280×800), 5000 ANSI Lumens. Projector brightness: 5000 ANSI lumens, Projection technology: DLP, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 5000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Focal length range: 21.85 - 24 mm, Aperture range (F-F): 2.41 - 2.53. Analog signal format system: NTSC, PAL, SECAM, Digital signal format system: EDTV, HDTV, SDTV, Supported graphics resolutions: 1920 x 1200 (WUXGA). Serial interface type: RS-232, HDMI connector type: Full-size, HDMI version: 1.4b

• Business Standard throw projector Black
• DLP 5000 ANSI lumens
• Lamp 5000 h
• WXGA (1280x800) 16:10 20000:1
• Screen size compatibility: 685.8 - 7620 mm (27 - 300") Number of colours: 1.07 billion colours
• Focus: Manual Zoom capability
• Built-in speaker(s) 3 W
• AC 275 W

Features

Projector
Supported aspect ratios	4:3, 16:9
Screen size compatibility	685.8 - 7620 mm (27 - 300')
Projection distance	1 - 10 m

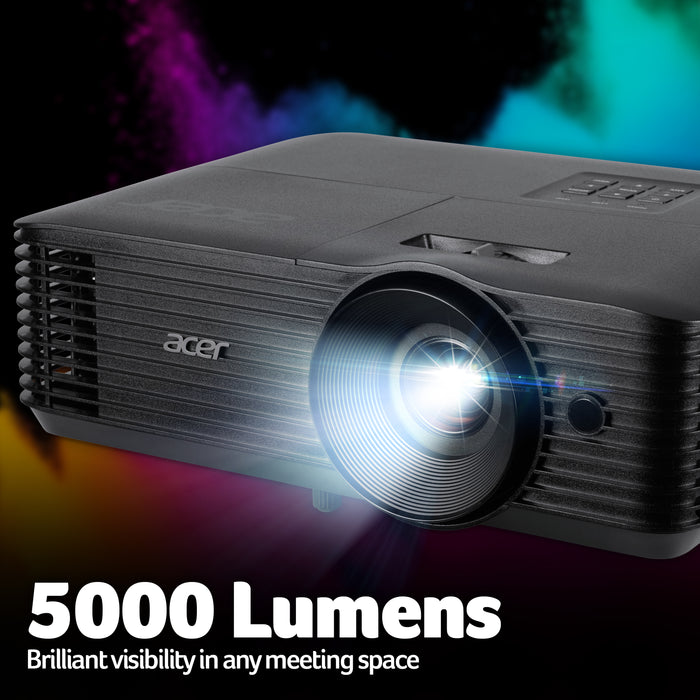

Projector brightness	5000 ANSI lumens
Projection technology	DLP

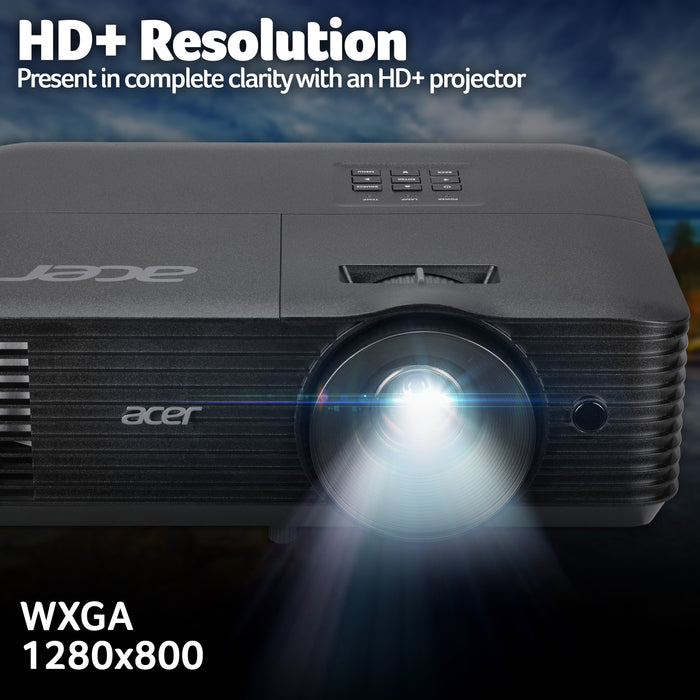

Projector native resolution	WXGA (1280x800)
Contrast ratio (typical)	20000:1
Native aspect ratio	16:10
Number of colours	1.07 billion colours
Projector brightness (economic mode)	4000 ANSI lumens
Uniformity	80%
Horizontal scan range	15 - 100 kHz
Vertical scan range	24 - 120 Hz
Keystone correction, vertical	-40 - 40°
Light source
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Lamp type	OSRAM
Lamp power	240 W
Lamps quantity	1 lamp(s)
Lens system
Focus	Manual
Focal length range	21.85 - 24 mm
Aperture range (F-F)	2.41 - 2.53
Zoom capability	Yes
Zoom type	Manual
Zoom ratio	1.1:1
Digital zoom	2x
Optical zoom	1.1x
Throw ratio	1.54 – 1.72 (60' @ 2 m)
Offset	125%
Video
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	EDTV, HDTV, SDTV
Supported graphics resolutions	1920 x 1200 (WUXGA)

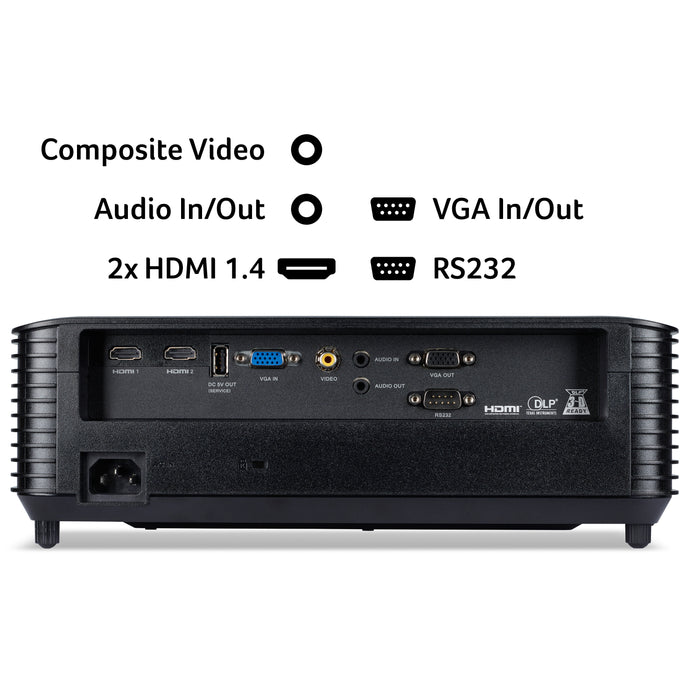

Ports & interfaces
HDMI connector type	Full-size
HDMI version	1.4b
USB 2.0 Type-A ports quantity	2
Audio (L/R) in	1
Audio (L/R) out	1
Serial interface type	RS-232
VGA (D-Sub) ports quantity	2
HDMI ports quantity	2
Composite video in	1
Component video (YPbPr/YCbCr) in	1
DVI port	No
Network
Wi-Fi	No
Features
Noise level (economic mode)	27 dB
HDCP	Yes
Noise level	27 dB
Country of origin	China
Multimedia
Built-in speaker(s)	Yes
RMS rated power	3 W
Number of built-in speakers	1
Design
Market positioning	Business
Product type	Standard throw projector
Product colour	Black
Placement	Ceiling
LED indicators	Light, Power, Temperature
Cable lock slot type	Kensington
Display
Built-in display	No
Power
Power source	AC
Power consumption (typical)	275 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
Software
Windows operating systems supported	Yes
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	313 mm
Depth	240 mm
Height	113.7 mm
Weight	2.8 kg
Package width	400 mm
Package depth	340 mm
Package height	168 mm
Package weight	4 kg
Packaging content
Remote control included	Yes
Batteries included	Yes
Cables included	AC, VGA
Manual	Yes
Packaging content	Lens Cap Security Card
Logistics data
Quantity per pack	1 pc(s)
Other features
Connectivity technology	Wired
Special features	Acer ColorBoost3D™ Acer LumiSense™ Acer BlueLightShield™ Acer ColorSafe II Automatic Vertical Keystone Correction Eco-Mode
RS-232 ports	1
Maximum digital resolution	1920 x 1200 pixels
Security features	Security Bar
