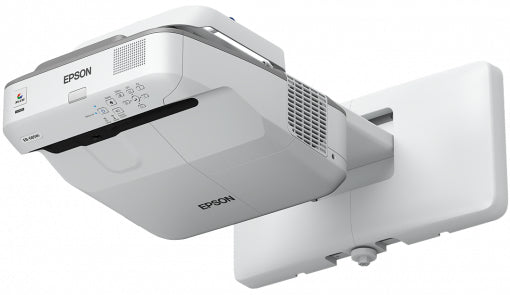

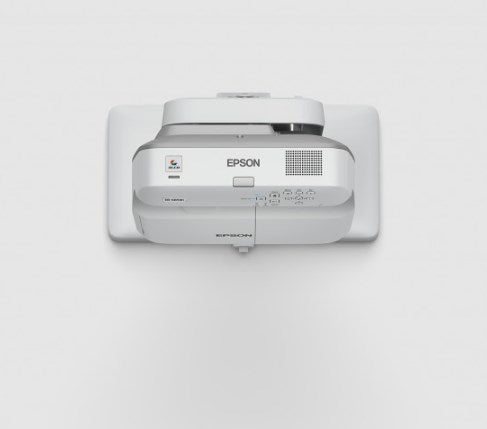

Epson EB-685W, 3500 ANSI lumens, 3LCD, WXGA (1280x800), 300:1, 16:10, 1524 - 2540 mm (60 - 100")

Epson EB-685W. Projector brightness: 3500 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 5000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Focal length range: 3.7 mm, Zoom ratio: 1.35:1. Video processing: 10 bit, Colour modes (2D): Cinema, Dynamic, sRGB, Blackboard, Presentation, Video colour modes: Blackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard. Serial interface type: RS-232, USB connector type: USB Type-A, USB Type-B

• Ultra short throw projector Grey, White
• 3LCD 3500 ANSI lumens
• Lamp 5000 h
• WXGA (1280x800) 16:10 300:1
• Screen size compatibility: 1524 - 2540 mm (60 - 100") Number of colours: 1.07 billion colours
• Focus: Manual Zoom capability
• Ethernet LAN
• Built-in speaker(s) 16 W
• AC 354 W

Features

Projector
Supported aspect ratios	16:10
Screen size compatibility	1524 - 2540 mm (60 - 100')
Projection distance	0.4 - 0.6 m
Projection distance (wide)	0 - 0.4 m
Projection distance (tele)	0 - 0.6 m
Contrast ratio (dynamic)	14000:1
Projector brightness	3500 ANSI lumens
Projection technology	3LCD
Projector native resolution	WXGA (1280x800)
Contrast ratio (typical)	300:1
Native aspect ratio	16:10
Number of colours	1.07 billion colours
Projector brightness (economic mode)	2900 ANSI lumens
Vertical scan range	100 - 120 Hz
Keystone correction, horizontal	±3°
Keystone correction, vertical	±3°
Matrix size	1.5 cm (0.59')
Light source
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Lamp power	250 W
Lens system
Focus	Manual
Focal length range	3.7 mm
F-number (relative aperture)	1.6
Zoom capability	Yes
Zoom ratio	1.35:1
Digital zoom	1.35x
Throw ratio	0.28 - 0.37:1
Video
Full HD	No
HD-Ready	Yes
3D	No
Video processing	10 bit
Colour modes (2D)	Cinema, Dynamic, sRGB, Blackboard, Presentation
Video colour modes	Blackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard

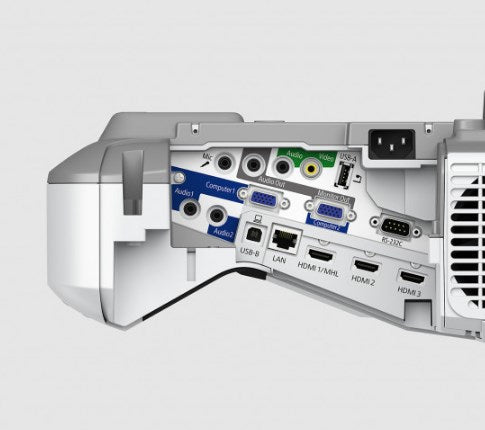

Ports & interfaces
USB 2.0 ports quantity	2
Audio (L/R) in	1
Headphone outputs	1
Microphone in	Yes
Serial interface type	RS-232
VGA (D-Sub) ports quantity	3
HDMI ports quantity	3
USB connector type	USB Type-A, USB Type-B
Composite video in	1
DVI port	No
Mobile High-Definition Link (MHL)	Yes
AC (power) in	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100 Mbit/s
Storage
Card reader integrated	No
Features
Interactive	No
Noise level (economic mode)	30 dB
On Screen Display (OSD)	Yes
Noise level	35 dB
Air filter	Yes
Country of origin	Philippines
Password protection	Yes
Compatible operating systems	Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1
Multimedia
Built-in speaker(s)	Yes
RMS rated power	16 W
Number of built-in speakers	1
Design
Product type	Ultra short throw projector
Product colour	Grey, White
Placement	Wall
Cable lock slot	Yes
Cable lock slot type	Kensington
Display
Built-in display	No
Power
Power source	AC
Power consumption (typical)	354 W
Power consumption (standby)	0.39 W
Power consumption (PowerSave)	310 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Software
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	367 mm
Depth	400 mm
Height	149 mm
Weight	5.7 kg
Package width	490 mm
Package depth	730 mm
Package height	335 mm
Package weight	18.5 kg
Packaging content
Remote control included	Yes
Remote control type	IR
Batteries included	Yes
Cables included	USB
Manual	Yes
Bundled software	EasyMP Multi PC Projection, Epson Projector Management
Technical details
Other features	Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Long lamp life, Split-Screen-Function, Wireless LAN capable
USB display function	3 in 1: Image / Mouse / Sound
Mobile app support	Yes
Power consumption	301 Watt (Normal On-Mode), 258 Watt (Eco On-Mode), 354 Watt (Normal Peak-mode), 309 Watt (Eco Peak-Mode), 0.37 Watt (Energy saving standby)
Logistics data
Quantity per pack	1 pc(s)
Products per pallet	12 pc(s)
Pallet gross length	120 cm
Pallet gross width	80 cm
Pallet gross height	141 cm
Products per pallet layer	2 pc(s)
Products per pallet layer (UK)	2 pc(s)
Products per pallet (UK)	12 pc(s)
Pallet length (UK)	120 cm
Pallet width (UK)	100 cm
Pallet height (UK)	141 cm
Other features
Option type	Air filter ELPAF38, Connection and control box, Document camera, External Speaker, USB extension cable, Wireless LAN unit
Interface	USB 2.0-A, USB 2.0, RS-232C, HDMI in (3x), Composite in, RGB in (2x), RGB out, Jack plug out, Jack plug in (3x), Microphone input, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (optional), VGA in (2x), VGA out, MHL
Control panel	0.59 inch with D9
RS-232 ports	1
Box contents	Installation/safety manual, Main unit, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, Safety wire set, Template Sheet, Wall hanging bracket
Security features	Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
