Epson EB-760Wi, 4100 ANSI lumens, 3LCD, WXGA (1280x800), 2500000:1, 16:10, 1346.2 - 2540 mm (53 - 100")

Epson EB-760Wi. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 3.7 mm, Fixed focal length: 3.7 mm. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C, Service port type: USB Type-B

• Presentation White
• 3LCD 4100 ANSI lumens
• Laser 20000 h
• WXGA (1280x800) 16:10 2500000:1
• Screen size compatibility: 1346.2 - 2540 mm (53 - 100") Number of colours: 1.07 billion colours
• Focus: Manual Zoom capability
• Ethernet LAN Wi-Fi
• Built-in speaker(s) 16 W
• AC 197 W

Features

Projector
Smart projector	No
Screen size compatibility	1346.2 - 2540 mm (53 - 100')
Contrast ratio (dynamic)	5000000:1
Projector brightness	4100 ANSI lumens
Projection technology	3LCD
Projector native resolution	WXGA (1280x800)
Contrast ratio (typical)	2500000:1
Native aspect ratio	16:10
Number of colours	1.07 billion colours
Projector brightness (economic mode)	2800 ANSI lumens
Vertical scan range	100 - 120 Hz
Keystone correction, horizontal	±3°
Keystone correction, vertical	±3°
Matrix size	1.5 cm (0.59')
Heat dissipation	895 BTU/h
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Focus	Manual
Focal length range	3.7 mm
Fixed focal length	3.7 mm
F-number (relative aperture)	1.6
Zoom capability	Yes
Zoom ratio	1.35:1
Throw ratio	0.27 - 0.37:1
Video
Analog signal format system	Not supported
Full HD	No
3D	No
Video processing	10 bit
Video colour modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Ports & interfaces
Service port type	USB Type-B
USB 2.0 ports quantity	2
Headphone outputs	3
Microphone in	Yes
Serial interface type	RS-232C
VGA (D-Sub) ports quantity	3
HDMI ports quantity	3
Composite video in	1
DVI port	No
Network
Smart TV	No
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast	Yes
Storage
Card reader integrated	No
Features
Interactive	Yes
Noise level (economic mode)	27 dB
On Screen Display (OSD)	Yes
Noise level	37 dB
Air filter	Yes
Country of origin	Philippines
Password protection	Yes
Multimedia
Built-in speaker(s)	Yes
RMS rated power	16 W
Design
Market positioning	Presentation
Product colour	White
Placement	Ceiling, Desktop, Wall
Cable lock slot	Yes
Cable lock slot type	Kensington
Display
Built-in display	No
Power
Power source	AC
Power consumption (typical)	197 W
Power consumption (economy mode)	141 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	356 mm
Depth	395 mm
Height	133 mm
Weight	6 kg
Package width	450 mm
Package depth	490 mm
Package height	325 mm
Package weight	9.17 kg
Packaging content
Remote control included	Yes
Batteries included	Yes
Cables included	AC, USB
Interactive pen included	Yes
Bundled software	Easy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management
Technical details
Other features	A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, JPEG Viewer, Long light source life, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Free, PC Interactive, PC free annotation, Power on button, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by scanning a code
Mobile app support	Yes
Power consumption	197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)
Logistics data
Quantity per pack	1 pc(s)
Products per pallet	12 pc(s)
Pallet gross length	120 cm
Pallet gross width	80 cm
Pallet gross height	2.1 m
Products per pallet layer	2 pc(s)
Products per pallet layer (UK)	4 pc(s)
Products per pallet (UK)	24 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2.1 m
Other features
Option type	Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01

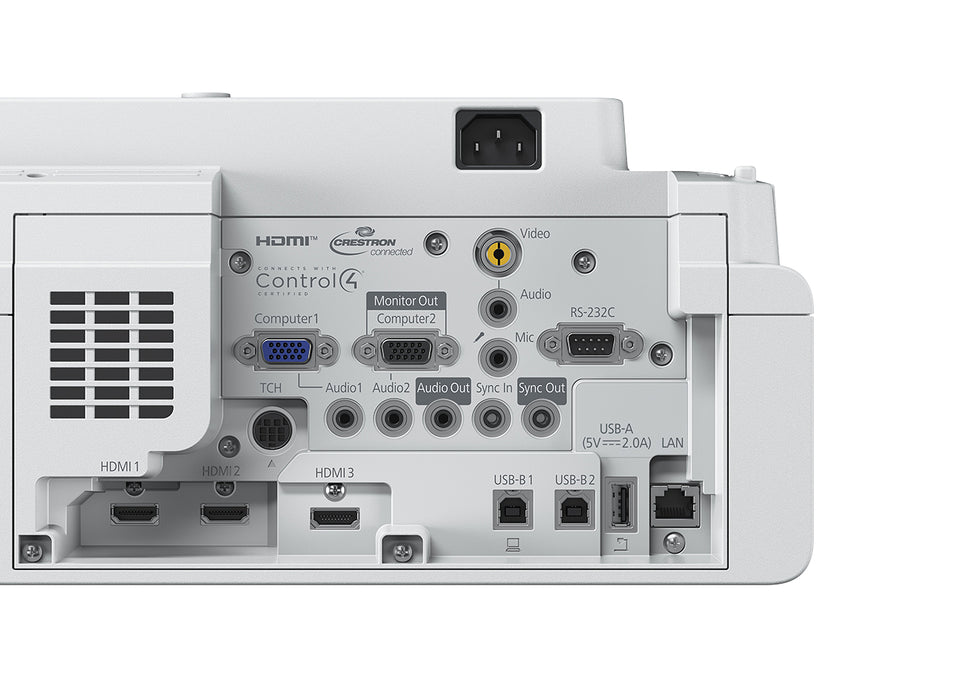

Interface	USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only) (2x), Wi-Fi Direct, Microphone input
Control panel	0.59 inch with C2 Fine
Supported network protocols	HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Box contents	2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document
Security features	Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
