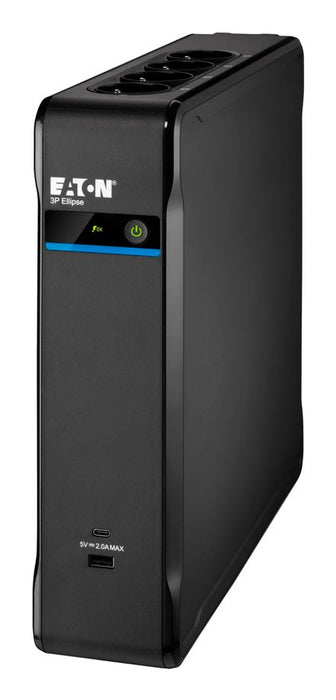

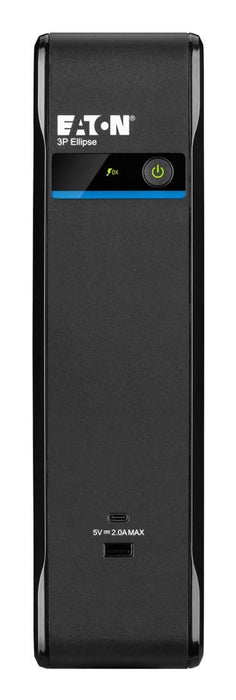

Eaton 3P Ellipse UPS, Standby (Offline), 1.3 kVA, 840 W, Stepwise, 161 V, 284 V

Eaton 3P Ellipse UPS. UPS topology: Standby (Offline), Output power capacity: 1.3 kVA, Output power: 840 W. AC outlet types: C13 coupler, AC outlets quantity: 8 AC outlet(s). Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Control type: Buttons. Compliance certificates: CB, CE, RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm

• Standby (Offline)
• 1.3 kVA 840 W
• Waveform: Stepwise
• 8 AC outlet(s)
• 12 V 7 Ah
• Tower Black

Features

Features
UPS topology	Standby (Offline)
Output power capacity	1.3 kVA
Output power	840 W
Waveform	Stepwise
Input operation voltage (min)	161 V
Input operation voltage (max)	284 V
Input frequency	46/70 Hz
Output operation voltage (min)	161 V
Output operation voltage (max)	284 V
Output frequency	50/60 Hz
Power consumption (average operating)	26 W
Number of input phases	1
Number of output phases	1
Efficiency	97%
Efficiency (ECO mode)	97%
Output power factor	0.6
Noise level	25 dB
Surge protection	Yes
Auto shut-off	Yes
Ports & interfaces

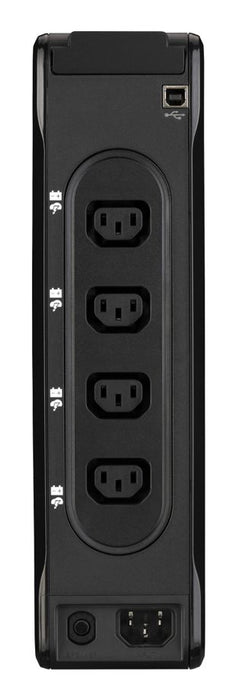

AC outlet types	C13 coupler
AC outlets quantity	8 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1

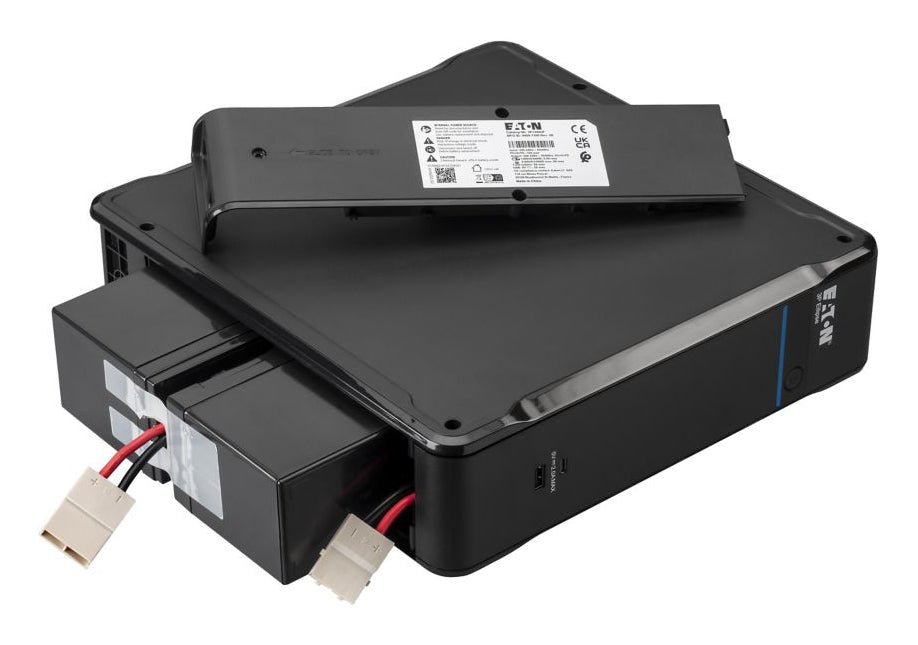

Battery
Battery capacity	7 Ah
Battery voltage	12 V
Design

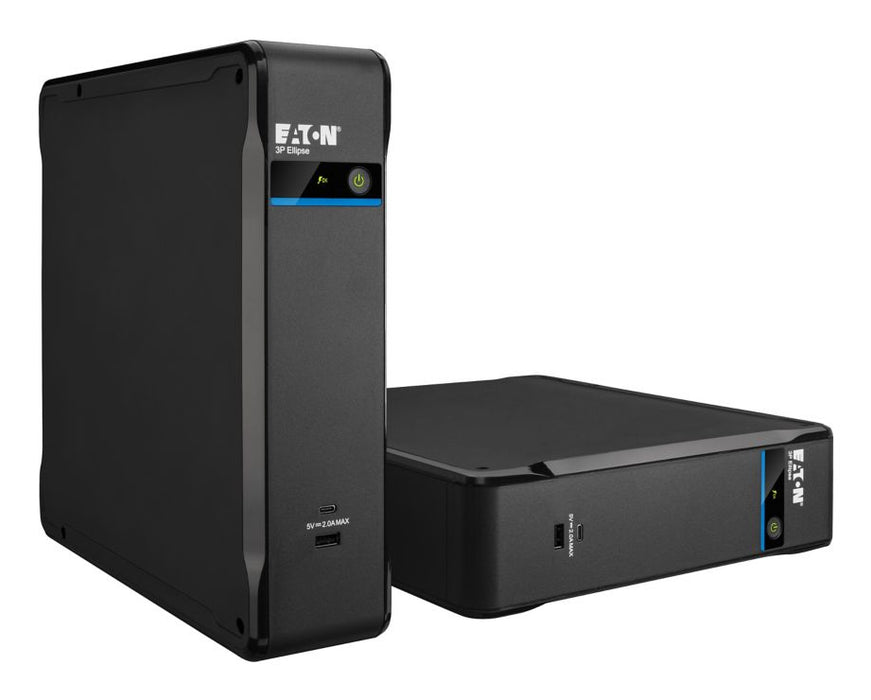

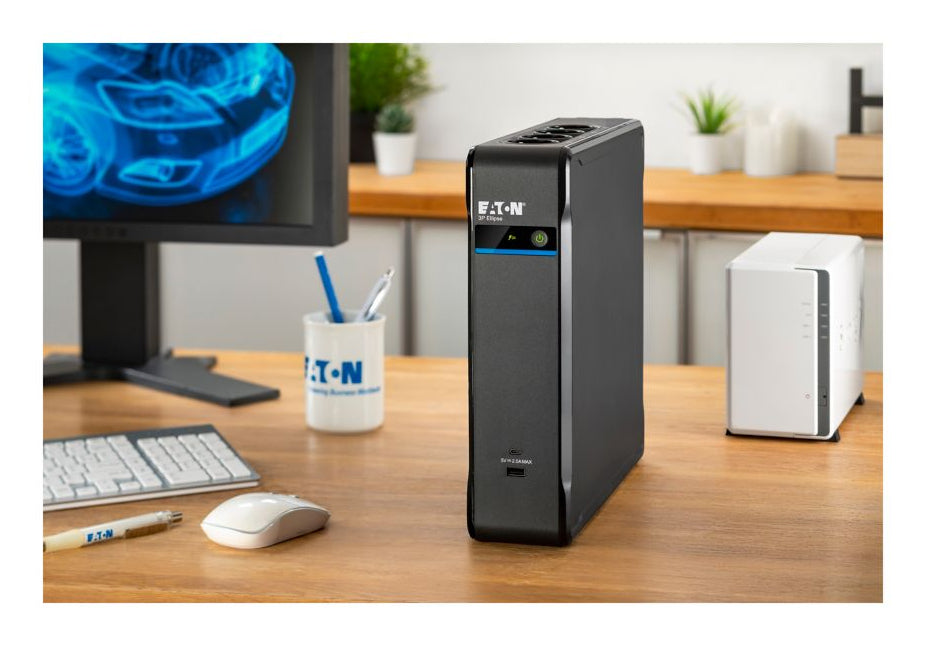

Form factor	Tower
Product colour	Black
Control type	Buttons

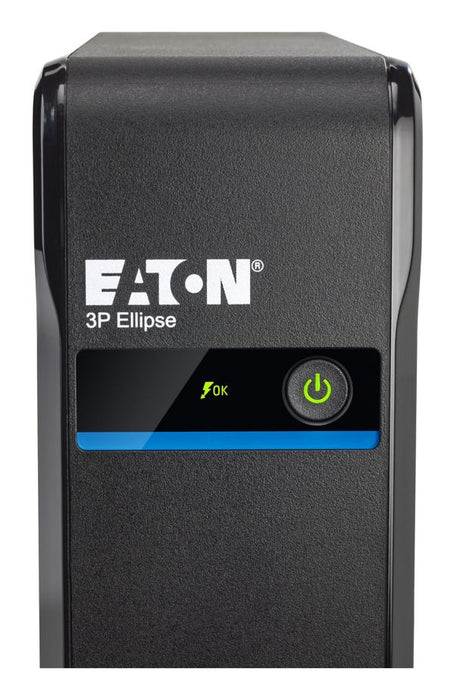

Display type	LED
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	CB, CE, RoHS, WEEE
Certification	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm

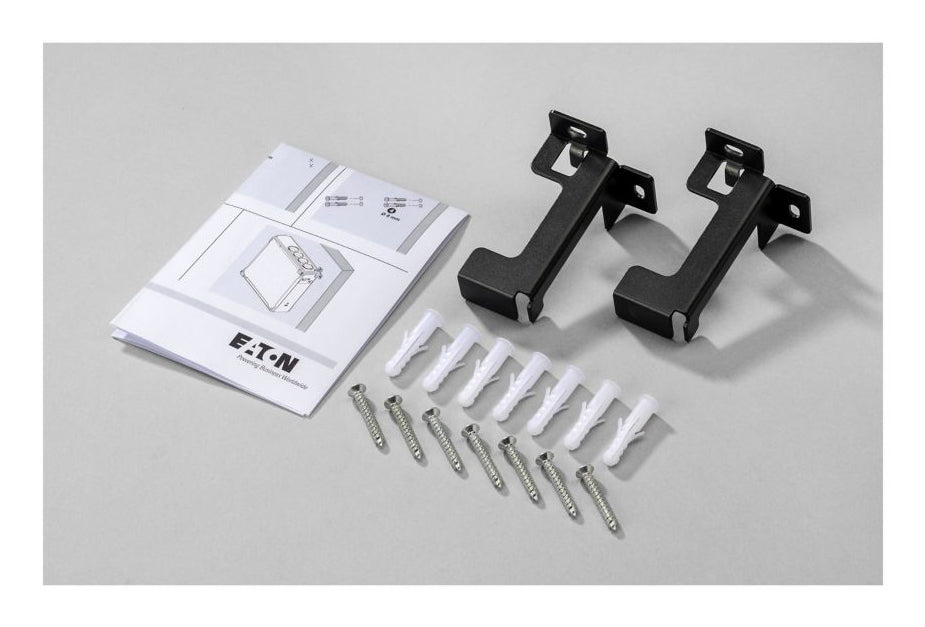

Packaging content
Cables included	USB cable
Quick installation guide	Yes
Weight & dimensions
Width	81 mm
Depth	312 mm
Height	305 mm
Weight	7 kg
Packaging data
Package type	Box
Other features
Input connection type	C14
Nominal input voltage	220-240 V
Relative humidity	0 - 95%
