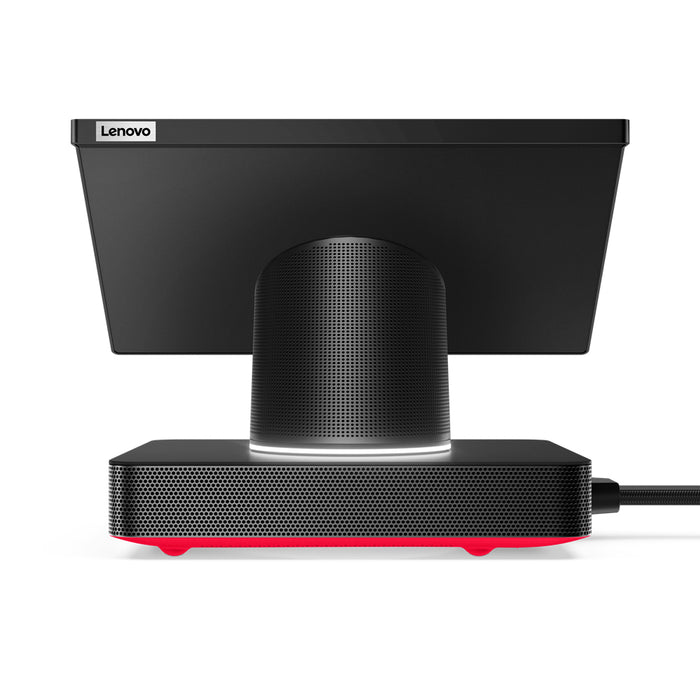

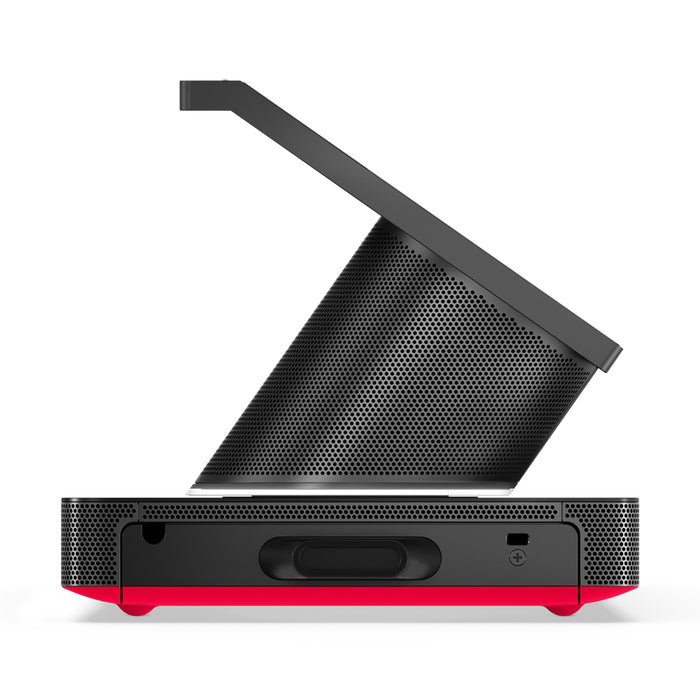

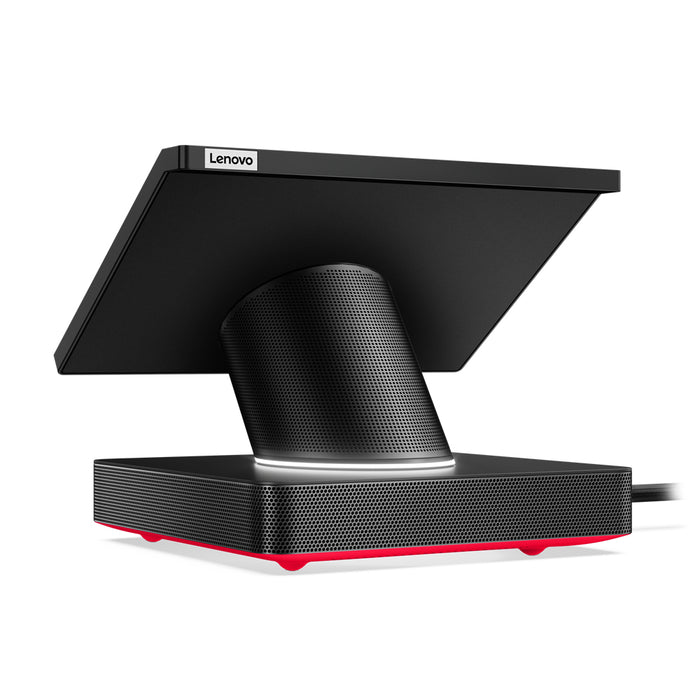

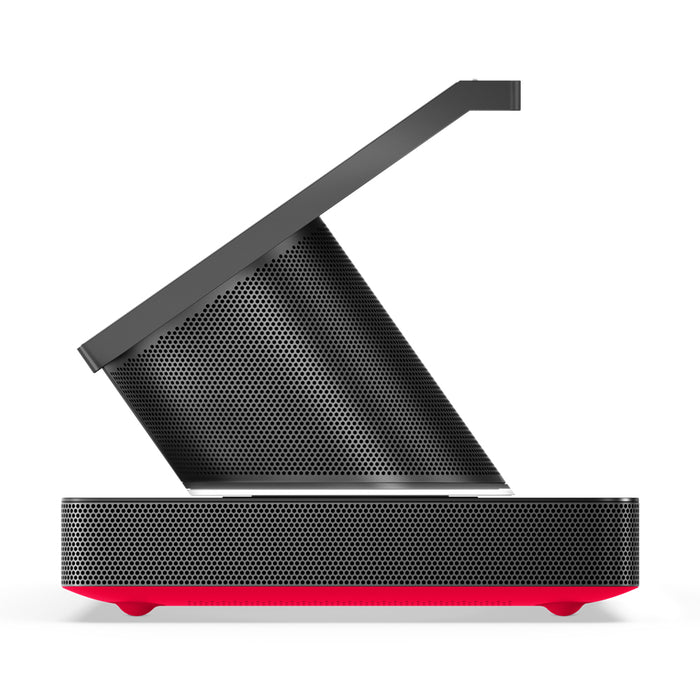

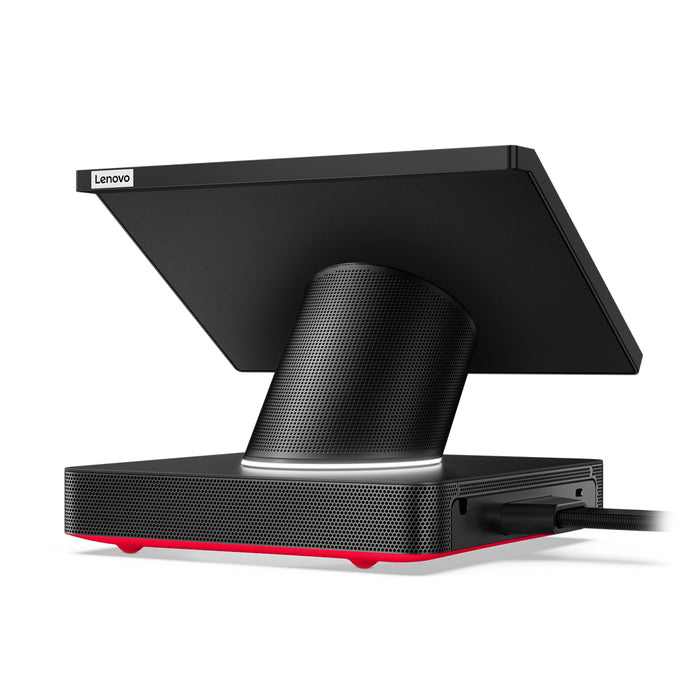

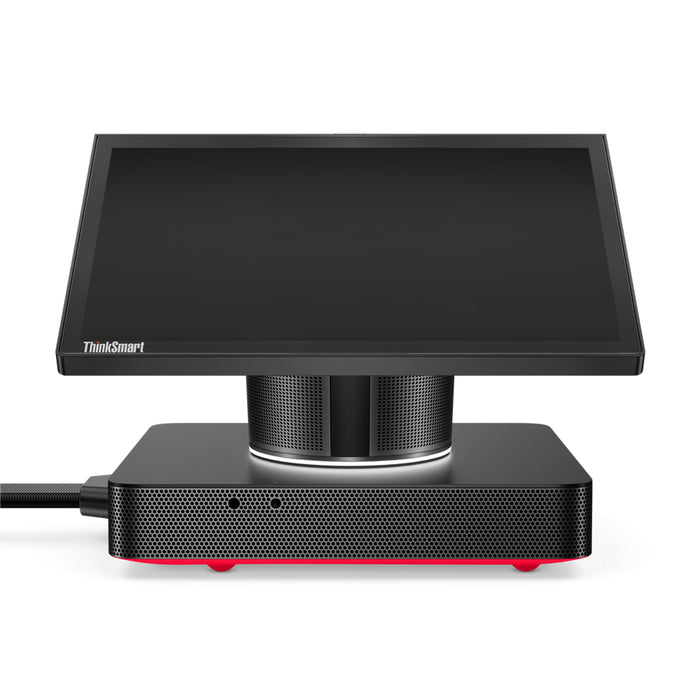

Lenovo ThinkSmart Hub for Microsoft Teams Rooms, 25.6 cm (10.1"), Full HD, Intel® Core™ i5, 8 GB, 256 GB, Windows 10 IoT Enterprise

Lenovo ThinkSmart Hub for Microsoft Teams Rooms. Product type: All-in-One PC. Display diagonal: 25.6 cm (10.1"), HD type: Full HD, Display resolution: 1920 x 1200 pixels, Touchscreen. Processor family: Intel® Core™ i5, Processor frequency: 1.6 GHz. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Operating system installed: Windows 10 IoT Enterprise. Product colour: Black

• All-in-One PC Black 90 W
• Intel® Core™ i5 i5-8365U 1.6 GHz
• Touchscreen 25.6 cm (10.1") Full HD 1920 x 1200
• 8 GB DDR4-SDRAM 2400 MHz 1 x 8 GB
• 256 GB SSD
• Intel® UHD Graphics
• Wi-Fi 5 (802.11ac) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.0
• Windows 10 IoT Enterprise 64-bit

Features

Display
Display diagonal	25.6 cm (10.1')
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	Full HD
Native aspect ratio	16:10
Display brightness	320 cd/m²
Anti-glare screen	Yes
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8365U
Processor cores	4
Processor boost frequency	4.1 GHz
Processor frequency	1.6 GHz
Processor cache	6 MB
Configurable TDP-up frequency	1.9 GHz
Configurable TDP-up	25 W
Configurable TDP-down frequency	0.8 GHz
Configurable TDP-down	10 W
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	8 GB
Memory clock speed	2400 MHz
Memory layout (slots x size)	1 x 8 GB
Memory form factor	On-board
ECC	No
Storage
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	NVMe, NVMe 3.0
NVMe	Yes
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics
Audio
Built-in speaker(s)	Yes
Number of speakers	4
RMS rated power	12 W
Built-in microphone	Yes
Audio system	HD
Camera
Built-in camera	No
Network
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Dual Band Wireless-AC 9560
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
DisplayPorts quantity	1
Combo headphone/mic port	Yes
DC-in jack	Yes
Design
Colour name	Black
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Product type	All-in-One PC
Motherboard chipset	Intel SoC
Trusted Platform Module (TPM)	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 IoT Enterprise
Operating system language	English
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel 64	Yes
Execute Disable Bit	Yes
Idle States	Yes
CPU configuration (max)	1
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Power
AC adapter power	90 W
Weight & dimensions
Width (with stand)	240 mm
Depth (with stand)	200 mm
Height (with stand)	185.3 mm
Weight (with stand)	2.45 kg
Certificates
Compliance certificates	RoHS
Packaging content
Mouse included	Yes
Keyboard included	Yes
Logistics data
Harmonized System (HS) code	84713000
Other features
Intel® vPro™ Platform Eligibility	Yes
Technical details
Box contents	ThinkSmart One Cable (1.83m)
