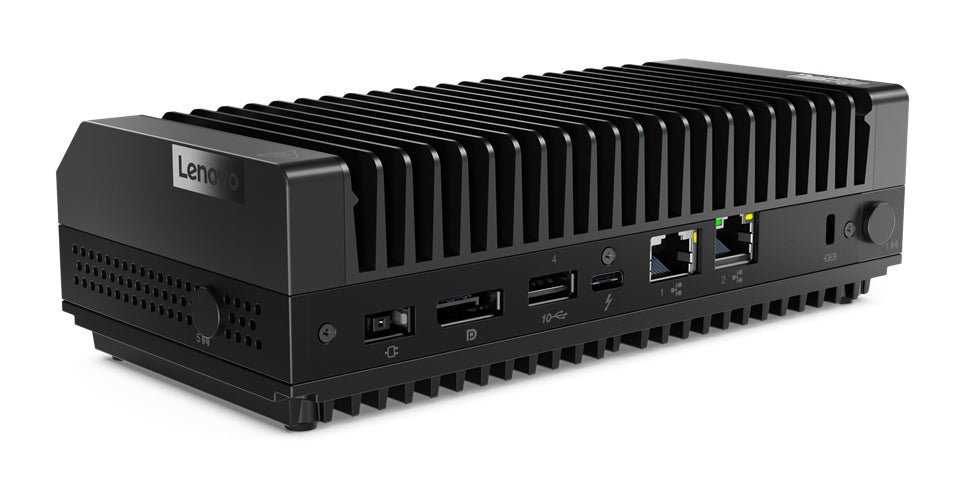

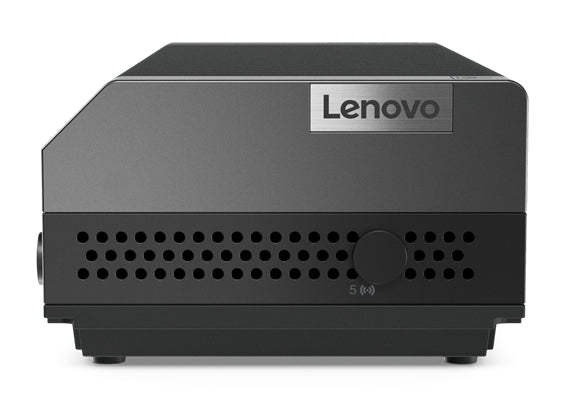

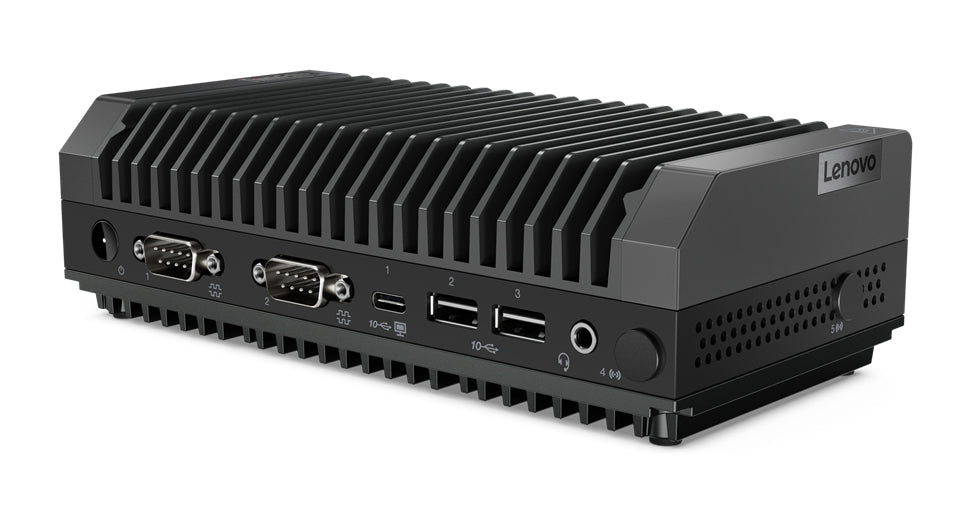

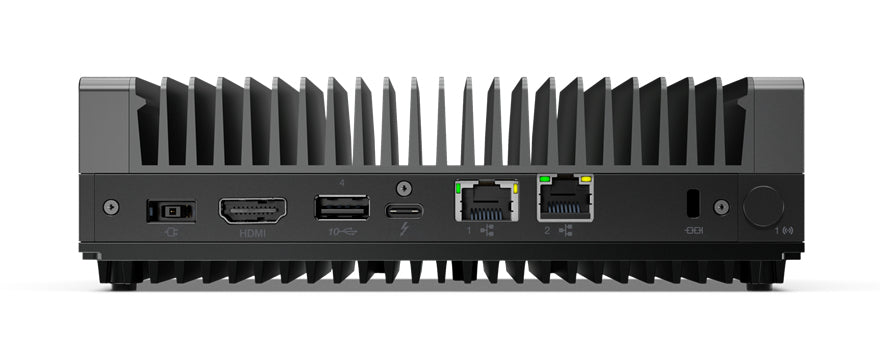

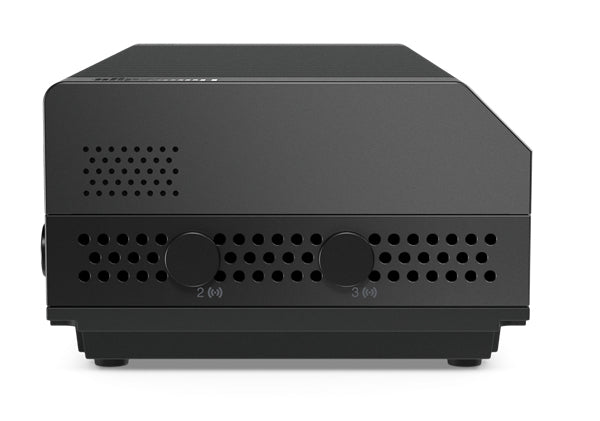

Lenovo ThinkEdge SE30, 2.2 GHz, Intel® Core™ i3, i3-1115GRE, 8 GB, 256 GB, Windows 10 IoT Enterprise

Lenovo ThinkEdge SE30. Processor frequency: 2.2 GHz, Processor family: Intel® Core™ i3, Processor model: i3-1115GRE. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Operating system installed: Windows 10 IoT Enterprise. Power supply: 65 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.02 kg. Product colour: Black

• Mini PC Black 65 W
• Intel® Core™ i3 i3-1115GRE 2.2 GHz
• 8 GB DDR4-SDRAM 3200 MHz
• 256 GB SSD
• Intel® UHD Graphics
• Ethernet LAN 100,1000,2500 Mbit/s Wi-Fi 5 (802.11ac) Bluetooth 5.1
• Windows 10 IoT Enterprise

Features

Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	11th gen Intel® Core™ i3
Processor model	i3-1115GRE
Processor cores	2
Processor threads	4
Processor boost frequency	3.9 GHz
Processor frequency	2.2 GHz
Processor cache	6 MB
Configurable TDP-up frequency	3 GHz
Configurable TDP-up	28 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	1.7 GHz
Number of processors installed	1
Memory
Internal memory	8 GB
Maximum internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Storage
Total storage capacity	256 GB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	NVMe, PCI Express 3.0
NVMe	Yes
SSD form factor	M.2
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Dual Band Wireless-AC 9260
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.1
Wake-on-LAN ready	Yes
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
HDMI version	1.4b
Ethernet LAN (RJ-45) ports	2
Combo headphone/mic port	Yes
DC-in jack	Yes
Serial ports quantity	2
Design
Chassis type	Mini PC
Colour name	Black
Volume	0.81 L
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Viewing window	No
Performance
Motherboard chipset	Intel SoC
Trusted Platform Module (TPM)	Yes
Product type	Mini PC
Software
Operating system installed	Windows 10 IoT Enterprise
Processor special features
Embedded options available	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Idle States	Yes
Intel Trusted Execution Technology	No
Intel Software Guard Extensions (Intel SGX)	No
CPU configuration (max)	1
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Power
Power supply	65 W
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating vibration	3 G
Operating shock	30 G
Certificates
Compliance certificates	RoHS, WEEE
Certification	ErP Lot 6, Low Halogen, PCF
Weight & dimensions
Width	179 mm
Depth	88 mm
Height	51.5 mm
Weight	1.02 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
