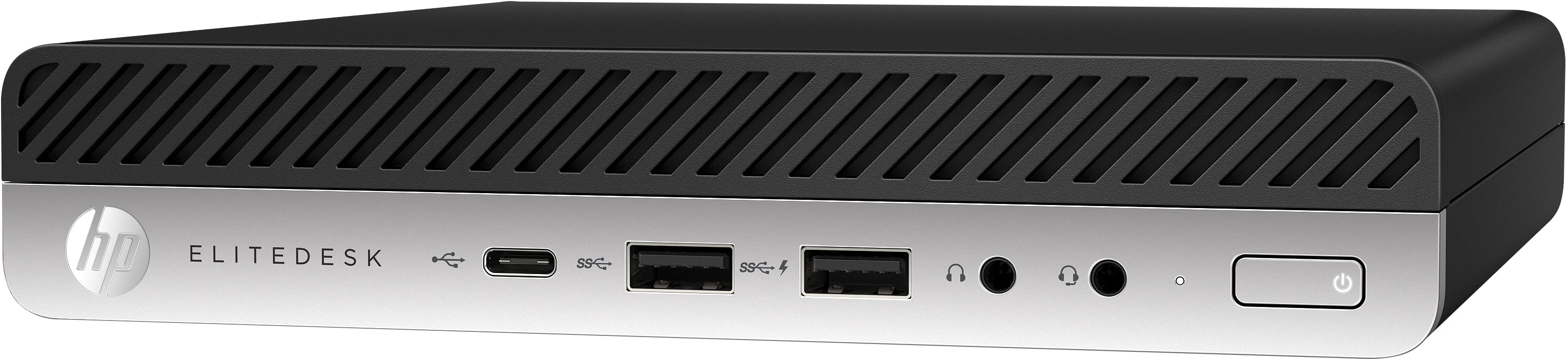

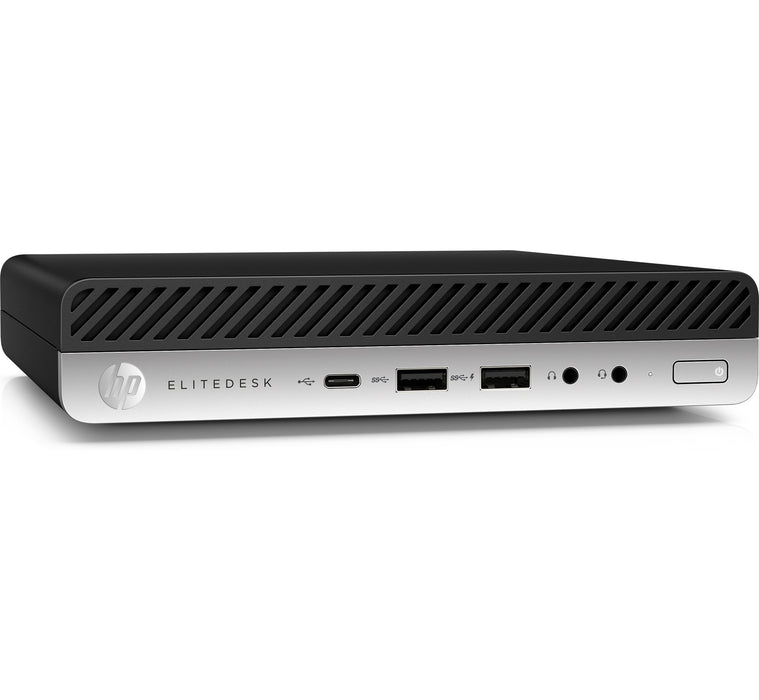

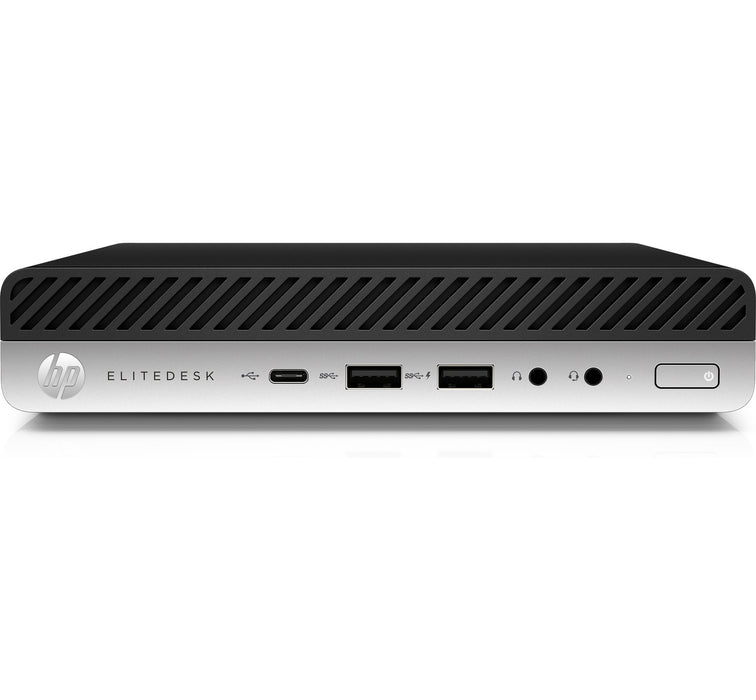

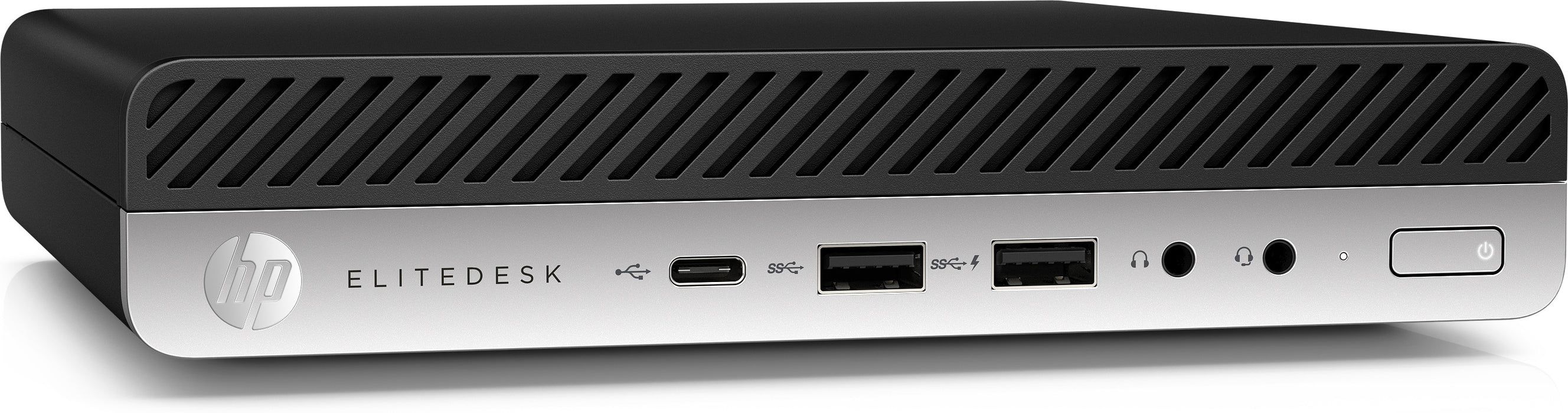

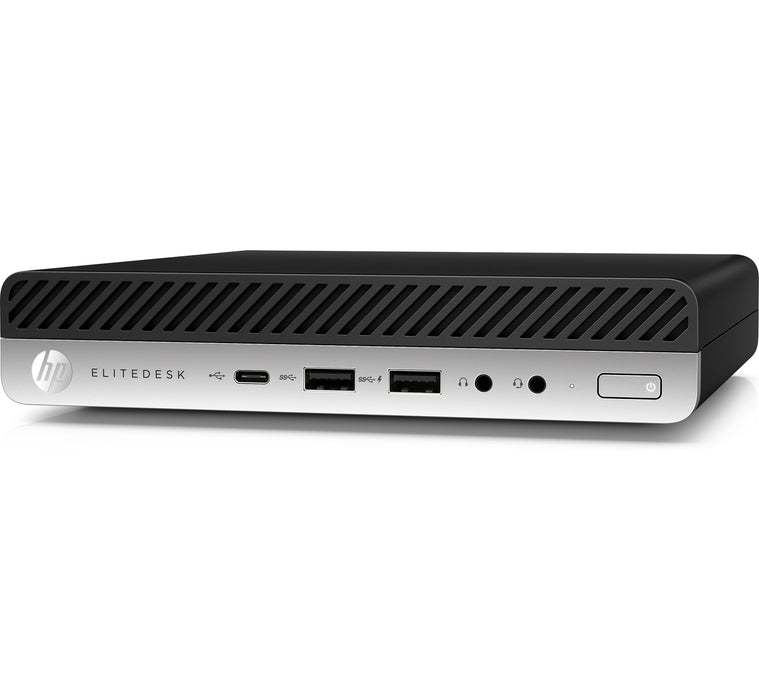

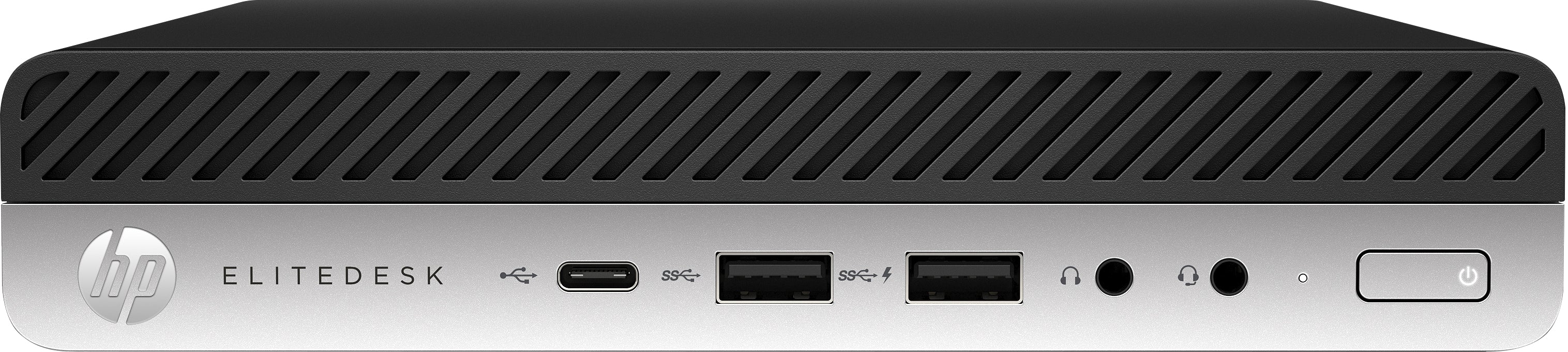

HP EliteDesk 800 35W G3, 2.7 GHz, Intel® Core™ i5, i5-7500T, 8 GB, 500 GB, Windows 10 Pro

HP EliteDesk 800 35W G3. Processor frequency: 2.7 GHz, Processor family: Intel® Core™ i5, Processor model: i5-7500T. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 2400 MHz. Total storage capacity: 500 GB, Storage media: HDD. On-board graphics card model: Intel® HD Graphics 630. Operating system installed: Windows 10 Pro, Operating system architecture: 64-bit. Power supply: 65 W. Chassis type: Desktop. Product type: Mini PC. Product colour: Black, Silver

• Mini PC Black, Silver 65 W
• Intel® Core™ i5 i5-7500T 2.7 GHz
• 8 GB DDR4-SDRAM 2400 MHz 1 x 8 GB
• 500 GB HDD
• Intel® HD Graphics 630
• Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 5 (802.11ac) Bluetooth
• Windows 10 Pro 64-bit

Features

Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	7th gen Intel® Core™ i5
Processor model	i5-7500T
Processor cores	4
Processor threads	4
Processor boost frequency	3.3 GHz
Processor frequency	2.7 GHz
Processor socket	LGA 1151 (Socket H4)
Processor cache	6 MB
Processor cache type	Smart Cache
System bus rate	8 GT/s
Bus type	DMI3
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake
Thermal Design Power (TDP)	35 W
Configurable TDP-down frequency	1.7 GHz
Tjunction	80 °C
PCI Express slots version	3.0
Maximum number of PCI Express lanes	16
PCI Express configurations	2x8, 1x8+2x4
Number of processors installed	1
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
ECC supported by processor	No
Memory voltage supported by processor	1.35 V
Memory
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	2400 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	500 GB
Storage media	HDD
Optical drive type	No
Number of storage drives installed	1
Total HDDs capacity	500 GB
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	No
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 630
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x5912
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
DVI port	No
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Design
Chassis type	Desktop
Number of 2.5' bays	1
Product colour	Black, Silver
Country of origin	China
Performance
Audio chip	Realtek ALC221
Product type	Mini PC
Software
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Processor special features
Intel 64	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel Clear Video Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Secure Key	Yes
Intel® OS Guard	Yes
Intel Trusted Execution Technology	Yes
Execute Disable Bit	Yes
Intel Enhanced Halt State	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX 2.0
Scalability	1S
CPU configuration (max)	1
Thermal solution specification	PCG 2015A
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Processor ARK ID	97121
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
Brand-specific features
HP ePrint	Yes
HP Support Assistant	Yes
HP Management tools	HP Client Catalog, HP Driver Packs, HP SoftPaq Download Manager (SDM), HP System Software Manager (SSM), HP BIOS Config Utility (BCU), HP Image Assistant, HP MIK
HP Software provided	HP BIOSphere Gen3 with SureStart G3
HP segment	Business
Power
Power supply	65 W
Sustainability
Sustainability certificates	EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	177 mm
Depth	34.2 mm
Height	175 mm
Weight	1.21 kg
Package width	2312 mm
Package depth	4978 mm
Package height	1448 mm
Package weight	2.8 kg
Packaging content
Display included	No
Mouse included	No
Keyboard included	No
Other features
Intel segment tagging	Enterprise
