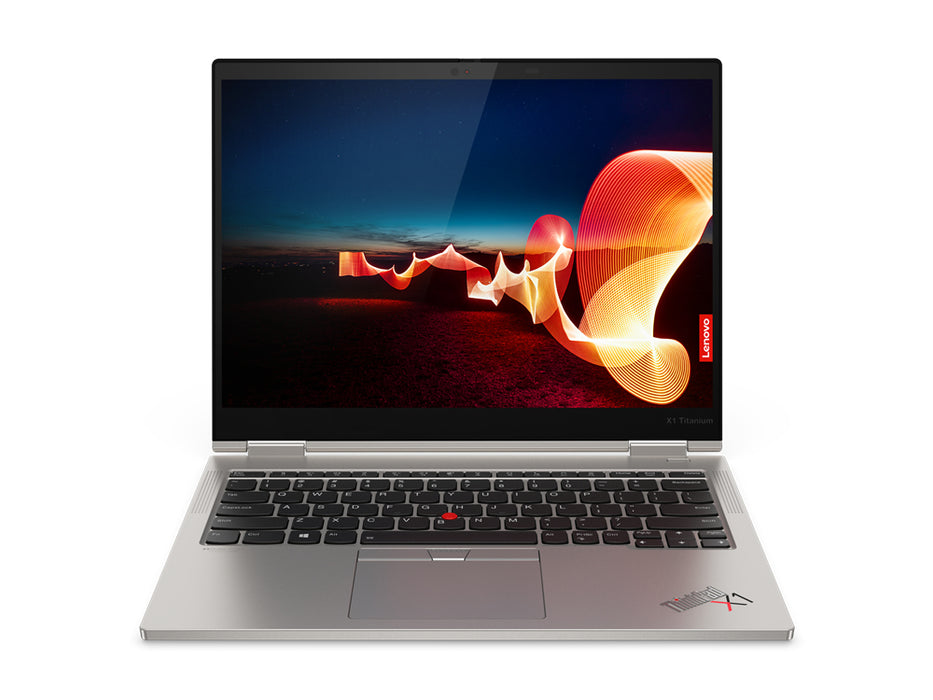

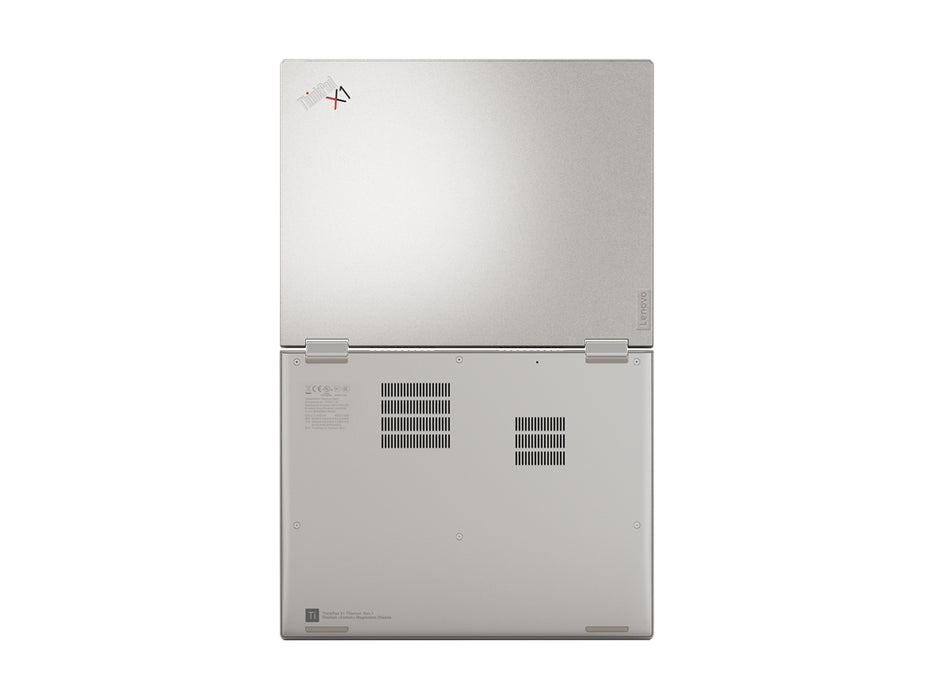

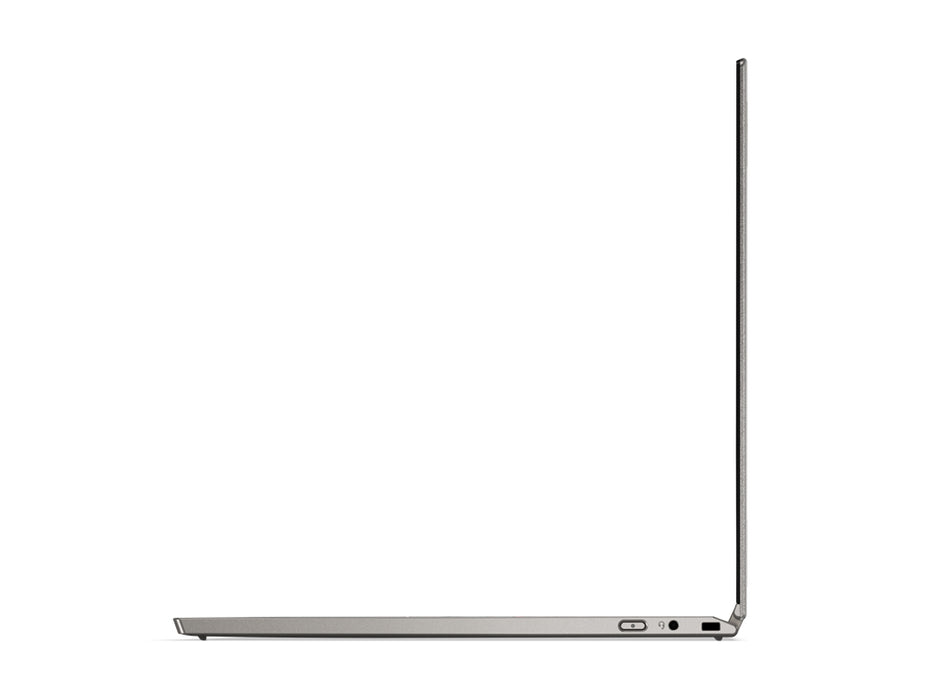

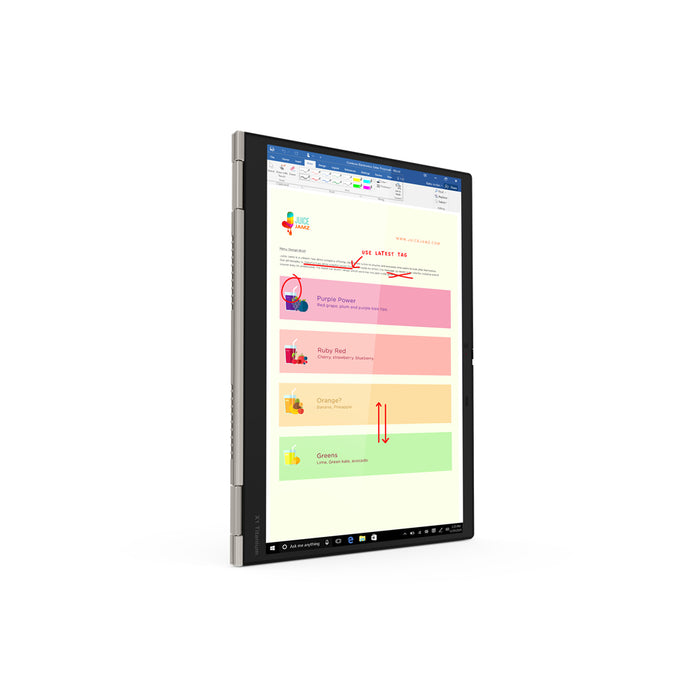

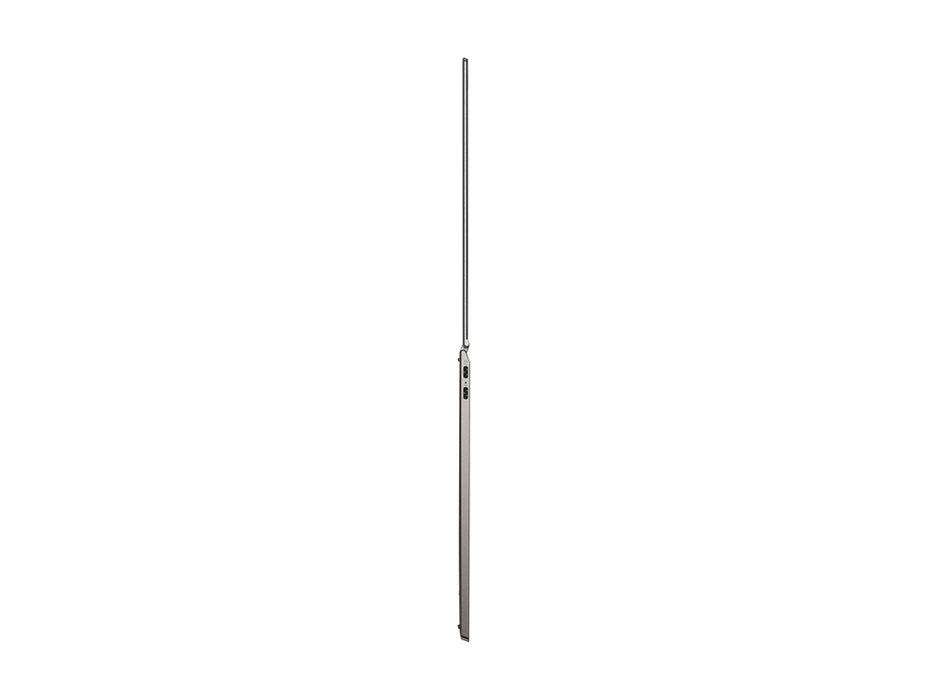

Lenovo ThinkPad X1 Titanium Yoga, Intel® Core™ i7, 34.3 cm (13.5"), 2256 x 1504 pixels, 16 GB, 512 GB, Windows 10 Pro

Lenovo ThinkPad X1 Titanium Yoga. Product type: Hybrid (2-in-1), Form factor: Convertible (Folder). Processor family: Intel® Core™ i7, Processor model: i7-1160G7. Display diagonal: 34.3 cm (13.5"), HD type: Quad HD, Display resolution: 2256 x 1504 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: LPDDR4x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics. Operating system installed: Windows 10 Pro. Product colour: Titanium

• Business Hybrid (2-in-1) Convertible (Folder) Titanium
• Intel® Core™ i7 i7-1160G7
• Touchscreen 34.3 cm (13.5") Quad HD 2256 x 1504 pixels IPS LED backlight 3:2
• 16 GB LPDDR4x-SDRAM 4266 MHz
• 512 GB SSD
• Intel Iris Xe Graphics
• Wi-Fi 6 (802.11ax) Bluetooth 5.2
• Lithium Polymer (LiPo) 44.5 Wh 11.7 h 65 W
• Windows 10 Pro 64-bit

Features

Design
Colour name	Titanium
Product type	Hybrid (2-in-1)
Product colour	Titanium
Form factor	Convertible (Folder)
Market positioning	Business
Intel® vPro™ Platform Eligibility	No
Display
Display diagonal	34.3 cm (13.5')
Display resolution	2256 x 1504 pixels
Touchscreen	Yes
HD type	Quad HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	3:2
Display brightness	450 cd/m²
RGB colour space	NTSC
Colour gamut	72%
Contrast ratio (typical)	1200:1

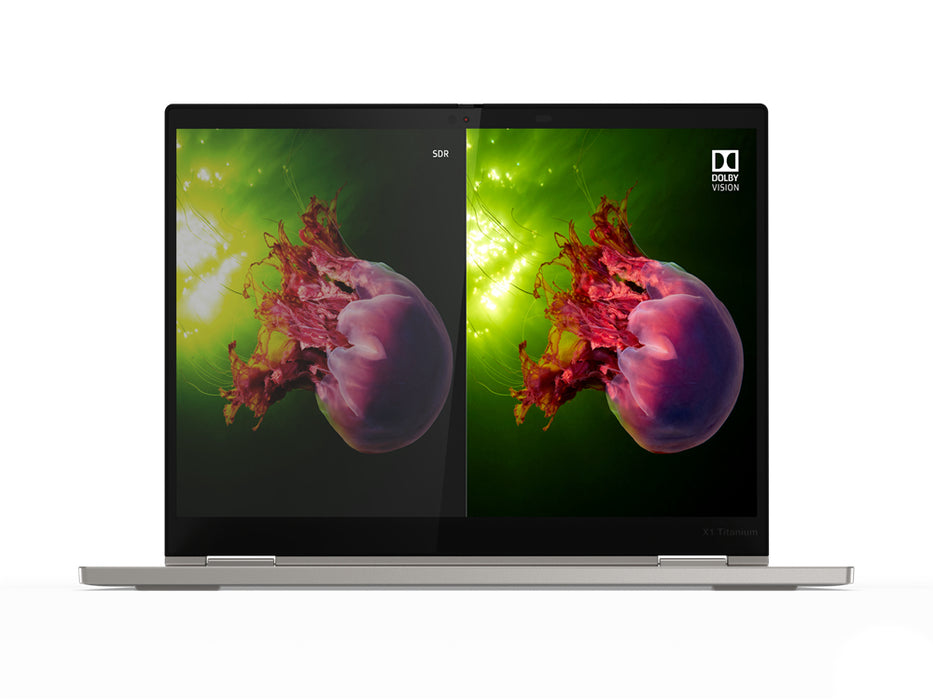

High Dynamic Range (HDR) technology	Dolby Vision
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-1160G7
Processor cores	4
Processor boost frequency	4.4 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Configurable TDP-up frequency	2.1 GHz
Configurable TDP-up	15 W
Configurable TDP-down	7 W
Configurable TDP-down frequency	0.9 GHz
Memory
Internal memory	16 GB
Internal memory type	LPDDR4x-SDRAM
Memory clock speed	4266 MHz
Memory form factor	On-board
Maximum internal memory	16 GB
Storage
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	NVMe, PCI Express 3.0
NVMe	Yes
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No
Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Discrete graphics card	No
On-board graphics card model	Intel Iris Xe Graphics
Audio
Audio chip	Realtek ALC3286
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in subwoofer	No
Built-in microphone	Yes
Number of microphones	4
Camera
Front camera	Yes
Front camera HD type	HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Mobile network connection	No
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6 AX201
WLAN controller manufacturer	Intel
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.2
Near Field Communication (NFC)	No
Ports & interfaces
USB4 Gen 3x2 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Performance
Motherboard chipset	Intel SoC
Accelerometer	Yes
Gyroscope	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard language	UK English
Numeric keypad	No
Keyboard backlit	Yes
Spill-resistant keyboard	Yes
Software
Operating system architecture	64-bit
Operating system language	English
Operating system installed	Windows 10 Pro
Processor special features
Intel® Evo™ Platform Verified	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	No
Idle States	Yes
CPU configuration (max)	1
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	44.5 Wh
Battery life (max)	11.7 h
Power
AC adapter power	65 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Certificates
Compliance certificates	RoHS
Certification	MIL-STD-810H
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
Weight & dimensions
Width	297.5 mm
Depth	232.7 mm
Height	11.5 mm
Weight	1.15 kg
Logistics data
Harmonized System (HS) code	84713000
