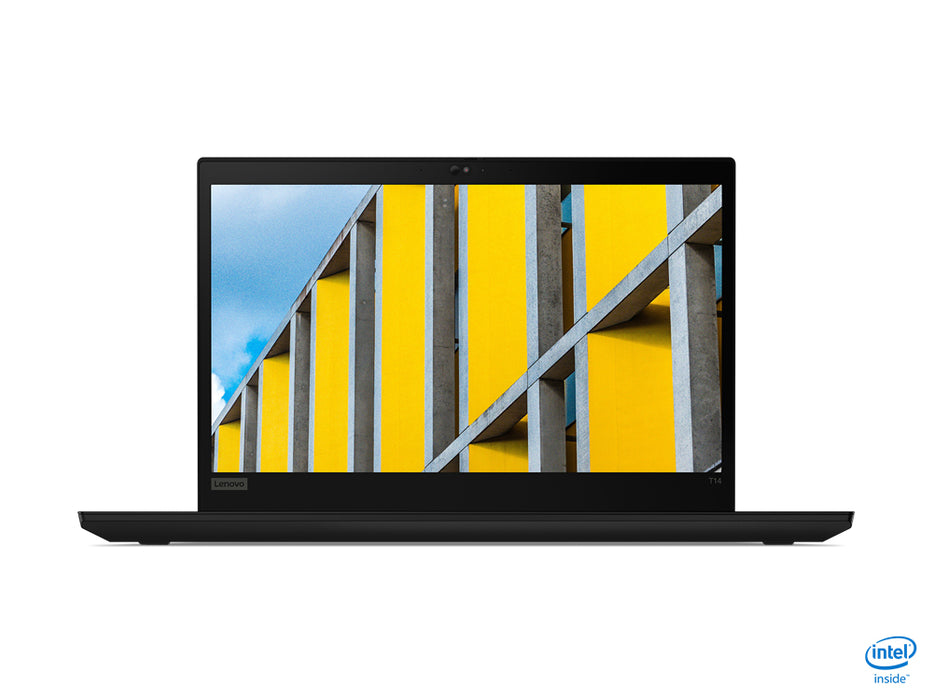

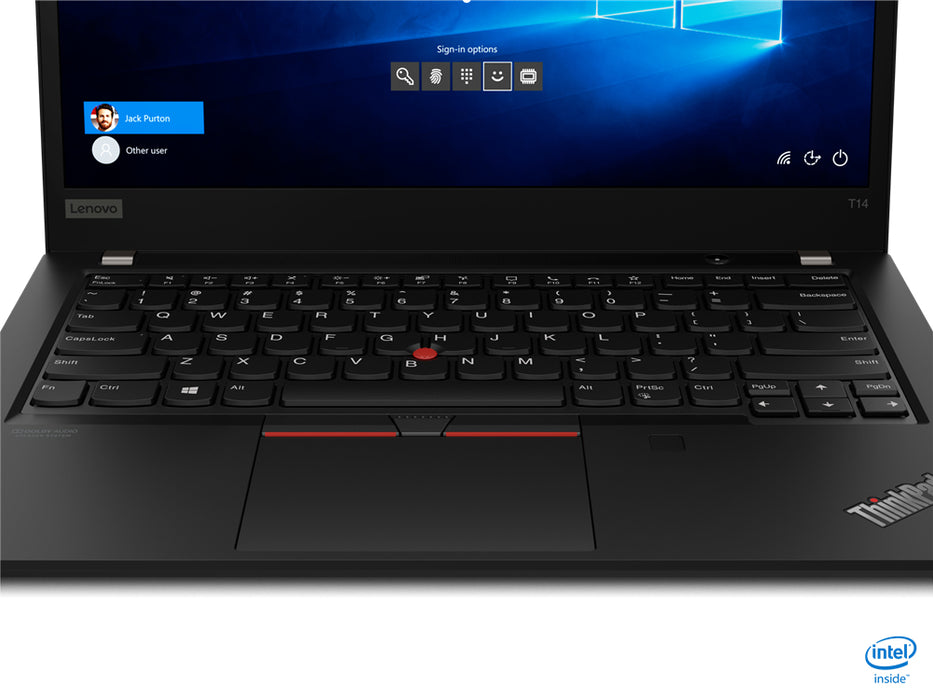

Lenovo ThinkPad T14, Intel® Core™ i7, 1.8 GHz, 35.6 cm (14"), 1920 x 1080 pixels, 16 GB, 512 GB

Lenovo ThinkPad T14. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-10510U, Processor frequency: 1.8 GHz. Display diagonal: 35.6 cm (14"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Operating system installed: Windows 10 Pro. Product colour: Black

• Laptop Clamshell Black
• Intel® Core™ i7 i7-10510U 1.8 GHz
• 35.6 cm (14") Full HD 1920 x 1080 pixels IPS LED backlight 16:9
• 16 GB DDR4-SDRAM 2666 MHz
• 512 GB SSD
• Intel® UHD Graphics
• Wi-Fi 6 (802.11ax) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.0
• Lithium Polymer (LiPo) 50 Wh 65 W
• Windows 10 Pro 64-bit

Features

Design
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Intel® vPro™ Platform Eligibility	No
Display
Display diagonal	35.6 cm (14')
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	250 cd/m²
Contrast ratio (typical)	700:1
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	10th gen Intel® Core™ i7
Processor model	i7-10510U
Processor cores	4
Processor threads	8
Processor boost frequency	4.9 GHz
Processor frequency	1.8 GHz
System bus rate	4 GT/s
Processor cache	8 MB
Processor socket	BGA 1528
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Comet Lake
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.3 GHz
Configurable TDP-up	25 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express slots version	3.0
PCI Express configurations	1x4, 2x2, 1x2+2x1, 4x1
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	48 GB
Storage
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Discrete graphics card	No
On-board graphics card model	Intel® UHD Graphics
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	32 GB
Number of execution units	24
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x9B41
Audio
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Camera
Front camera	Yes
Front camera HD type	HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Mobile network connection	No
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

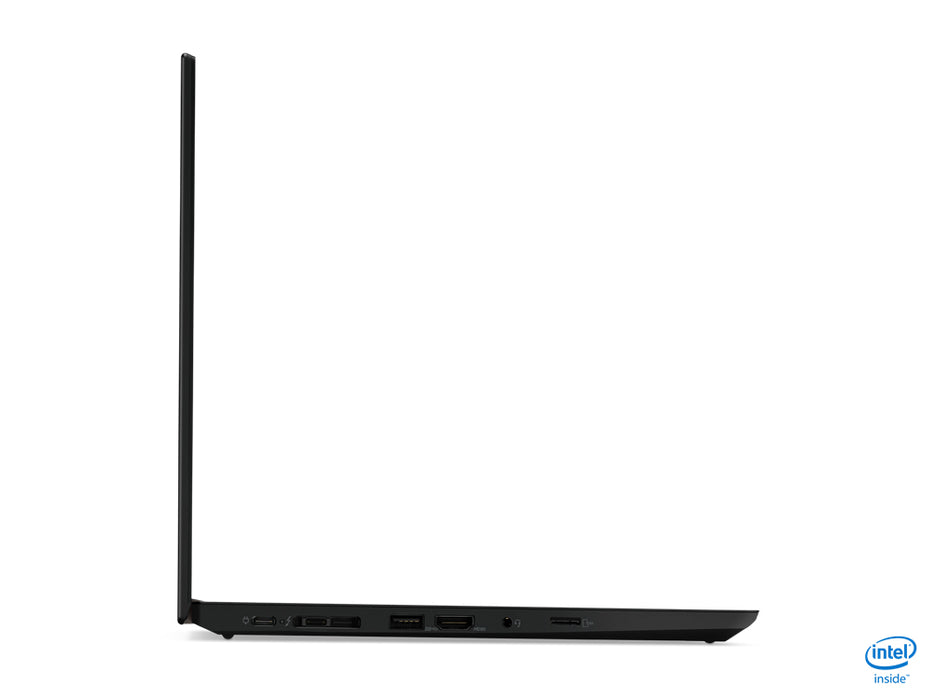

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4b
Combo headphone/mic port	Yes
Docking connector	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

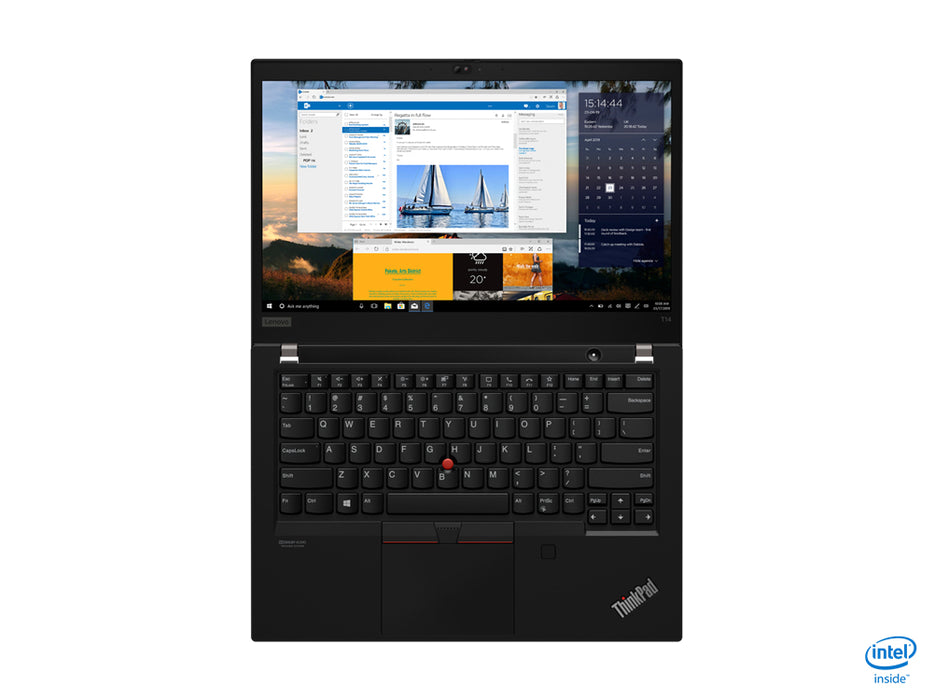

Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Keyboard backlit	Yes
Spill-resistant keyboard	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Enhanced Intel SpeedStep Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel Clear Video Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel TSX-NI	No
Intel Stable Image Platform Program (SIPP)	No
Intel® OS Guard	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel 64	Yes
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Processor package size	46 x 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
CPU configuration (max)	1
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	196449
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	50 Wh
Fast charging	Yes
Power
AC adapter power	65 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Certificates
Compliance certificates	RoHS
Sustainability
Sustainability certificates	EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	329 mm
Depth	227 mm
Height	17.9 mm
Weight	1.51 kg
