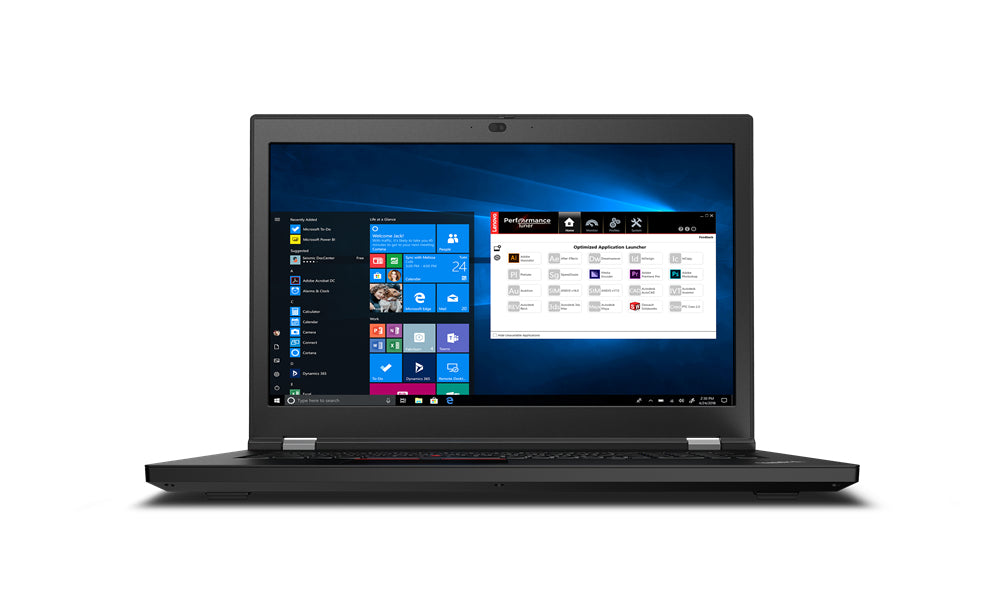

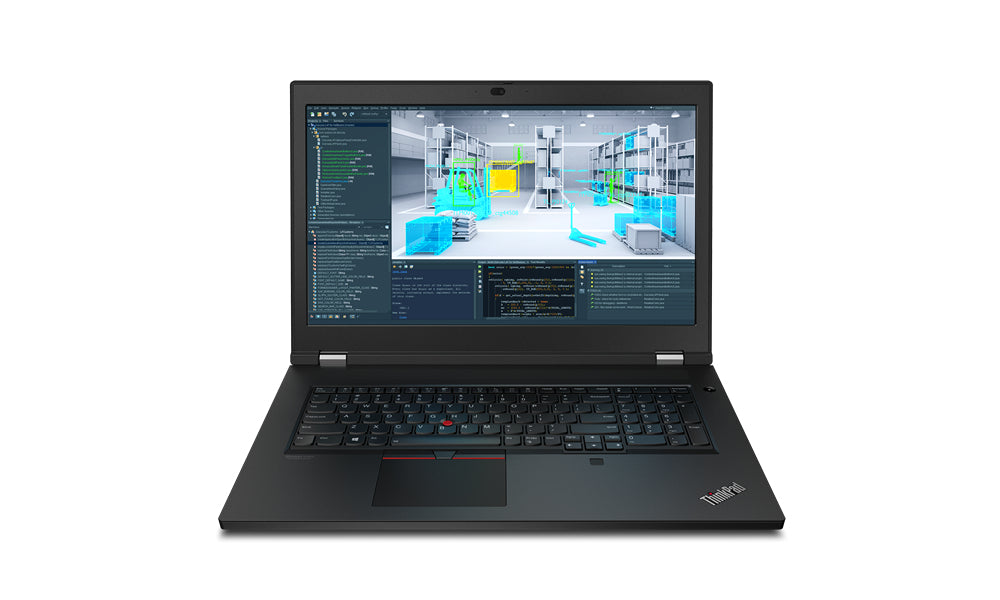

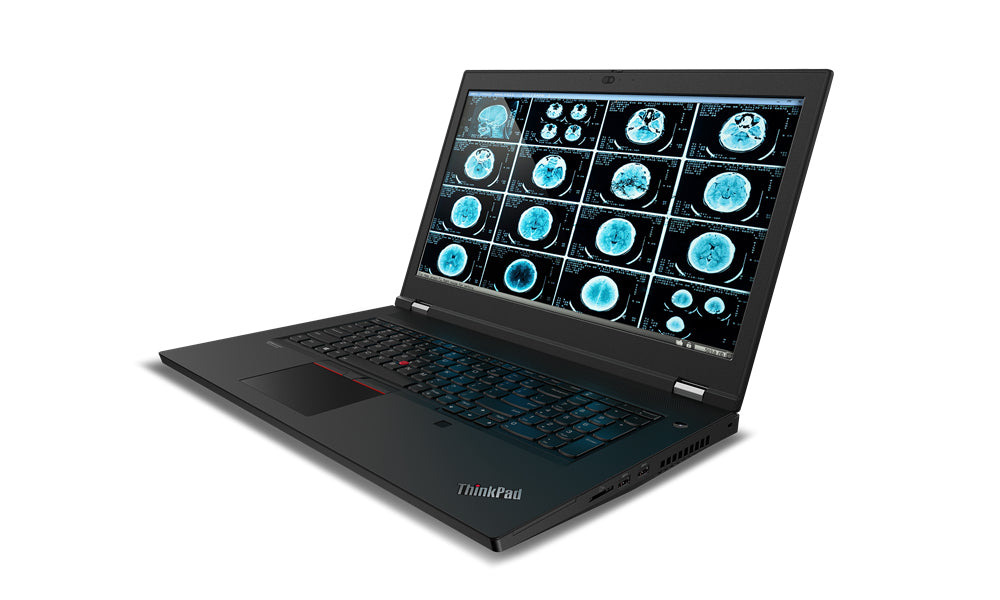

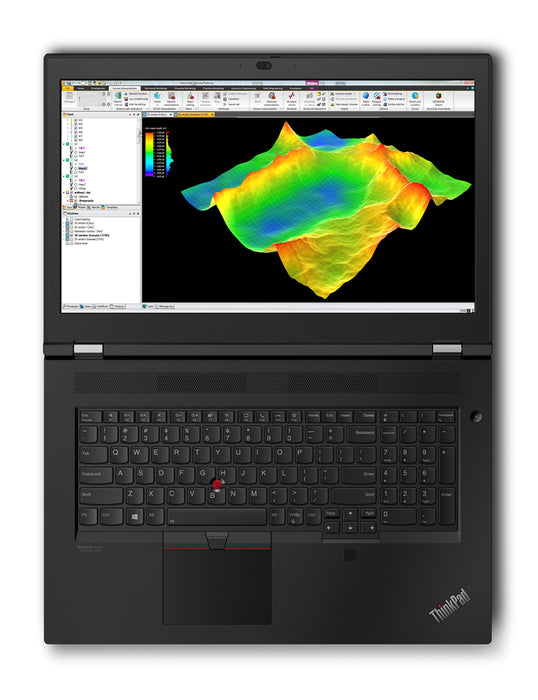

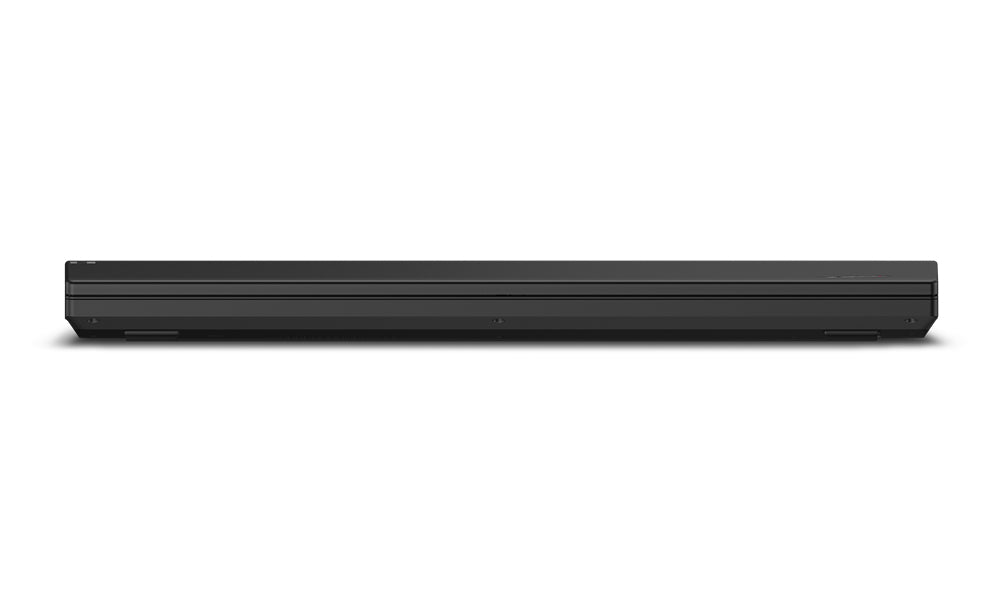

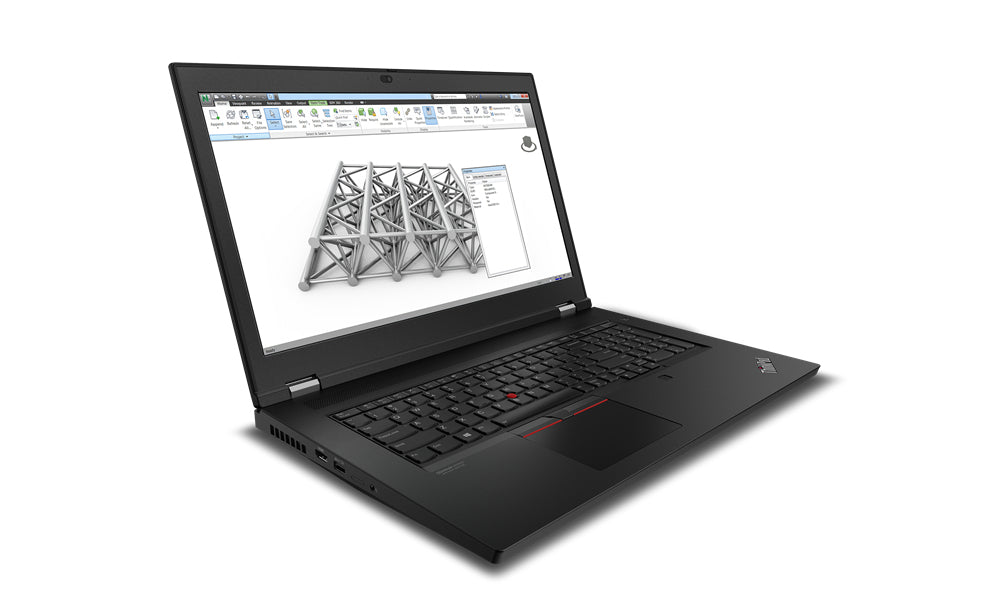

Lenovo ThinkPad P17 Gen 1, Intel® Core™ i7, 2.6 GHz, 43.9 cm (17.3"), 1920 x 1080 pixels, 16 GB, 512 GB

Lenovo ThinkPad P17 Gen 1. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-10750H, Processor frequency: 2.6 GHz. Display diagonal: 43.9 cm (17.3"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Operating system installed: Windows 10 Pro. Product colour: Black

• Mobile workstation Clamshell Black
• Intel® Core™ i7 i7-10750H 2.6 GHz Processor cores: 6
• 43.9 cm (17.3") Full HD 1920 x 1080 pixels IPS LED backlight 16:9
• 16 GB DDR4-SDRAM 3200 MHz 2 x 8 GB
• 512 GB SSD
• NVIDIA Quadro T1000 4 GB Intel® UHD Graphics
• Wi-Fi 6 (802.11ax) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.1
• Lithium Polymer (LiPo) 94 Wh 14.6 h 170 W
• Windows 10 Pro 64-bit

Features

Design
Colour name	Black
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell
Display
Display diagonal	43.9 cm (17.3')
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	72%
Contrast ratio (typical)	700:1
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	10th gen Intel® Core™ i7
Processor model	i7-10750H
Processor cores	6
Processor threads	12
Processor boost frequency	5 GHz
Processor frequency	2.6 GHz
System bus rate	8 GT/s
Processor cache	12 MB
Processor cache type	Smart Cache
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Comet Lake
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB
ECC	No
Storage
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	NVMe, PCI Express
NVMe	Yes
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD
Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA Quadro T1000
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Discrete graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x9BC4
Audio
Audio chip	Realtek ALC3286
Audio system	Dolby Atmos
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2
Camera
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Mobile network connection	No
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6 AX201
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
Near Field Communication (NFC)	No
WWAN	Not installed

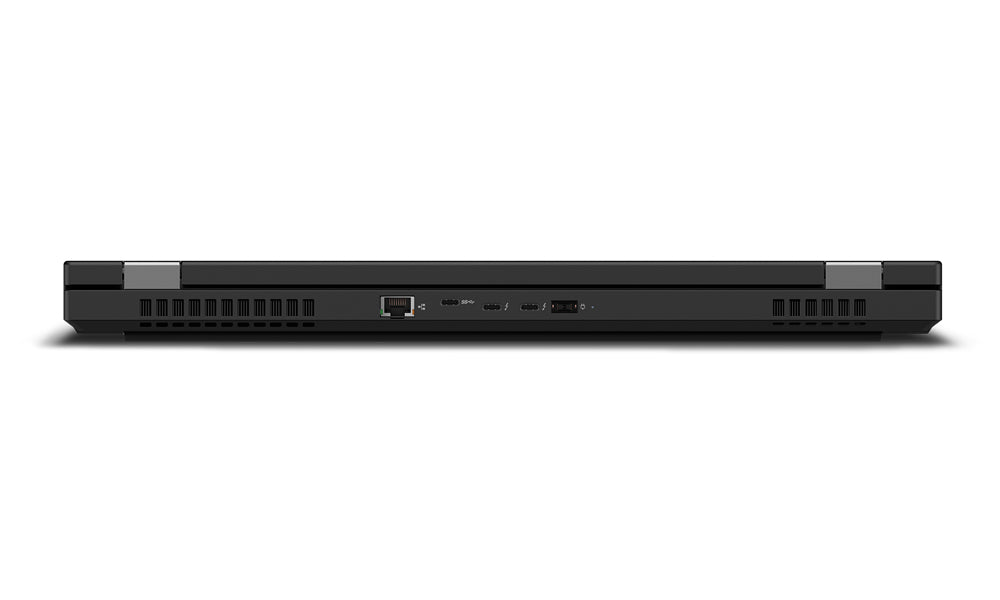

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Thunderbolt 3 ports quantity	2
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1
Performance
Motherboard chipset	Intel WM490
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Keyboard backlit	Yes
Spill-resistant keyboard	Yes
Keyboard language	English
Software
Operating system architecture	64-bit
Operating system language	English
Operating system installed	Windows 10 Pro
Processor special features
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel® OS Guard	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel 64	Yes
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Processor package size	42 x 28 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
CPU configuration (max)	1
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	201837
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	94 Wh
Battery life (max)	14.6 h
Power
AC adapter power	170 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
MIL-STD-810G compliant	Yes
Compliance certificates	RoHS
Certification	MIL-STD-810G
Sustainability
Sustainability certificates	EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	415.4 mm
Depth	280.8 mm
Height (front)	2.51 cm
Height (rear)	3.33 cm
Weight	3.5 kg
