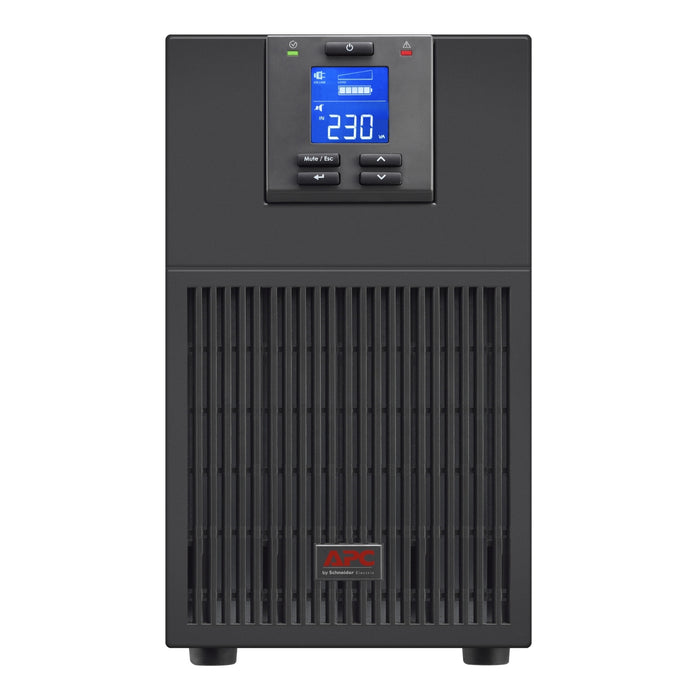

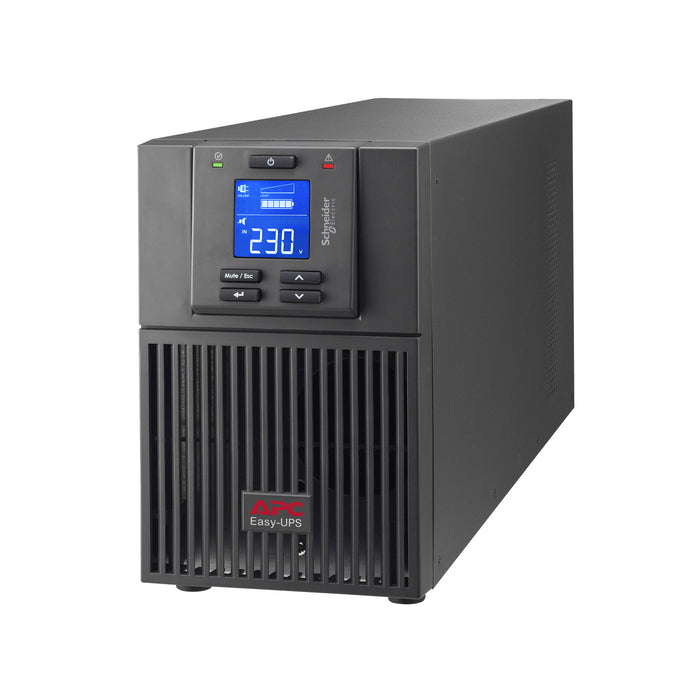

APC SRV1KI-E, Double-conversion (Online), 1 kVA, 900 W, Sine, 110 V, 285 V

APC SRV1KI-E. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 900 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 24 V, Battery life (max): 5 year(s). Form factor: Tower, Product colour: Black, Cable length: 1.5 m. Certification: CE UKCA TISI

• Double-conversion (Online)
• 1 kVA 900 W
• Waveform: Sine
• 3 AC outlet(s)
• Sealed Lead Acid (VRLA) 24 V
• Tower Black

Features

Features
UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Output power	900 W
Waveform	Sine
Input operation voltage (min)	110 V
Input operation voltage (max)	285 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Surge energy rating	945 J
Heat dissipation	380 BTU/h
Efficiency	88%
Crest factor	3:1
ECO mode	Yes
Output voltage Total Harmonic Distortion (THD)	3%
Noise level	50 dB
Surge protection	Yes
Audible alarm(s)	Yes
Audible alarm modes	Low battery alarm, Overload alarm
Power source type	AC
Detachable power cord	Yes

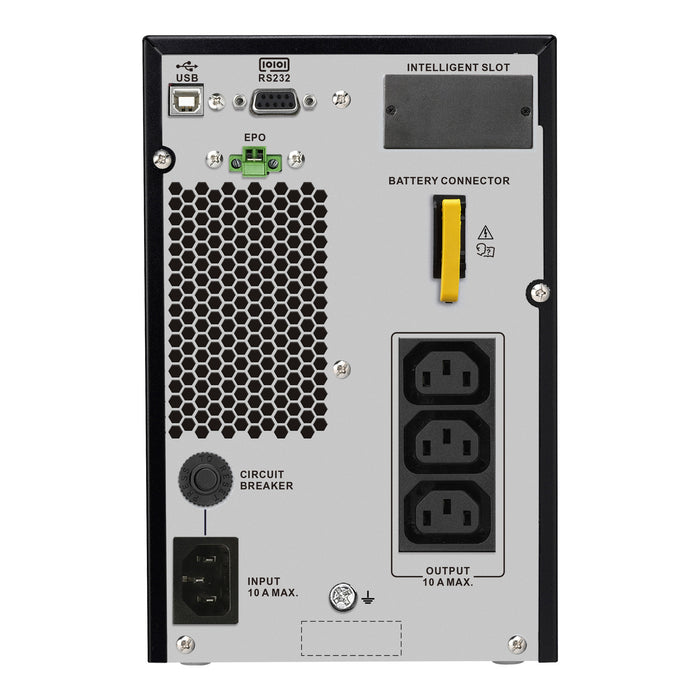

Ports & interfaces
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	3 AC outlet(s)
USB port	Yes
USB port type	USB Type-B
RS-232 ports	1
Emergency Power Off (EPO) connector	Yes
SmartSlot	Yes
SmartConnect port	No
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	24 V
Battery life (max)	5 year(s)
Battery recharge time	4 h
Design
Form factor	Tower
Cable length	1.5 m
Product colour	Black
Control type	Buttons
Display type	LCD
LED indicators	Status
International Protection (IP) code	IP20
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Certificates
Certification	CE UKCA TISI
Packaging content
Rack mount kit	No
Cables included	Input power cable, Output power cable, RS-232, USB cable
Management card included	No
Manual	Yes
Weight & dimensions
Width	145 mm
Depth	288 mm
Height	223 mm
Weight	9.6 kg
Packaging data
Package width	235 mm
Package depth	365 mm
Package height	330 mm
Package weight	10.9 kg
