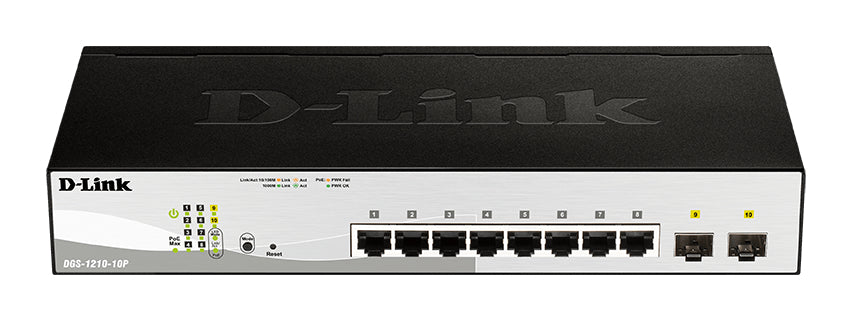

D-Link DGS-1210-10P - 10-Port Gigabit Smart Managed Switch including 2x SFP ports, nuclias compatible, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

D-Link DGS-1210-10P - 10-Port Gigabit Smart Managed Switch including 2x SFP ports, nuclias compatible. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

• Managed L2 Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 8
• Cat5, Cat5e 10BASE-T, 100BASE-T, 1000BASE-T
• MAC address table: 8000 entries Switching capacity: 20 Gbit/s
• Access Control List (ACL)
• 1U Rack mounting Stackable
• Power over Ethernet (PoE)

Features

Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
SFP module slots quantity	2
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported	Cat5, Cat5e
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Data transmission
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Packet buffer memory	0.512 MB
Security
Access Control List (ACL)	Yes
MAC address filtering	Yes
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Performance
Noise level	0 dB
Mean time between failures (MTBF)	729258 h
Power
Power consumption (max)	80.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet plus (PoE+) ports quantity	2
Total Power over Ethernet (PoE) budget	78 W
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	373.96 BTU/h
Weight & dimensions
Width	280 mm
Depth	126 mm
Height	44 mm
Weight	950 g
Packaging data
Package width	288 mm
Package depth	331 mm
Package height	72 mm
Package weight	2.21 kg
Technical details
Shipping (inner) case height	31.7 cm
Shipping (inner) case width	34.6 cm
Shipping (inner) case length	38.2 cm
Shipping (inner) case net weight	11.1 kg
Products per shipping (inner) case	5 pc(s)
Pallet gross weight (air)	449.5 kg
Master (outer) cases per pallet (air)	36 pc(s)
Products per pallet (air)	180 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	140.3 cm
Pallet gross weight (sea)	662 kg
Master (outer) cases per pallet (sea)	54 pc(s)
Products per pallet (sea)	270 pc(s)
Pallet height (sea)	2.04 m
Shipping (inner) case gross weight	11.8 kg
Certificates
Certification	EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
Logistics data
Harmonized System (HS) code	85176990
