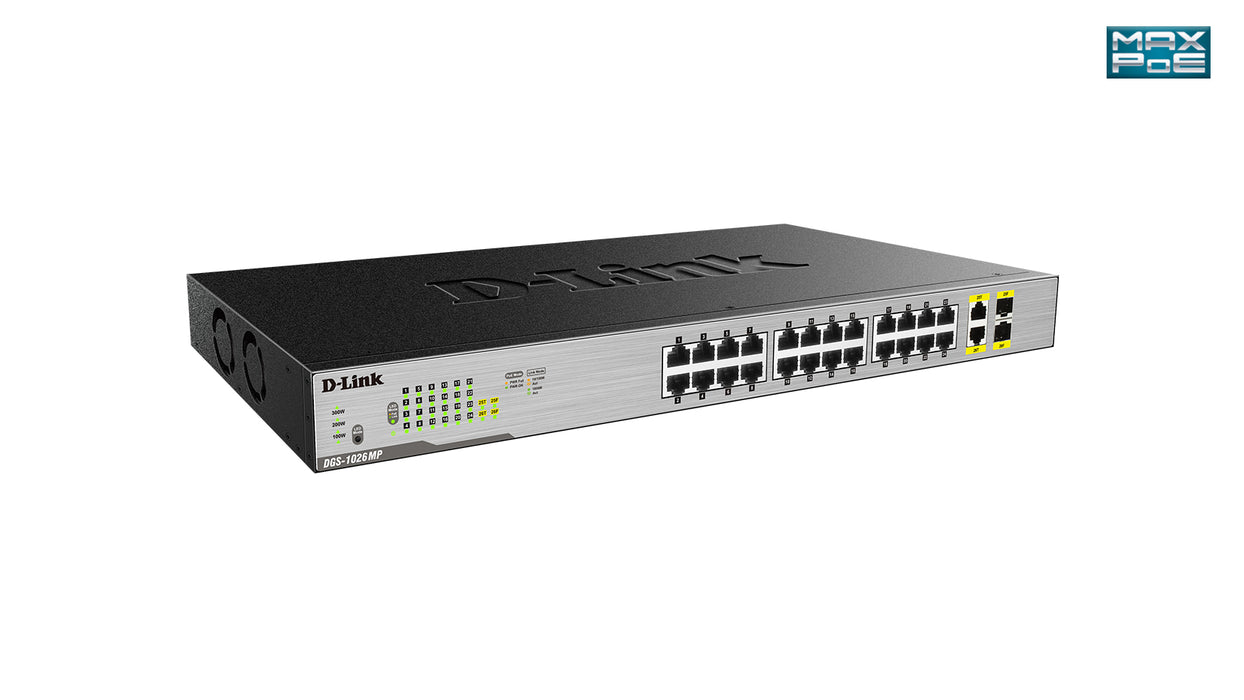

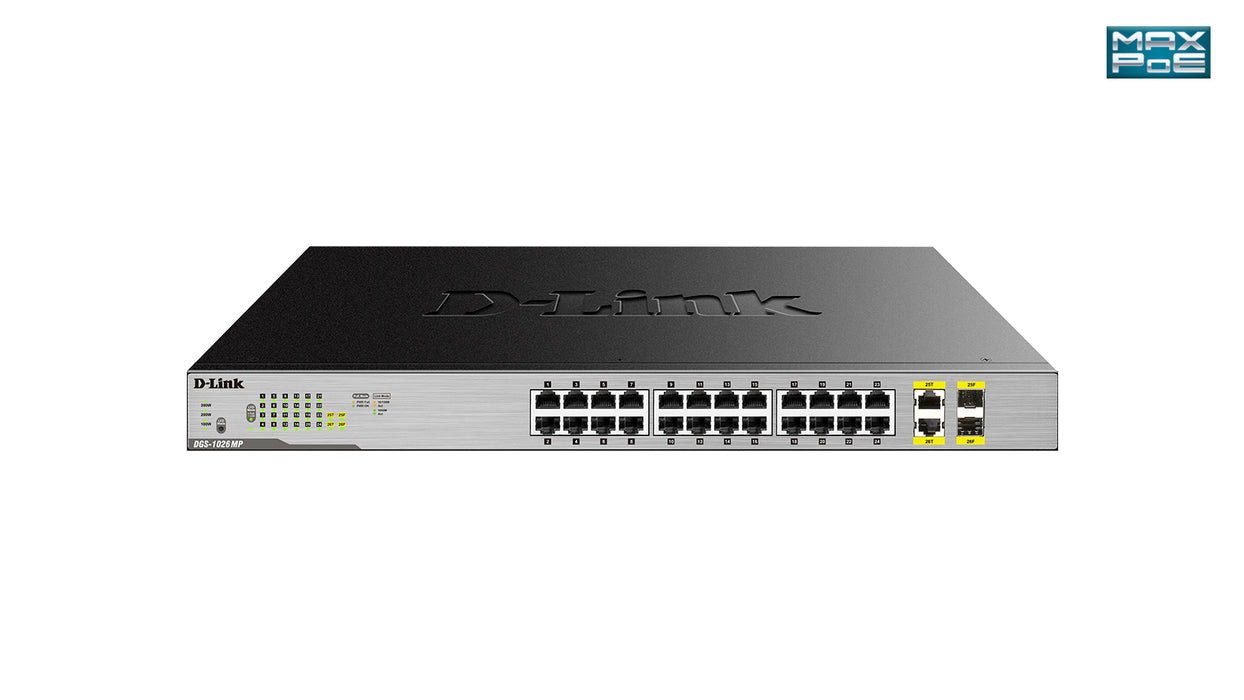

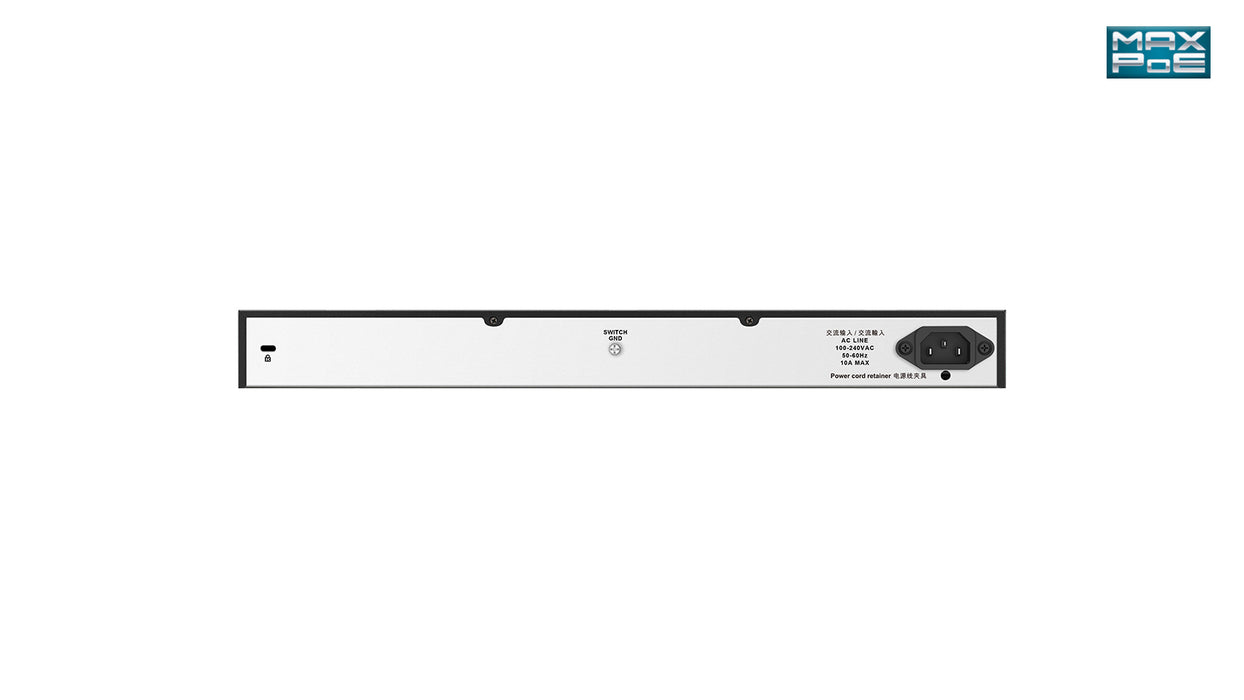

D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with 2 x 100/1000Mbps Combo Ports, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with 2 x 100/1000Mbps Combo Ports. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8192 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting

• Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 24
• MAC address table: 8192 entries Switching capacity: 52 Gbit/s
• Rack mounting
• AC Power supply included Power over Ethernet (PoE)

Features

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Auto MDI/MDI-X	Yes
Data transmission
Switching capacity	52 Gbit/s
Throughput	38.69 Mpps
Forwarding rate	38.69 Mpps
MAC address table	8192 entries
Store-and-forward	Yes
Packet buffer memory	0.512 MB
Design
Rack mounting	Yes
Product colour	Black, Grey
LED indicators	Activity, Link, PoE, Power, Power fail, Speed
Number of fans	2 fan(s)
Safety	UL/CSA 60950-1, EN 60950-1, IEC 60950-1
Performance
Buffer size	512 KB
Mean time between failures (MTBF)	205975 h
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	444.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	370 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1515 BTU/h
Weight & dimensions
Width	440 mm
Depth	250.4 mm
Height	44 mm
Weight	3.1 kg
Packaging data
Package width	388 mm
Package depth	506 mm
Package height	90 mm
Package weight	3.7 kg
Technical details
Shipping (inner) case height	41 cm
Shipping (inner) case width	20.5 cm
Shipping (inner) case length	52 cm
Shipping (inner) case net weight	8.39 kg
Products per shipping (inner) case	2 pc(s)
Pallet gross weight (air)	281.8 kg
Master (outer) cases per pallet (air)	30 pc(s)
Products per pallet (air)	60 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	136.5 cm
Pallet gross weight (sea)	369.8 kg
Master (outer) cases per pallet (sea)	40 pc(s)
Products per pallet (sea)	80 pc(s)
Pallet height (sea)	177.5 cm
Shipping (inner) case gross weight	8.79 kg
Certificates
Compliance certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Certification	FCC Class A CE CCC RoHS VCCI BSMI RCM
Logistics data
Harmonized System (HS) code	85176990
