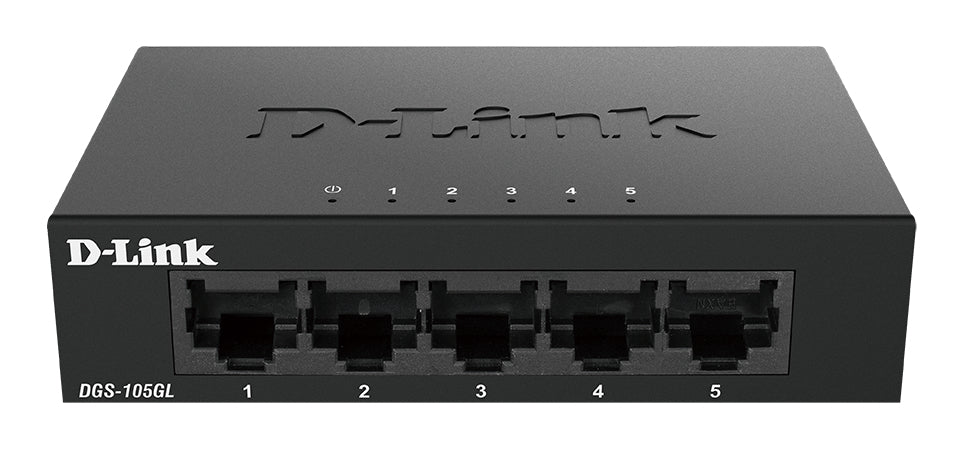

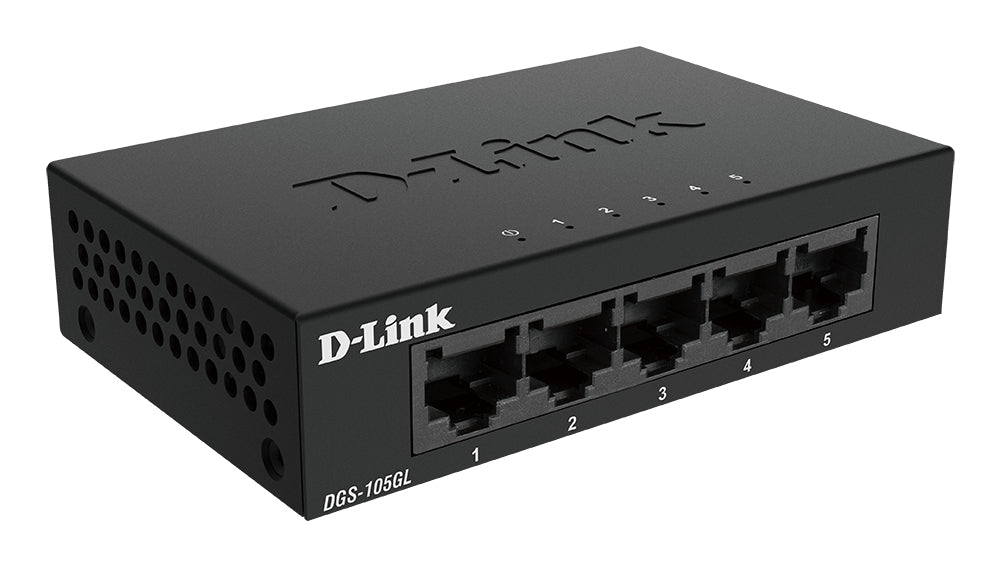

D-Link DGS-105GL 5-Port Gigabit Ethernet Switch, Fanless, Low Profile, Metal Housing, Plug-and-Play, 802.3az EEE black, Unmanaged, Gigabit Ethernet (10/100/1000), Desktop
by D-Link
Original price
£13.03
ex VAT
- Original price £13.03ex VAT
Original price
£13.03
ex VAT
£13.03
ex VAT
- £13.03ex VAT
Current price
£13.03
ex VAT
Stock: 1
Manuf P/N: DGS-105GL/B
D-Link DGS-105GL 5-Port Gigabit Ethernet Switch, Fanless, Low Profile, Metal Housing, Plug-and-Play, 802.3az EEE black. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Form factor: Desktop
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 2000 entries Switching capacity: 10 Gbit/s
- Desktop Stackable
- DC
Features
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Design | |
| Stackable | Yes |
| Form factor | Desktop |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Performance | |
| Mean time between failures (MTBF) | 1455562 h |
| Power | |

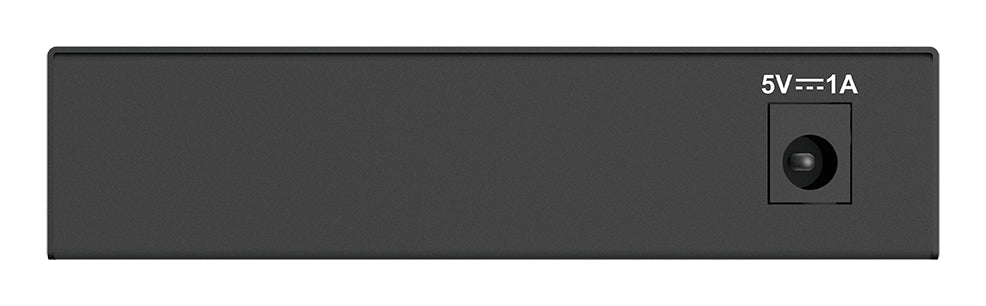

| Power source | DC |
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 3.55 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 12.11 BTU/h |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 64 mm |
| Height | 24 mm |
| Weight | 160 g |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Certification | CE; FCC; RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
