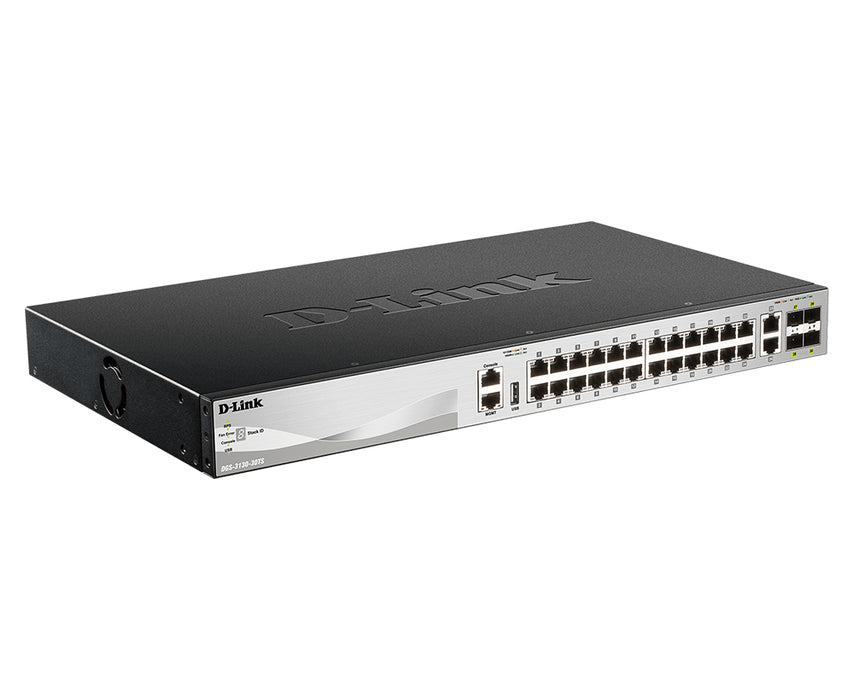

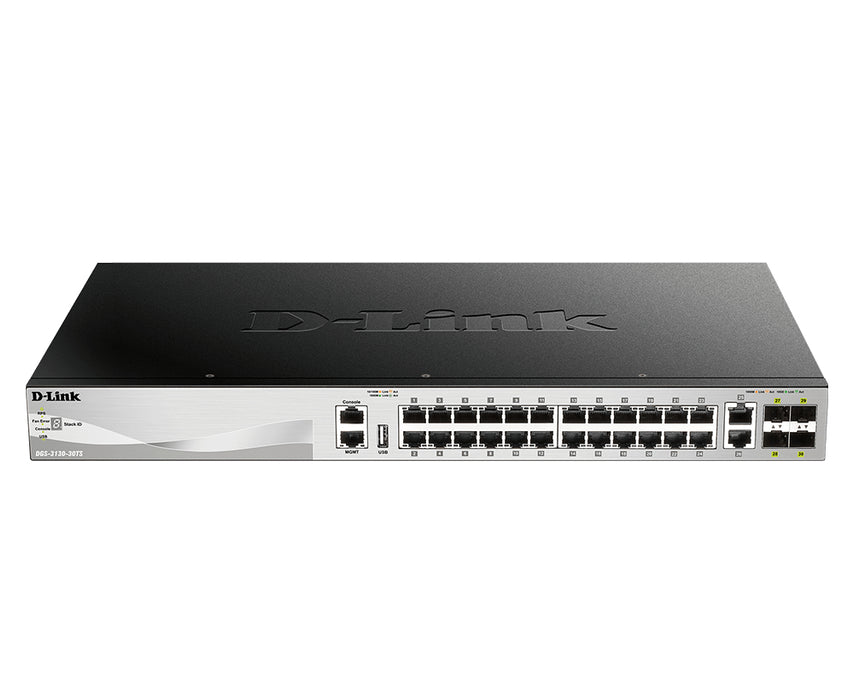

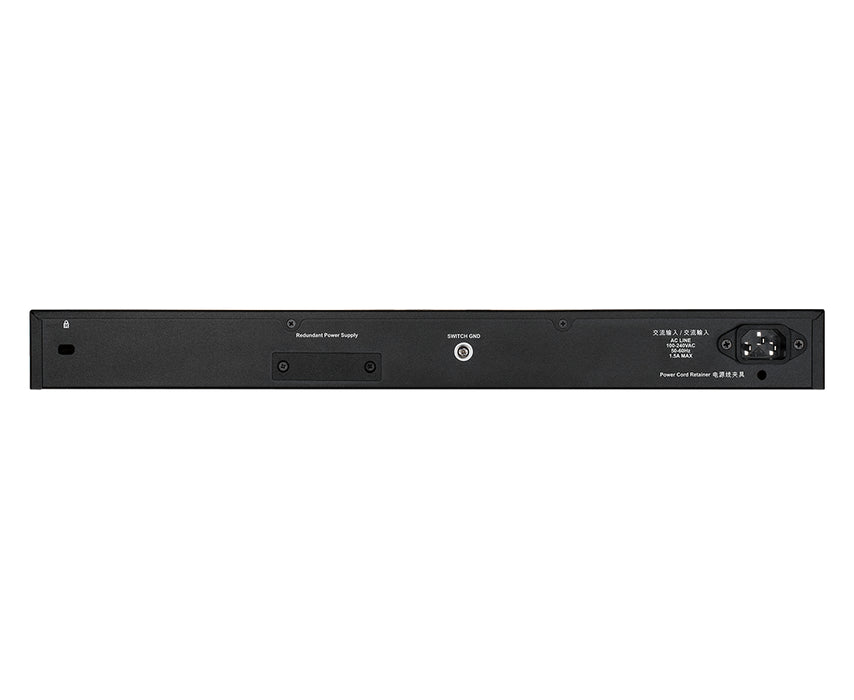

D-Link 24 x 10/100/1000BASE-T Ports Layer 3 Stackable Managed Gigabit Switch, Managed, L3, Gigabit Ethernet (10/100/1000)

D-Link 24 x 10/100/1000BASE-T Ports Layer 3 Stackable Managed Gigabit Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 16384 entries, Switching capacity: 168 Gbit/s. Networking standards: IEEE 802.11ad, IEEE 802.11d, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s,.... Power connector: AC-in jack

• Managed L3 Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
• 10G support
• MAC address table: 16384 entries Switching capacity: 168 Gbit/s
• Access Control List (ACL)
• Stackable
• AC Power supply included

Features

Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
10G Ethernet (copper) ports quantity	2
SFP+ module slots quantity	4
Console port	RJ-45
USB 2.0 ports quantity	1
Power connector	AC-in jack
Network
Networking standards	IEEE 802.11ad, IEEE 802.11d, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x
10G support	Yes
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
Fast leave	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000
Data transmission
Switching capacity	168 Gbit/s
Forwarding rate	125 Mpps
MAC address table	16384 entries
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	2 MB
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) egress	512
Access Control List (ACL) ingress	2048
IGMP snooping	Yes
IGMP entries	1024
Static port security	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN
Root protection	Yes
DoS attack prevention	Yes
Authentication type	IEEE 802.1x, RADIUS, TACACS+
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted Round Robin (WRR), Weighted random early detection (WRED)
Packet filtering	L3
Multicast features
Multicast support	Yes
MLD entries	64
Protocols
GARP VLAN Registration Protocol (GVRP)	Yes
Routing protocols	OSPFv2, RIPng, OSPFv3, RIP-1, RIP-2
Design
Stackable	Yes
Product colour	Black
Number of fans	1 fan(s)
Safety	CB, cUL, BSMI, CCC
Performance
Physical stacking (units)	9
Virtual stacking (units)	32
Noise level	52.5 dB
sFlow	Yes
Mean time between failures (MTBF)	900546 h
Power
Power source	AC
Power supply included	Yes
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	30.76 W
Surge protection	Yes
Surge protection voltage	6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	104.65 BTU/h
Weight & dimensions
Width	440 mm
Depth	250 mm
Height	44 mm
Weight	2.98 kg
Certificates
Certification	FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI, CCC
