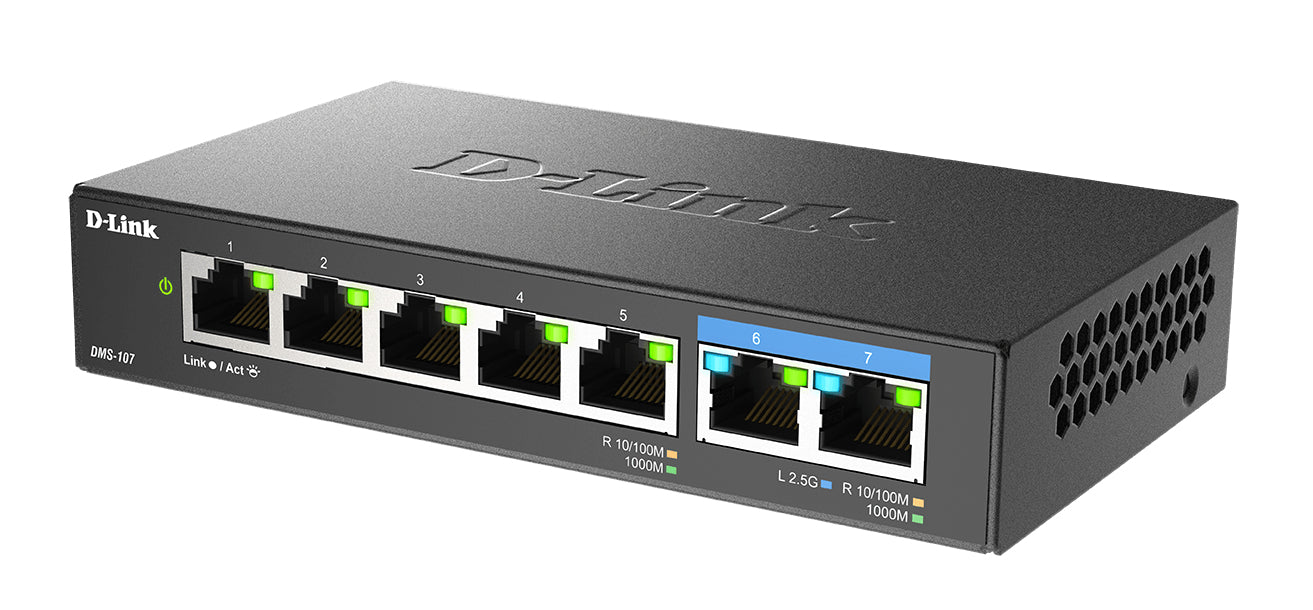

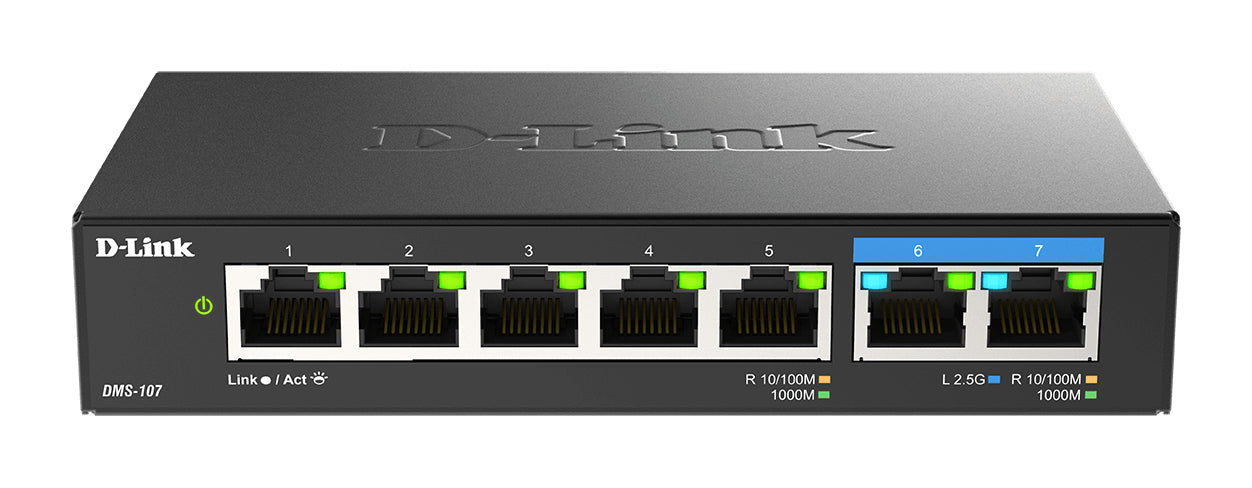

D-Link 7-Port Multi-Gigabit Unmanaged Switch, Unmanaged, Gigabit Ethernet (10/100/1000)

D-Link 7-Port Multi-Gigabit Unmanaged Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V

• Unmanaged
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 5
• 10BASE-T, 100BASE-T, 1000BASE-T, 2500BASE-T
• MAC address table: 2000 entries Switching capacity: 20 Gbit/s
• DC

Features

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Cloud-managed	No
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5

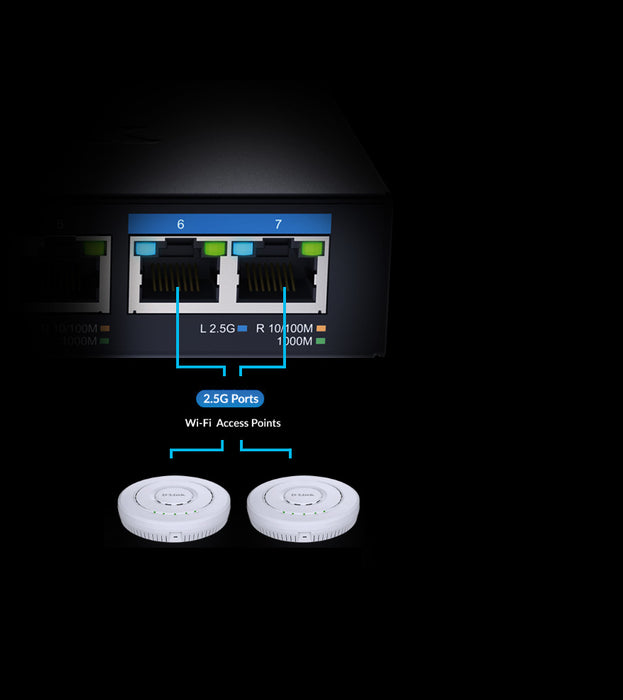

2.5G Ethernet (copper) ports quantity	2
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T, 2500BASE-T
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
MAC address auto-learning supported	Yes
Data transmission
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
MAC address table	2000 entries
Store-and-forward	Yes
Number of queues	8
Packet buffer memory	2 MB
Design
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, Power
Performance
Fanless	Yes
Mean time between failures (MTBF)	944277.78 h
Power
Power source	DC

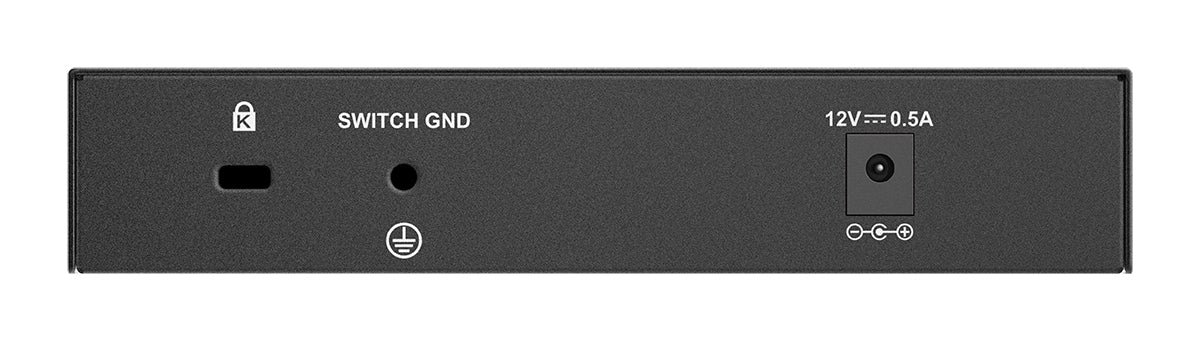

DC input voltage	12 V
Input current	0.5 A
Power consumption (typical)	3.37 W
Power consumption (max)	3.37 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Warranty period	5 year(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	14.28 BTU/h
Weight & dimensions
Width	145 mm
Depth	28 mm
Height	82 mm
Weight	295.2 g
Sustainability
Sustainability compliance	Yes
Certificates
Compliance certificates	BSMI, CE, Low Voltage Directive (LVD), RoHS
