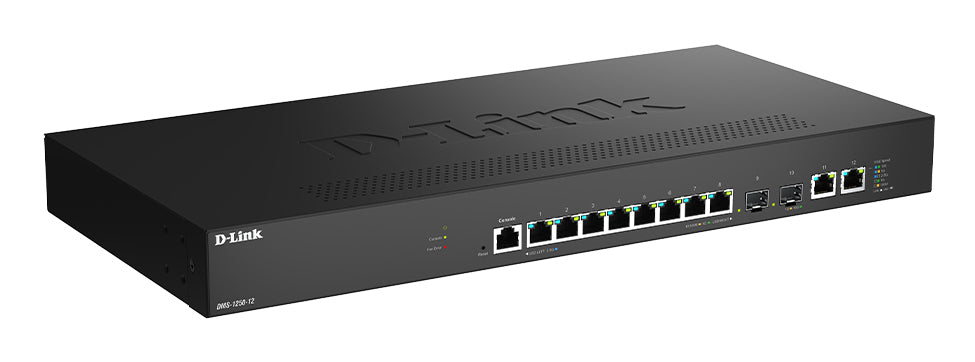

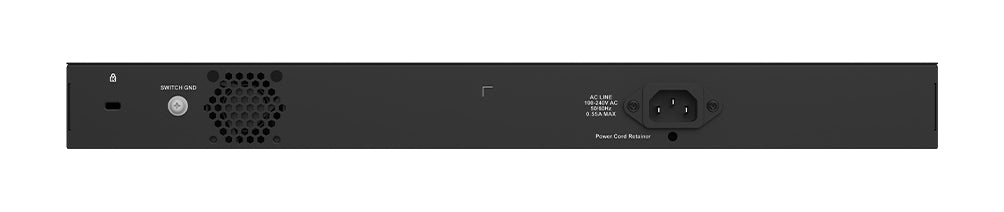

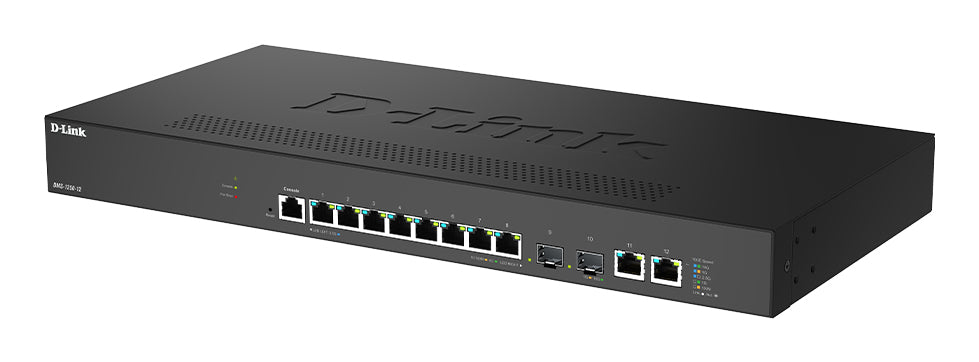

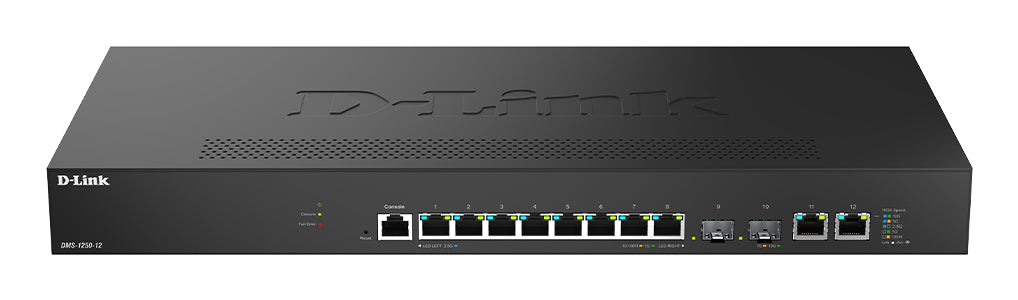

D-Link 12-Port 2.5G Multi-Gigabit Smart Managed Switch with 2 x 10GBASE-T and 2 x 10G SFP+ Ports, Managed, L2+, 10G Ethernet (100/1000/10000), Rack mounting

D-Link 12-Port 2.5G Multi-Gigabit Smart Managed Switch with 2 x 10GBASE-T and 2 x 10G SFP+ Ports. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 16000 entries, Switching capacity: 120 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz,.... Power connector: AC-in jack. Rack mounting

• Managed L2+ Web-based management
• Quality of Service (QoS) support Configuring Location Settings (CLI)
• Basic switching RJ-45 Ethernet ports quantity: 10
• MAC address table: 16000 entries Switching capacity: 120 Gbit/s
• Access Control List (ACL)
• Rack mounting Stackable
• AC Power supply included

Features

Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
2.5G Ethernet (copper) ports quantity	8
10G Ethernet (copper) ports quantity	2
SFP+ module slots quantity	2
Power connector	AC-in jack
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Active link detection	Yes
VLAN support	Yes
Number of VLANs	4096
Data transmission
Switching capacity	120 Gbit/s
Forwarding rate	89.29 Mpps
MAC address table	16000 entries
Store-and-forward	Yes
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	12 MB
Security
DHCP features	DHCP server, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Loop protection	Yes
Password protection	Yes
Authentication type	RADIUS
Multicast features
Multicast support	Yes
Protocols
GARP VLAN Registration Protocol (GVRP)	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
LED indicators	Yes
Number of fans	1 fan(s)
Performance
Internal memory	512 MB
Flash memory	32 MB
Fanless	Yes
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	23.023 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Width	440 mm
Depth	210 mm
Height	44 mm
Weight	2.58 kg
