DELL OptiPlex 7020 Plus, Intel® Core™ i7, i7-14700, 16 GB, 512 GB, Windows 11 Pro, 64-bit

DELL OptiPlex 7020 Plus. Processor family: Intel® Core™ i7, Processor model: i7-14700. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 180 W. Chassis type: MFF. Product type: Mini PC. Product colour: Black

• Business Mini PC Black 180 W
• Intel® Core™ i7 i7-14700 Processor cores: 20
• 16 GB DDR5-SDRAM 1 x 16 GB
• 512 GB SSD
• Intel UHD Graphics 770
• Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 6E (802.11ax) Bluetooth
• Windows 11 Pro 64-bit

Features

Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7 (14th gen)
Processor model	i7-14700
Processor cores	20
Processor threads	28
Processor boost frequency	5.4 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.3 GHz
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Number of processors installed	1
Number of processors supported	1
Processor base power	65 W
Maximum turbo power	219 W
Memory
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
ECC	No
Memory channels	Single-channel
Storage
Total storage capacity	512 GB
Storage media	SSD
Optical drive type	No
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
SSD performance class	35
Compatible memory cards	Not supported
RAID support	No
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics 770
Maximum on-board graphics card resolution	7680 x 4320 pixels
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Antenna type	2x2
Bluetooth	Yes

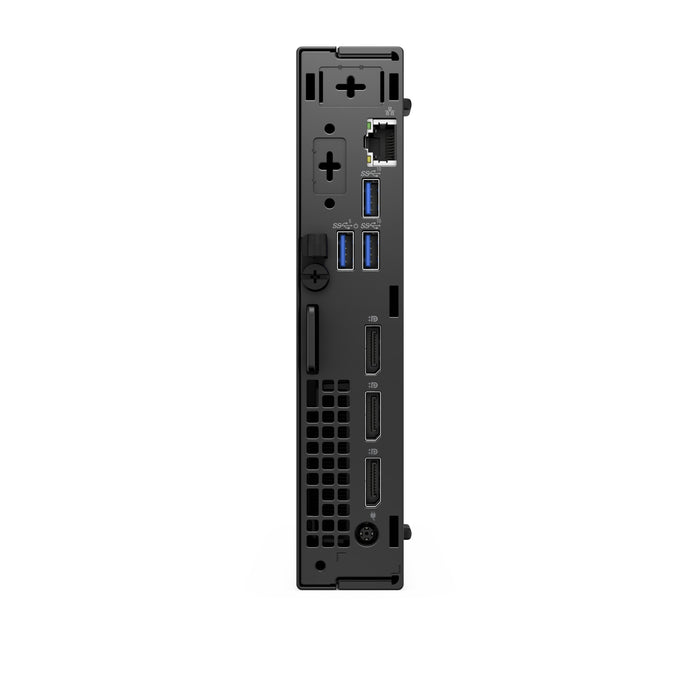

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2x2 Type-C ports quantity	1
PowerShare	Yes
Number of USB ports with PowerShare support	1
DisplayPorts quantity	3
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Combo headphone/mic port	Yes
DC-in jack	Yes
Number of rear USB ports	3
Number of front USB ports	2
Number of front audio ports	2
Design
Chassis type	MFF
Placement supported	Horizontal/Vertical
Water cooling system	No
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Intel® vPro™ Platform Eligibility	Yes
Performance
Market positioning	Business
Motherboard chipset	Intel Q670
Audio chip	Realtek ALC3246
Built-in speaker(s)	Yes
Number of speakers	1
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Product type	Mini PC
Trusted Platform Module (TPM) version	2.0
Software
Operating system architecture	64-bit
Operating system language	German, Dutch, English, French, Italian
Operating system installed	Windows 11 Pro
Trial software	No Microsoft Office Licence Included - 30 day Trial Offer Only
Power
Power supply	180 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating vibration	0.26 G
Non-operating vibration	1.37 G
Operating shock	40 G
Non-operating shock	105 G
Sustainability
Sustainability compliance	Yes
Sustainability certificates	TCO, ENERGY STAR, EPEAT Climate +
Doesn't contain	PVC/BFR
Weight & dimensions
Width	36 mm
Depth	178 mm
Height	182 mm
Packaging content
Input device model	Dell Pro Wireless Keyboard and Mouse - KM5221W - UK (QWERTY) - Black
Cables included	AC
Carbon footprint
Total carbon footprint (kg of CO2e)	95.7
Carbon emissions, manufacturing (kg of CO2e)	62.205
Carbon emissions, logistics (kg of CO2e)	2.3925
Carbon emissions, energy usage (kg of CO2e)	30.624
Carbon emissions, end-of-life (kg of CO2e)	0.5742
PAIA version	GaBi version 1, 2024
Display
Display included	No
