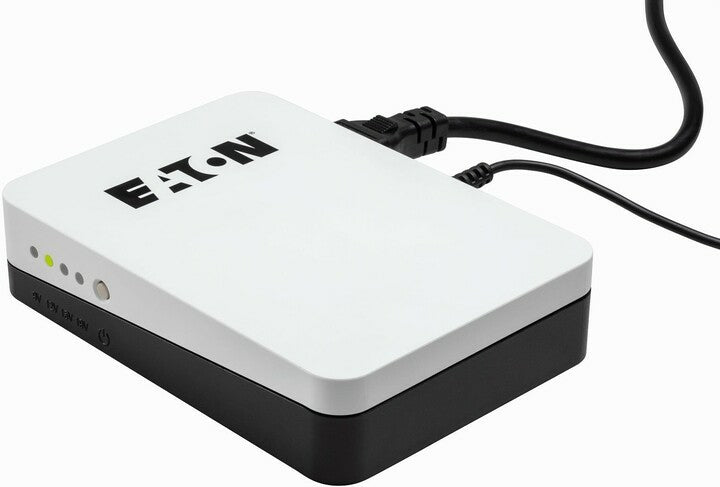

Eaton 3S Mini, 36 W, 90 V, 264 V, 50/60 Hz, 9 V, 19 V

Eaton 3S Mini. Output power: 36 W, Input operation voltage (min): 90 V, Input operation voltage (max): 264 V. Power plug: Type F. Battery technology: Lithium, Battery capacity: 4.4 Ah, Battery voltage: 3.7 V. Form factor: Compact, Product colour: Black, White. Certification: IEC 62477-1, IEC 62040-2

• 36 W
• Lithium 3.7 V 4.4 Ah
• Compact Black, White

Features

Features
Output power	36 W
Input operation voltage (min)	90 V
Input operation voltage (max)	264 V
Input frequency	50/60 Hz
Output operation voltage (min)	9 V
Output operation voltage (max)	19 V
Maximum current	3 A
Ports & interfaces
Power plug	Type F
Battery
Battery technology	Lithium
Battery capacity	4.4 Ah
Battery voltage	3.7 V
Design
Form factor	Compact
Product colour	Black, White
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Certificates
Certification	IEC 62477-1, IEC 62040-2
Weight & dimensions
Width	95.5 mm
Depth	30 mm
Height	136 mm
Weight	400 g
Logistics data
Harmonized System (HS) code	85078000
Other features
Output connections	5.5/2.5mm, 5.5/2.1mm, 4.75/1.7mm, 3.5/1.3mm
