Eaton 160 -294V Input Rack Mount Uninterruptible Power Supply, 650VA (520W), 5P650I, Line-Interactive, 0.65 kVA, 520 W, Sine, 160 V, 294 V

Eaton 160 -294V Input Rack Mount Uninterruptible Power Supply, 650VA (520W), 5P650I. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 520 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 6 Ah, Battery voltage: 9 V. Form factor: Tower, Product colour: Black, Silver, Rack capacity: 1U. Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

• Line-Interactive
• 0.65 kVA 520 W
• Waveform: Sine
• 4 AC outlet(s)
• Sealed Lead Acid (VRLA) 9 V 6 Ah
• Tower Black, Silver

Features

Features
UPS topology	Line-Interactive
Output power capacity	0.65 kVA
Output power	520 W
Waveform	Sine
Input operation voltage (min)	160 V
Input operation voltage (max)	294 V
Input frequency	47/70 Hz
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Heat dissipation	461 BTU/h
Number of input phases	1
Number of output phases	1
Efficiency	97%
Noise level	35 dB
Ports & interfaces

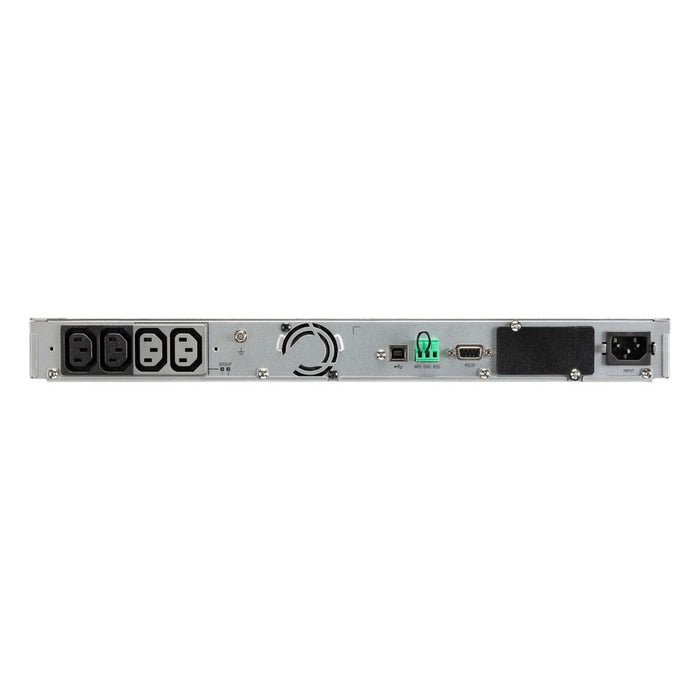

AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	4 AC outlet(s)
USB port	Yes
USB port type	USB Type-B
Serial interface	Yes
Serial interface type	RS-232
Serial ports quantity	1

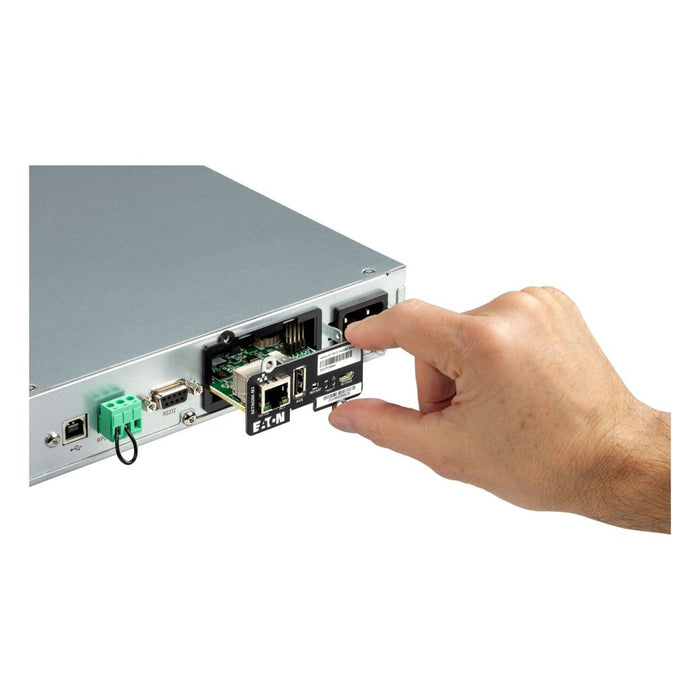

Network card slot	Yes
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	6 Ah
Battery voltage	9 V
Number of batteries supported	2
Design
Form factor	Tower
Rack capacity	1U
Product colour	Black, Silver

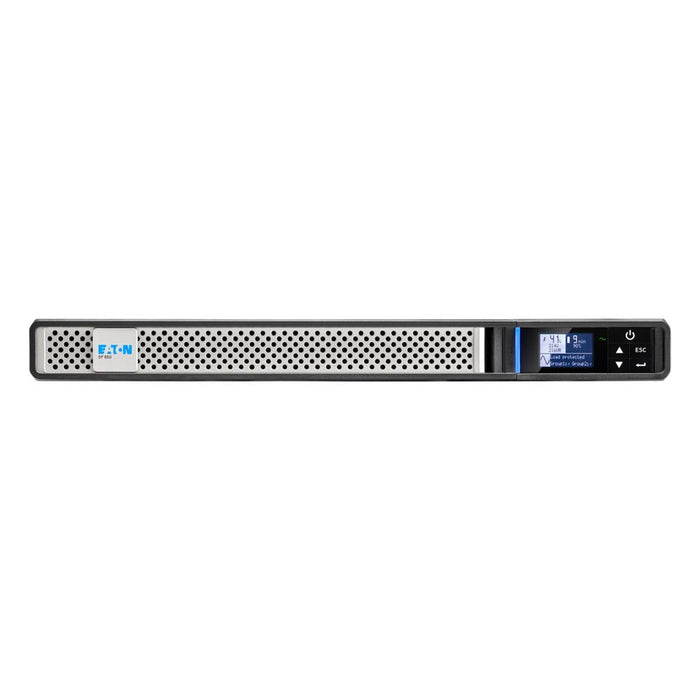

Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Certificates
Certification	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Packaging content
Cables included	USB cable
Manual	Yes
Quick installation guide	Yes
Weight & dimensions
Width	438 mm
Depth	361 mm
Height	43.2 mm
Weight	8.94 kg
