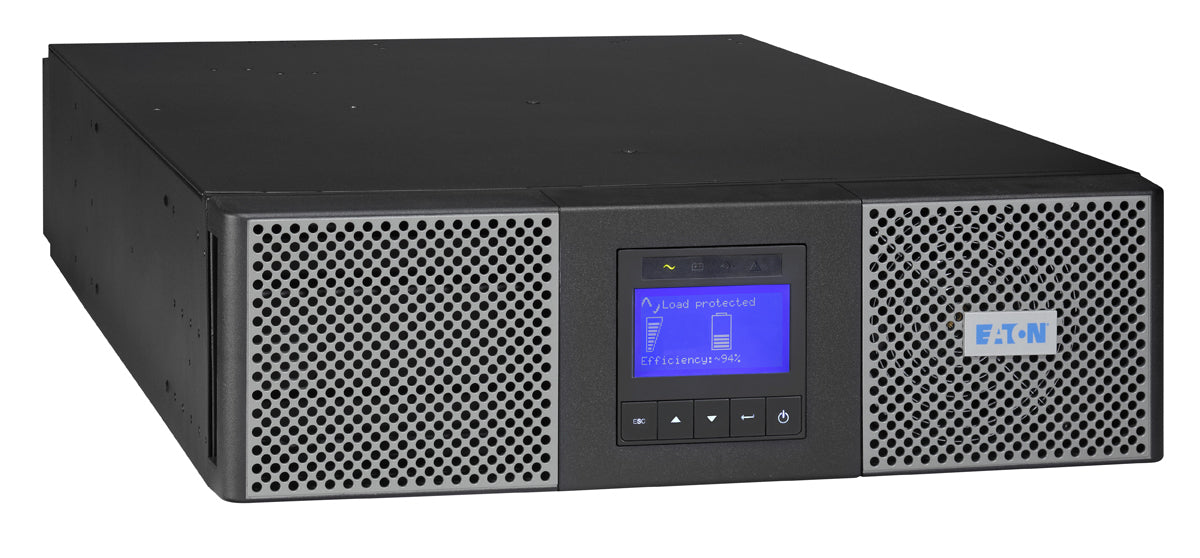

Eaton 9PX5KIRTN, Double-conversion (Online), 5 kVA, 4500 W, Pure sine, 176 V, 276 V
by EATON
Original price
£3,622.87
ex VAT
- Original price £3,622.87ex VAT
Original price
£3,622.87
ex VAT
£3,622.87
ex VAT
- £3,622.87ex VAT
Current price
£3,622.87
ex VAT
Stock: 1
Manuf P/N: 9PX5KIRTN
Eaton 9PX5KIRTN. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4500 W. AC outlet types: C13 coupler, C19 coupler, Terminal, Power plug: Terminal, AC outlets quantity: 11 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 13 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report...
- Double-conversion (Online)
- 5 kVA 4500 W
- Waveform: Pure sine
- 11 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
Features
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 5 kVA |
| Output power | 4500 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Efficiency | 94% |
| Power factor | 0.9 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Noise level | 45 dB |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler, Terminal |
| Power plug | Terminal |
| AC outlets quantity | 11 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 13 min |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 3U |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
| Certification | IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV), UL |
| Packaging content | |
| Rack mount kit | Yes |
| Management card included | Yes |
| Safety regulation & standards | |
| Safety | IEC/EN 62040-1, UL 1778 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 685 mm |
| Height | 130 mm |
| Weight | 48 kg |
| Packaging data | |
| Bundled software | Intelligent Power Software suite |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Interface | USB, RS232 |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
