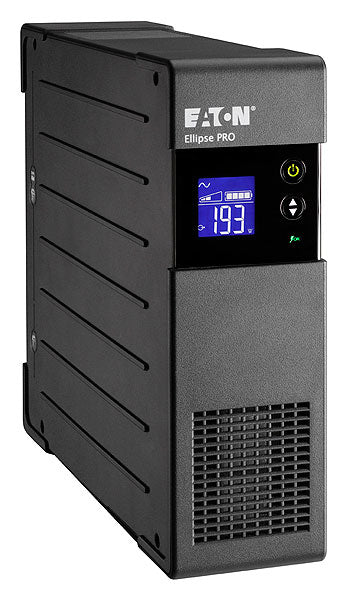

Eaton Ellipse PRO 850 IEC, Line-Interactive, 0.85 kVA, 510 W, 150 V, 285 V, 50/60 Hz

Eaton Ellipse PRO 850 IEC. UPS topology: Line-Interactive, Output power capacity: 0.85 kVA, Output power: 510 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9 min. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE

• Line-Interactive
• 0.85 kVA 510 W
• 4 AC outlet(s)
• Sealed Lead Acid (VRLA)
• Tower Black

Features

Features
UPS topology	Line-Interactive
Output power capacity	0.85 kVA
Output power	510 W
Input operation voltage (min)	150 V
Input operation voltage (max)	285 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50 Hz
Emergency Power Off (EPO)	Yes
Surge protection	Yes
Surge protection features	Fax, Modem, Network, Telephone
Ports & interfaces

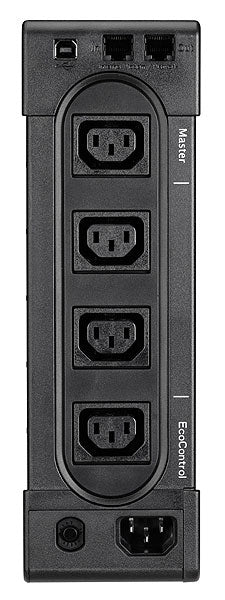

AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	4 AC outlet(s)
USB 2.0 ports quantity	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	9 min
Hot-swap battery	No
Automatic battery test	Yes
Cold start	Yes
Design
Form factor	Tower
Rack capacity	2U
Product colour	Black

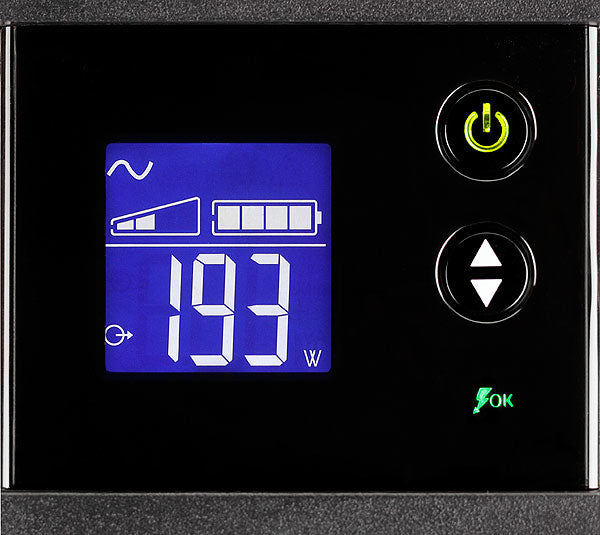

Display type	LCD
LED indicators	Yes
Safety regulation & standards
Safety	IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Weight & dimensions
Width	82 mm
Depth	285 mm
Height	260 mm
Weight	7.3 kg
Logistics data
Harmonized System (HS) code	85078000
Other features
Nominal input voltage	230 V
