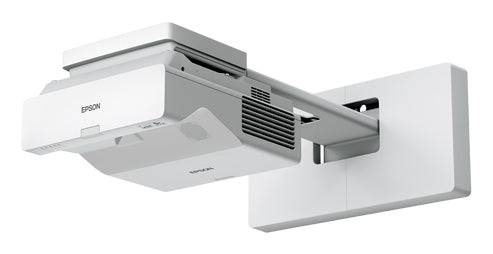

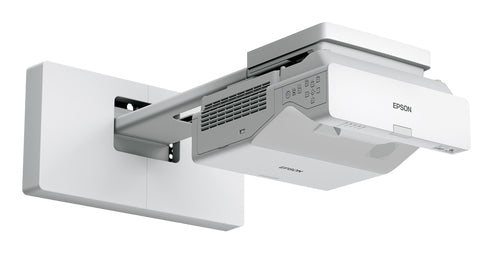

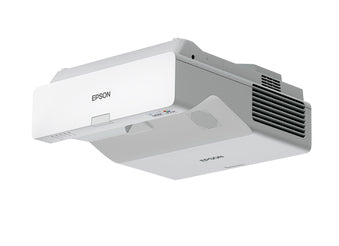

Epson EB-760W, 4100 ANSI lumens, 3LCD, WXGA (1280x800), 2500000:1, 16:10, 1524 - 3810 mm (60 - 150")

Epson EB-760W. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 3.7 mm, Fixed focal length: 3.7 mm. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C

• Presentation Ultra short throw projector White
• 3LCD 4100 ANSI lumens
• Laser 20000 h
• WXGA (1280x800) 16:10 2500000:1
• Screen size compatibility: 1524 - 3810 mm (60 - 150") Number of colours: 1.07 billion colours
• Focus: Manual Zoom capability
• Ethernet LAN Wi-Fi
• Built-in speaker(s) 16 W
• AC 197 W

Features

Projector
Supported aspect ratios	16:10
Screen size compatibility	1524 - 3810 mm (60 - 150')
Contrast ratio (dynamic)	5000000:1
Projector brightness	4100 ANSI lumens
Projection technology	3LCD
Projector native resolution	WXGA (1280x800)
Contrast ratio (typical)	2500000:1
Native aspect ratio	16:10
Number of colours	1.07 billion colours
Projector brightness (economic mode)	2800 ANSI lumens
Vertical scan range	100 - 120 Hz
Keystone correction, horizontal	±3°
Keystone correction, vertical	±3°
Heat dissipation	895 BTU/h
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Focus	Manual
Focal length range	3.7 mm
Fixed focal length	3.7 mm
F-number (relative aperture)	1.6
Zoom capability	Yes
Zoom ratio	1.35:1
Throw ratio	0.27 - 0.37:1
Video
Full HD	No
3D	No
Video processing	10 bit
Video colour modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Ports & interfaces
USB 2.0 ports quantity	3
USB 2.0 Type-A ports quantity	2
USB 2.0 Type-B ports quantity	1
Audio (L/R) in	3
Audio (L/R) out	1
Microphone in	Yes
Serial interface type	RS-232C
VGA (D-Sub) ports quantity	2
HDMI ports quantity	3
Composite video in	1
DVI port	No
Consumer Electronics Control (CEC) support	Yes
Audio Return Channel (ARC)	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast	Yes
Storage
Card reader integrated	No
Features
Noise level (economic mode)	27 dB
On Screen Display (OSD)	Yes
Screen mirroring	Yes
Noise level	37 dB
Country of origin	Philippines
Password protection	Yes
Multimedia
Built-in speaker(s)	Yes
RMS rated power	16 W
Design
Market positioning	Presentation
Product type	Ultra short throw projector
Product colour	White
Placement	Ceiling, Desktop, Wall
Cable lock slot	Yes
Cable lock slot type	Kensington
Display
Built-in display	No
Power
Power source	AC
Power consumption (typical)	197 W
Power consumption (standby)	0.5 W
Power consumption (max)	263 W
Power consumption (PowerSave)	199 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Supplier features
Recommended gender	Any gender
Operational conditions
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	356 mm
Depth	395 mm
Height	133 mm
Weight	5.9 kg
Package width	450 mm
Package depth	485 mm
Package height	325 mm
Package weight	8.74 kg
Packaging content
Remote control included	Yes
Batteries included	Yes
Cables included	AC
Manual	Yes
Bundled software	EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Content Manager, Epson Projector Management
Technical details
Other features	A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App
Warranty period	5 year(s)
Mobile app support	Yes
Power consumption	197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)
Logistics data
Quantity per pack	1 pc(s)
Products per pallet	12 pc(s)
Pallet gross length	120 cm
Pallet gross width	80 cm
Pallet gross height	2.1 m
Products per pallet layer	2 pc(s)
Products per pallet layer (UK)	4 pc(s)
Products per pallet (UK)	24 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2.1 m
Other features
Option type	Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Interface	USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, Microphone input
Control panel	0.59 inch with C2 Fine
Supported network protocols	HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Box contents	Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, Warranty document
Security features	Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
