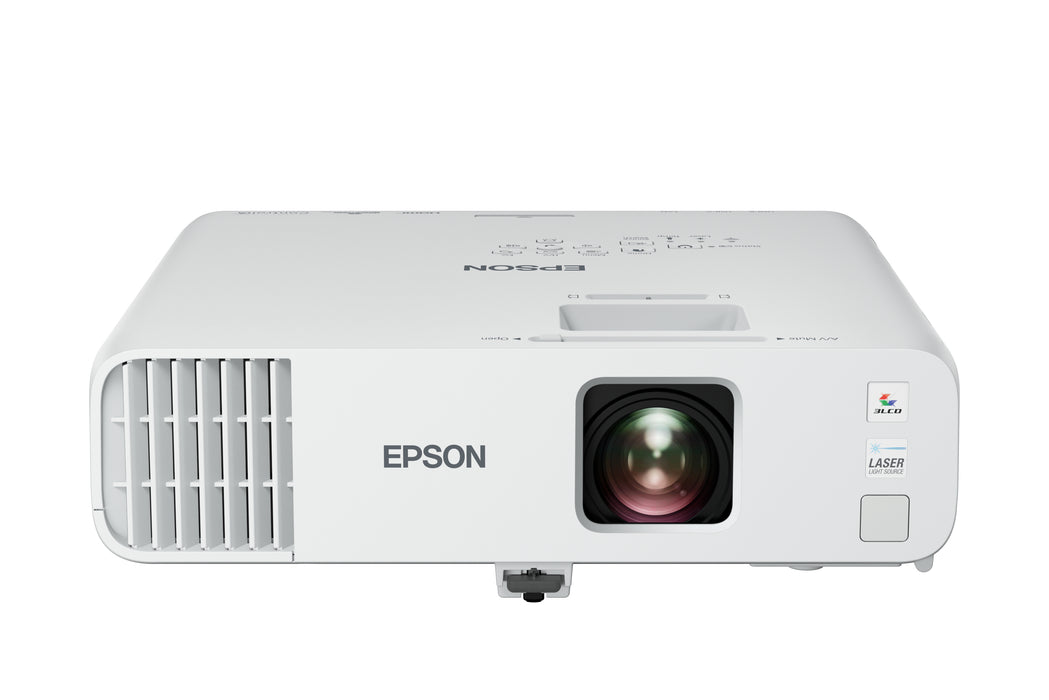

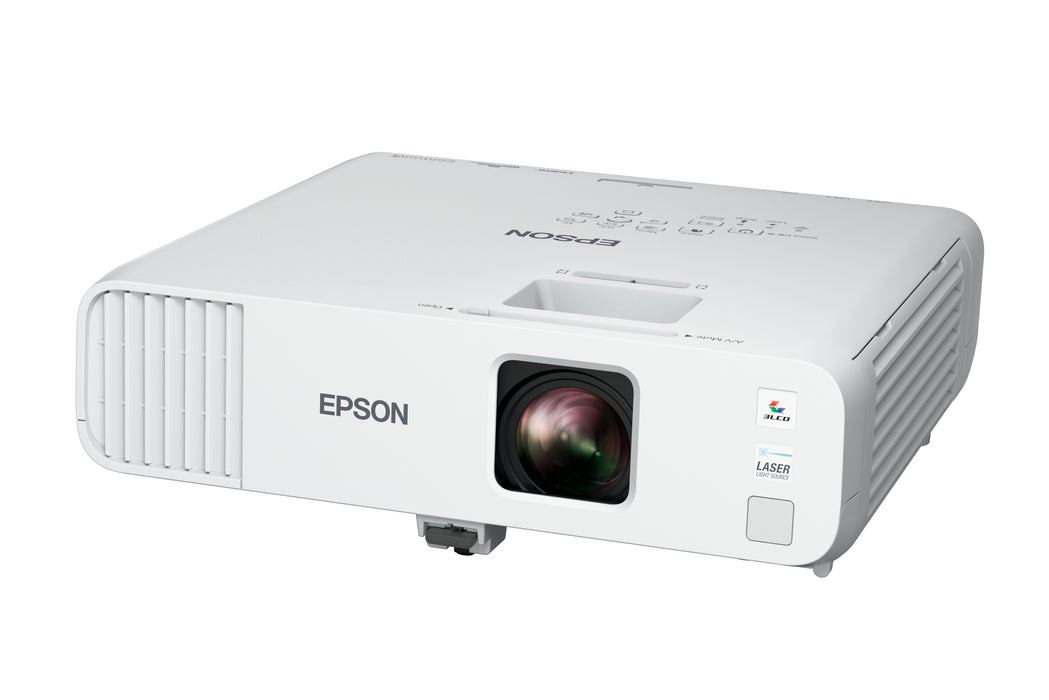

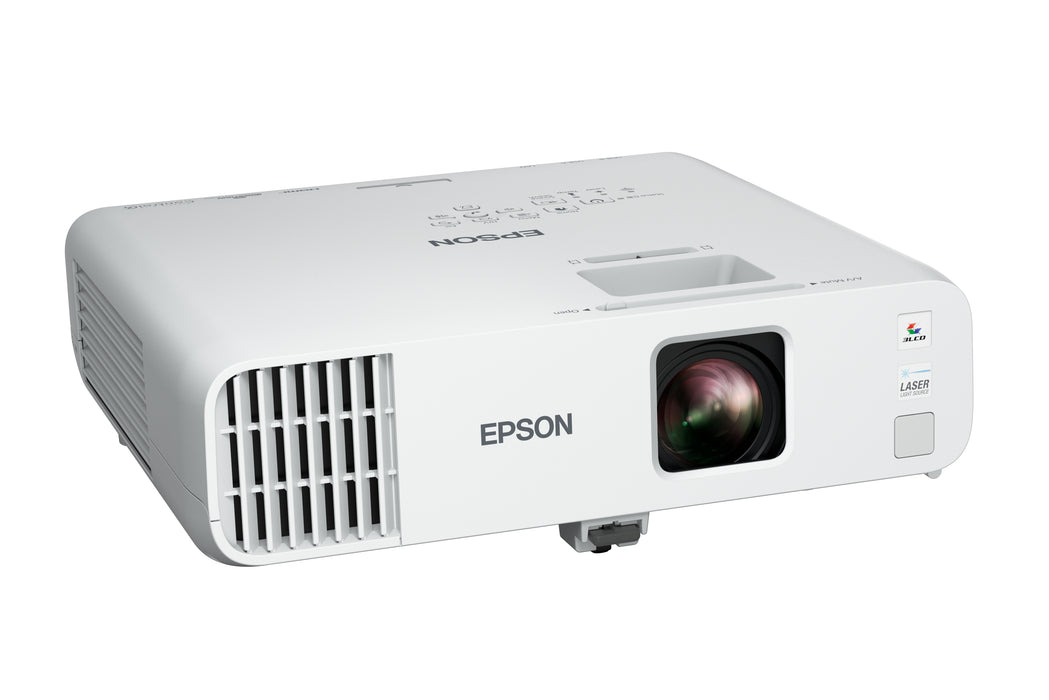

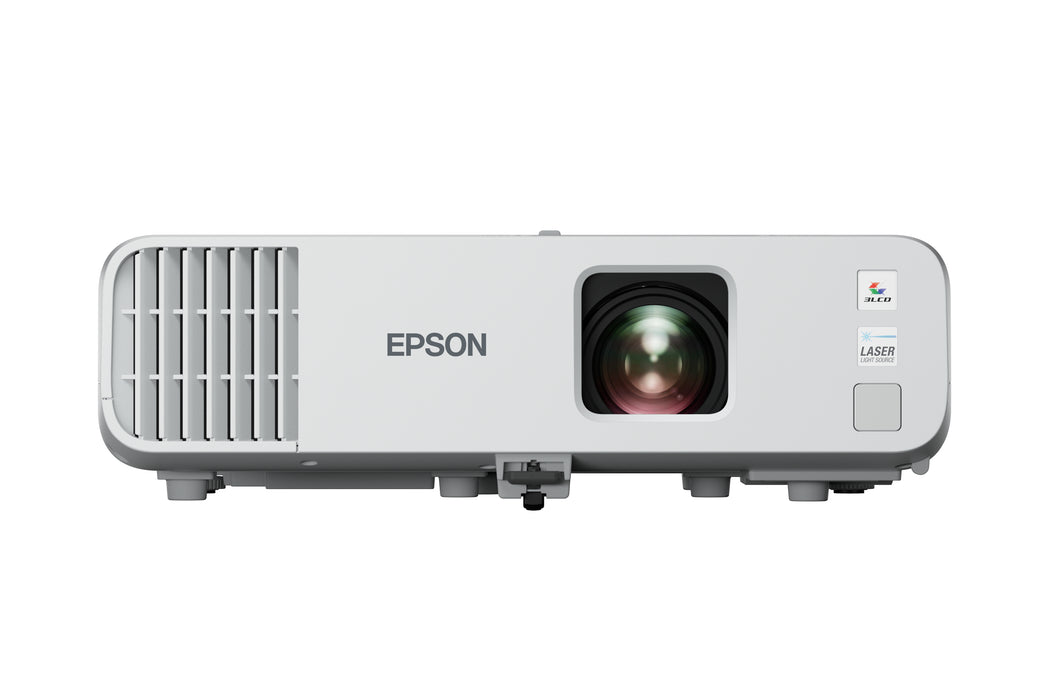

Epson EB-L270F, 5200 ANSI lumens, 3LCD, 1080p (1920x1080), 16:9, 787.4 - 7874 mm (31 - 310"), 0.9 - 9.1 m

Epson EB-L270F. Projector brightness: 5200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 18.2 - 29.1 mm, Aperture range (F-F): 1.51 - 1.77. Video processing: 10 bit, Colour modes (2D): Cinema, Dynamic, sRGB, Game, Presentation, Video colour modes: Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB. Serial interface type: RS-232C

• Education White
• 3LCD 5200 ANSI lumens
• Laser 20000 h
• 1080p (1920x1080) 16:9
• Screen size compatibility: 787.4 - 7874 mm (31 - 310") Number of colours: 1.07 billion colours
• Focus: Manual Zoom capability
• Ethernet LAN
• Built-in speaker(s) 16 W
• AC 222 W

Features

Projector
Screen size compatibility	787.4 - 7874 mm (31 - 310')
Projection distance (wide)	0.9 - 9.1 m
Contrast ratio (dynamic)	5000000:1
Projector brightness	5200 ANSI lumens
Projection technology	3LCD
Projector native resolution	1080p (1920x1080)
Native aspect ratio	16:9
Number of colours	1.07 billion colours
Projector brightness (economic mode)	3600 ANSI lumens
Vertical scan range	192 - 240 Hz
Keystone correction, horizontal	±30°
Keystone correction, vertical	±30°
Matrix size	1.57 cm (0.62')
Heat dissipation	945.2 BTU/h
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Focus	Manual
Focal length range	18.2 - 29.1 mm
Aperture range (F-F)	1.51 - 1.77
Zoom capability	Yes
Zoom type	Manual
Zoom ratio	1:1.62
Throw ratio	1.32 - 2.12:1
Video
Analog signal format system	Not supported
Full HD	Yes
3D	No
Video processing	10 bit
Colour modes (2D)	Cinema, Dynamic, sRGB, Game, Presentation
Video colour modes	Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB

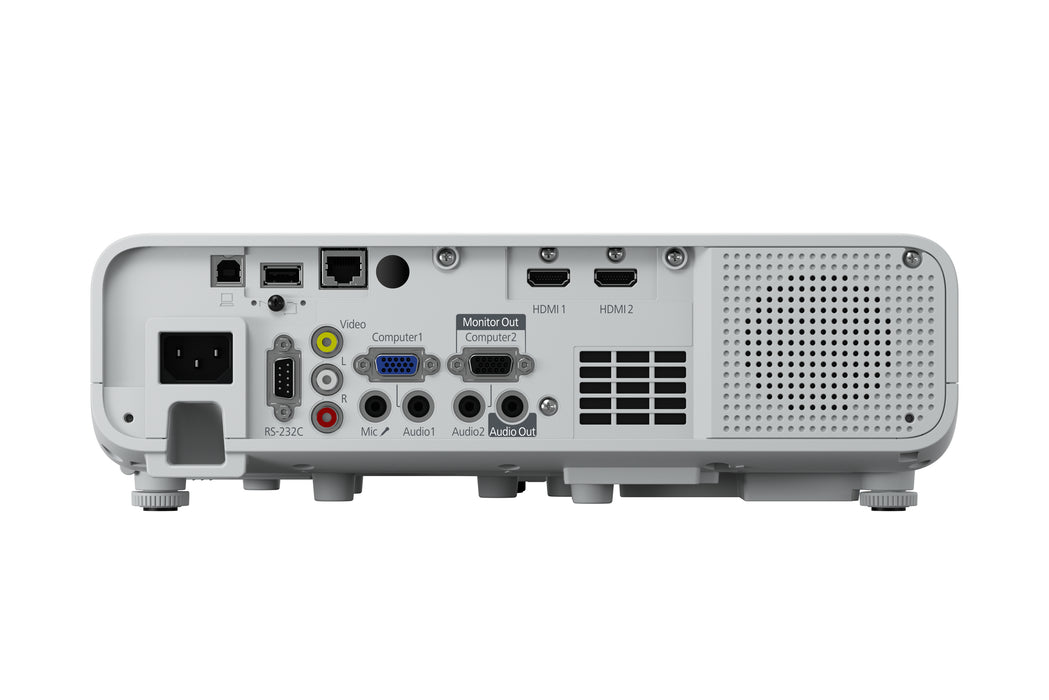

Ports & interfaces
USB 2.0 Type-A ports quantity	2
Headphone outputs	1
Microphone in	Yes
Serial interface type	RS-232C
VGA (D-Sub) ports quantity	3
DVI port	No
AC (power) in	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Storage
Card reader integrated	No
Features
Noise level (economic mode)	28 dB
HDCP	Yes
Noise level	38 dB
Country of origin	Philippines
Password protection	Yes
Multimedia
Built-in speaker(s)	Yes
RMS rated power	16 W
Design
Market positioning	Education
Product colour	White
Placement	Ceiling, Desktop, Floor, Wall
Cable lock slot	Yes
Cable lock slot type	Kensington
Display
Built-in display	No
Power
Power source	AC
Power consumption (typical)	222 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	325 mm
Depth	299 mm
Height	90 mm
Weight	4.15 kg
Packaging content

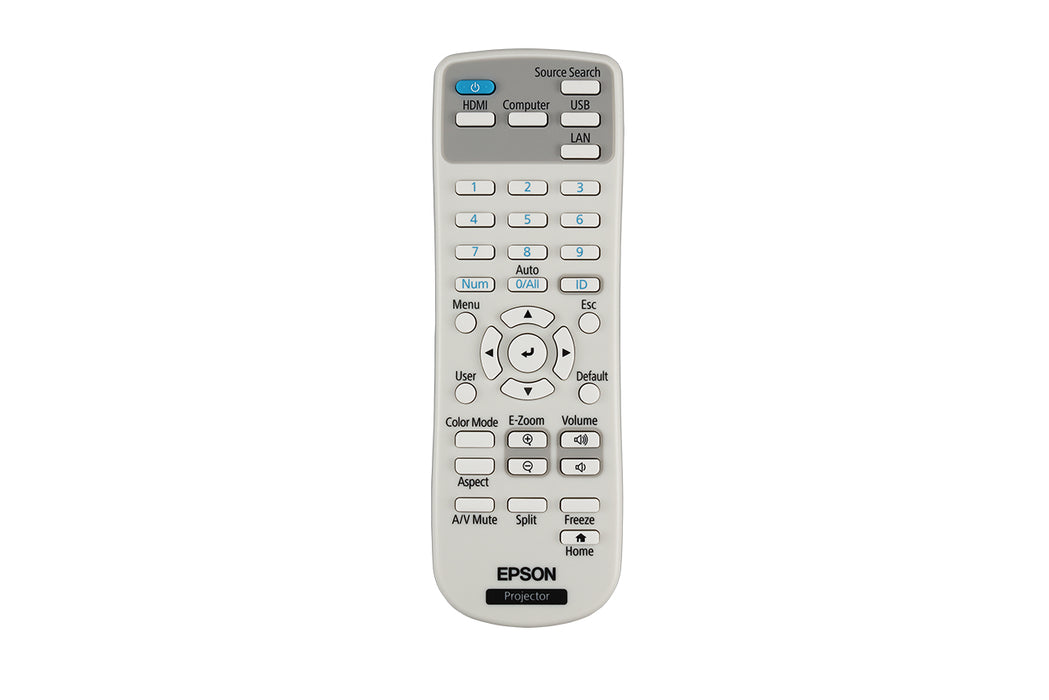

Remote control included	Yes
Cables included	AC, HDMI
Bundled software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management
Technical details
Other features	AV Mute Slide, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, Long light source life, OSD copy function, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Screen share, Split-Screen-Function, Super resolution, Web Control, Wireless LAN capable, iProjection App
Mobile app support	Yes
Power consumption	222 Watt (Normal On-Mode), 278 Watt (Normal Peak-mode), 209 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)
Logistics data
Quantity per pack	1 pc(s)
Other features
Option type	Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Suspension adapter, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Interface	USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wi-Fi Direct (optional), VGA in (2x), VGA out, Composite in, Miracast (optional), Jack plug out, Jack plug in (2x), Cinch audio out, Microphone input, HDMI (HDCP 2.2) (2x), Wireless LAN IEEE 802.11a/b/g/n/ac (optional)
Control panel	0.62 inch with C2 Fine
Supported network protocols	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Box contents	HDMI Cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty card
Security features	Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
