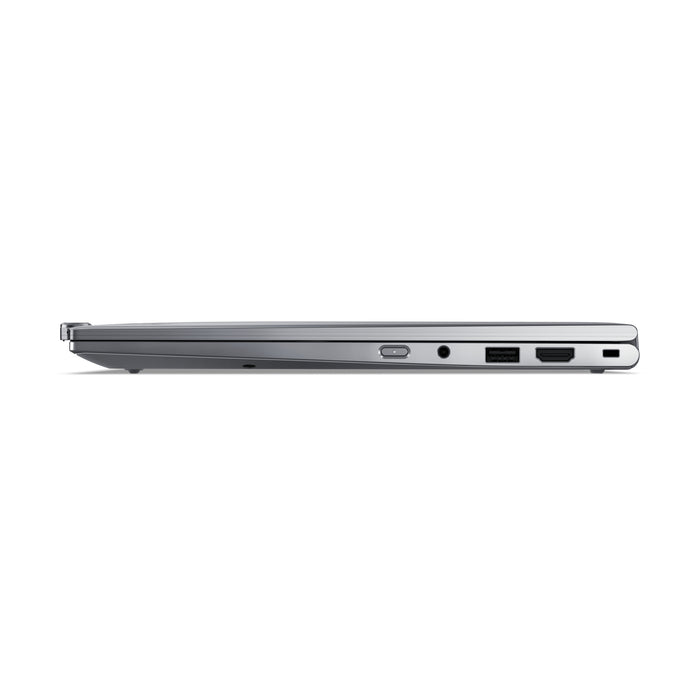

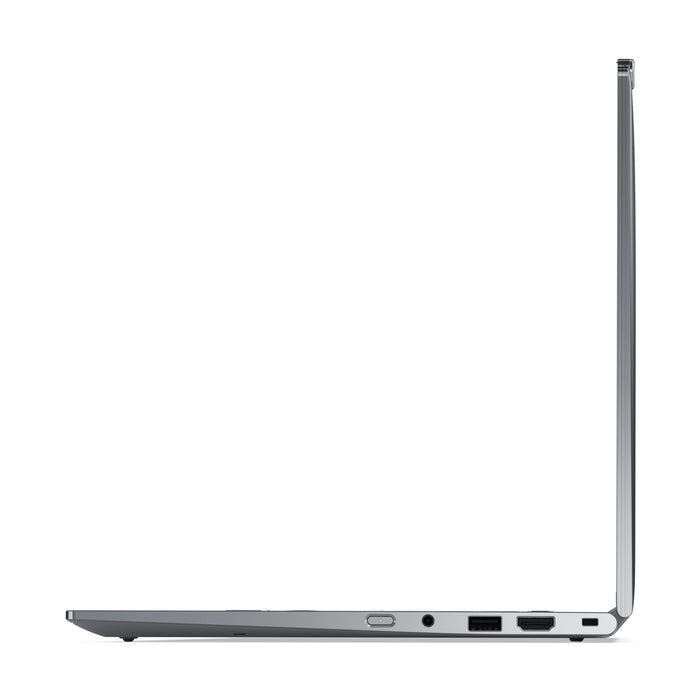

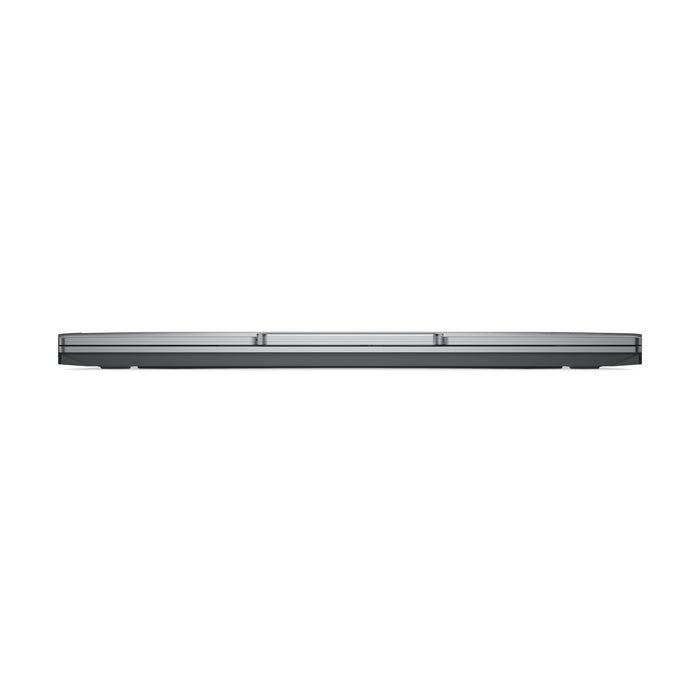

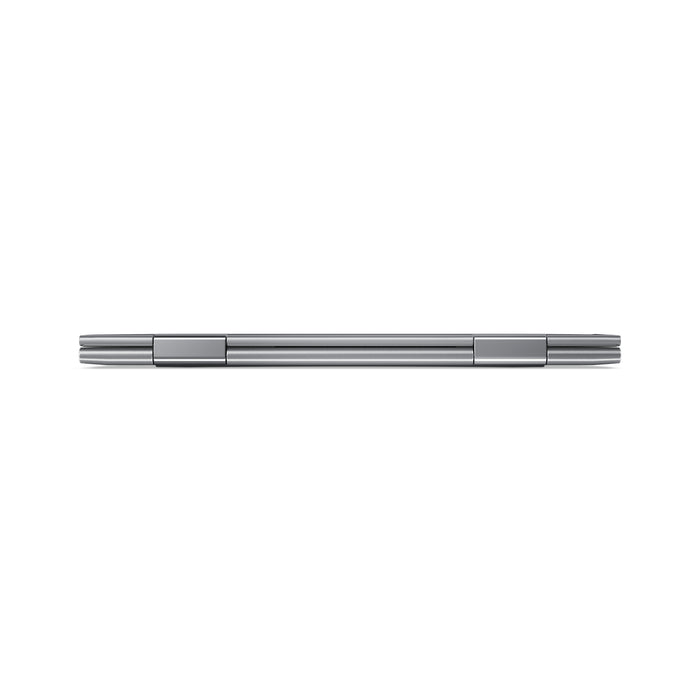

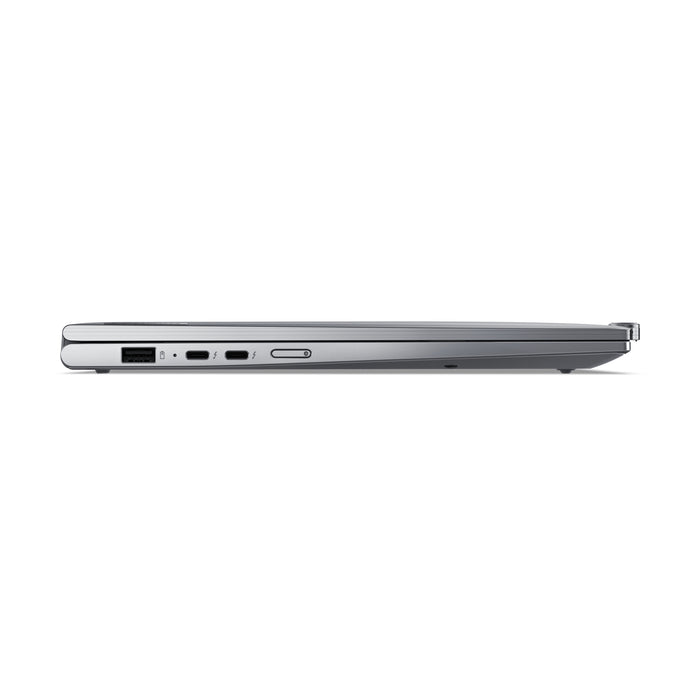

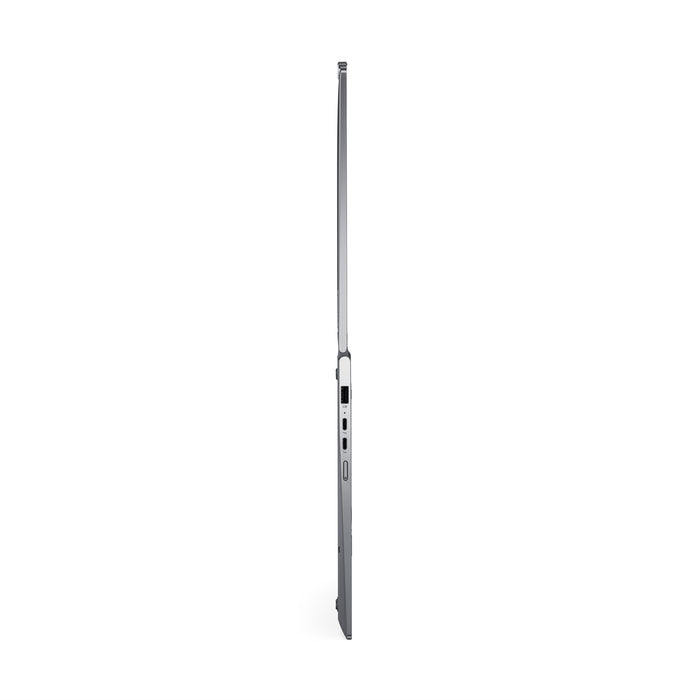

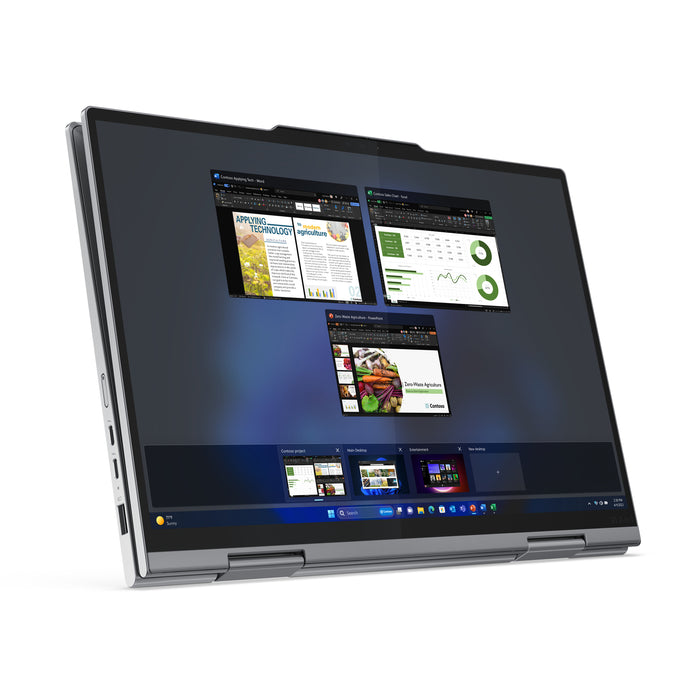

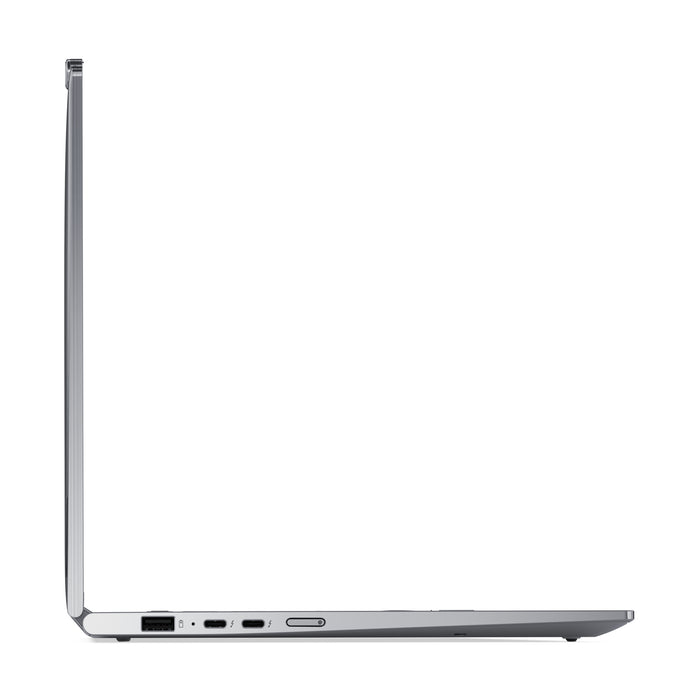

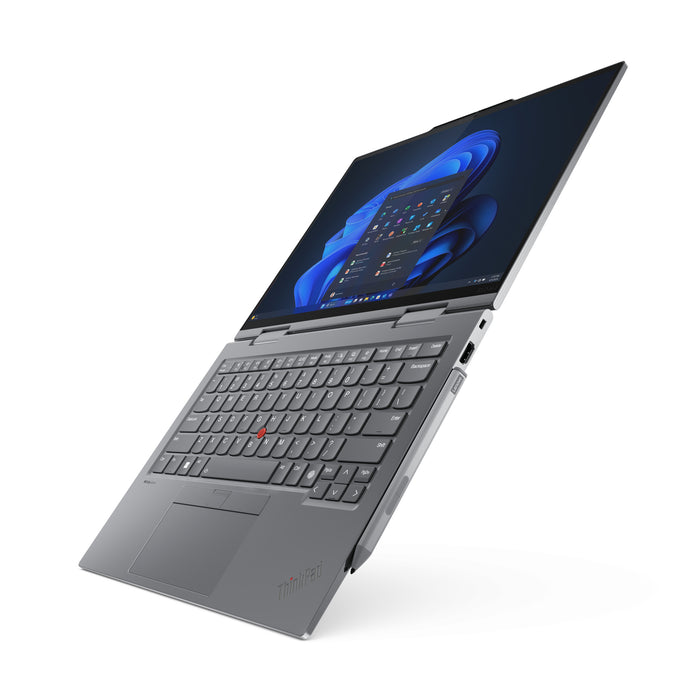

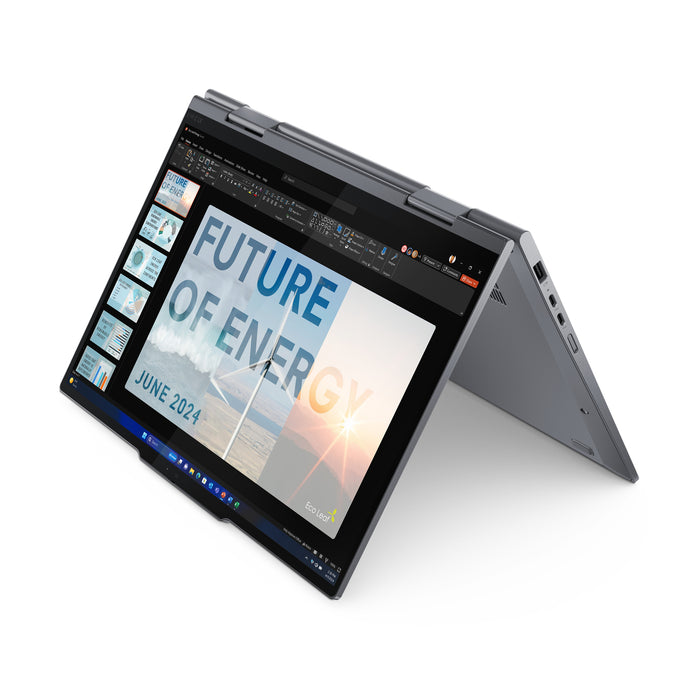

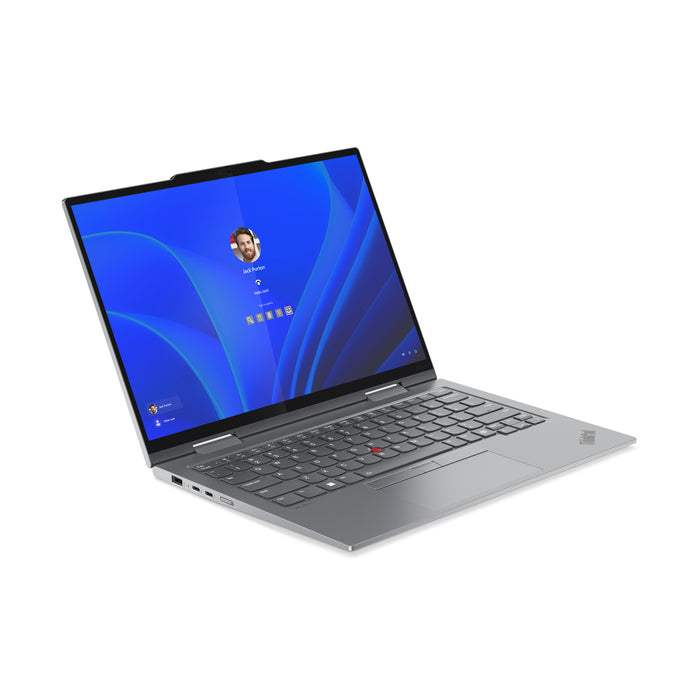

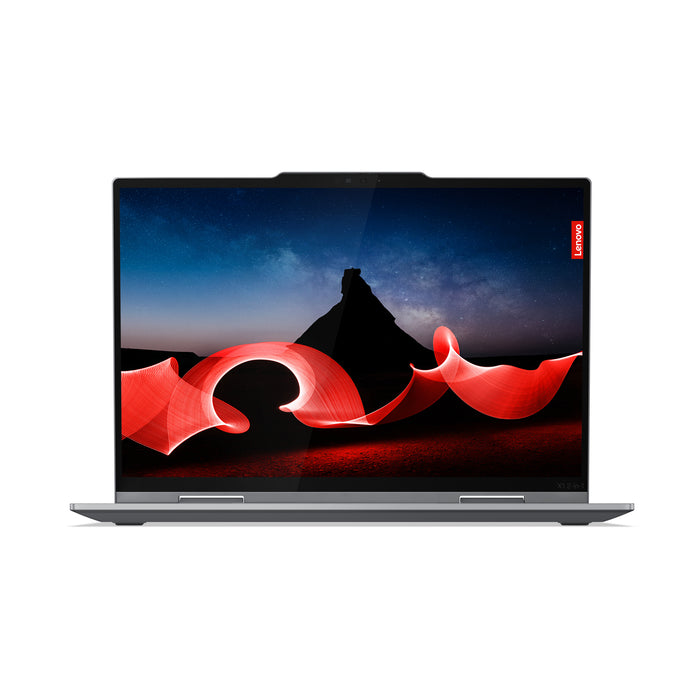

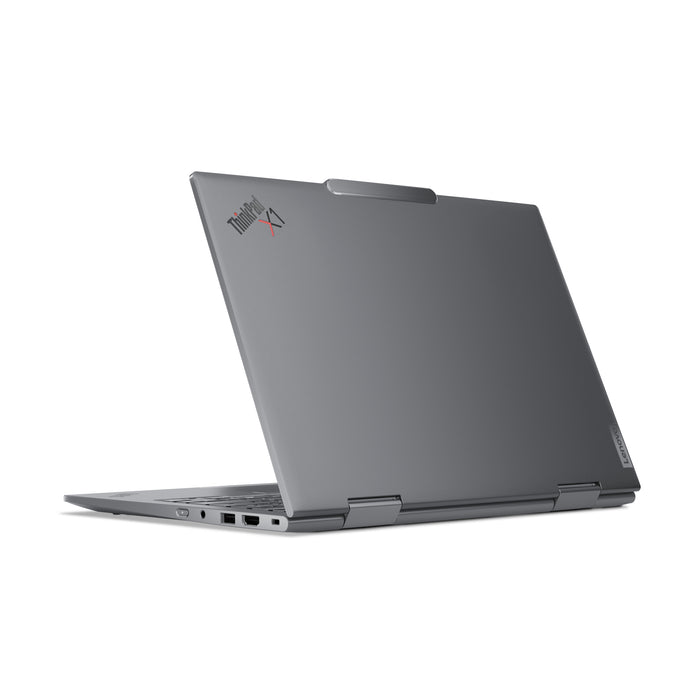

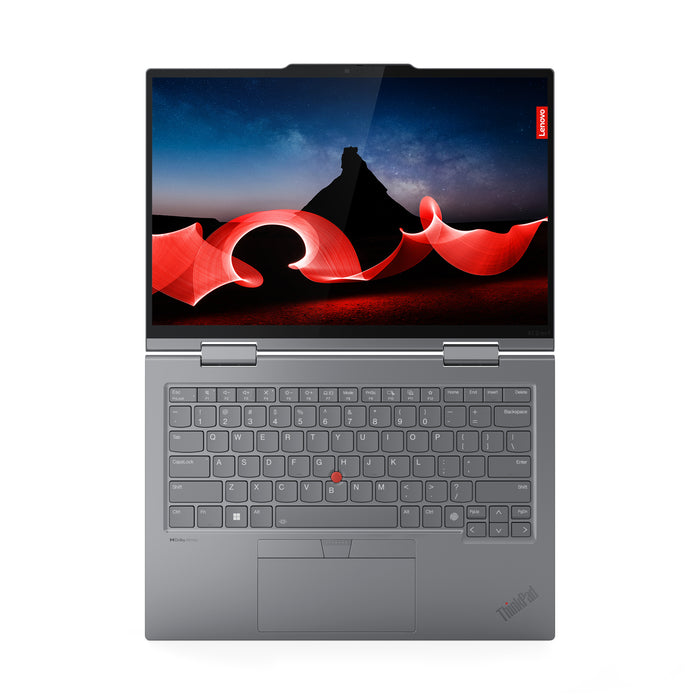

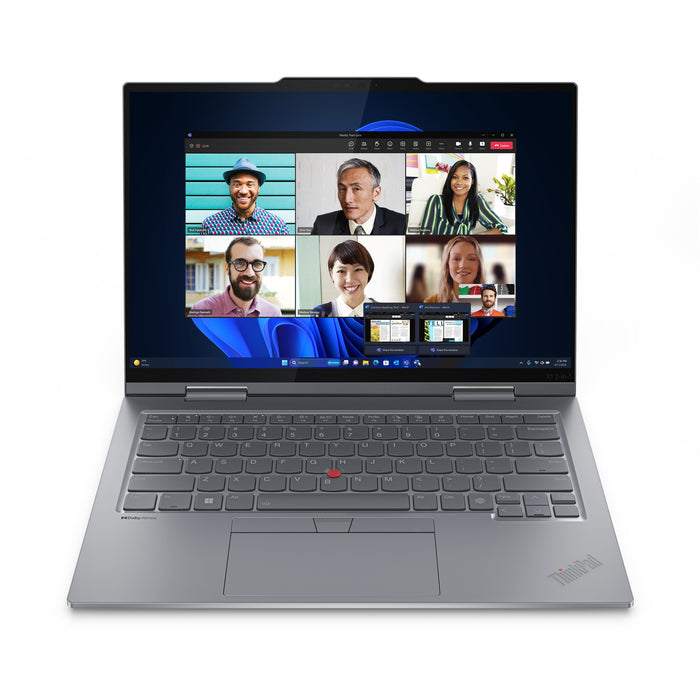

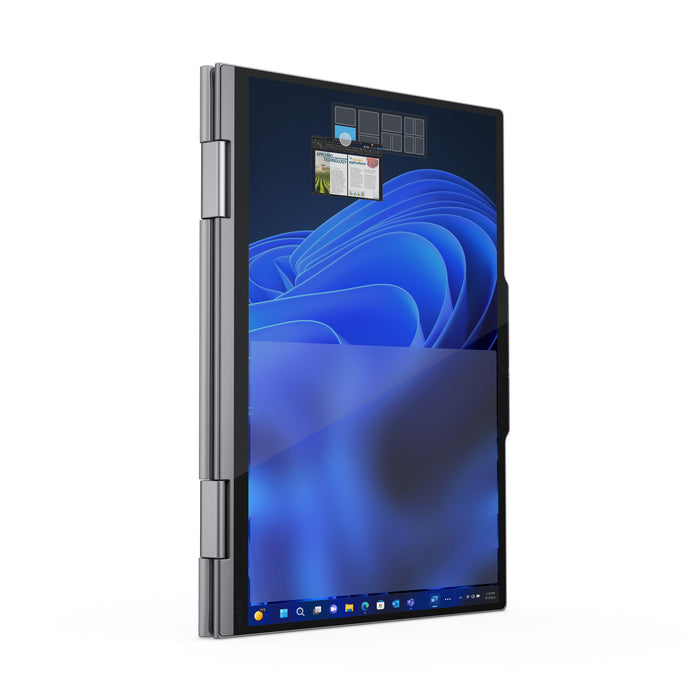

Lenovo ThinkPad X1 2-in-1 Gen 9, Intel Core Ultra 7, 35.6 cm (14"), 1920 x 1200 pixels, 32 GB, 1 TB, Windows 11 Pro

Lenovo ThinkPad X1 2-in-1 Gen 9. Product type: Hybrid (2-in-1), Form factor: Convertible (Folder). Processor family: Intel Core Ultra 7, Processor model: 155U. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics. Operating system installed: Windows 11 Pro. Product colour: Grey

• Hybrid (2-in-1) Convertible (Folder) Grey
• Intel Core Ultra 7 155U Processor cores: 12
• Touchscreen 35.6 cm (14") WUXGA 1920 x 1200 pixels IPS LED backlight 16:10
• 32 GB LPDDR5x-SDRAM 6400 MHz
• 1 TB SSD
• Intel Graphics
• Wi-Fi 6E (802.11ax) Bluetooth 5.3
• Lithium Polymer (LiPo) 57 Wh 65 W
• Windows 11 Pro 64-bit

Features

Design
Colour name	Grey
Product type	Hybrid (2-in-1)
Product colour	Grey
Form factor	Convertible (Folder)
Housing material	Aluminium
Display
Display diagonal	35.6 cm (14')
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
RGB colour space	sRGB
Colour gamut	100%
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model	155U
Processor cores	12
Processor threads	14
Processor boost frequency	4.8 GHz
Performance cores	2
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.1 GHz
Performance-core base frequency	1.7 GHz
Efficient-core base frequency	1.2 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	12 MB
Processor cache type	Smart Cache
Processor base power	15 W
Maximum turbo power	57 W
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Maximum frequency NPU	1.4 GHz
Sparsity support	Yes
Windows Studio effects support	Yes
AI datatype support on NPU	FP16, FP32, Int8
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	6400 MHz
Memory form factor	On-board
Maximum internal memory	32 GB
Memory channels	Dual-channel
Storage
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No
Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Discrete graphics card	No
On-board graphics card family	Intel Graphics
On-board graphics card model	Intel Graphics
Audio
Audio chip	Realtek ALC3306
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Network
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Mobile network connection	No
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6E AX211
WLAN controller manufacturer	Intel
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3
Near Field Communication (NFC)	Yes
WWAN	Upgradable
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Keyboard backlit	Yes
Spill-resistant keyboard	Yes
Keyboard language	UK English
Software
Operating system architecture	64-bit
Operating system language	English
Operating system installed	Windows 11 Pro
Bundled software	Intel Connectivity Performance Suite
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	57 Wh
Fast charging	Yes
Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, Power on, SSD, Supervisor
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Compliance certificates	RoHS
Certification	MIL-STD-810H military test passed
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Weight & dimensions
Width	312.8 mm
Depth	217.7 mm
Height	15.5 mm
Weight	1.35 kg
Packaging content
AC adapter included	Yes
