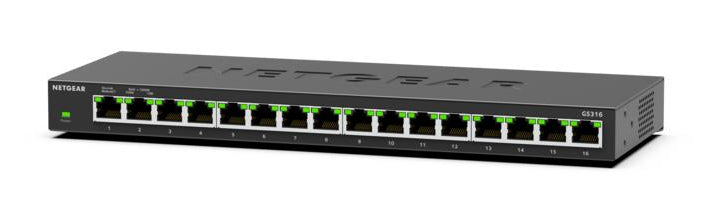

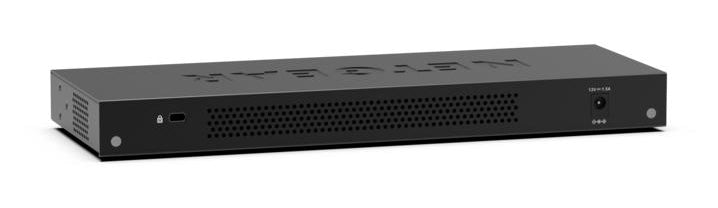

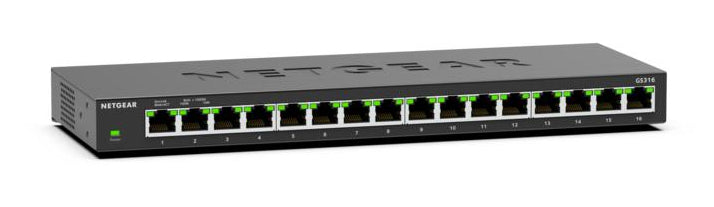

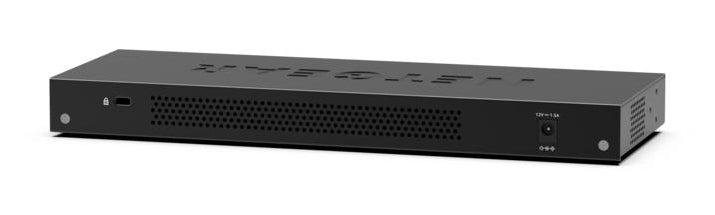

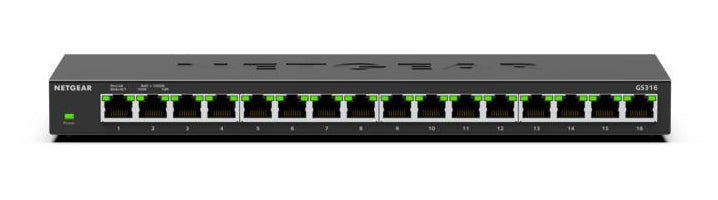

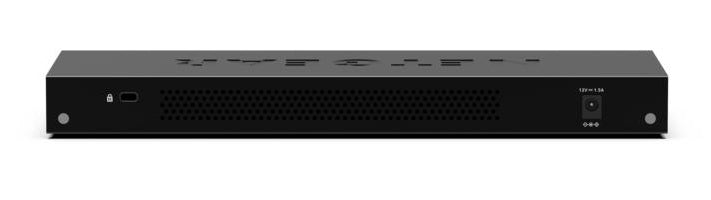

NETGEAR GS316, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Wall mountable

NETGEAR GS316. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 16000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Power connector: DC-in jack. Wall mountable

• Unmanaged L2
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 16
• 10BASE-T, 100BASE-TX, 1000BASE-T
• MAC address table: 16000 entries Switching capacity: 32 Gbit/s
• DC

Features

Management features
Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Data transmission
Switching capacity	32 Gbit/s
MAC address table	16000 entries
Latency (1 Gbps)	3.2 µs
Jumbo frames support	Yes
Jumbo frames	9216
Packet forwarding rate (1 Gbps)	1448000 pps
Design
Rack mounting	No
Product colour	Black
Housing material	Metal
LED indicators	Yes
Wall mountable	Yes
On/off switch	No
Performance
Buffer size	512 KB
Plug and Play	Yes
Fanless	Yes
Mean time between failures (MTBF)	4160957 h
Power
Power source	DC
Number of power supply units	1
DC input voltage	12 V
Input current	1.5 A
Power consumption (max)	8.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	27.7 BTU/h
Weight & dimensions
Width	286 mm
Depth	102 mm
Height	27 mm
Weight	890 g
