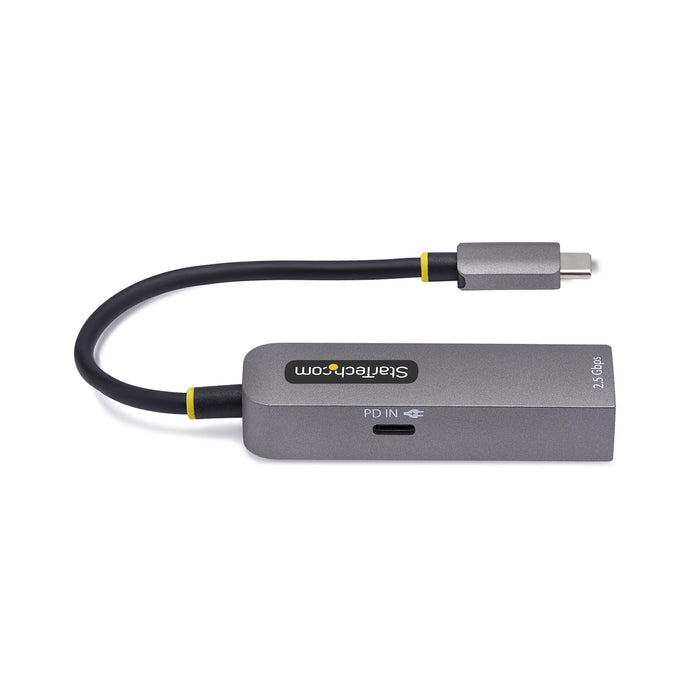

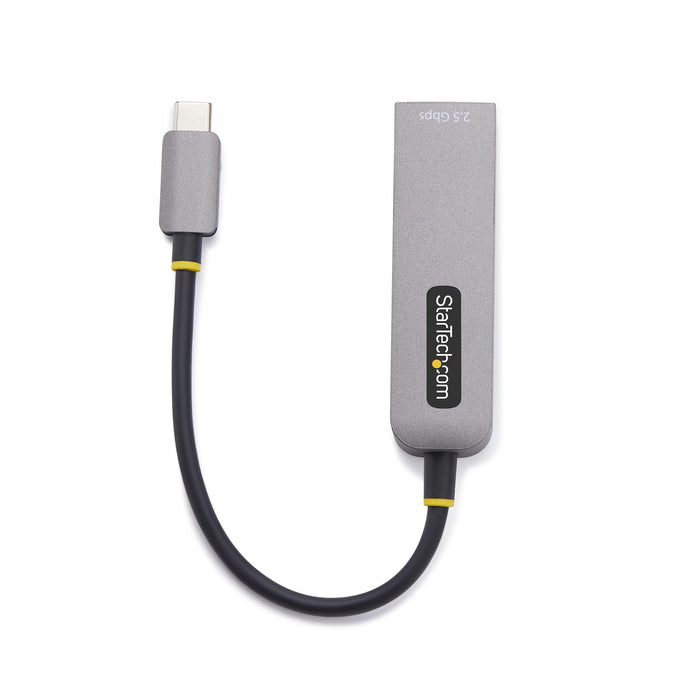

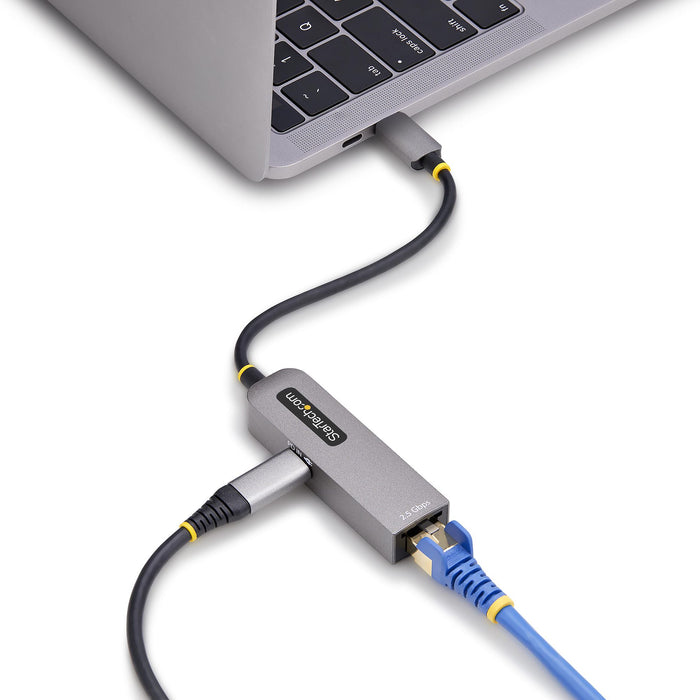

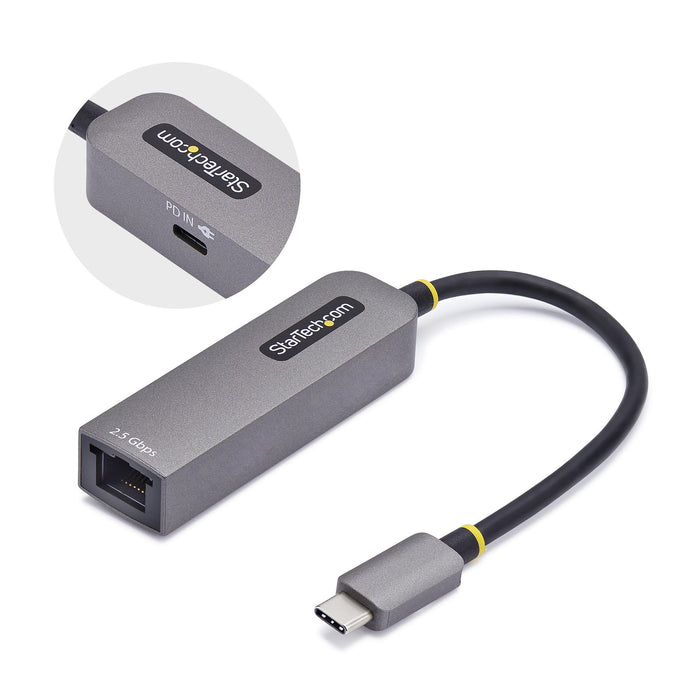

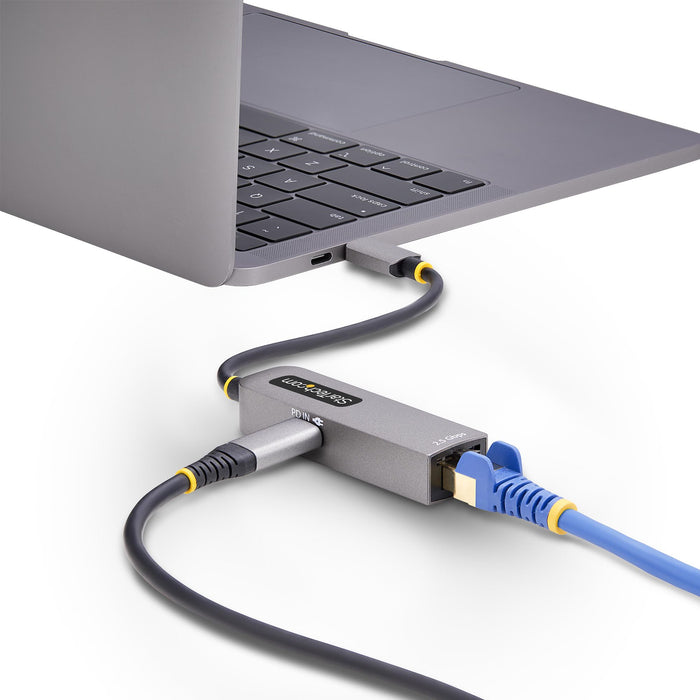

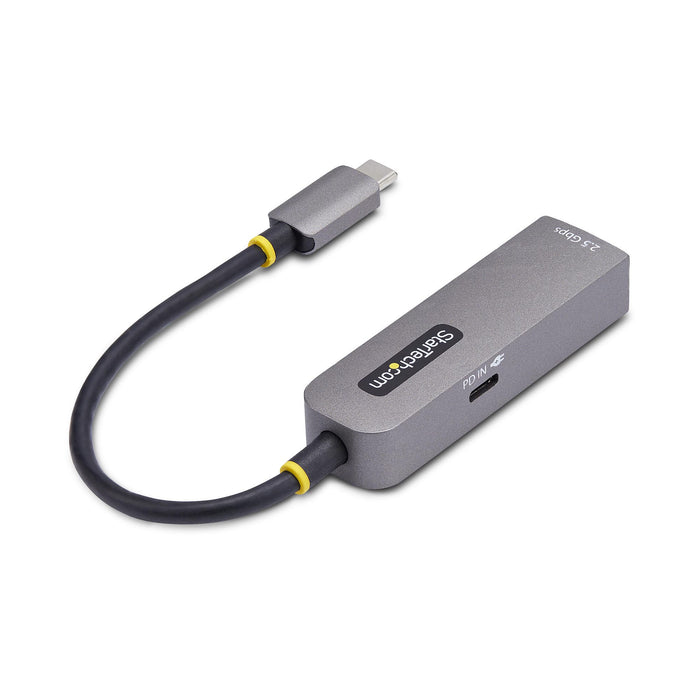

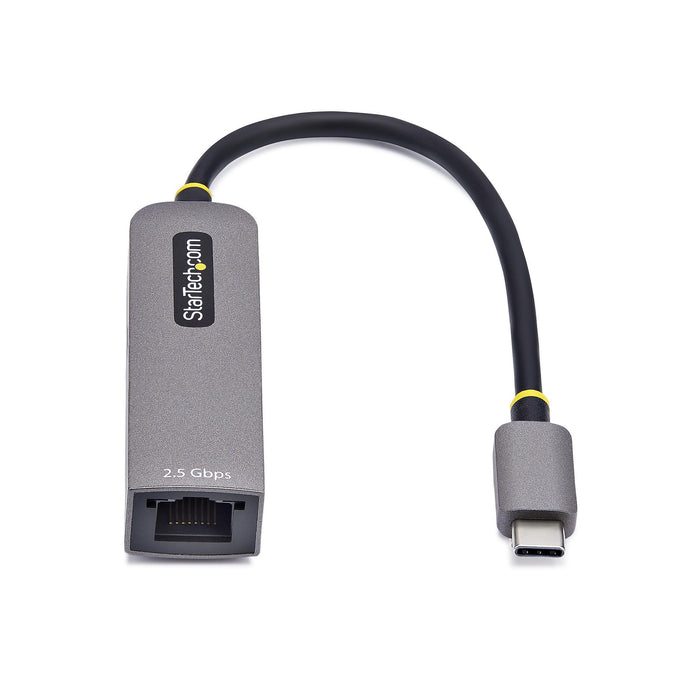

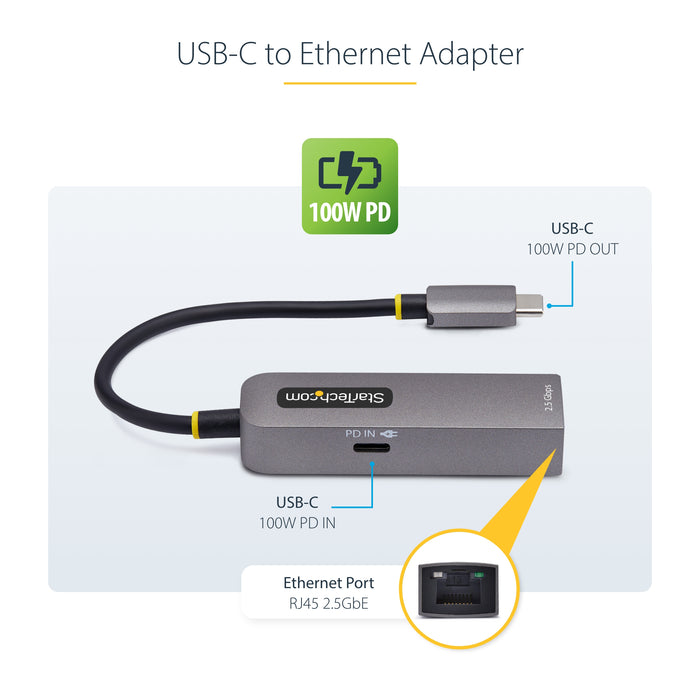

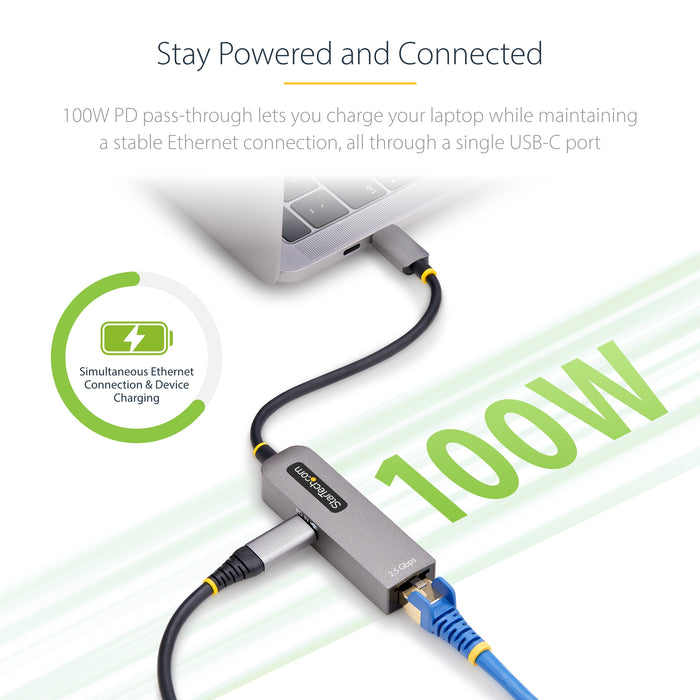

StarTech.com 2.5GbE USB-C to Ethernet Adapter, 100W PD Pass-Through, NBASE-T NIC, USB 3.0 Type-C 2.5/1G Multi Speed Network, Thunderbolt Compatible, Windows & Mac, Wired, USB Type-C, Ethernet, 5000 Mbit/s, Grey

StarTech.com 2.5GbE USB-C to Ethernet Adapter, 100W PD Pass-Through, NBASE-T NIC, USB 3.0 Type-C 2.5/1G Multi Speed Network, Thunderbolt Compatible, Windows & Mac. Connectivity technology: Wired, Host interface: USB Type-C, Interface: Ethernet. Maximum data transfer rate: 5000 Mbit/s. USB powered. Product colour: Grey

• Wired
• USB Type-C 3.2 Gen 1 (3.1 Gen 1) Ethernet
• 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 5000 Mbit/s NBase-T
• Component for: PC/Server Chipset: Realtek RTL8156BG

Features

Ports & interfaces
Connectivity technology	Wired
Host interface	USB Type-C
Interface	Ethernet

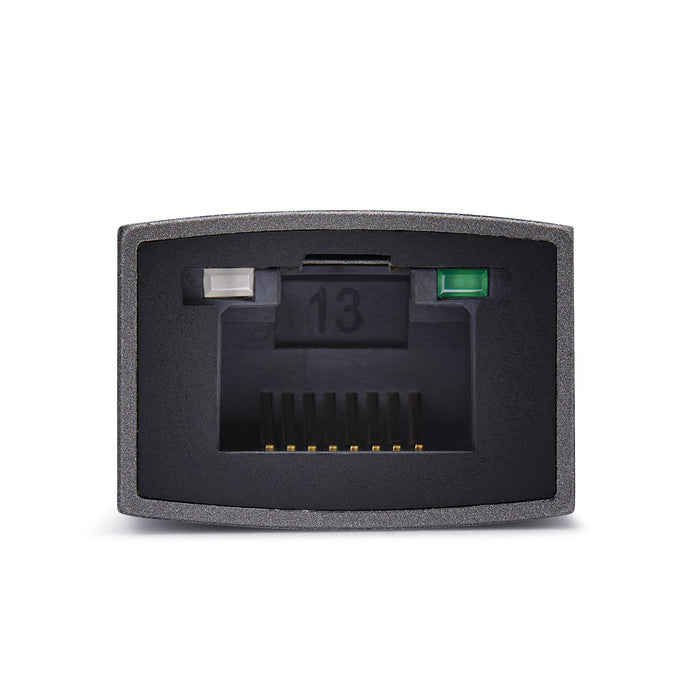

Ethernet LAN (RJ-45) ports	1
USB connector form factor	Straight
USB version	3.2 Gen 1 (3.1 Gen 1)
USB pass-through	No
Network
Maximum data transfer rate	5000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Cabling technology	NBase-T
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Full duplex	Yes
Jumbo frames support	Yes
Auto-negotiation	Yes
Jumbo frames	16000
VLAN tagging	Yes
Design
Component for	PC/Server
Product colour	Grey
Internal	No
Chipset	Realtek RTL8156BG
LED indicators	Yes
Mean time between failures (MTBF)	1912948 h
Power
Output voltage	5 V
USB powered	Yes
System requirements

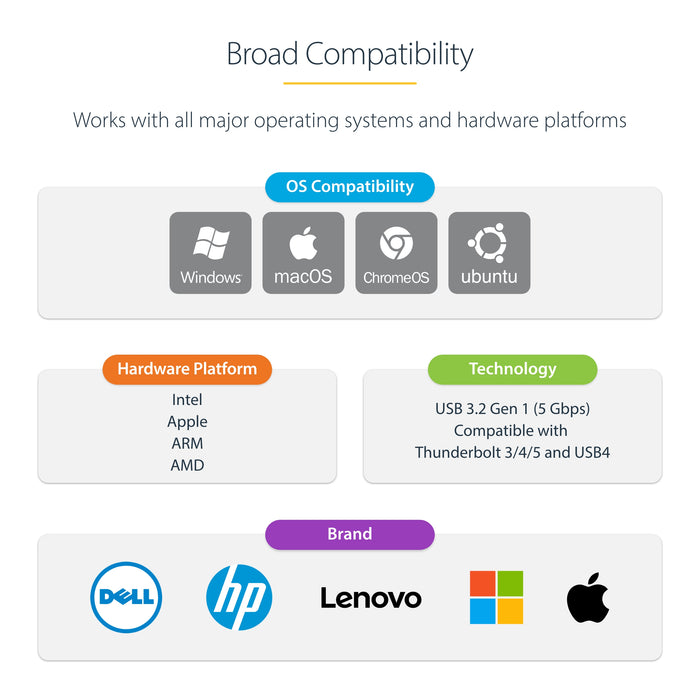

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2022
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%

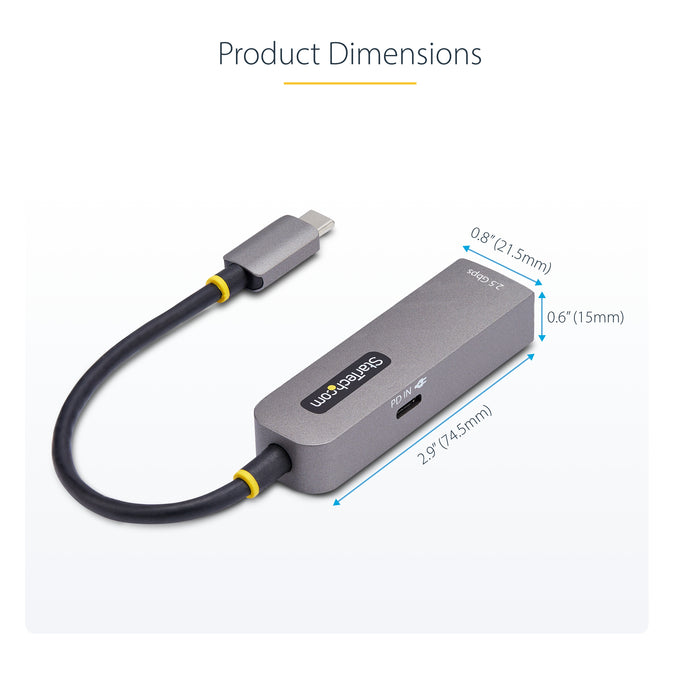

Weight & dimensions
Depth	22 mm
Height	15 mm
Weight	24.7 g
Packaging data
Package width	127 mm
Package depth	175 mm
Package height	18 mm
Package weight	27 g
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC)
Logistics data
Master (outer) case width	500 mm
Master (outer) case length	320 mm
Master (outer) case height	210 mm
Products per master (outer) case	250 pc(s)
Other features
Cable length	0.15 m
