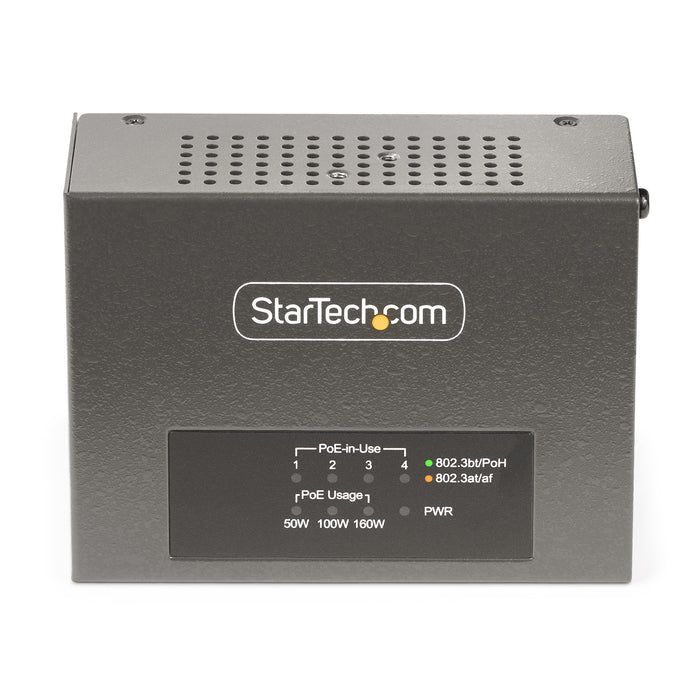

StarTech 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++, Wall/DIN Rail Mountable, TAA

StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged - TAA. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500,5000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u. Product colour: Grey, Housing material: Metal, Maximum operating distance: 100 m. AC adapter input voltage: 100 - 240 V, Input current: 2.5 A, AC adapter output voltage: 54 V. Compliance certificates: CE, Federal Communications Commission (FCC), UKCA. Width: 70 mm, Depth: 94 mm, Height: 39 mm

• 10,100,1000,2500,5000 Mbit/s Cat5e, Cat6, Cat6a 100 m
• Power over Ethernet (PoE) IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
• Auto MDI/MDI-X
• Metal
• Grey

Features

Network
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500,5000 Mbit/s
Power over Ethernet (PoE)	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Auto MDI/MDI-X	Yes
Cable types supported	Cat5e, Cat6, Cat6a
Chipset	Microsemi - PD69208T4, Microsemi - PD69200R
Features
Product colour	Grey
Housing material	Metal

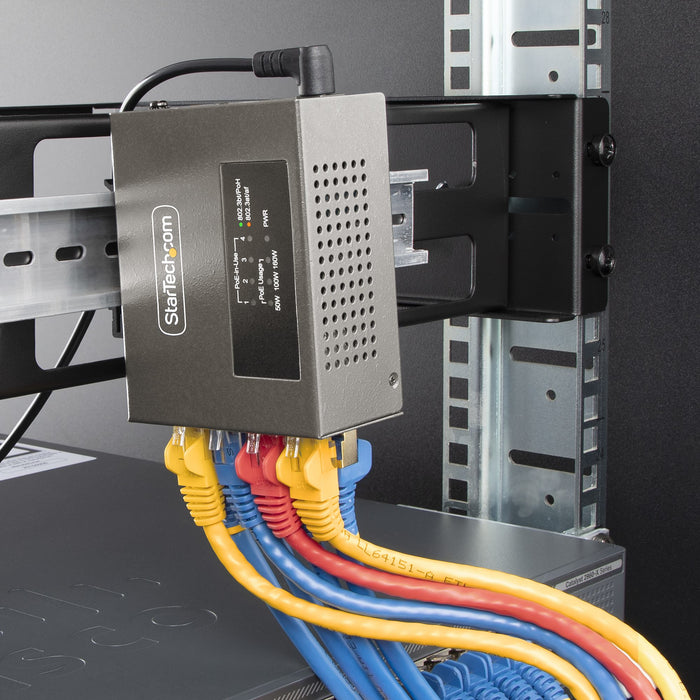

Wall mountable	Yes
Maximum operating distance	100 m
LED indicators	Status
Jumbo frames support	Yes
Jumbo frames	9000
Ports & interfaces

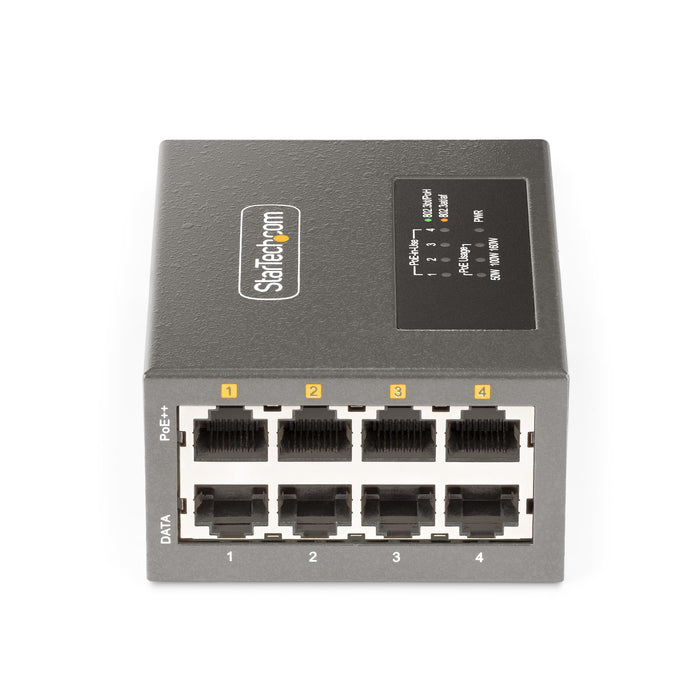

Ethernet LAN (RJ-45) ports	8
RJ-45 input ports	4
RJ-45 output ports	4
DC-in jack	Yes
Power
AC adapter input voltage	100 - 240 V
Input current	2.5 A
AC adapter output voltage	54 V
Output current	3.3 A
Total Power over Ethernet (PoE) budget	160 W
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), UKCA
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	70 mm
Depth	94 mm
Height	39 mm
Weight	278 g

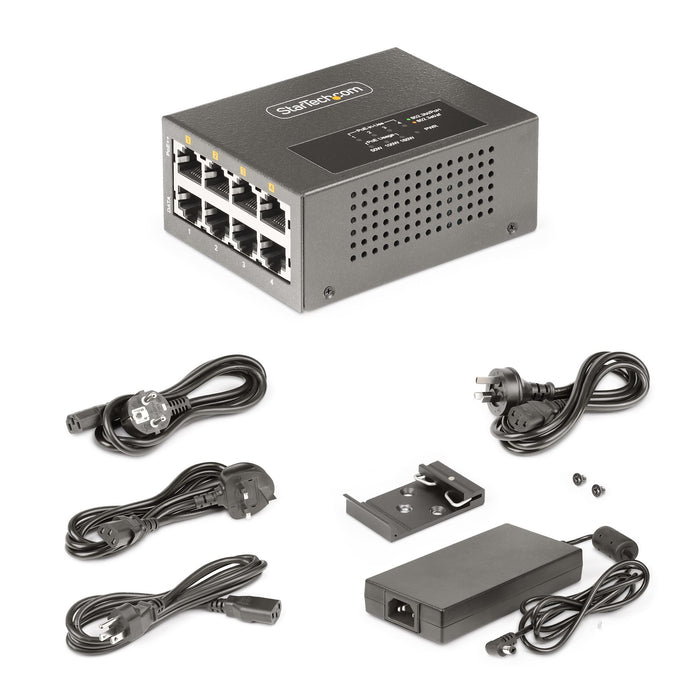

Packaging content
Number of products included	1 pc(s)
AC adapter included	Yes
Quick installation guide	Yes
Packaging data
Package width	310 mm
Package depth	178 mm
Package height	93 mm
Package weight	1.7 kg
Logistics data
Master (outer) case width	376 mm
Master (outer) case length	340 mm
Master (outer) case height	479 mm
Products per master (outer) case	10 pc(s)
