StarTech.com Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A, Ethernet - Mac & Windows (TB3DK2DHVUE)

StarTech.com Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A, Ethernet - Mac & Windows. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Grey, HD type: 4K Ultra HD, Maximum digital resolution: 4096 x 2160 pixels. Power source type: AC, AC input voltage: 100 - 240 V, Input current: 1.8 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,...

• Wired
• Host interface: Thunderbolt 3
• USB Power Delivery (USB PD)
• Ethernet LAN 10,100,1000 Mbit/s
• Auto MDI/MDI-X Full duplex

Features

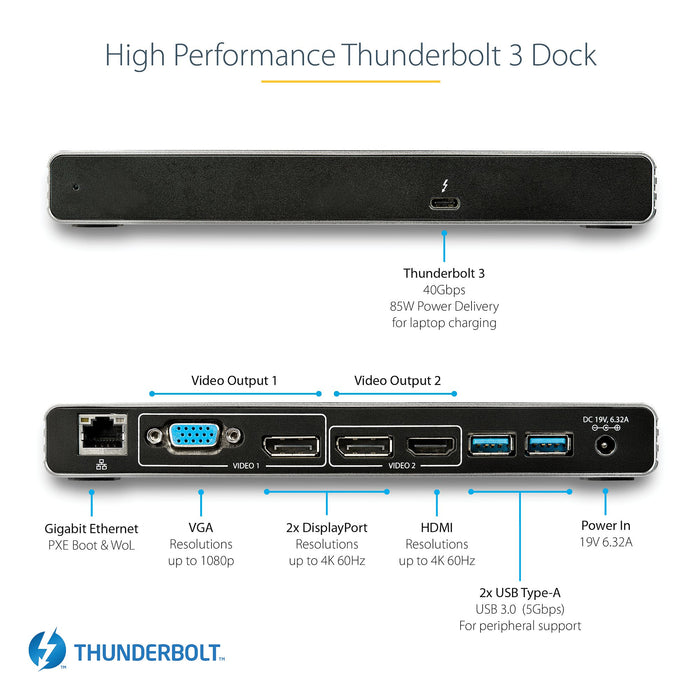

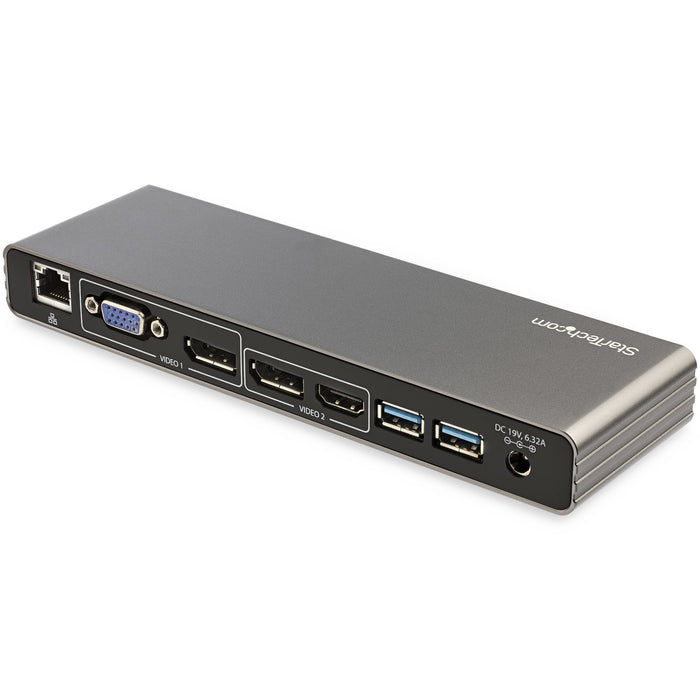

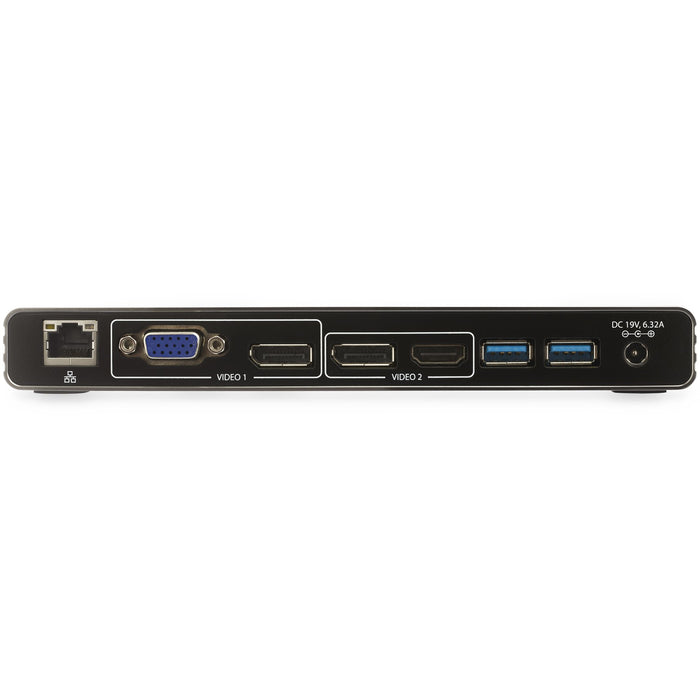

Ports & interfaces
Connectivity technology	Wired
Host interface	Thunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	85 W
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	2
Microphone in	No
DC-in jack	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Full duplex	Yes
Performance
Card reader integrated	No
HD type	4K Ultra HD

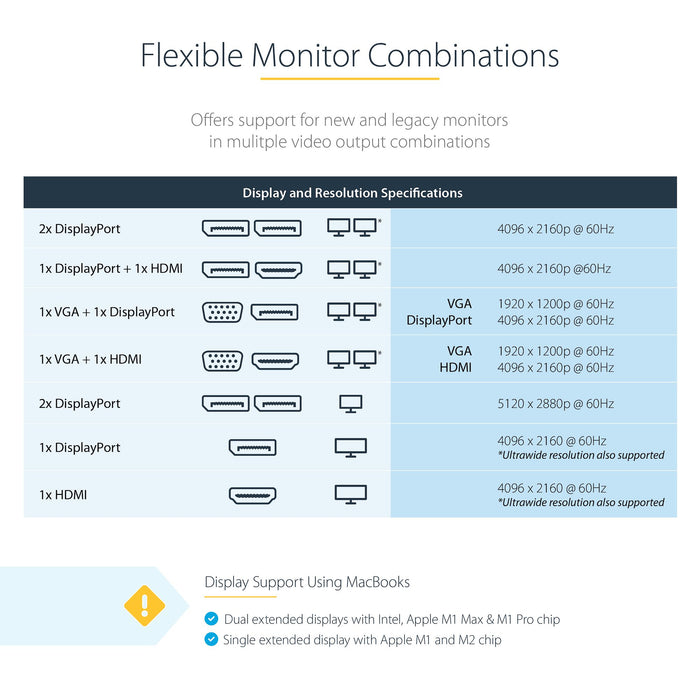

Maximum digital resolution	4096 x 2160 pixels
Product colour	Grey
UASP support	Yes
Housing material	Aluminium
Certification	CE, FCC, REACH
Power
Power source type	AC
AC input voltage	100 - 240 V
Input current	1.8 A
Output voltage	19 V
Output current	6.32 A
Power consumption (typical)	120 W
Power plug type	Type N
Compatible power plug types	EU, UK
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%

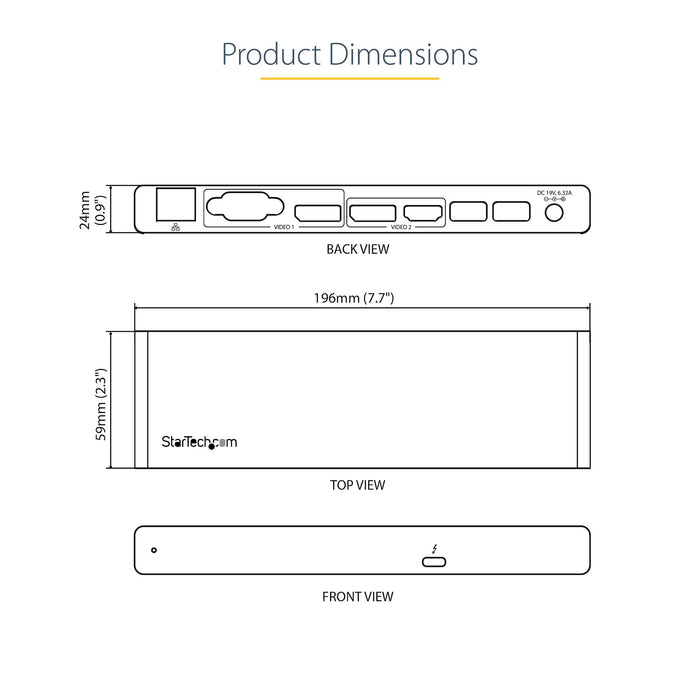

Weight & dimensions
Width	58.6 mm
Depth	196 mm
Height	24 mm
Weight	340 g
Packaging data
Package width	187 mm
Package depth	254 mm
Package height	65 mm
Package weight	1.3 kg

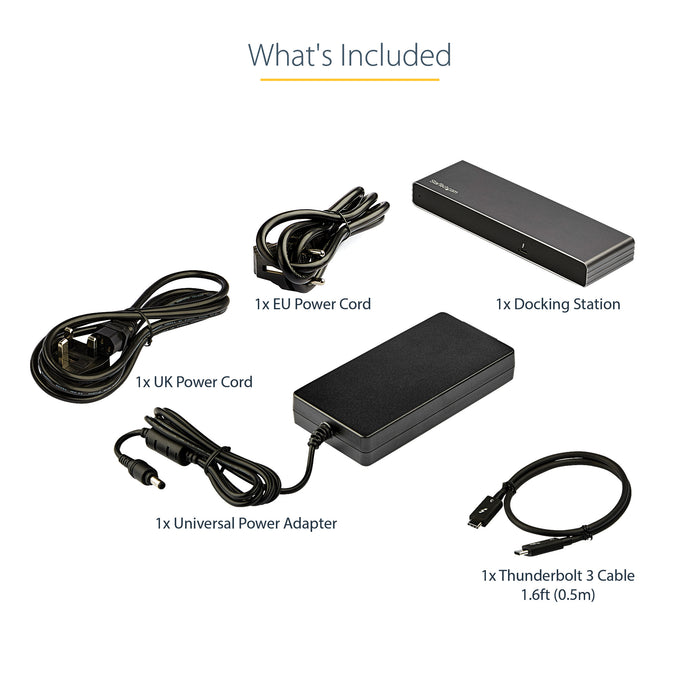

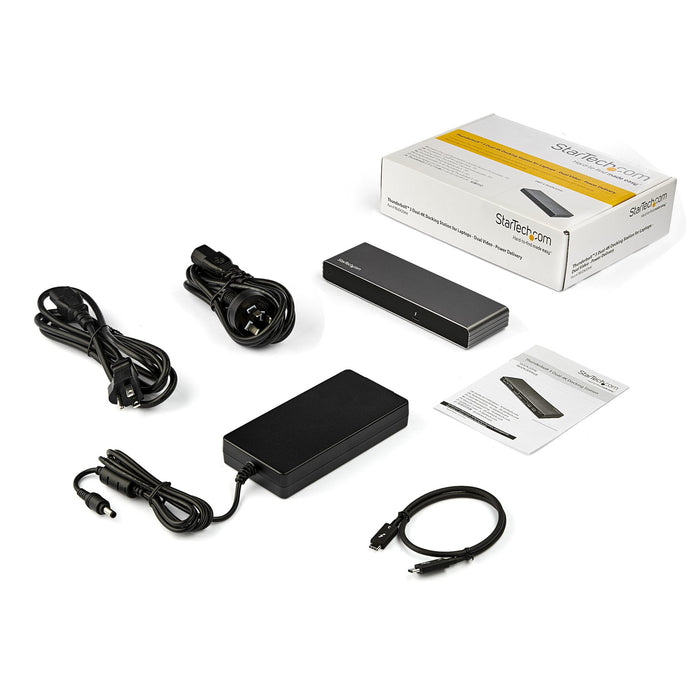

Packaging content
Cables included	AC, Thunderbolt
AC adapter included	Yes
Manual	Yes
Technical details
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	390 mm
Master (outer) case length	676 mm
Master (outer) case height	280 mm
Harmonized System (HS) code	84733020
Other features
Cable length	0.5 m
Chipset	Intel - Alpine Ridge JHL6540, Intel - WGI210AT, ASMedia - ASM1042A, Parade - PS176, Chrontel - CH7517
