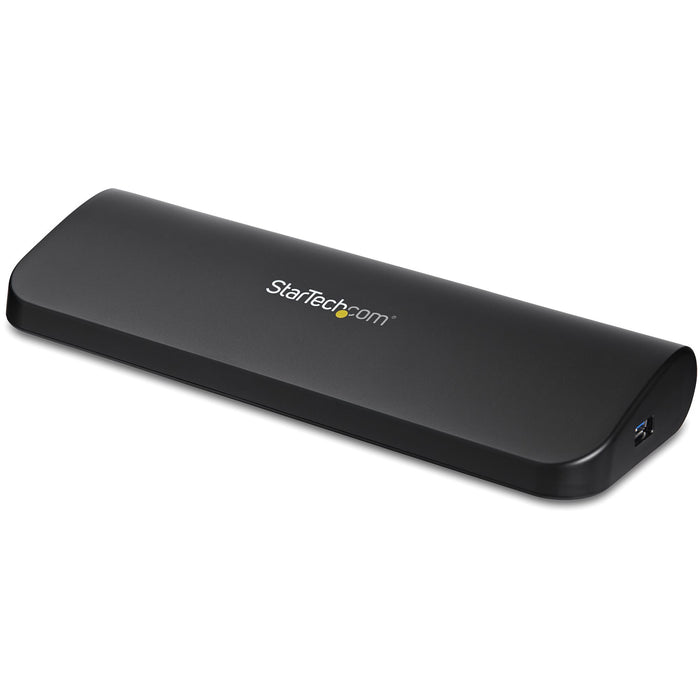

StarTech Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA, 3x USB-A Hub, GbE, Audio, Universal Type-A Dock for Windows/macOS/ChromeOS - TAA Compliant (USB3SDOCKHDV)

StarTech.com Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA, 3x USB-A Hub, GbE, Audio, Universal Type-A Dock for Windows/macOS/ChromeOS - TAA Compliant. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 1920 x 1200 pixels. AC input voltage: 100-240 V, Input current: 0.9 A, Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur,..., Other operating systems supported: ChromeOS

• Wired
• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
• Ethernet LAN 10,100,1000 Mbit/s 1000BASE-T, 100BASE-TX, 10BASE-T
• Auto MDI/MDI-X Full duplex
• Cable lock slot

Features

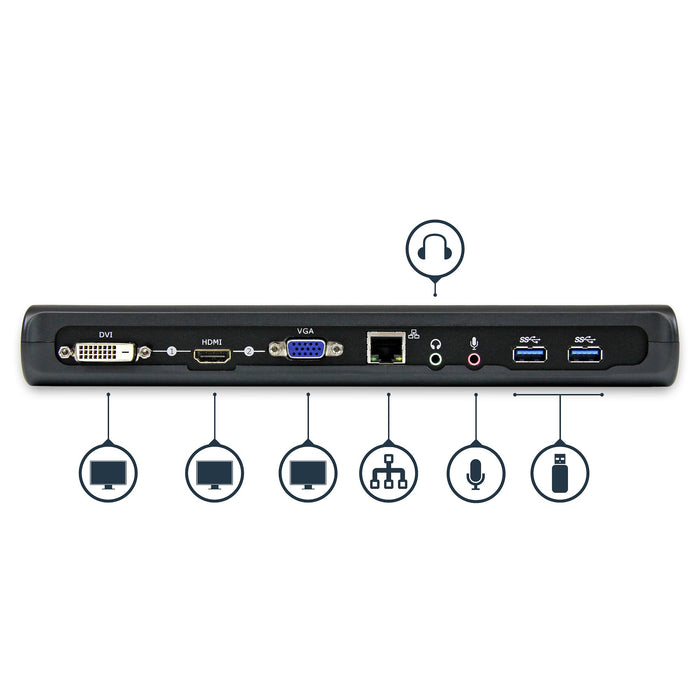

Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
Microphone in	Yes
Headphone outputs	1
DC-in jack	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Full duplex	Yes
Performance
Card reader integrated	No
Data transfer rate	5 Gbit/s
Maximum digital resolution	1920 x 1200 pixels
Maximum analog resolution	2048 x 1152 pixels
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Housing material	Plastic
Certification	FCC, CE, TAA, REACH
Power
AC input voltage	100-240 V
Input current	0.9 A
Output voltage	5 V
Output current	4 A
Power consumption (typical)	20 W
Power plug type	Type B
Compatible power plug types	AU, EU, UK, US
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90%

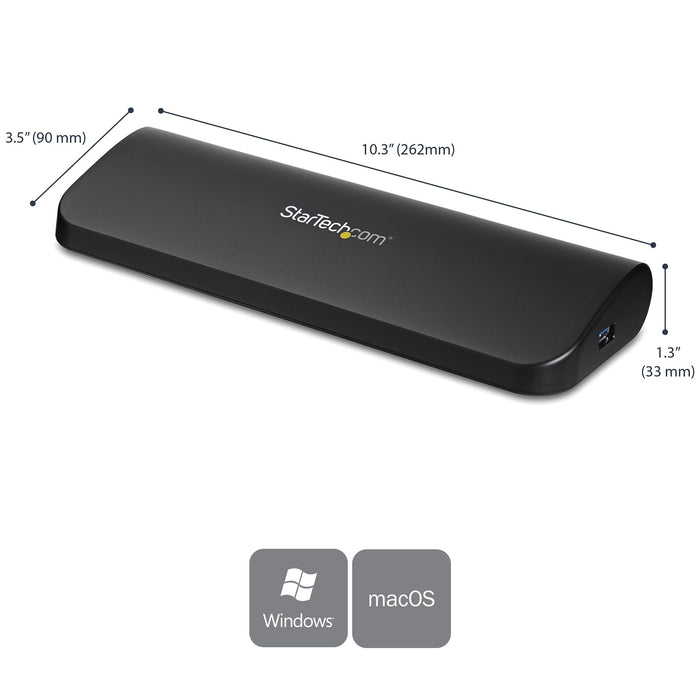

Weight & dimensions
Width	178 mm
Depth	304 mm
Height	44 mm
Weight	295 g
Packaging data
Package width	299 mm
Package depth	195 mm
Package height	69 mm
Package weight	878 g

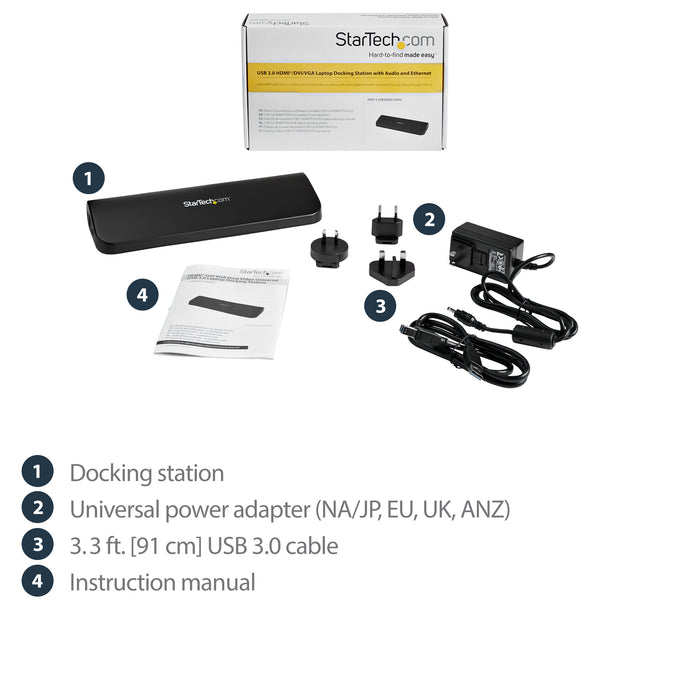

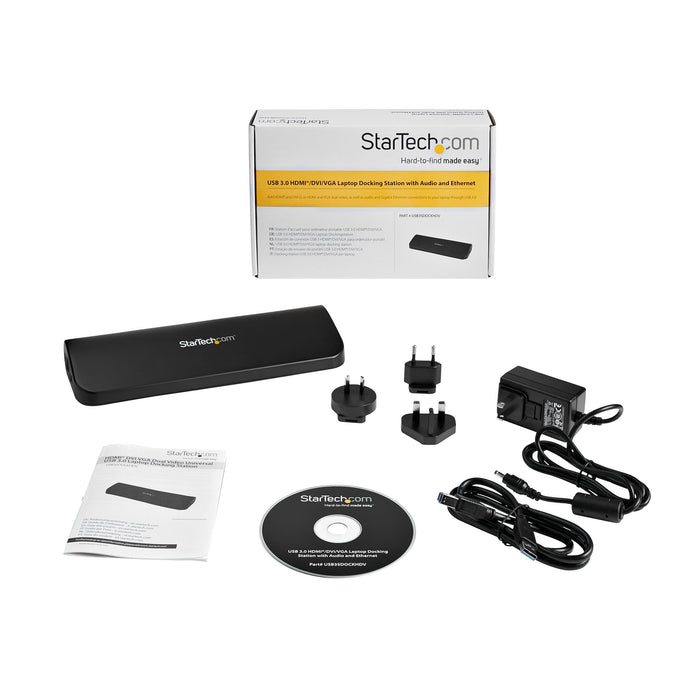

Packaging content
Cables included	USB
AC adapter included	Yes
Manual	Yes
Drivers included	Yes
Technical details
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	6 pc(s)
Master (outer) case width	445 mm
Master (outer) case length	228 mm
Master (outer) case height	355 mm
Harmonized System (HS) code	84733020
Other features
Chipset	DisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E
USB data transfer rates	12,480,5000 Mbit/s
