StarTech USB-C Quad Monitor Docking Station for MacBook Pro / Air M1 M2 M3 M4 & Windows, Universal 4K 60Hz HDMI DP Dock, Thunderbolt Compatible, 100W Laptop Charging

StarTech.com USB C Dock - 4K 60Hz Quad Monitor DisplayPort & HDMI - Universal USB-C Docking Station with 100W Power Delivery - USB Hub with 1x USB Type-C & 3x USB-A, Ethernet, Audio. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Black, Grey, Data transfer rate: 10 Gbit/s, Maximum digital resolution: 5120 x 2880 pixels. AC input voltage: 100 - 240 V, Output voltage: 20 V, Output current: 8.5 A. Windows operating systems supported: Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64,..., Mac operating systems supported: Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur,..., Other operating systems supported: ChromeOS. Width: 90 mm, Depth: 215 mm, Height: 46 mm

• Wired
• Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
• USB Power Delivery (USB PD)
• Ethernet LAN Wake-on-LAN ready
• Cable lock slot

Features

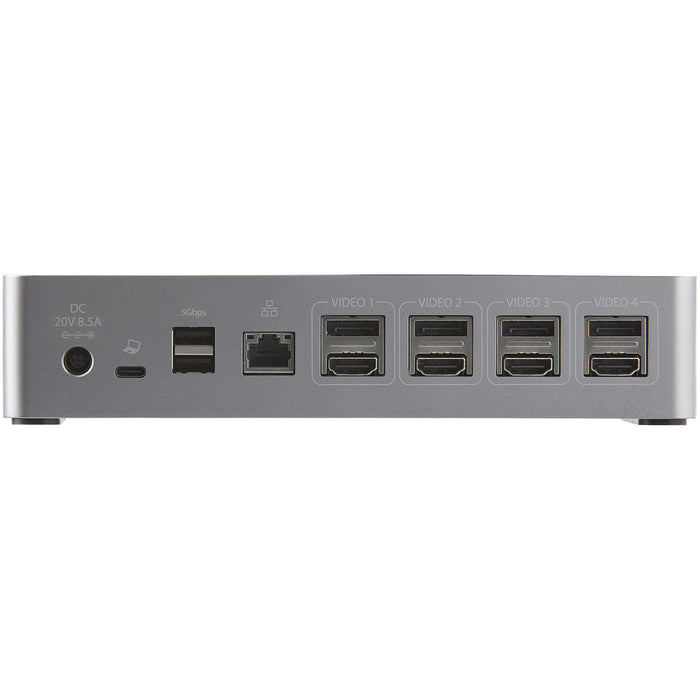

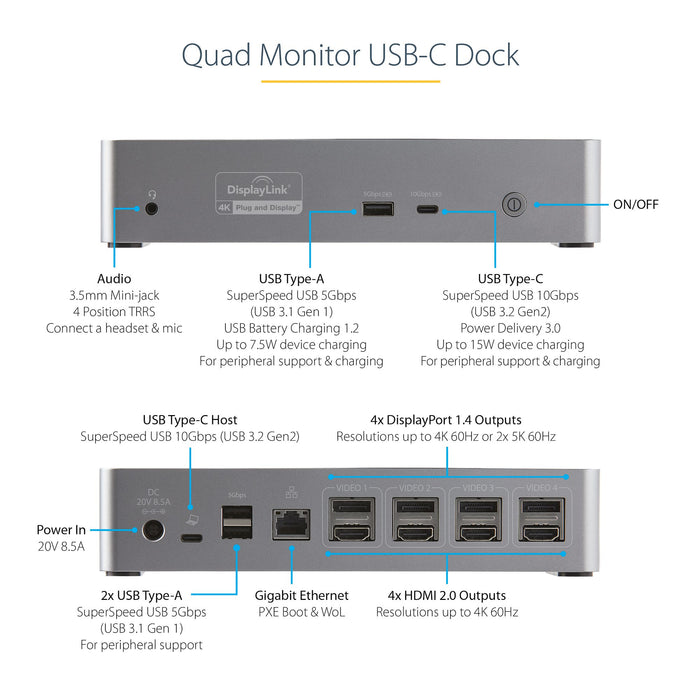

Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W

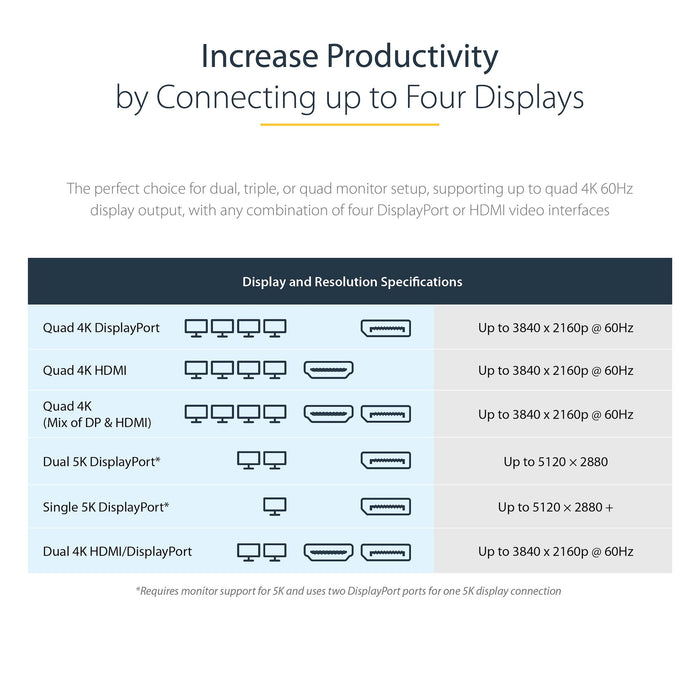

HDMI ports quantity	4
HDMI version	2.0
DisplayPorts quantity	4
DisplayPort version	1.2
Combo headphone/mic port	Yes
Headphone connectivity	3.5 mm
DC-in jack	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Wake-on-LAN ready	Yes
Performance
Card reader integrated	No
Data transfer rate	10 Gbit/s
Maximum digital resolution	5120 x 2880 pixels
Maximum refresh rate	60 Hz

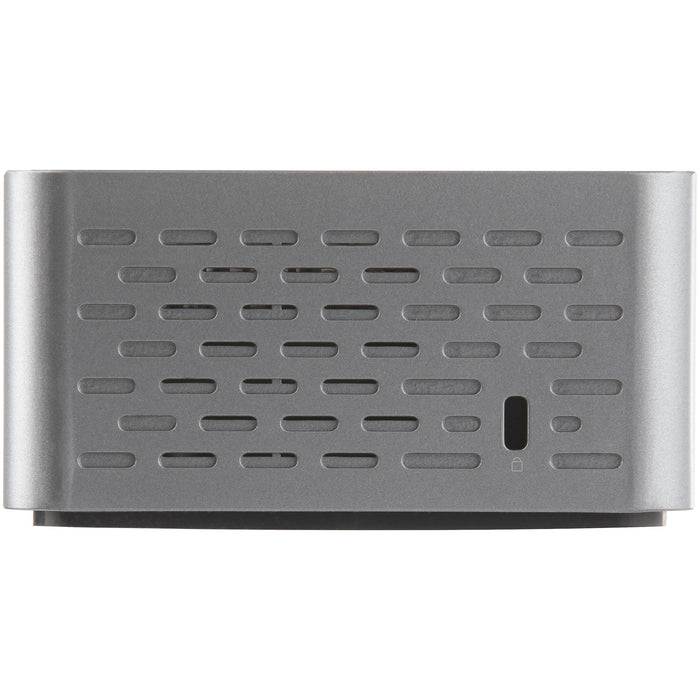

Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black, Grey
LED indicators	Yes
Power
AC input voltage	100 - 240 V
Output voltage	20 V
Output current	8.5 A
Compatible power plug types	EU, UK
Software
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 x64
Mac operating systems supported	Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

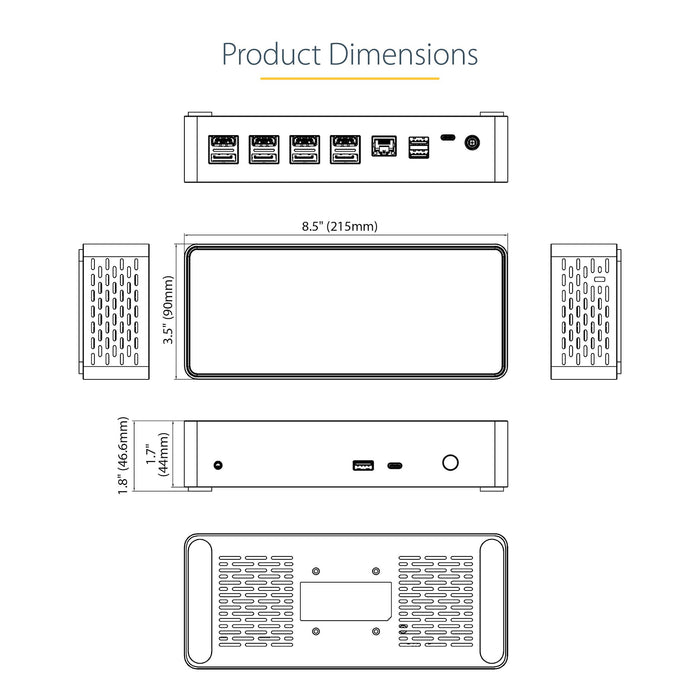

Weight & dimensions
Width	90 mm
Depth	215 mm
Height	46 mm
Weight	330 g
Packaging data
Package width	145 mm
Package depth	233 mm
Package height	100 mm
Package weight	360 g

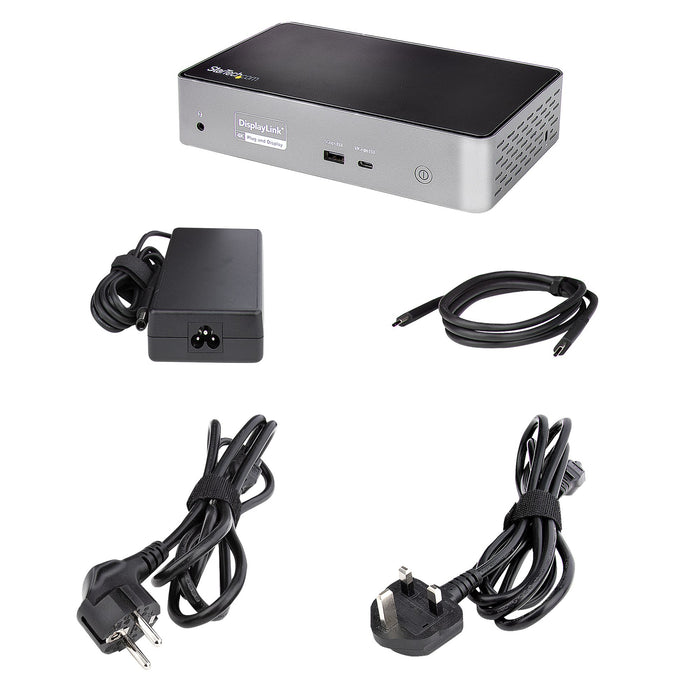

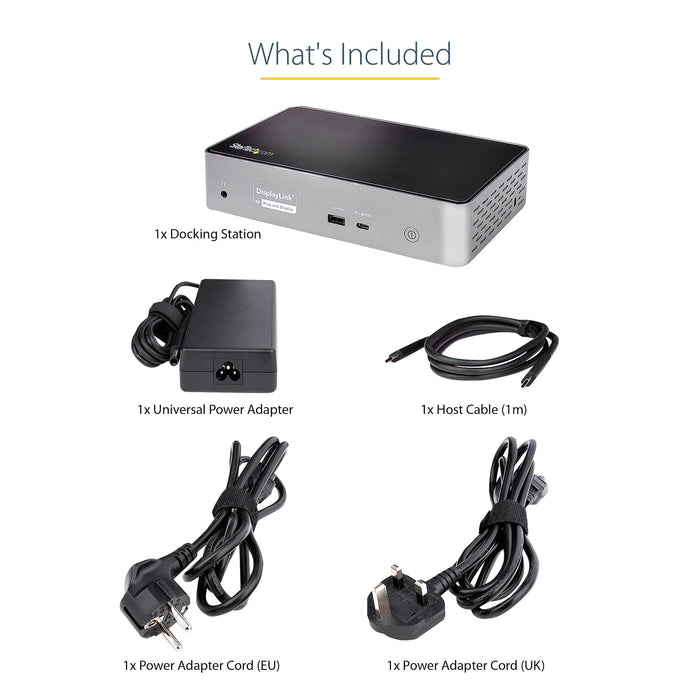

Packaging content
Cables included	USB
AC adapter included	Yes
Manual	Yes
Technical details
Compliance certificates	CE
Logistics data
Products per master (outer) case	4 pc(s)
Master (outer) case width	240 mm
Master (outer) case length	410 mm
Master (outer) case height	160 mm
Harmonized System (HS) code	84733020
Other features
Chipset	DisplayLink - DL6910, Realtek - RTS5423, Realtek - RTS5411/RTS5411E, Realtek - RTL8153
