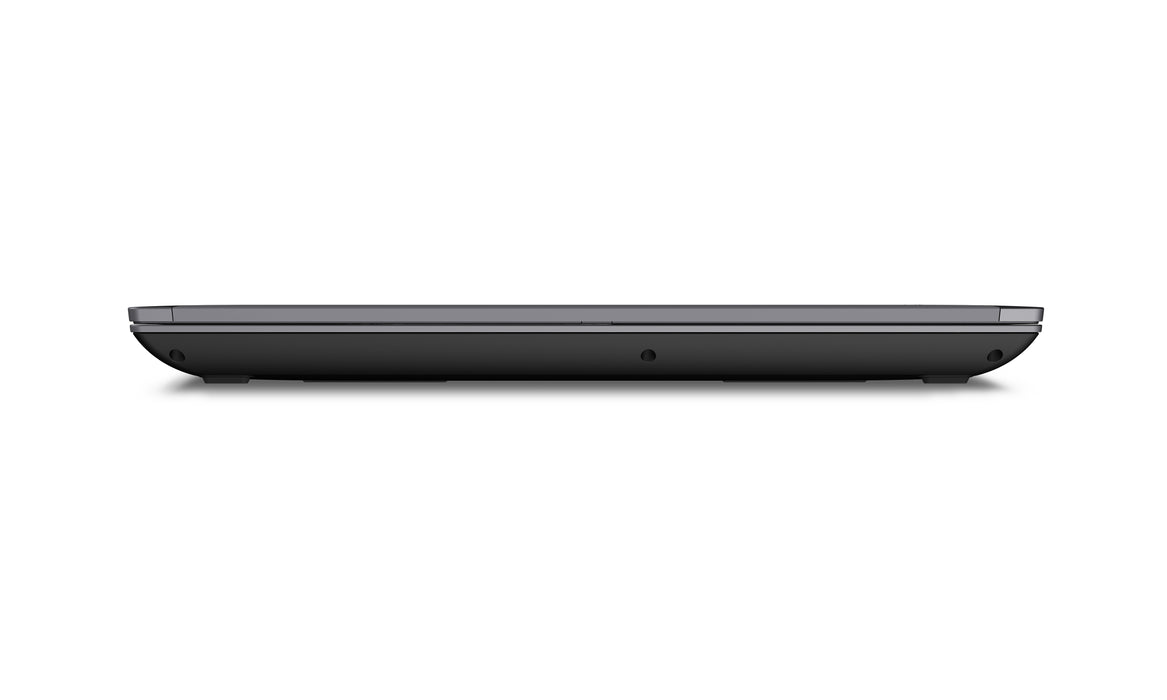

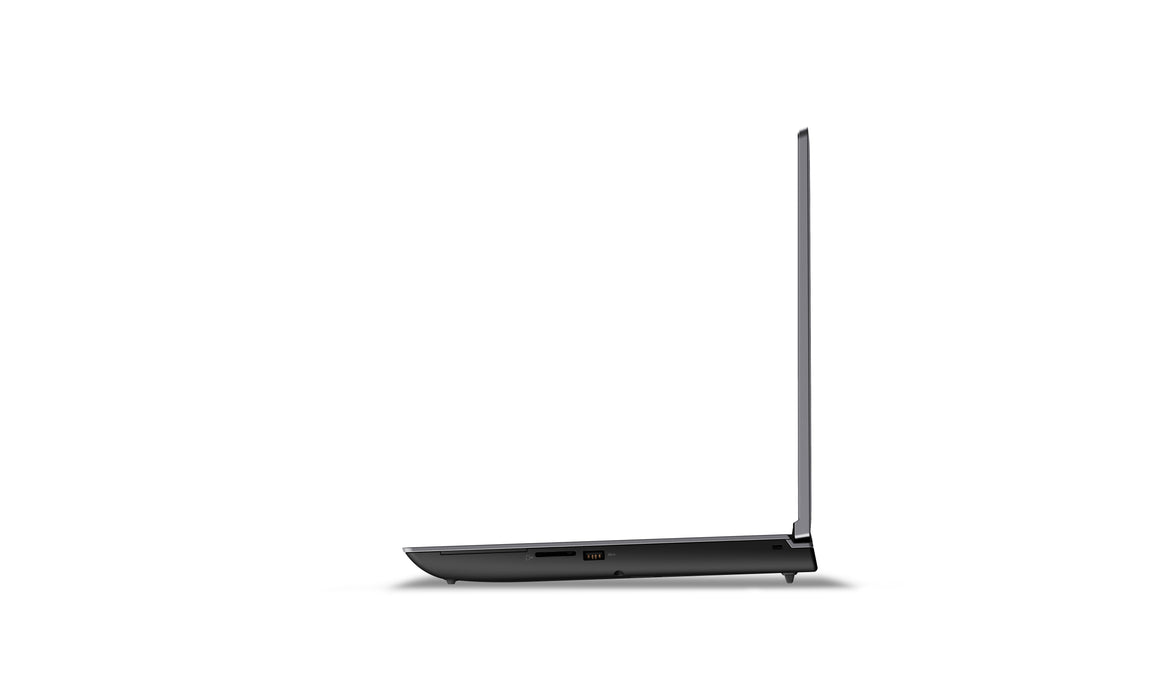

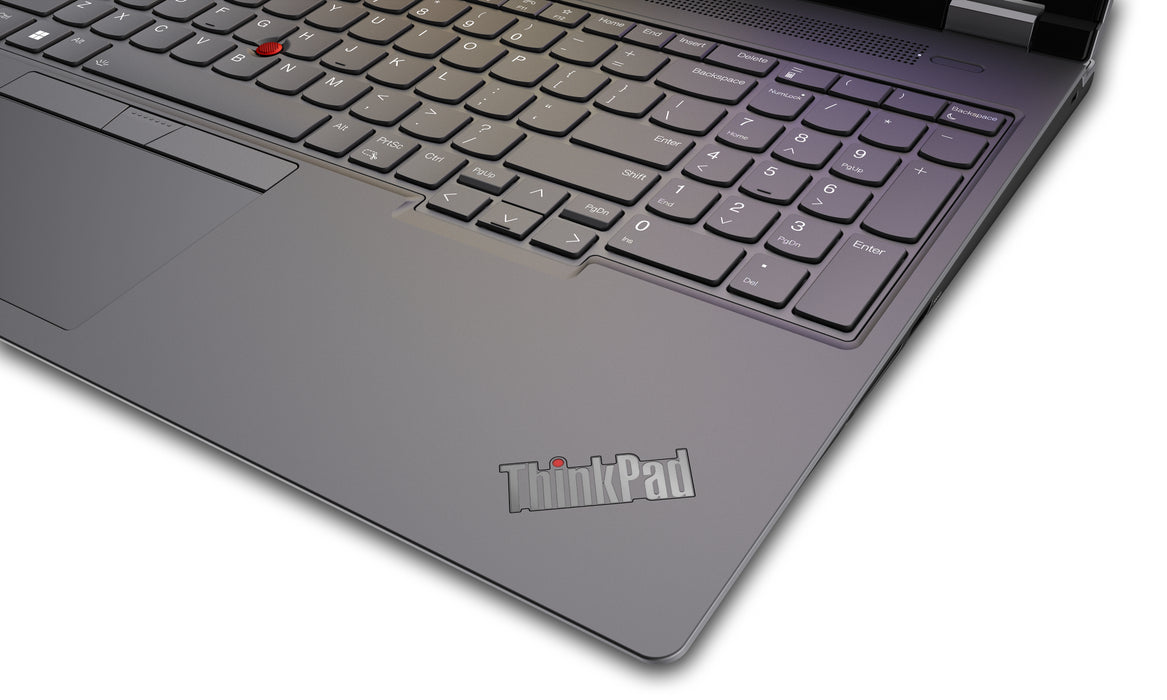

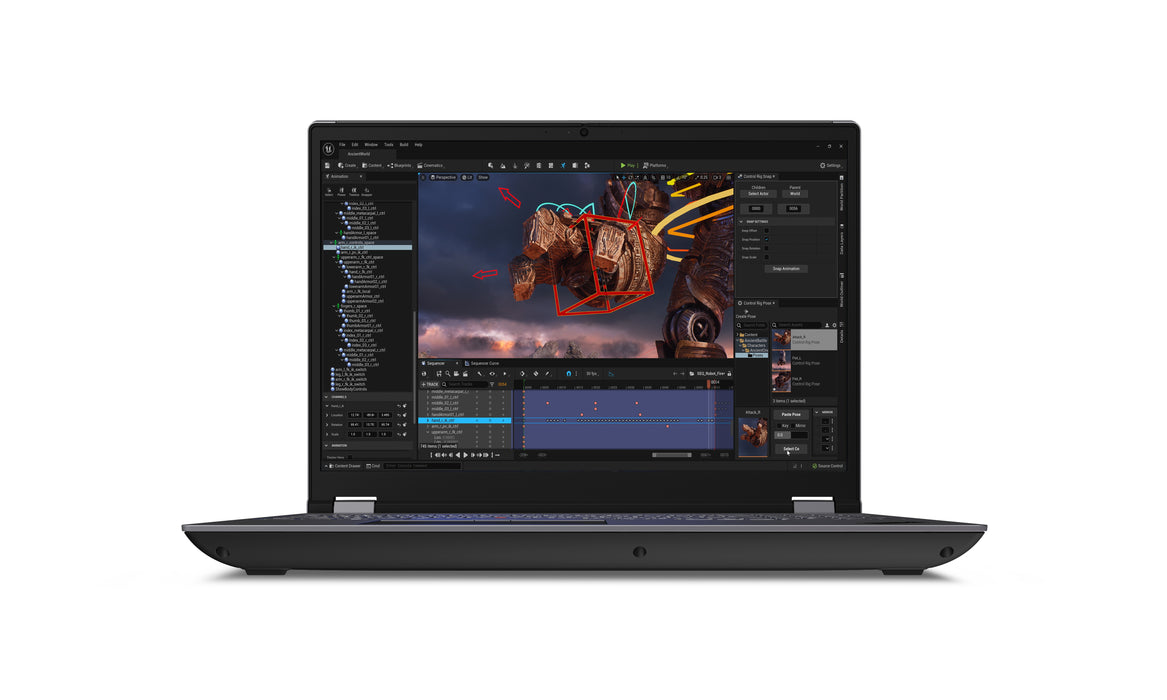

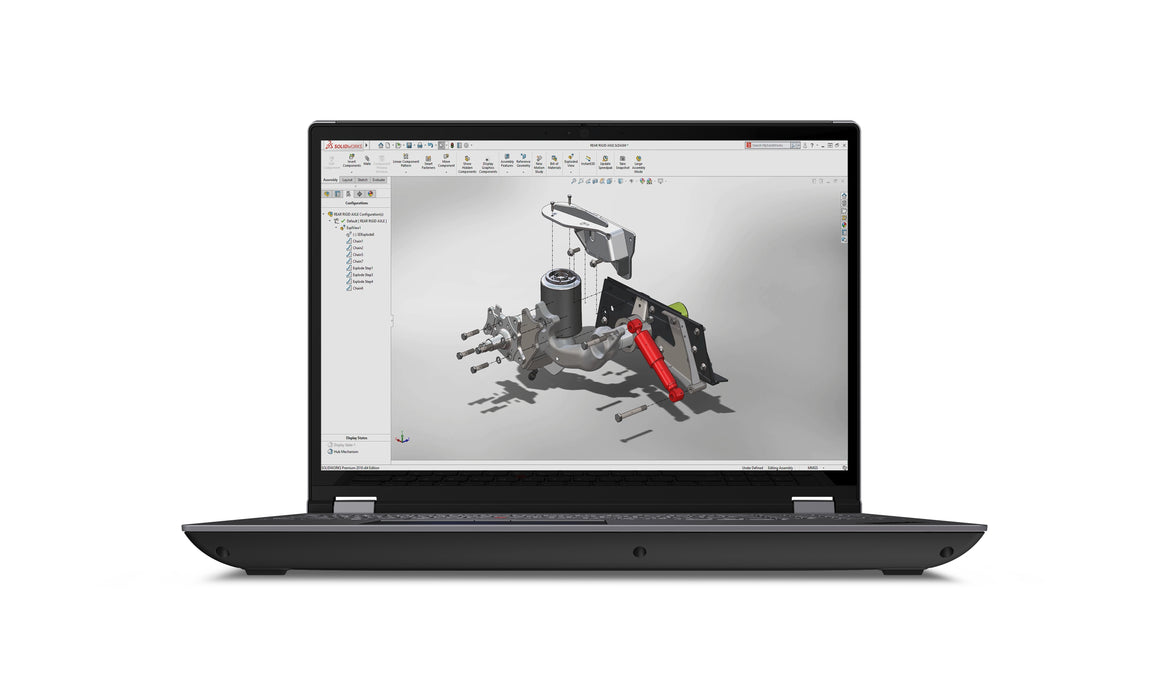

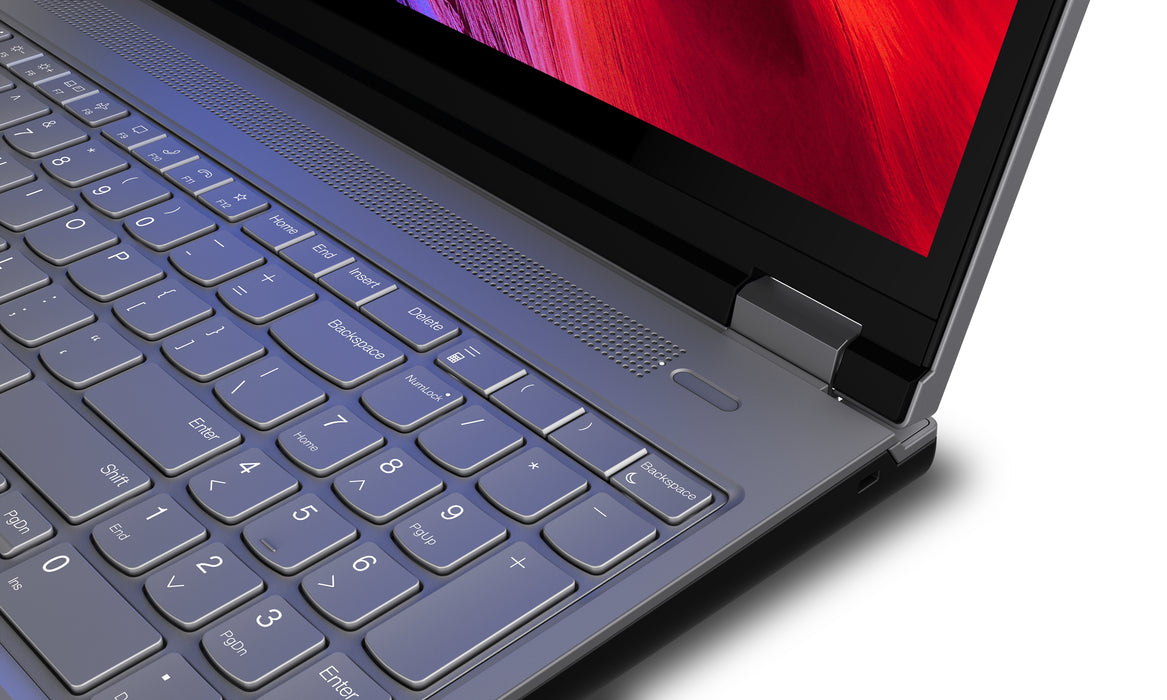

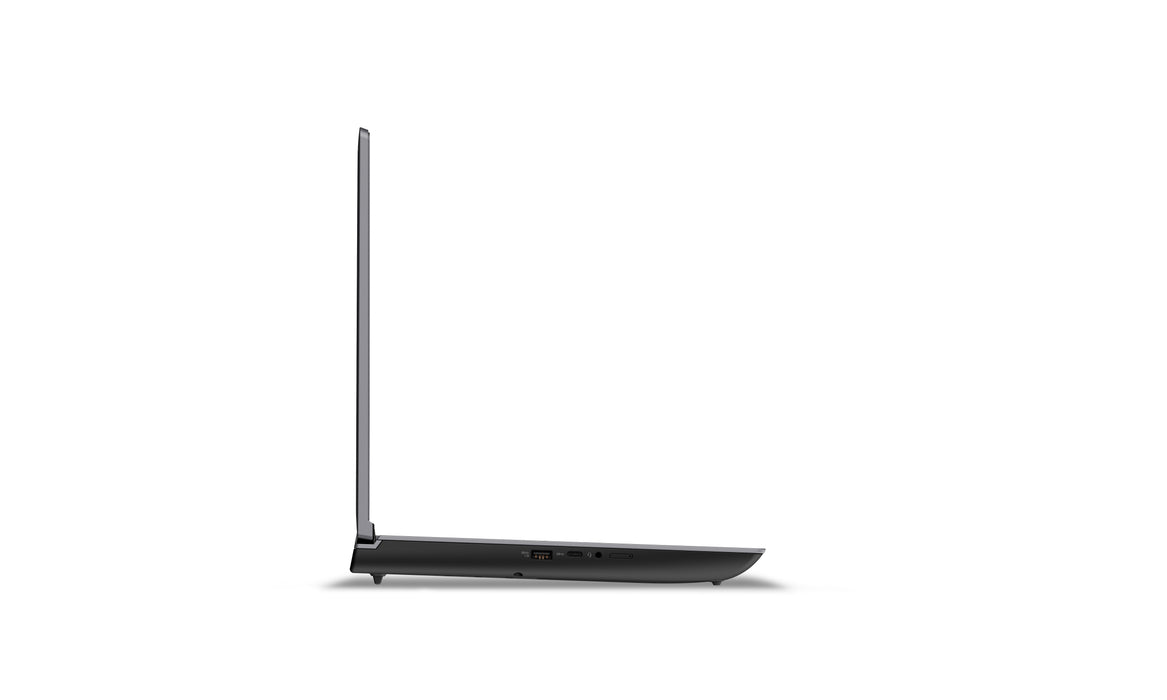

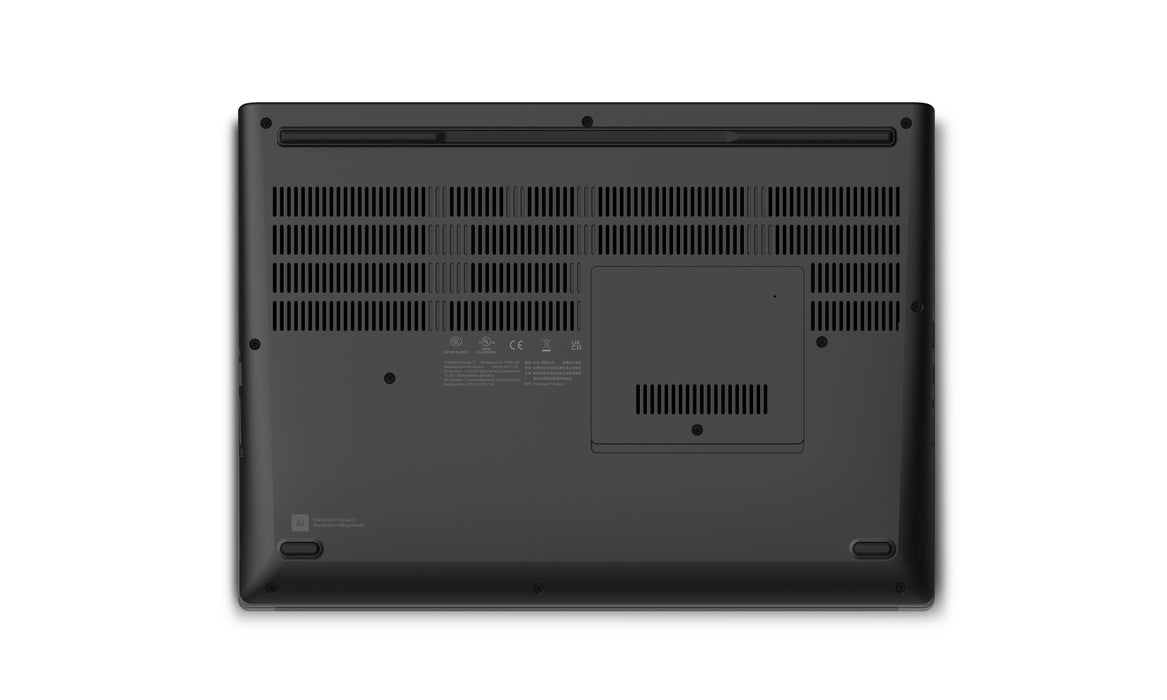

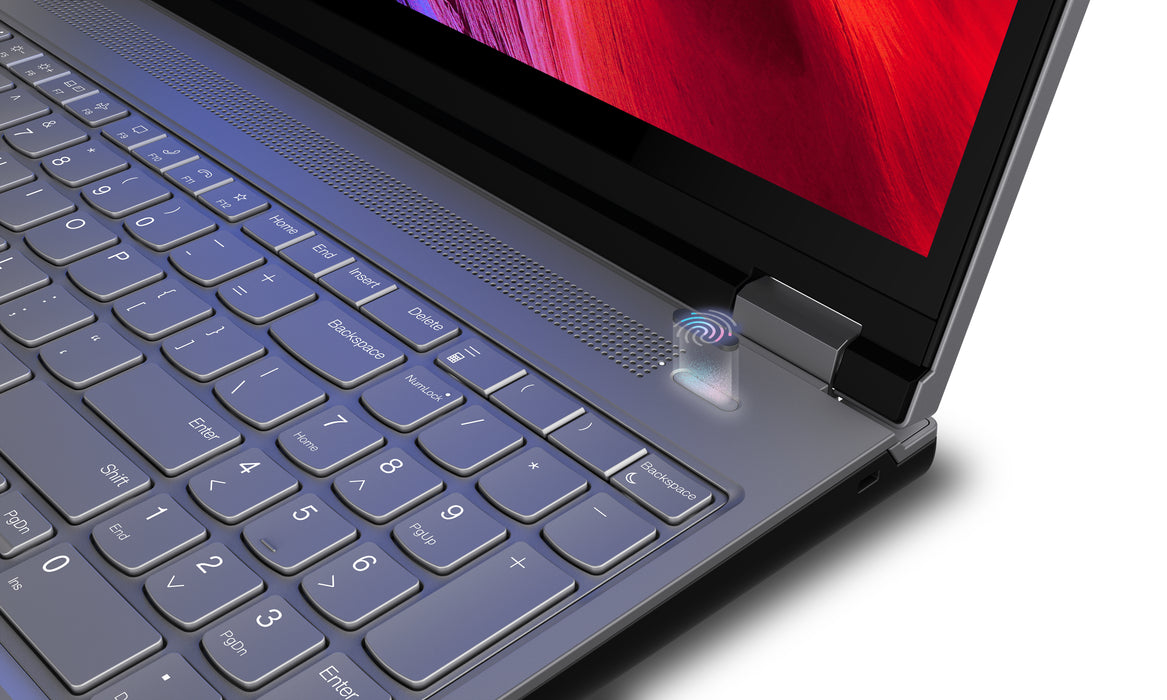

Lenovo ThinkPad P16 Gen 2, Intel® Core™ i7, 40.6 cm (16"), 2560 x 1600 pixels, 16 GB, 512 GB, Windows 11 Pro

Lenovo ThinkPad P16 Gen 2. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-14700HX. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics, Discrete graphics card model: NVIDIA RTX 1000 Ada. Operating system installed: Windows 11 Pro. Product colour: Black

• Mobile workstation Clamshell Black
• Intel® Core™ i7 i7-14700HX Processor cores: 20
• 40.6 cm (16") WQXGA 2560 x 1600 pixels IPS LED backlight 16:10
• 16 GB DDR5-SDRAM 5600 MHz 2 x 8 GB
• 512 GB SSD
• NVIDIA RTX 1000 Ada 6 GB Intel® UHD Graphics
• Wi-Fi 6E (802.11ax) Bluetooth 5.3
• Lithium Polymer (LiPo) 94 Wh 170 W
• Windows 11 Pro 64-bit

Features

Design
Colour name	Storm Grey (Top), Villi Black (Bottom)
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell
Housing material	Aluminium
Display
Display diagonal	40.6 cm (16')
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
RGB colour space	sRGB
Colour gamut	100%
Maximum refresh rate	165 Hz
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7 (14th gen)
Processor model	i7-14700HX
Processor cores	20
Processor threads	28
Processor boost frequency	5.5 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.5 GHz
Efficient-core Max Turbo Frequency	3.9 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Processor base power	55 W
Maximum turbo power	157 W
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x SO-DIMM
Maximum internal memory	192 GB
Memory channels	Dual-channel
Storage
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD
Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX 1000 Ada
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Discrete graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics
Audio
Audio chip	Realtek ALC3306
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Network
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Mobile network connection	No
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6E AX211
WLAN controller manufacturer	Intel
Bluetooth	Yes
Bluetooth version	5.3
Near Field Communication (NFC)	No
WWAN	Upgradable
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
Performance
Motherboard chipset	Intel WM790
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	94 Wh
Power
AC adapter power	170 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Weight & dimensions
Width	364 mm
Depth	266 mm
Height	30.2 mm
Weight	2.95 kg
