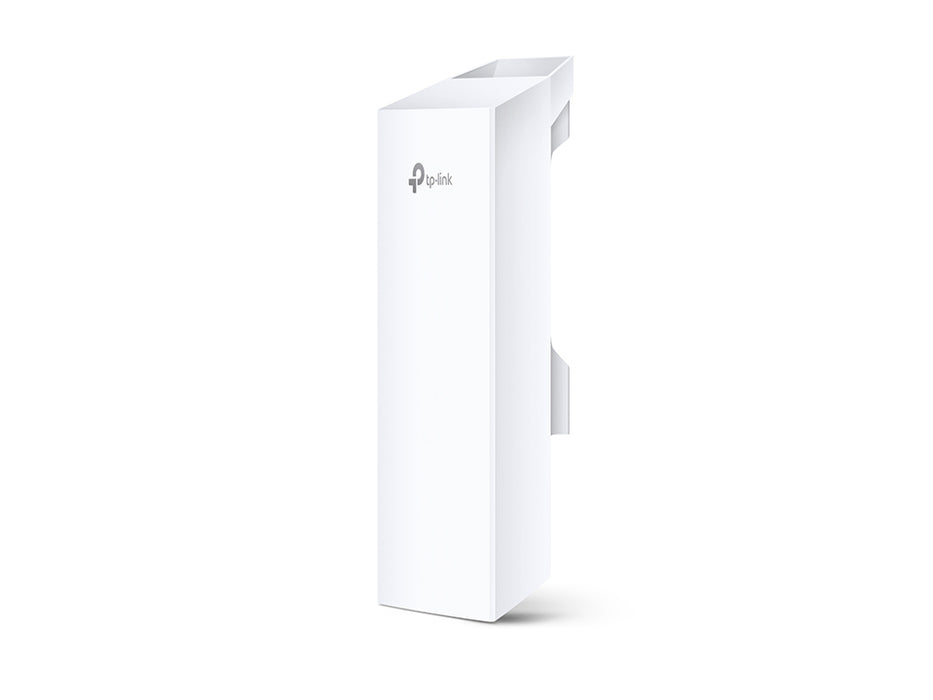

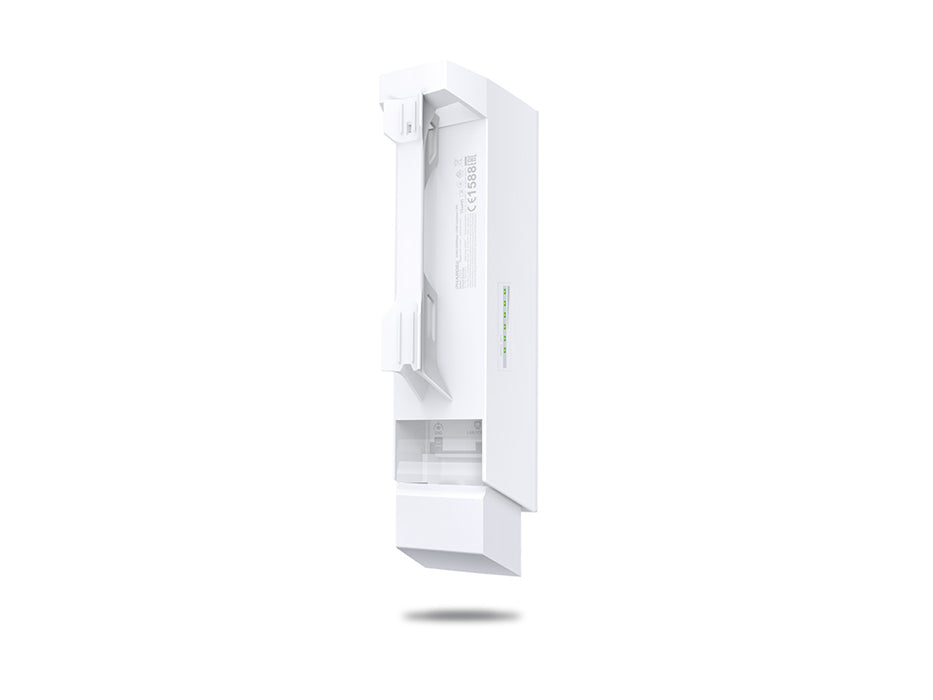

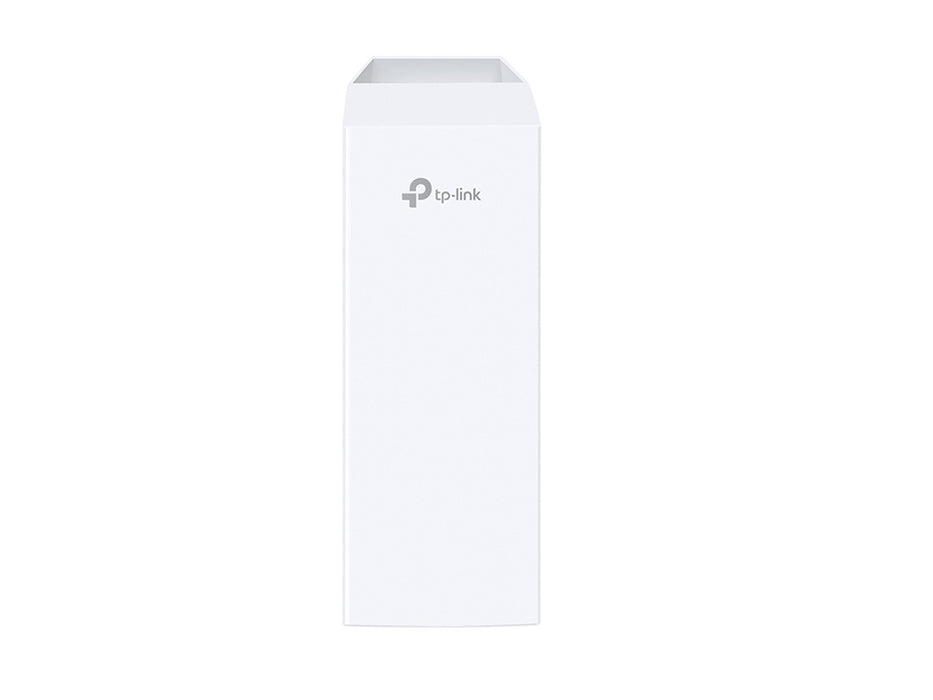

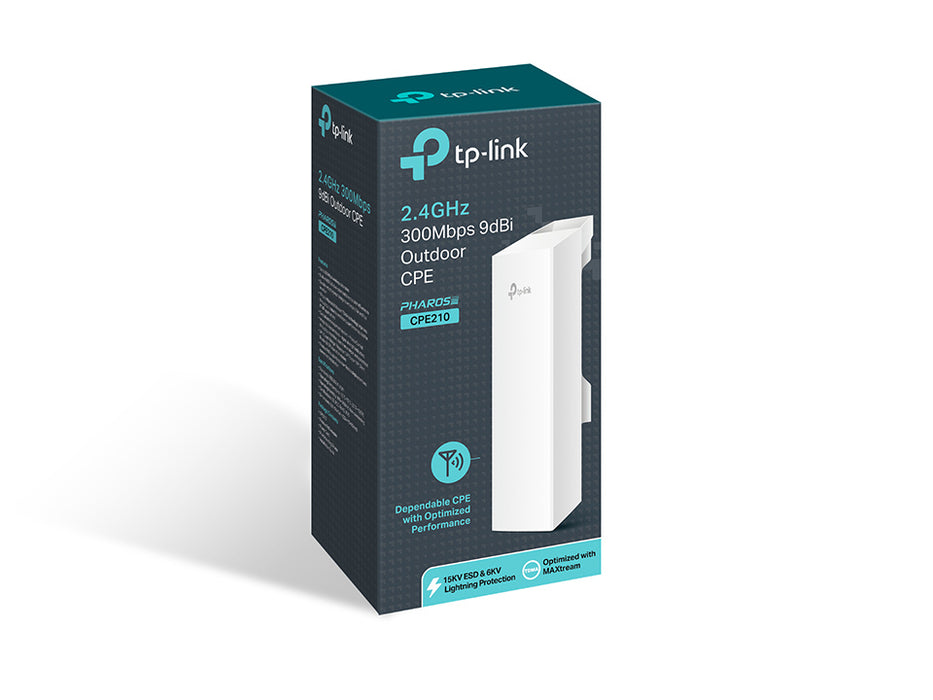

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE, 2.4 GHz, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 10.5 W

• 2.4 GHz 300 Mbit/s
• Maximum data transfer rate: 300 Mbit/s
• IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
• 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
• Power over Ethernet (PoE)
• Antennas quantity: 1 Internal Integrated antenna

Features

Features
2.4 GHz	Yes
5 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Frequency band	2.4 - 2.483 GHz
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO	Yes
MIMO type	Multi User MIMO
Maximum outdoor range	5000 m
Receiver sensitivity	802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Protocols
Management protocols	TDMA
Management features
Web-based management	Yes
Management platform	Pharos Control
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.8 A
Output voltage	24 V
Output current	1 A
Power consumption (max)	10.5 W
Design
Placement	Wall
Product colour	White
International Protection (IP) code	IPX5
Reset button	Yes
LED indicators	Yes
Antenna
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	9 dBi
Performance
Built-in processor	Yes
Processor model	Qualcomm Atheros
Processor frequency	560 MHz
Flash memory	8 MB
Internal memory	64 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Certificates
Certification	- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Weight & dimensions
Width	224 mm
Depth	79 mm
Height	60 mm
Packaging content
Cables included	AC
Mounting kit	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	85176990
