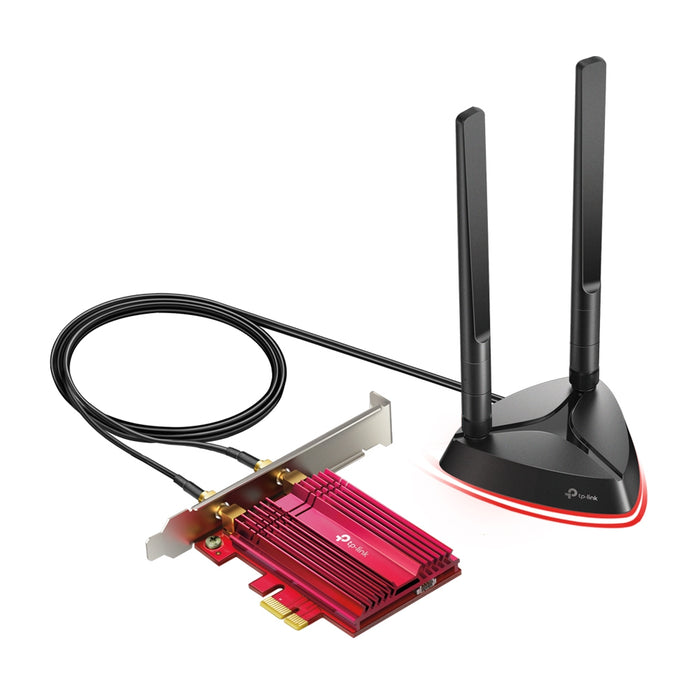

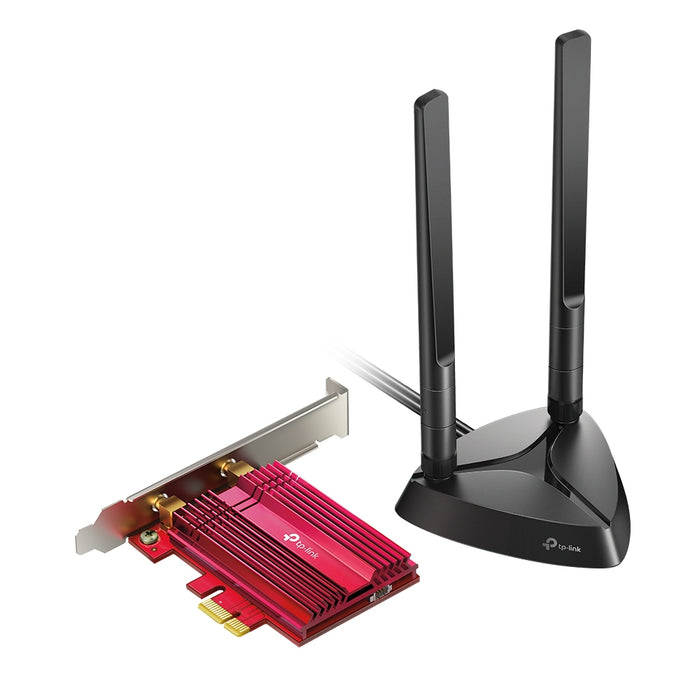

TP-Link Archer TX3000E, Internal, Wireless, PCI Express, WLAN / Bluetooth, 2402 Mbit/s, Black, Red

TP-Link Archer TX3000E. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 2402 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black, Red

• Wireless
• PCI Express WLAN / Bluetooth
• 2402 Mbit/s
• Wi-Fi Dual-band (2.4 GHz / 5 GHz) Bluetooth 5.0
• Internal Component for: PC Chipset: Intel Wi-Fi 6

Features

Ports & interfaces
Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN / Bluetooth
Network
Maximum data transfer rate	2402 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Frequency range	2.4 - 5 GHz
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rates supported	54,300,574,1733,2402 Mbit/s
Modulation	16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Bluetooth	Yes
Bluetooth version	5.0
Design
Component for	PC
Product colour	Black, Red
Internal	Yes
Antenna	Yes

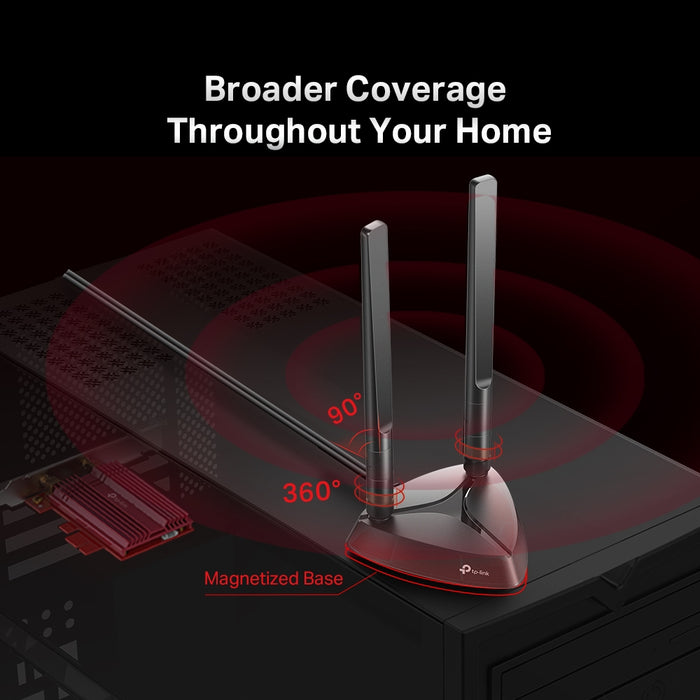

Antenna design	External
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	27 dBm
Chipset	Intel Wi-Fi 6
Receiver sensitivity	5 GHz : 11ax HT160：-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160：-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm
Operating modes	Infrastructure mode
System requirements
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	95.2 mm
Depth	120.8 mm
Height	21.5 mm
Packaging data
Package width	270 mm
Package depth	215 mm
Package height	47 mm
Package weight	480 g

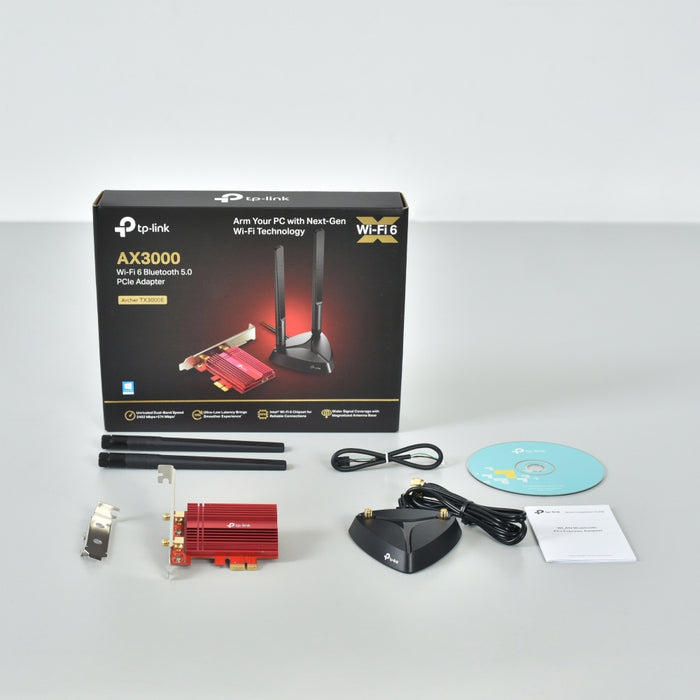

Packaging content
Mounting brackets included	Yes
Resource CD	Yes
Bluetooth header cable	Yes
Quick installation guide	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Logistics data
Harmonized System (HS) code	85176990
