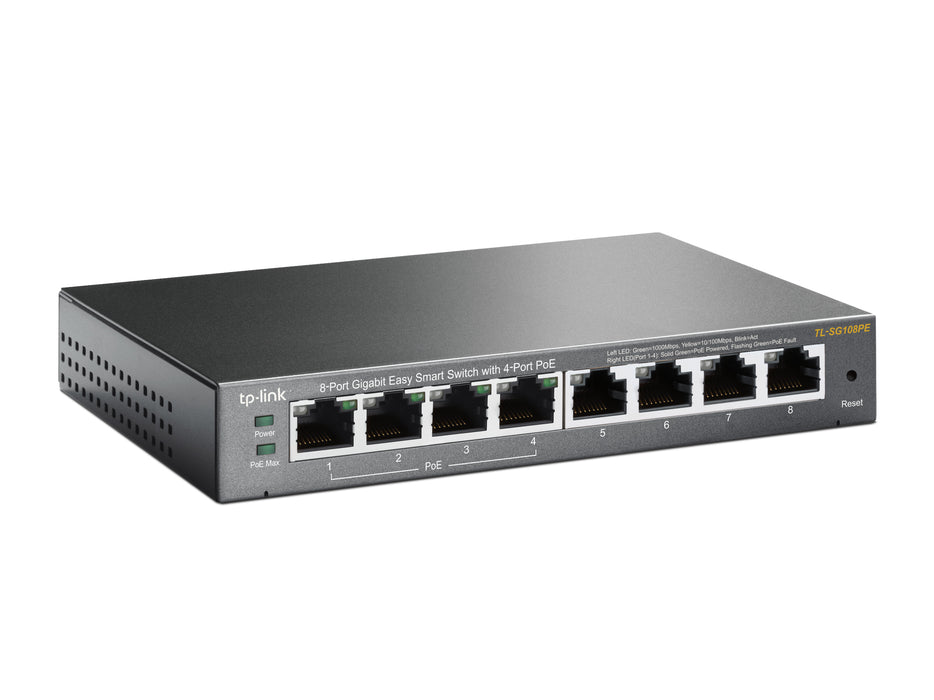

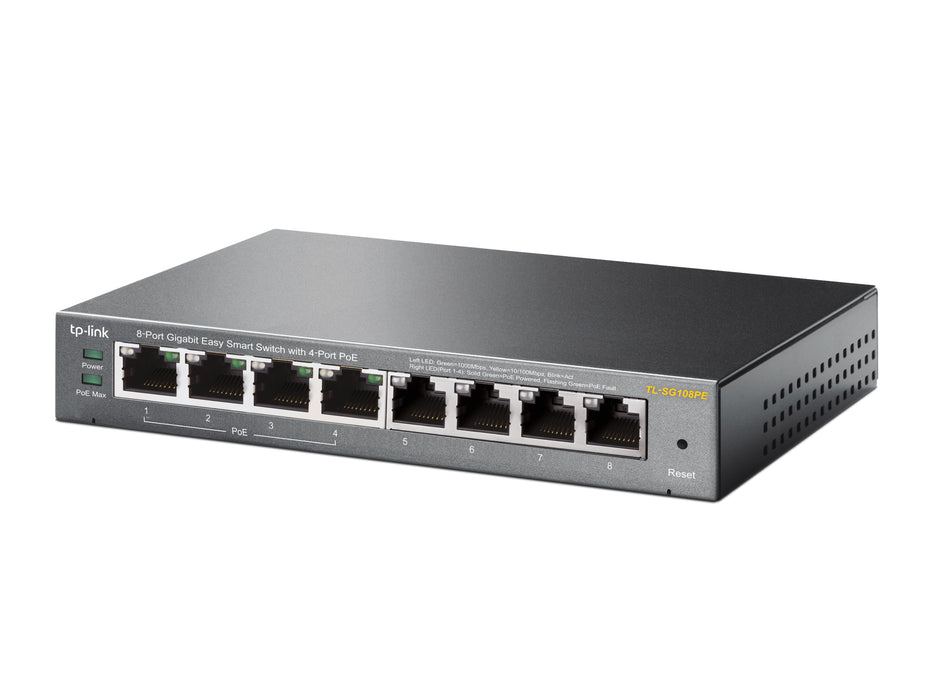

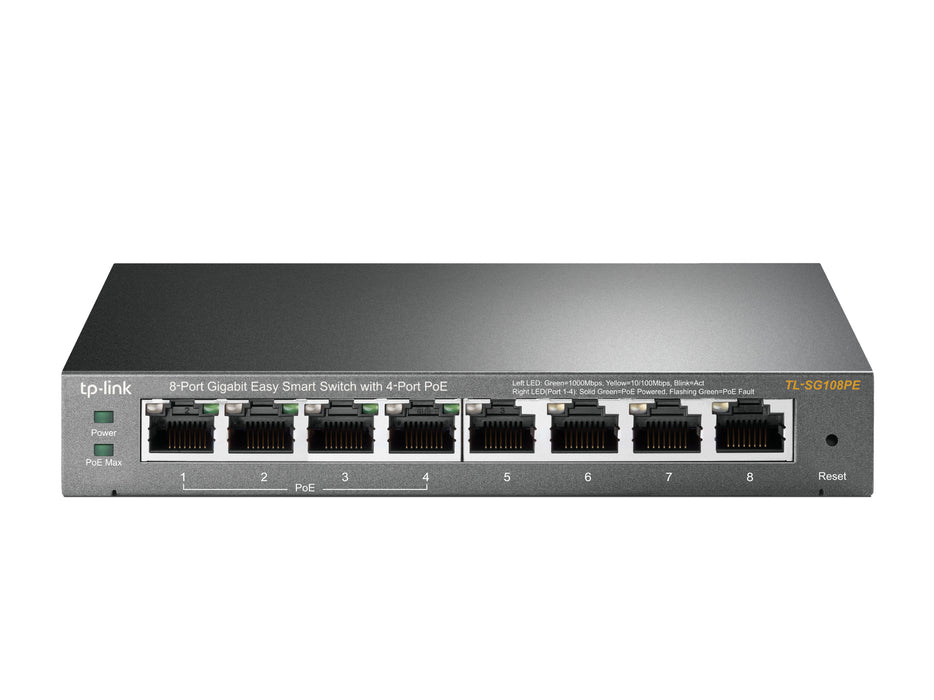

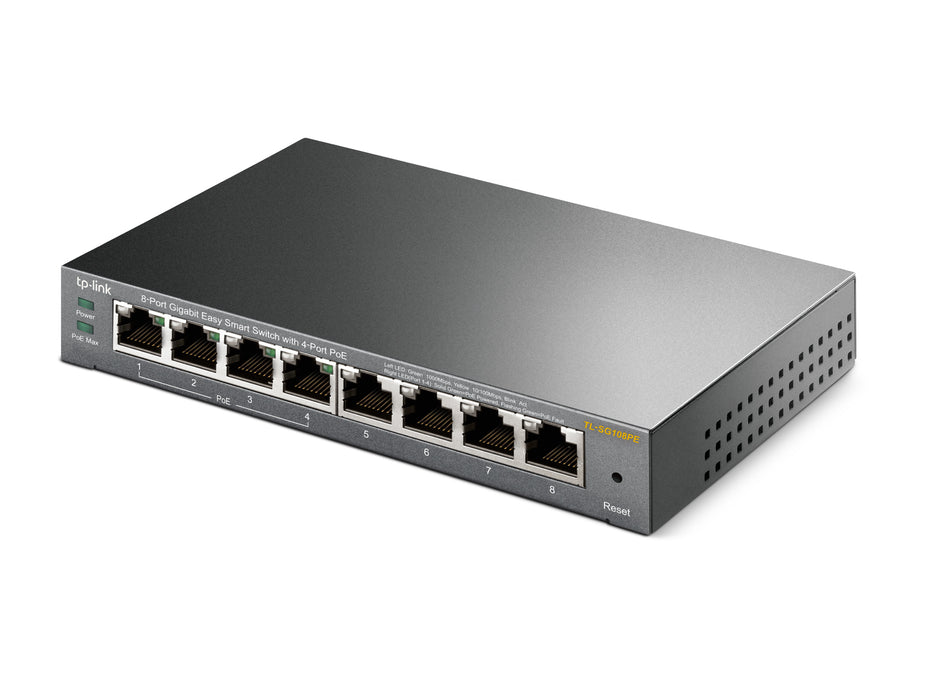

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

• Managed L2 Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 8
• Cat3, Cat4, Cat5, Cat5e, Cat6
• MAC address table: 4000 entries Switching capacity: 16 Gbit/s
• DC Power supply included Power over Ethernet (PoE)

Features

Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Number of VLANs	32
Data transmission
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table	4000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15000
Packet forwarding rate (1 Gbps)	11900000 pps
Packet buffer memory	1.5 MB
Security
IGMP snooping	Yes
Loop protection	Yes
Design
Product colour	Black
LED indicators	Activity, Link, PoE, Power, Speed, Status
Power
Power source	DC
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
Input current	1.25 A
Input voltage	48 V
Power consumption (max)	65.2 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	15.4 W
Total Power over Ethernet (PoE) budget	64 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	256.19 BTU/h
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	25 mm
Packaging content
Cables included	AC
User guide	Yes
Packaging data
Package type	Box
Package width	131 mm
Package depth	196 mm
Package height	121 mm
Package weight	860 g
Certificates
Certification	FCC, CE, RoHS
Logistics data
Harmonized System (HS) code	85176990
