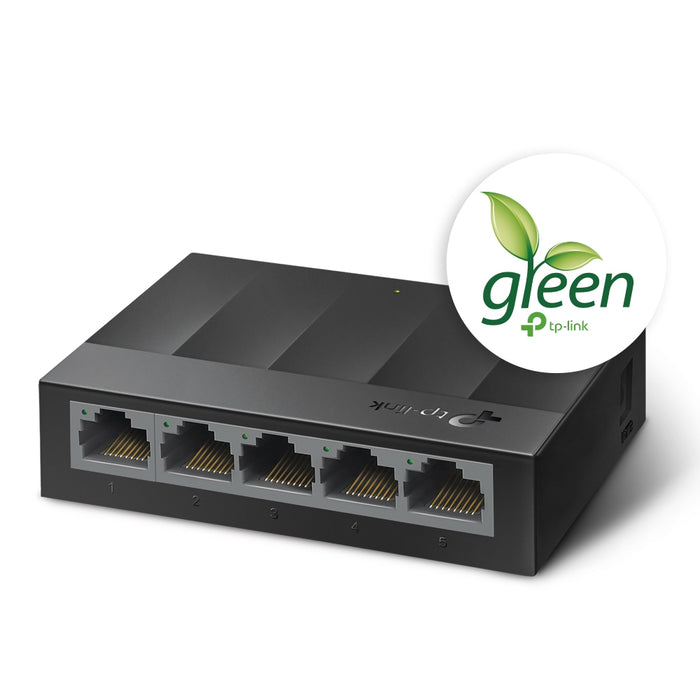

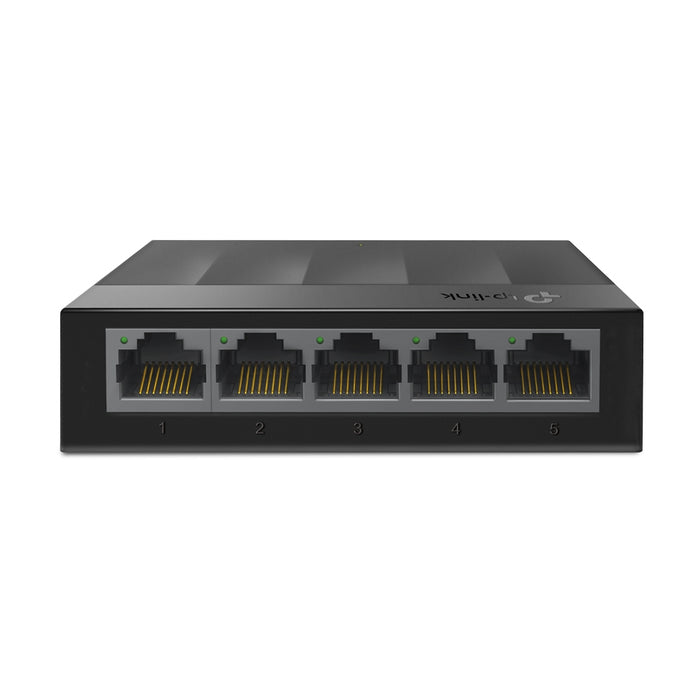

TP-Link LS1005G, Unmanaged, Gigabit Ethernet (10/100/1000), Wall mountable

TP-Link LS1005G. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Wall mountable

• Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 5
• MAC address table: 2000 entries Switching capacity: 10 Gbit/s
• Power supply included

Features

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Data transmission
Switching capacity	10 Gbit/s
Forwarding rate	7.4 Mpps
MAC address table	2000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	16000
Packet buffer memory	1.5 MB
Design
Rack mounting	No
Product colour	Black
Housing material	Plastic
LED indicators	Yes
International Protection (IP) code	IP20, IP40
Wall mountable	Yes
Power
Power supply included	Yes
DC input voltage	5 V
Input current	0.6 A
Power consumption (max)	3.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	12.617 BTU/h
Weight & dimensions
Width	90 mm
Depth	72 mm
Height	23 mm
Packaging content
Quick start guide	Yes
Packaging data
Package type	Box
Certificates
Certification	CE, FCC, RoHS
Logistics data
Harmonized System (HS) code	85176990
