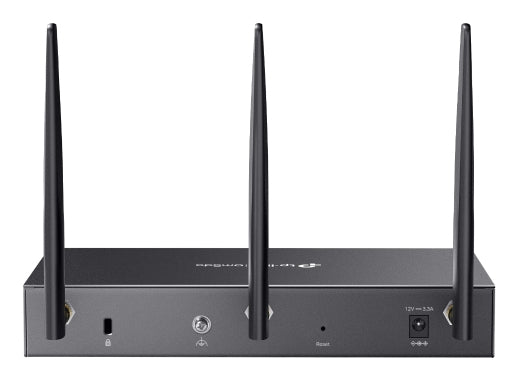

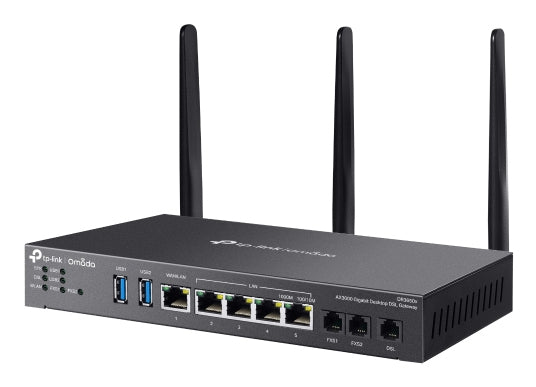

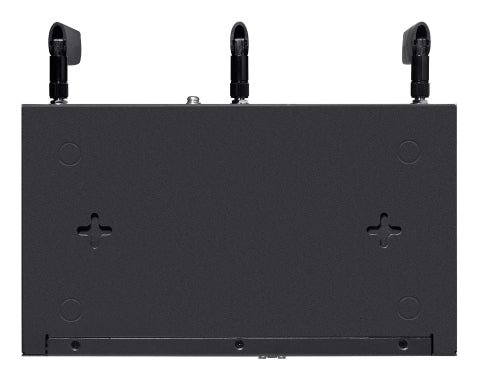

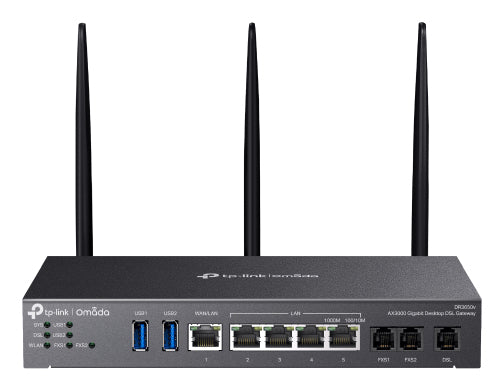

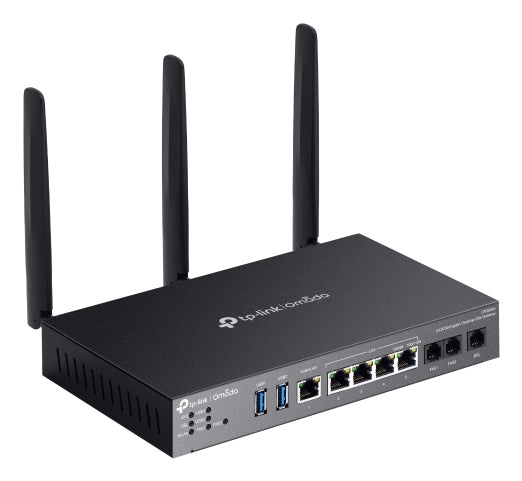

TP-Link Omada AX3000, Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, ADSL, ADSL2, Black, Tabletop router

TP-Link Omada AX3000. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), WLAN data transfer rate (max): 2402 Mbit/s, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, NAT functionality: One-to-One NAT Multi-Net NAT Virtual Server Port Triggering1 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG.... Voice codecs: G.711a, G.711ulaw, G.722, G.726, G.729ab

• Tabletop router Black
• Dual-band (2.4 GHz / 5 GHz) 2402 Mbit/s
• Gigabit Ethernet
• Ethernet WAN DSL WAN 3G/4G USB modem compatibility
• Ethernet LAN (RJ-45) ports: 4
• USB port
• Web-based management Quality of Service (QoS) support
• MU-MIMO technology

Features

WAN connection
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2402 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Network
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Port triggering	Yes
Load balancing system	Yes
Dynamic DNS (DDNS)	Yes
Policy-based routing	Yes
Static route	Yes
Built-in FTP server	Yes
VPN support	IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL
DSL features
ADSL	Yes
ADSL2	Yes
ADSL2+	Yes
VDSL2	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
RJ-11 ports quantity	3
DC-in jack	Yes
Management features
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
MU-MIMO technology	Yes
Security
Security algorithms	WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Guest access	Yes
Access Control List (ACL)	Yes
URL filtering	Yes
System event log	Yes
DMZ support	Yes
Network address translation (NAT)	Yes
NAT functionality	One-to-One NAT Multi-Net NAT Virtual Server Port Triggering1 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP
Protocols
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Voice codecs	G.711a, G.711ulaw, G.722, G.726, G.729ab
Design
Product colour	Black
Wall mountable	Yes
Indication light	Yes
LED indicators	DSL, LAN, USB, WLAN
Product type	Tabletop router

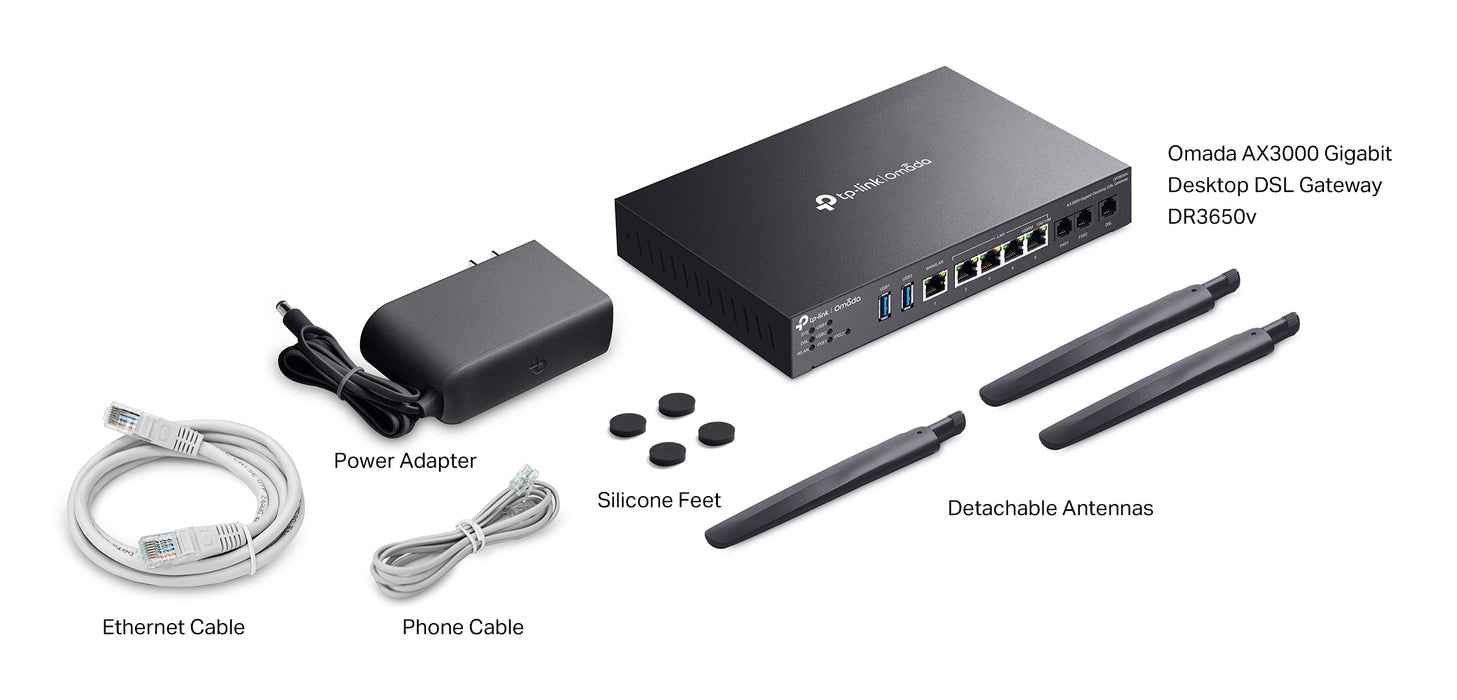

Packaging content
Cables included	LAN (RJ-45), Phone
AC adapter included	Yes
Antenna included	Yes
Antenna
Antenna design	External
Antenna gain level (max)	4.5 dBi
Antennas quantity	3
Detachable antenna(s)	Yes
Features
Internal memory	512 MB
Internal memory type	DDR4
Mean time between failures (MTBF)	671034 h
Power
Power source type	AC
Output voltage	12 V
Output current	3.3 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	226 mm
Depth	131.2 mm
Height	35 mm
