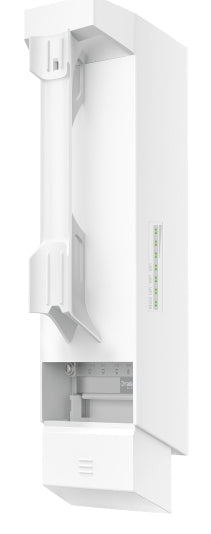

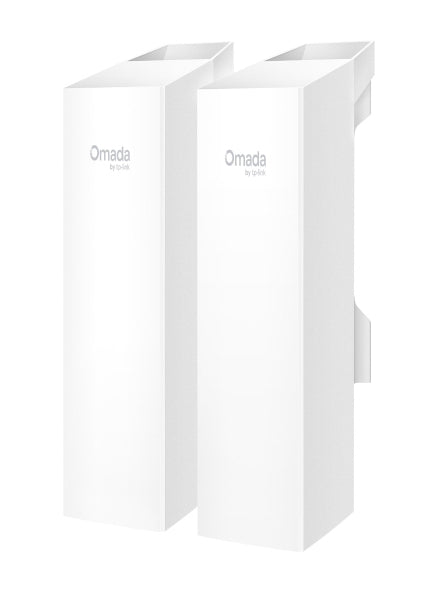

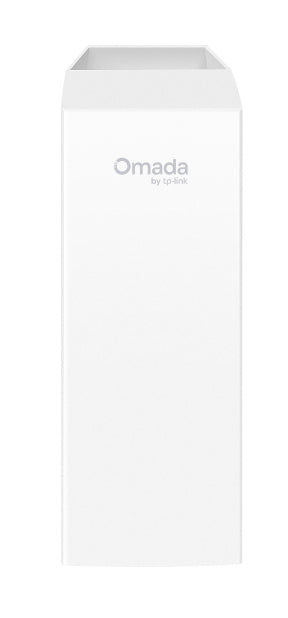

TP-Link Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White

TP-Link Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 1000 m. Antenna design: Internal, Antenna type: 2x2, Antenna gain level (max): 7 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Connectivity technology: Wired & Wireless

• Network bridge 867 Mbit/s 1000 m
• Wi-Fi Single-band (5 GHz) Wi-Fi 5 (802.11ac)
• Ethernet LAN Gigabit Ethernet
• IP65
• Antenna design: Internal 2x2 7 dBi
• White

Features

Data transmission
Maximum data transfer rate	867 Mbit/s
Maximum transfer distance	1000 m
Antenna
Antenna design	Internal
Antenna type	2x2
Antenna gain level (max)	7 dBi
Wireless LAN features
Wi-Fi	Yes
Wi-Fi band	Single-band (5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Frequency band	5 GHz
Network
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Connectivity technology	Wired & Wireless

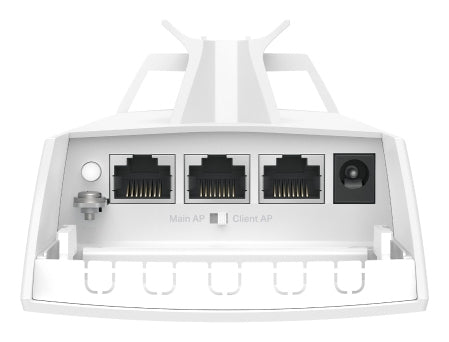

Ethernet LAN (RJ-45) ports	3
DC-in jack	Yes
Security
Security algorithms	SNMP, SNMPv2, SNMPv3, SSH
MAC address filtering	Yes
Management features
Web-based management	Yes
Features
Product type	Network bridge
Mounting type	Pole
Product colour	White
LED indicators	Power
Reset button	Yes
International Protection (IP) code	IP65
Quality of Service (QoS) support	Yes
Power
Power source type	DC, PoE
DC input voltage	12 V
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) voltage	24 V
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Certificates
Certification	CE, FCC, RoHS
Weight & dimensions
Width	224 mm
Depth	79 mm
Height	60 mm
Packaging content
PoE+ Injector(s)	Yes
Cables included	AC
