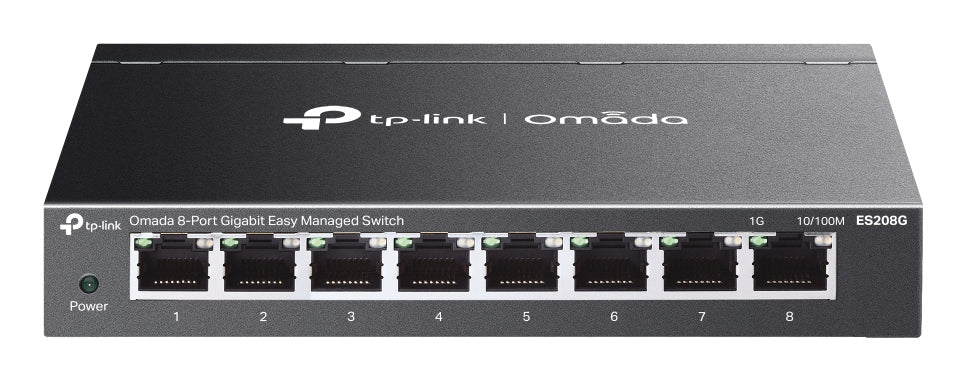

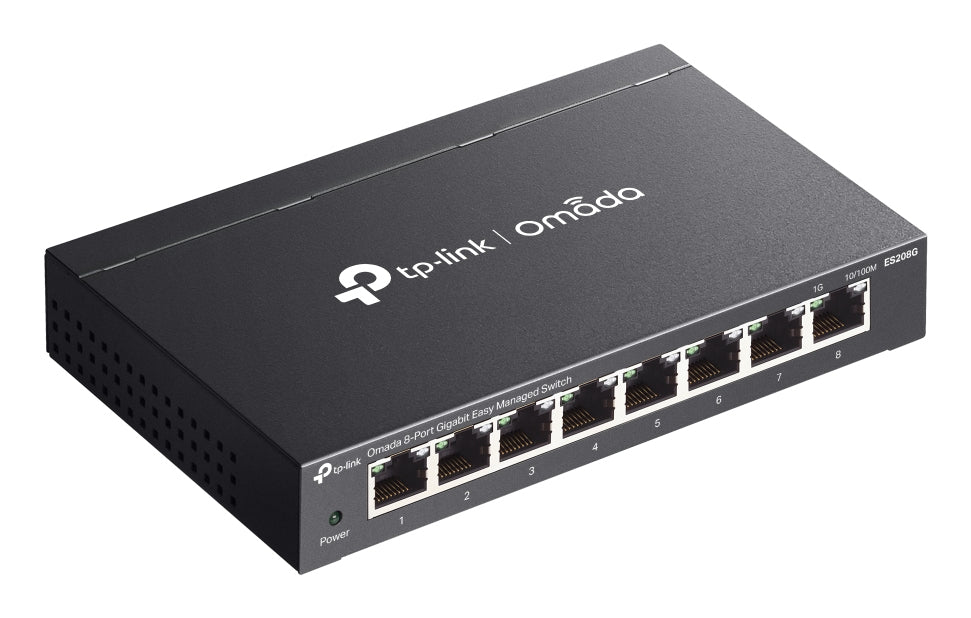

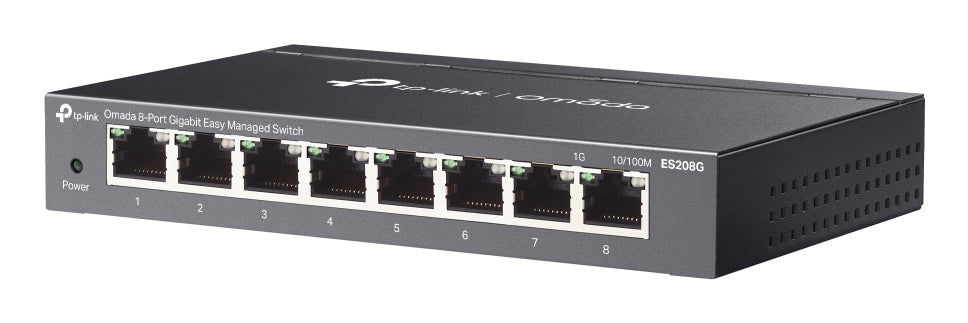

TP-Link Omada ES208G, Managed, L2, Gigabit Ethernet (10/100/1000), Wall mountable

TP-Link Omada ES208G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q. DC input voltage: 5 V. Wall mountable

• Managed L2 Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 8
• MAC address table: 8000 entries Switching capacity: 16 Gbit/s
• DC Power supply included

Features

Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Unified static configuration	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Network
Networking standards	IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
10G support	No
Zero Touch Provisioning (ZTP)	Yes
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Fast leave	Yes
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs	32
Data transmission
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15000
Packet buffer memory	4 MB
Security
DHCP features	DHCP client
IGMP snooping	Yes
Loop protection	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
Design
Rack mounting	No
Stackable	No
Product colour	Black
LED indicators	Yes

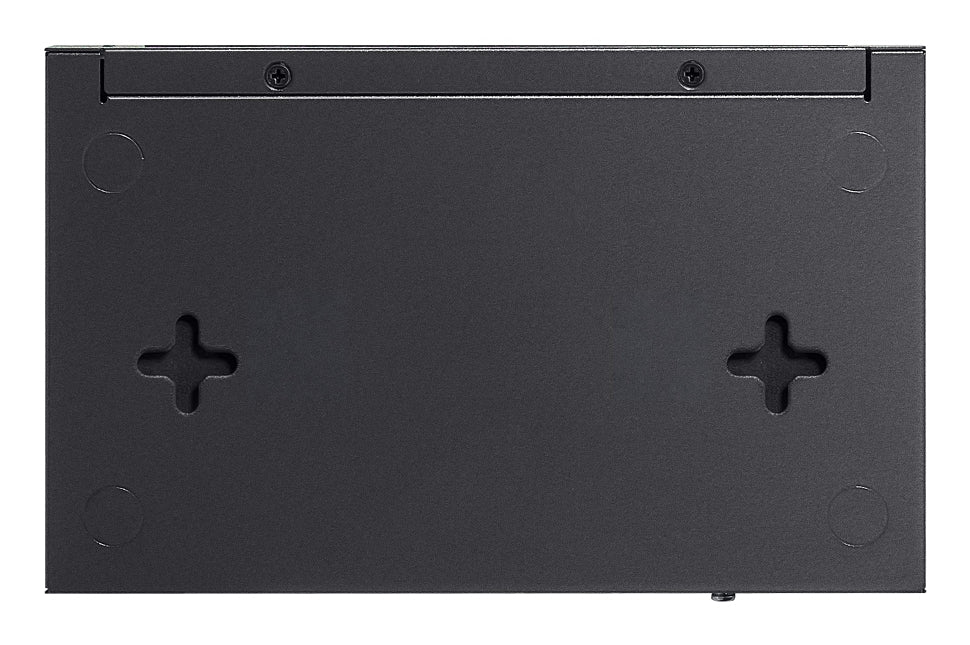

Wall mountable	Yes
Performance
Flash memory	64 MB
Firmware upgradeable	Yes
Fanless	Yes
Mean time between failures (MTBF)	1141726 h
Power
Power source	DC
Power supply included	Yes

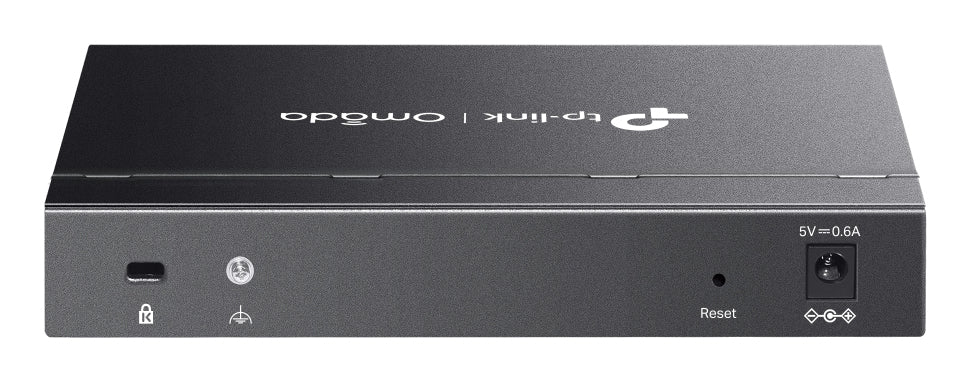

DC input voltage	5 V
Input current	0.6 A
Power consumption (max)	2.7 W
Surge protection	Yes
Surge protection voltage	6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	9.09 BTU/h
Weight & dimensions
Width	158 mm
Depth	100.7 mm
Height	25.4 mm
Packaging content
User guide	Yes
Packaging data
AC adapter included	Yes
Package type	Box
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
