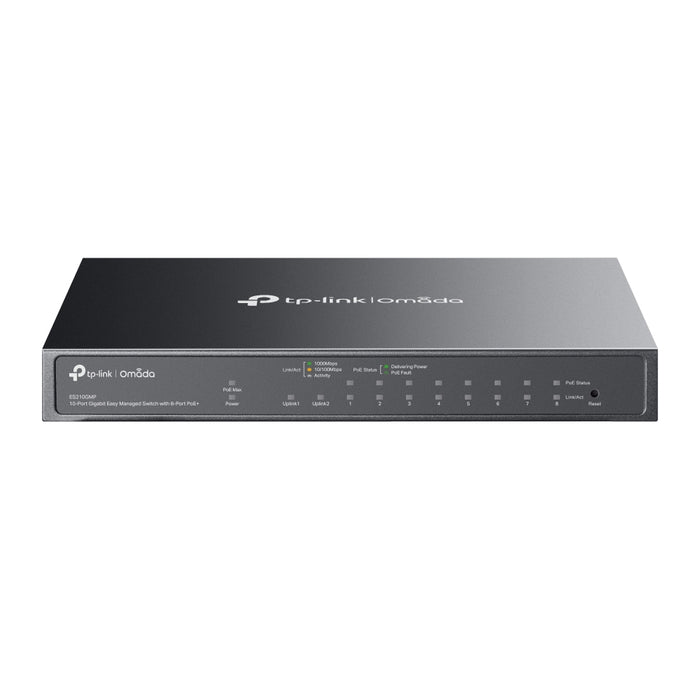

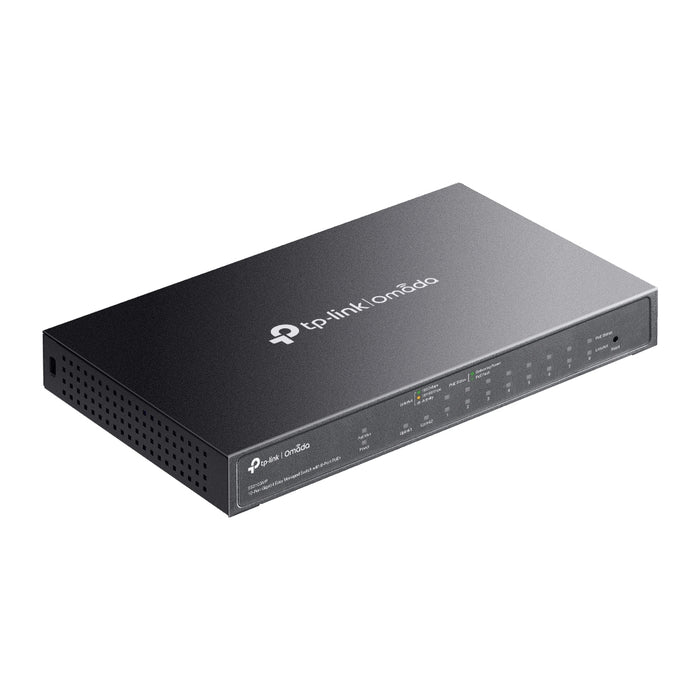

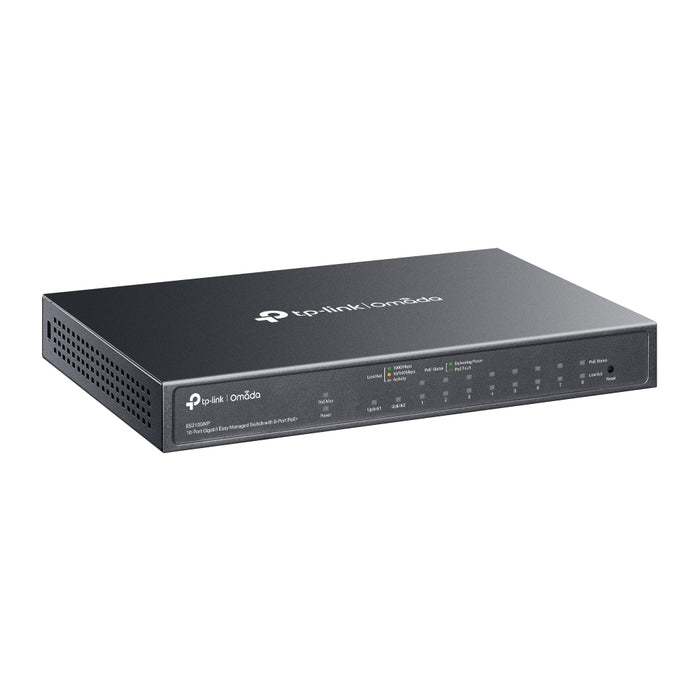

TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable

TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable

• Managed
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 10
• MAC address table: 8000 entries Switching capacity: 20 Gbit/s
• DC Power supply included Power over Ethernet (PoE)

Features

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	1
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support	No
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
Transmission distance (max)	0.25 km
Data transmission
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15
Packet buffer memory	4 MB
Security
DHCP features	DHCP client
IGMP snooping	Yes
Design
Product colour	Black
Reset button	Yes

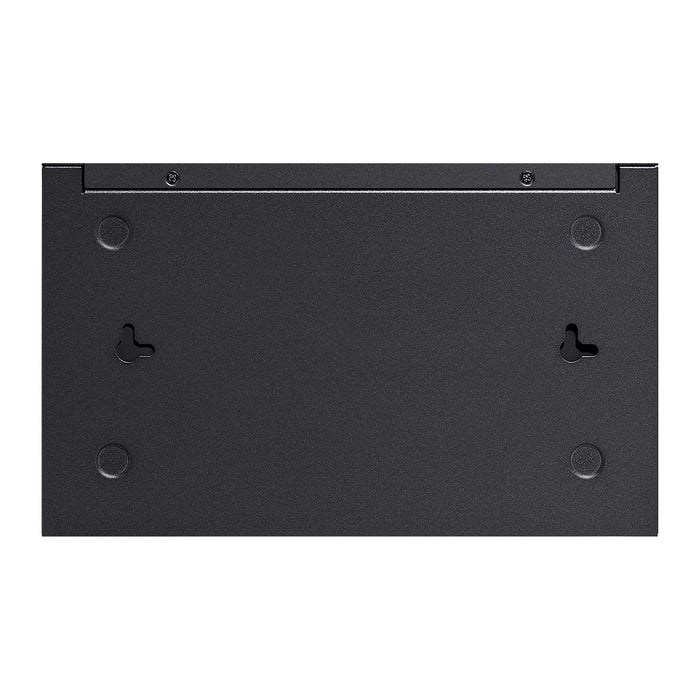

Wall mountable	Yes
Performance
Fanless	Yes
Power
Power source	DC
Power supply included	Yes
DC input voltage	53.5 V
Input current	2.43 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	123 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	209 mm
Depth	126 mm
Height	26 mm
Packaging content
Cables included	AC
User guide	Yes
Packaging data
Package type	Box
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
