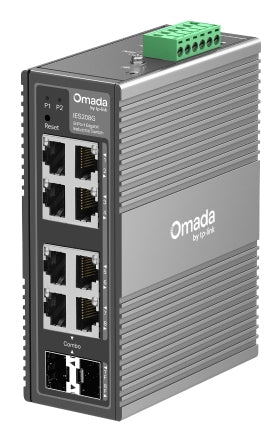

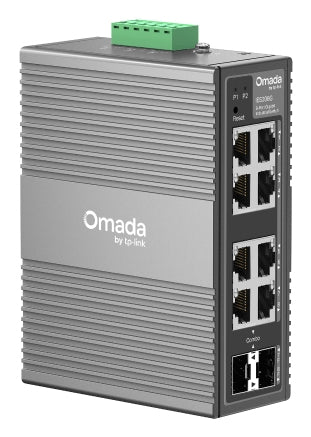

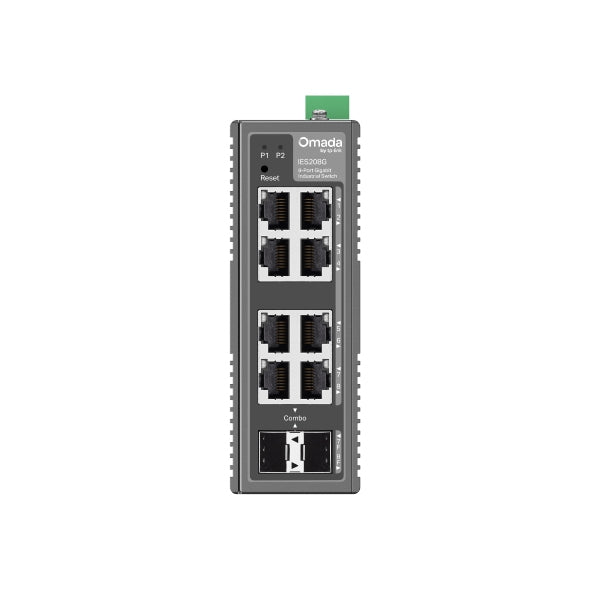

TP-Link Omada IES208G, Managed, Gigabit Ethernet (10/100/1000), Wall mountable

TP-Link Omada IES208G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9.6 - 60 V. Wall mountable

• Managed Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 6
• MAC address table: 8000 entries Switching capacity: 16 Gbit/s
• DC

Features

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Network
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support	No
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Auto-negotiation	Yes
Data transmission
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Jumbo frames	15000
Security
IGMP snooping	Yes
Static port security	Yes
Design
Wall mountable	Yes
DIN rail mounting	Yes
Power
Power source	DC
Redundant power supply (RPS) support	Yes
DC input voltage	9.6 - 60 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Weight & dimensions
Width	129 mm
Depth	95 mm
Height	45 mm
