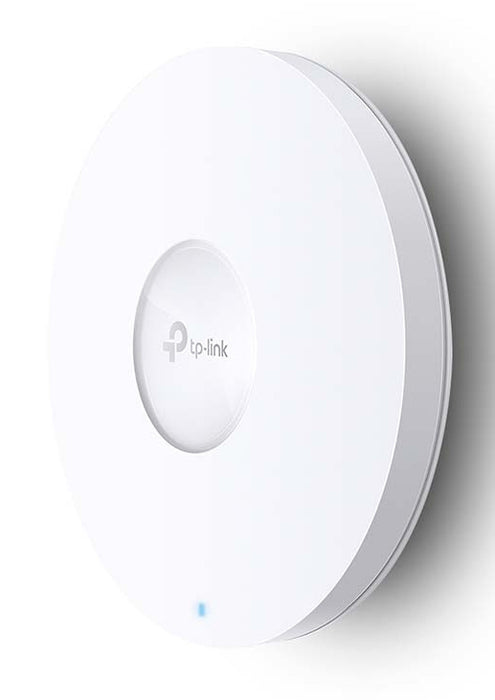

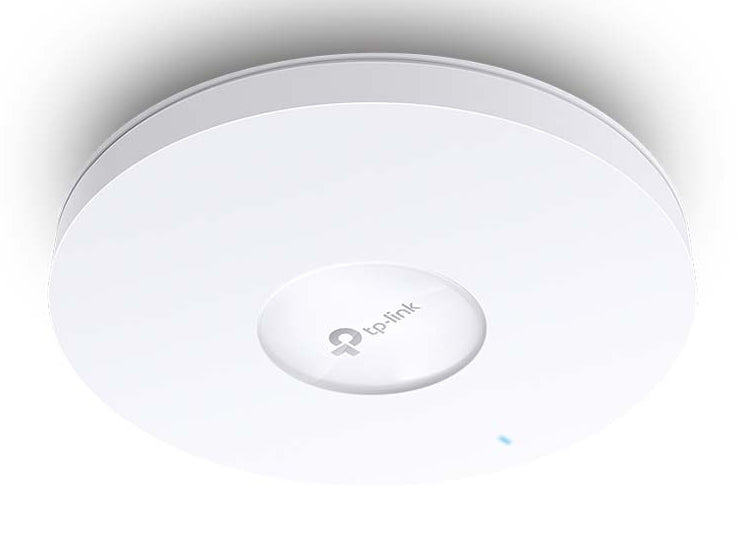

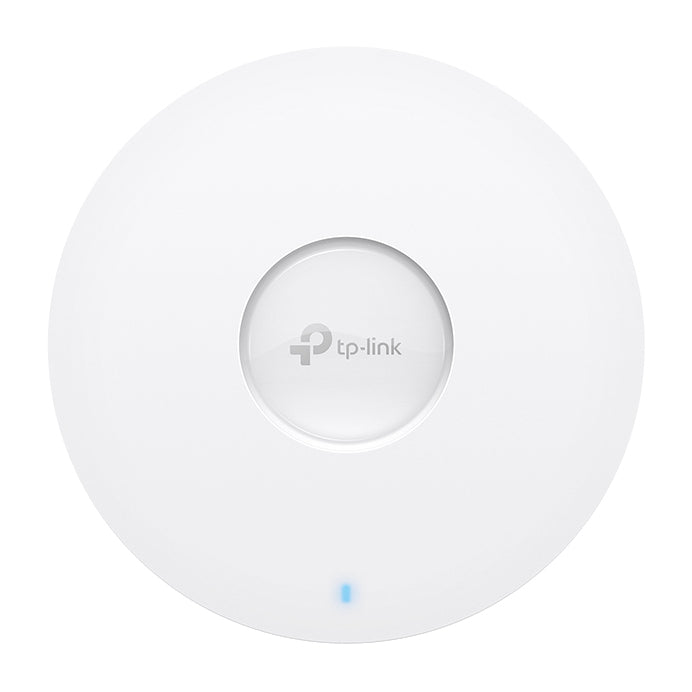

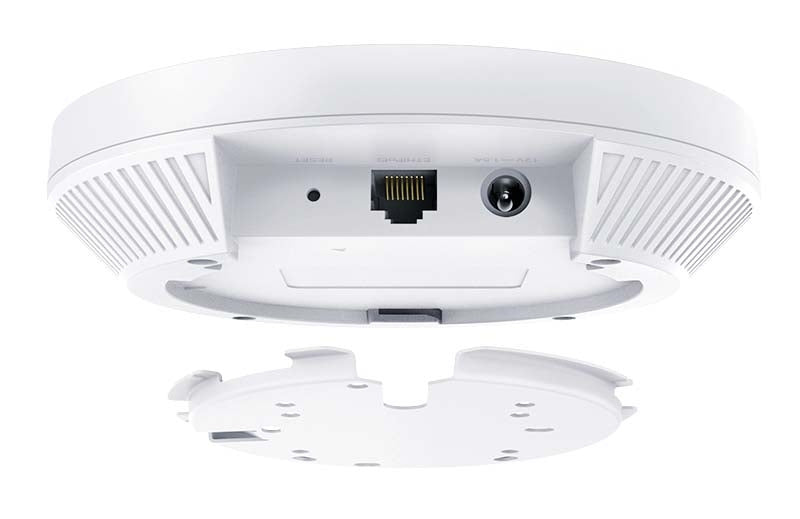

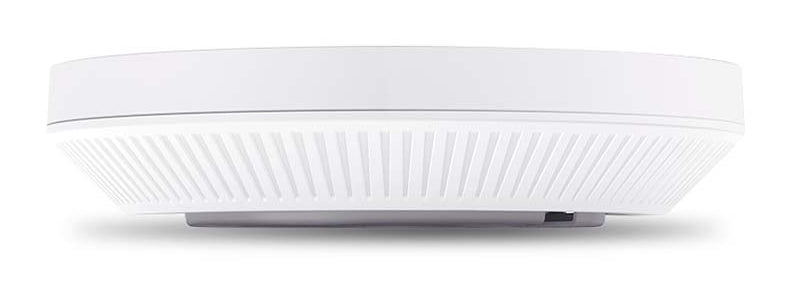

TP-Link Omada AX1800 Wireless Dual Band Ceiling Mount Access Point, 2.4 GHz, 5 GHz, 1775 Mbit/s, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise, 10,100,1000 Mbit/s

TP-Link Omada AX1800 Wireless Dual Band Ceiling Mount Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1775 Mbit/s. Security algorithms: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

• 2.4 GHz 574 Mbit/s
• 5 GHz 1201 Mbit/s
• Maximum data transfer rate: 1775 Mbit/s
• IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
• WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
• Power over Ethernet (PoE)
• Internal

Features

Features
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1775 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Automatic channel selection	Yes
Automatic channel scanning	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Fit AP mode features	Mesh networking
VLAN support	Yes
Rate limiting	Yes
Flow control support	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Quality of Service (QoS) support	Yes
Transmitting power (CE)	<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, EIRP)
Transmitting power (FCC)	<25 dBm (2.4 GHz); <25 dBm (5 GHz)
Security
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
MAC address filtering	Yes
Access Control List (ACL)	Yes
Management features
Web-based management	Yes
Syslog	Yes
Firmware upgradeable	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
DC voltage range	12 V
Design

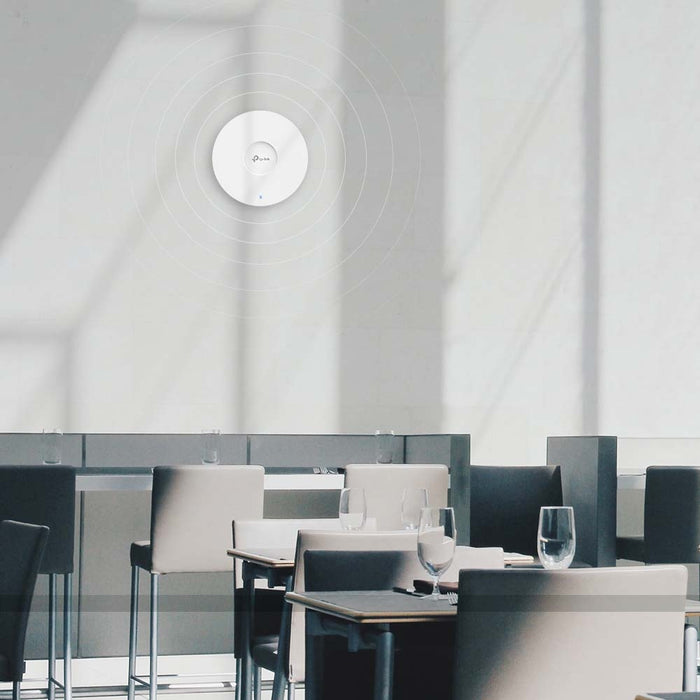

Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
LED indicators	Yes
Antenna
Antenna type	Internal
Certificates
Certification	CE, FCC, RoHS
Weight & dimensions
Width	160 mm
Depth	160 mm
Height	33.6 mm
Packaging data

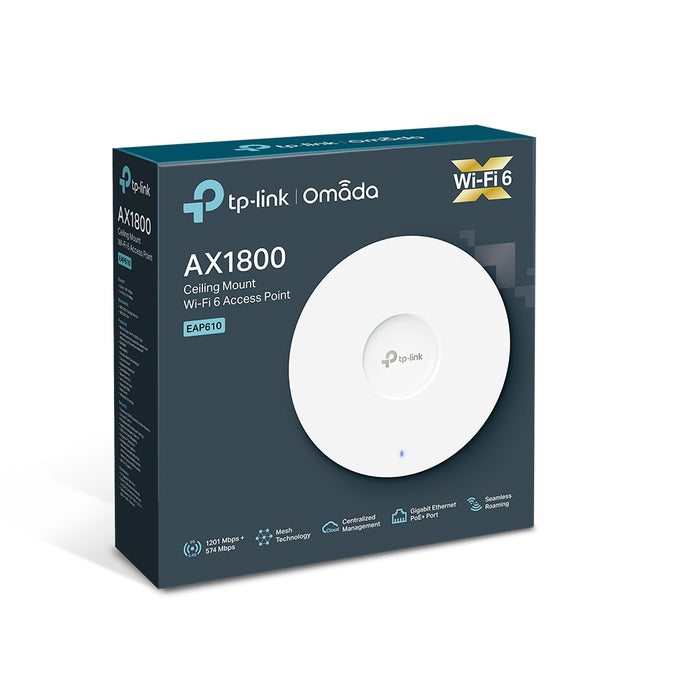

Package type	Box
Packaging content
Quantity per pack	1 pc(s)
Mounting kit	Yes
Quick start guide	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
