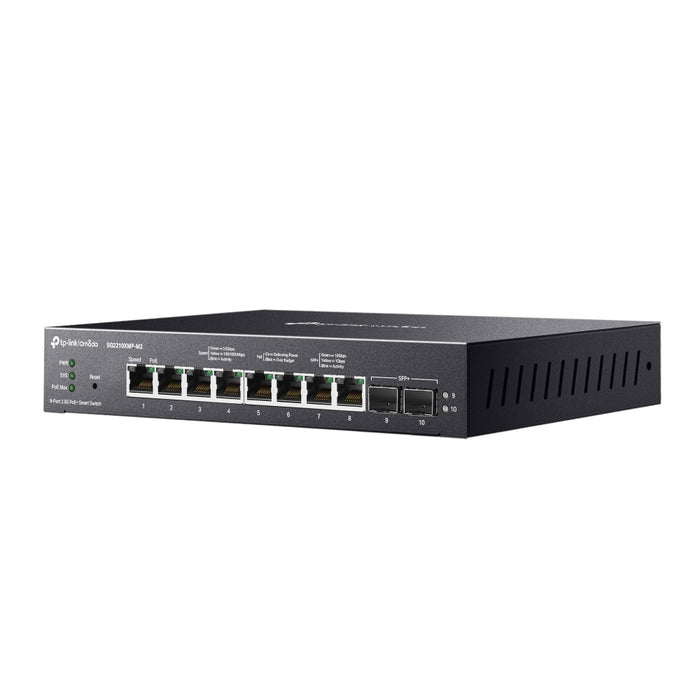

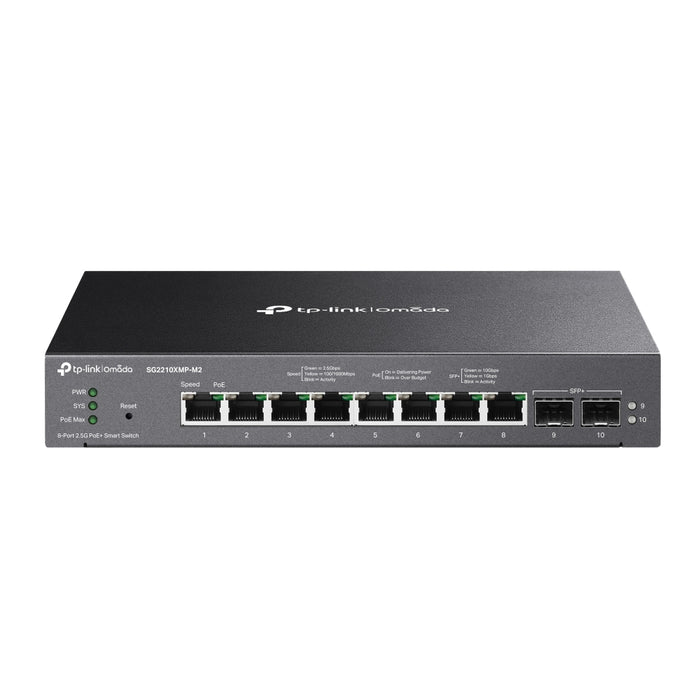

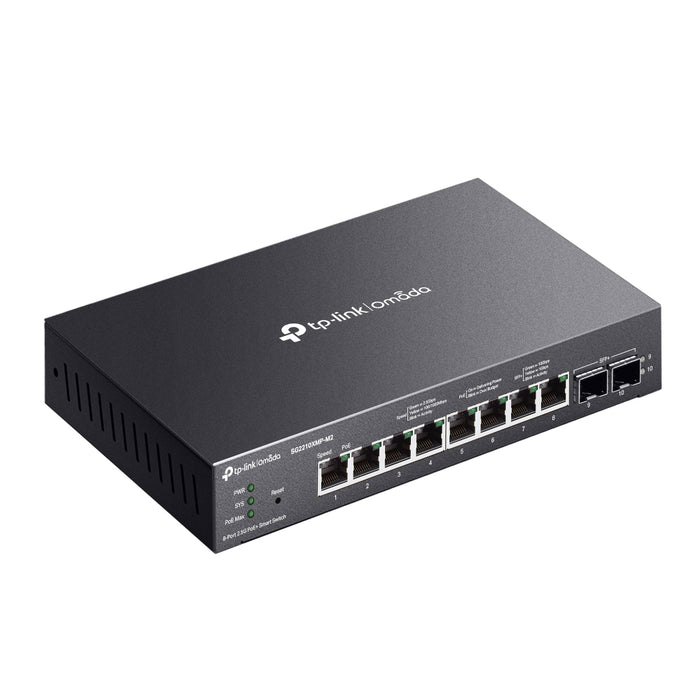

TP-Link Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+, Managed, L2/L2+, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting, Wall mountable

TP-Link Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 16000 entries, Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x. Power connector: AC/DC. Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: Desktop/Wall-Mounting

• Managed L2/L2+ Web-based management
• Quality of Service (QoS) support Configuring Location Settings (CLI)
• Basic switching RJ-45 Ethernet ports quantity: 8
• MAC address table: 16000 entries Switching capacity: 80 Gbit/s
• Access Control List (ACL)
• Desktop/Wall-Mounting Rack mounting
• AC Power supply included Power over Ethernet (PoE)

Features

Management features
Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity	2
Power connector	AC/DC
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
10G support	No
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
VLAN support	Yes
Virtual LAN features	Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
Data transmission
Switching capacity	80 Gbit/s
Forwarding rate	59.52 Mpps
MAC address table	16000 entries
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	9 MB
Security
DHCP features	DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
Loop protection	Yes
Authentication	MAC-based authentication, Port-based authentication
Authentication type	RADIUS
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Form factor	Desktop/Wall-Mounting
Product colour	Black
Reset button	Yes
LED indicators	Yes
Wall mountable	Yes
Power
Power source	AC
Power supply included	Yes
Power consumption (max)	180.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	160 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	614.58 BTU/h
Weight & dimensions
Width	226 mm
Depth	131 mm
Height	35 mm
Packaging content
Quick start guide	Yes
Sustainability
Sustainability compliance	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
