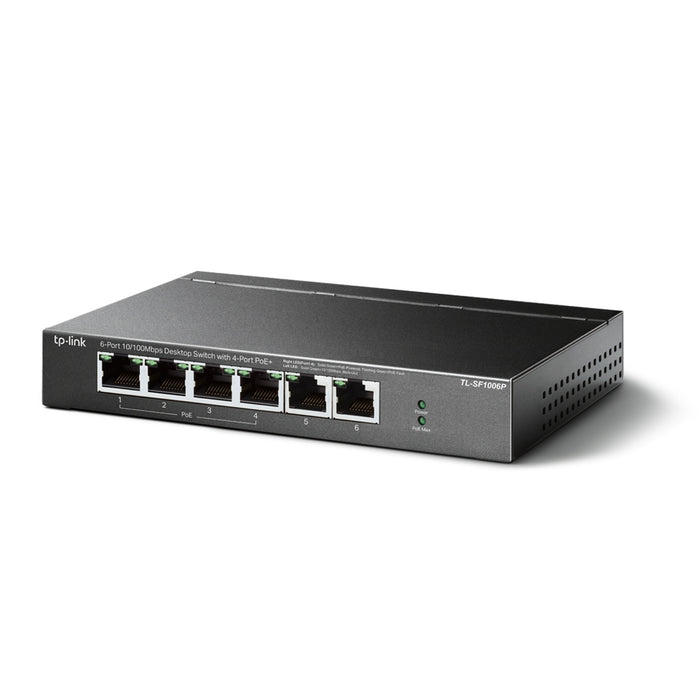

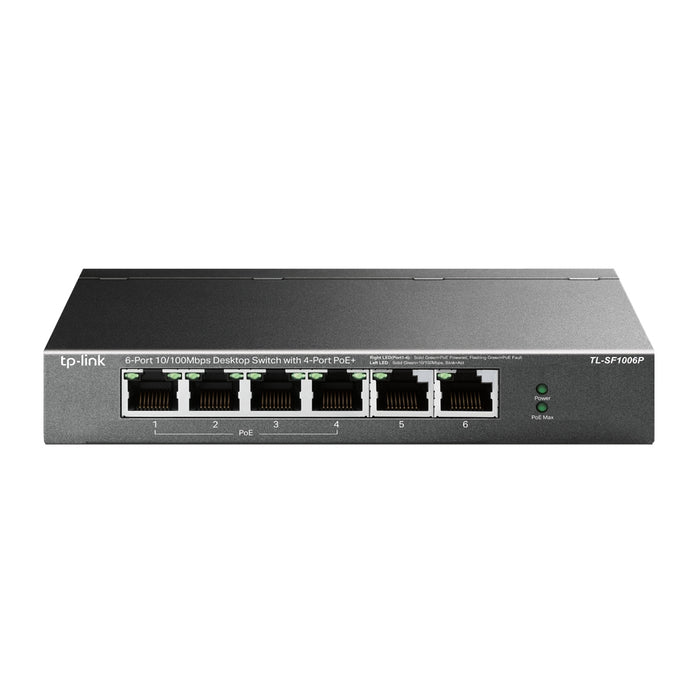

TP-Link TL-SF1006P, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)

TP-Link TL-SF1006P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 53.5 V. Power over Ethernet (PoE)

• Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 6
• Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-TX, 100BASE-T
• MAC address table: 2000 entries Switching capacity: 1.2 Gbit/s
• DC/PoE Power supply included Power over Ethernet (PoE)

Features

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Data transmission
Switching capacity	1.2 Gbit/s
Forwarding rate	0.8928 Mpps
MAC address table	2000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	2000
Design
Rack mounting	No
Stackable	No
Product colour	Black
Housing material	Metal
LED indicators	Yes
Performance
Fanless	Yes
Power
Power source	DC/PoE
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	53.5 V
Input current	1.31 A
Power consumption (max)	74 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	67 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	252.34 BTU/h
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	25 mm
Packaging content
User guide	Yes
Packaging data
AC adapter included	Yes
Package type	Box
Package width	131 mm
Package depth	196 mm
Package height	121 mm
Package weight	870 g
Sustainability
Sustainability compliance	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	FCC, CE, RoHS
Logistics data
Harmonized System (HS) code	85176990
